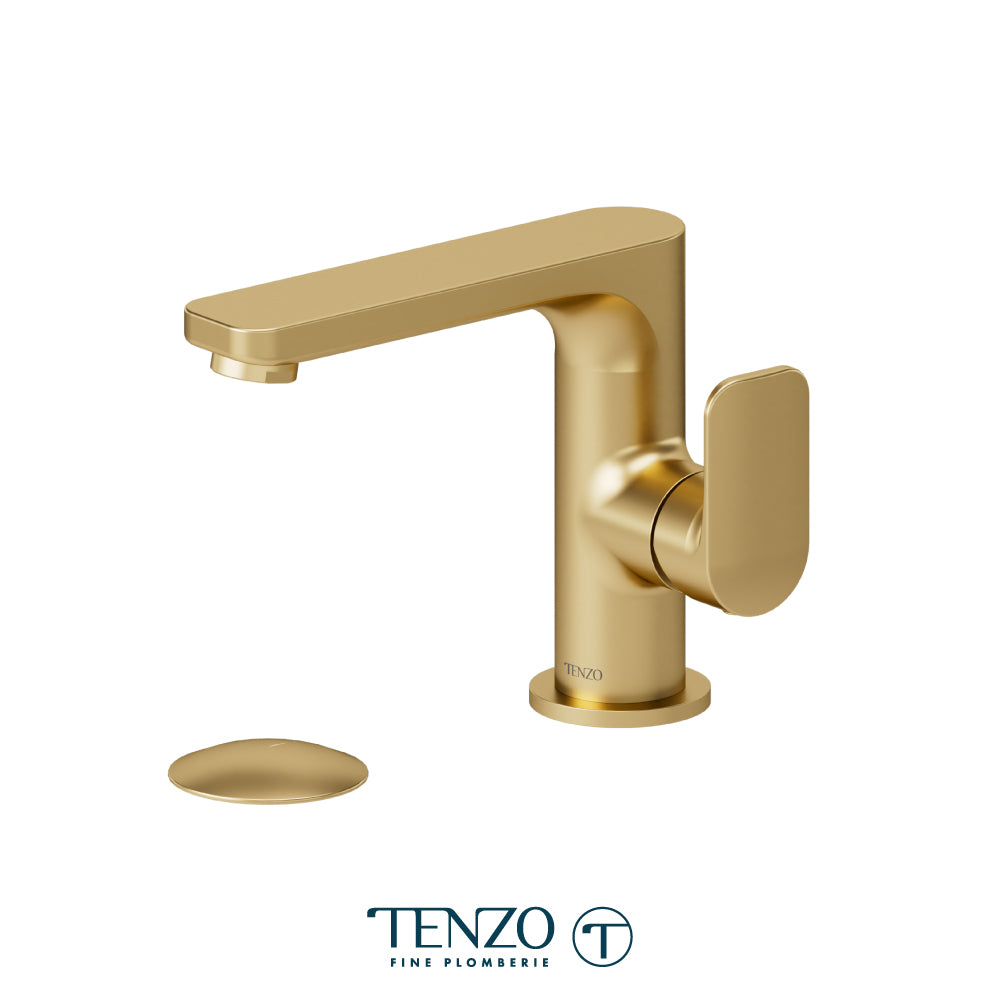

Tenzo Delano Side-Lever Single Hole Lavatory Faucet, Drain with Overflow - DE10-P

Tenzo Delano Single Hole Lavatory Faucet, Drain with Overflow - DE10-P

The Delano single-lever lavatory faucet in solid brass, 137 mm [5 3/8"] to the spout, supplied with its matching pop-up drain for a basin that has an overflow.

What's included

• Single hole lavatory faucet, solid brass
• Matching pop-up drain, with overflow
• Nylon/PEX braided supply hoses

Features

• A flat, squared spout on a round column, with a soft-rectangular blade lever on the side of the body.
• Stands 169 mm [6 5/8"] overall, 137 mm [5 3/8"] to the spout outlet, reaching 130 mm [5 1/8"] from the centre of the base.
• Ceramic disc cartridge — one lever sets both temperature and volume.
• Pop-up drain included, finished to match the faucet.
• Braided nylon/PEX supply hoses supplied, so no separate connectors are needed.
• Solid brass body.
• Five finishes.

Specifications

• Room: Bathroom
• Product Type: Lavatory Faucet
• Collection: Delano
• Style: Modern
• Hole Configuration: 1
• Handles: Single lever
• Mounting Location: Sink / Countertop
• Installation Type: Deck Mount
• Overall Height: 169 mm [6 5/8"]
• Spout Height: 137 mm [5 3/8"]
• Spout Reach: 130 mm [5 1/8"]
• Base Diameter: 50 mm [1 15/16"]
• Flow Rate: 4.5 L/min [1.2 gpm] @ 60 psi
• Supply Connection: 3/8" female
• Cartridge: Ceramic (CAR-CT-SL25-01)
• Drain: Pop-up, with overflow
• Material: Solid brass

Good to know

• This is the version for a basin with an overflow. DE10-W is the same faucet supplied with the drain for a basin that has no overflow.
• The Delano single-hole faucet comes in three heights for different basins. DE10M stands 210 mm [8 1/4"] for a shallow or semi-recessed basin, and DE10H stands 247 mm [9 3/4"] for a vessel.
• Replacement cartridge: CAR-CT-SL25-01.

Certifications & Warranty

• cUPC / ASME A112.18.1-2024 / CSA B125.1-24
• NSF / ANSI / CAN 61
• Lead free — NSF 372
• Limited lifetime warranty
