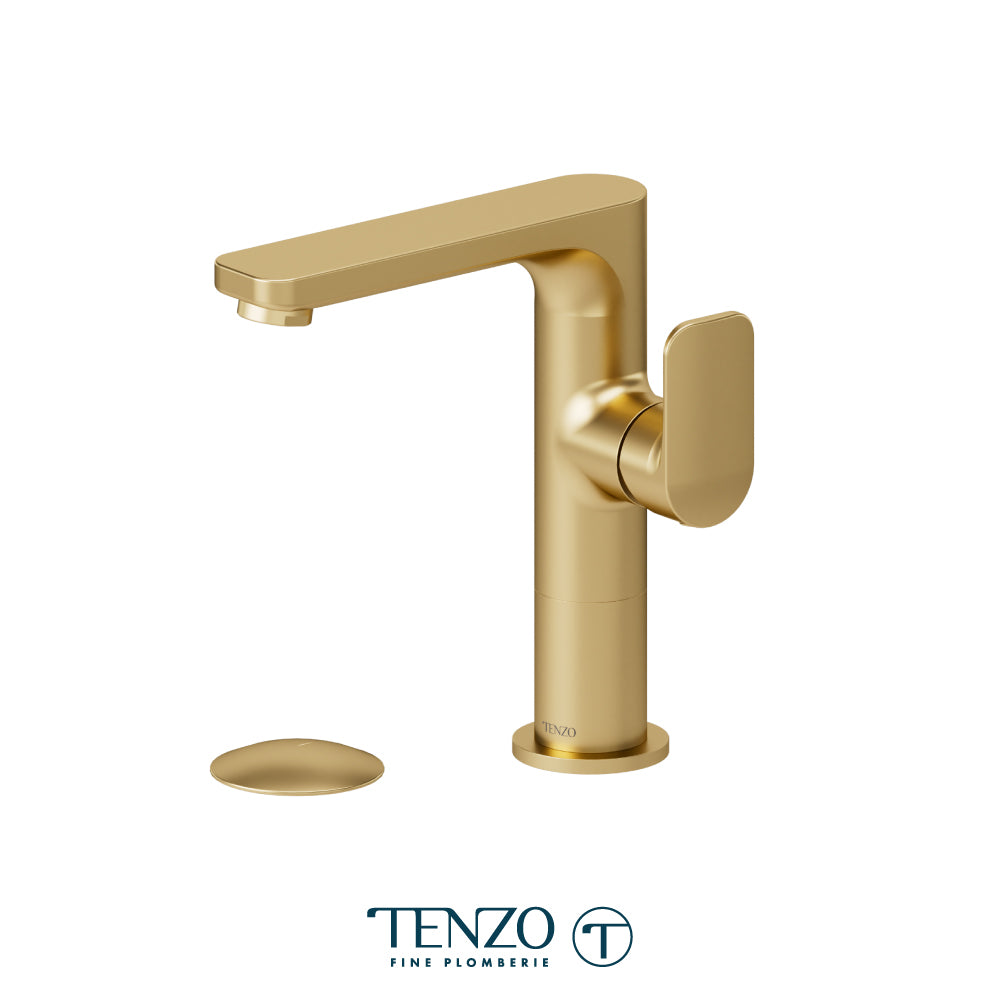

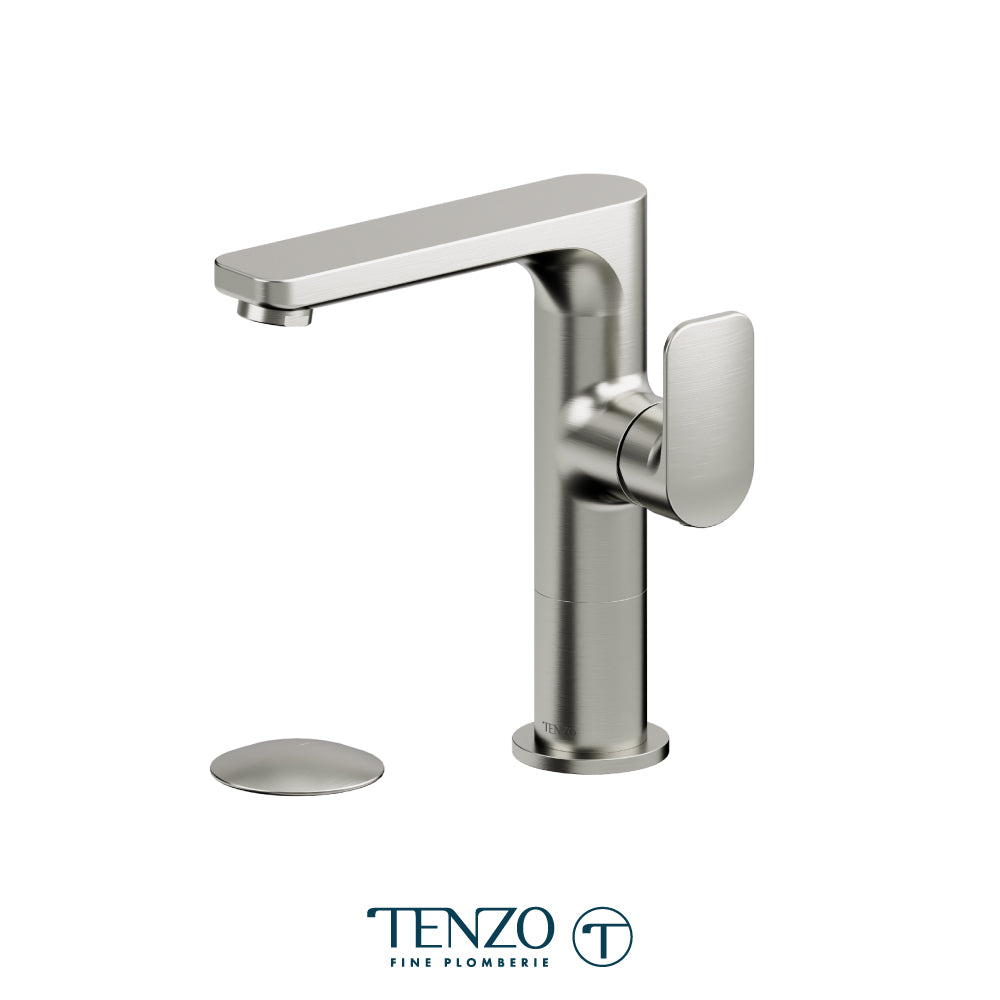

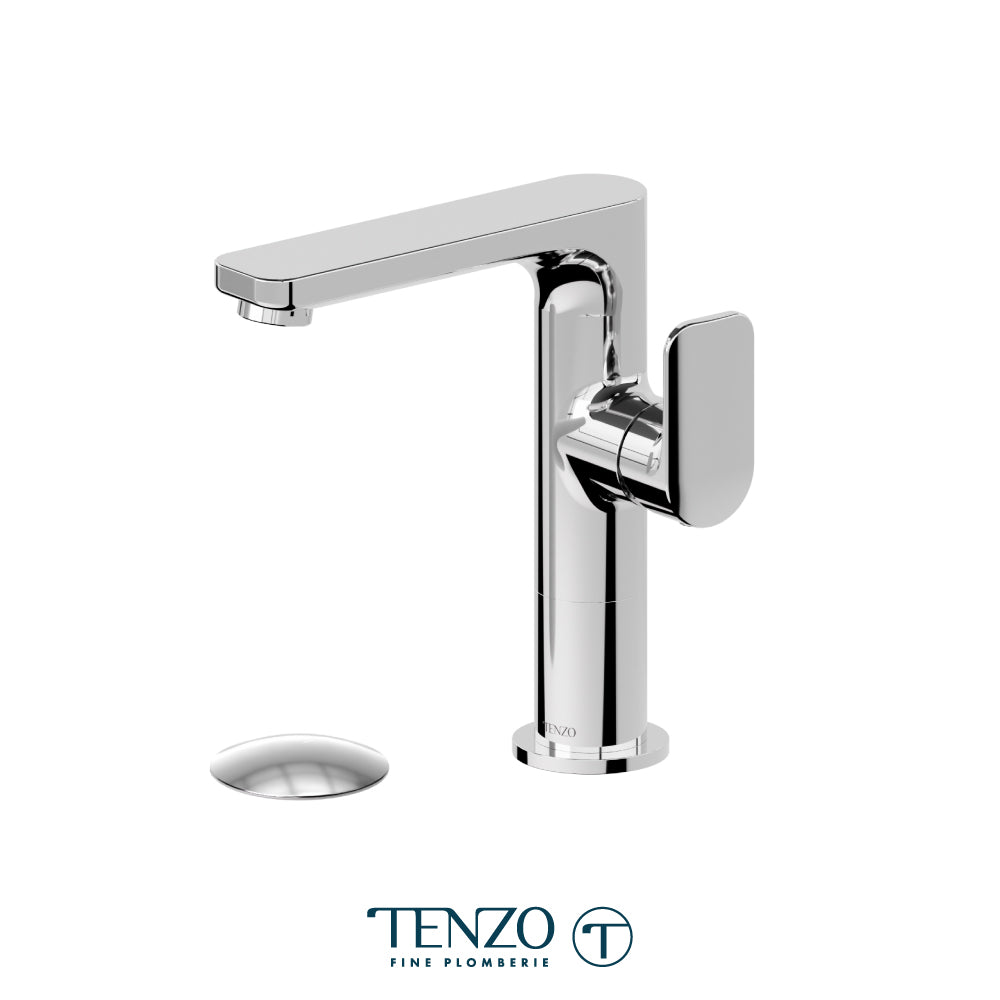

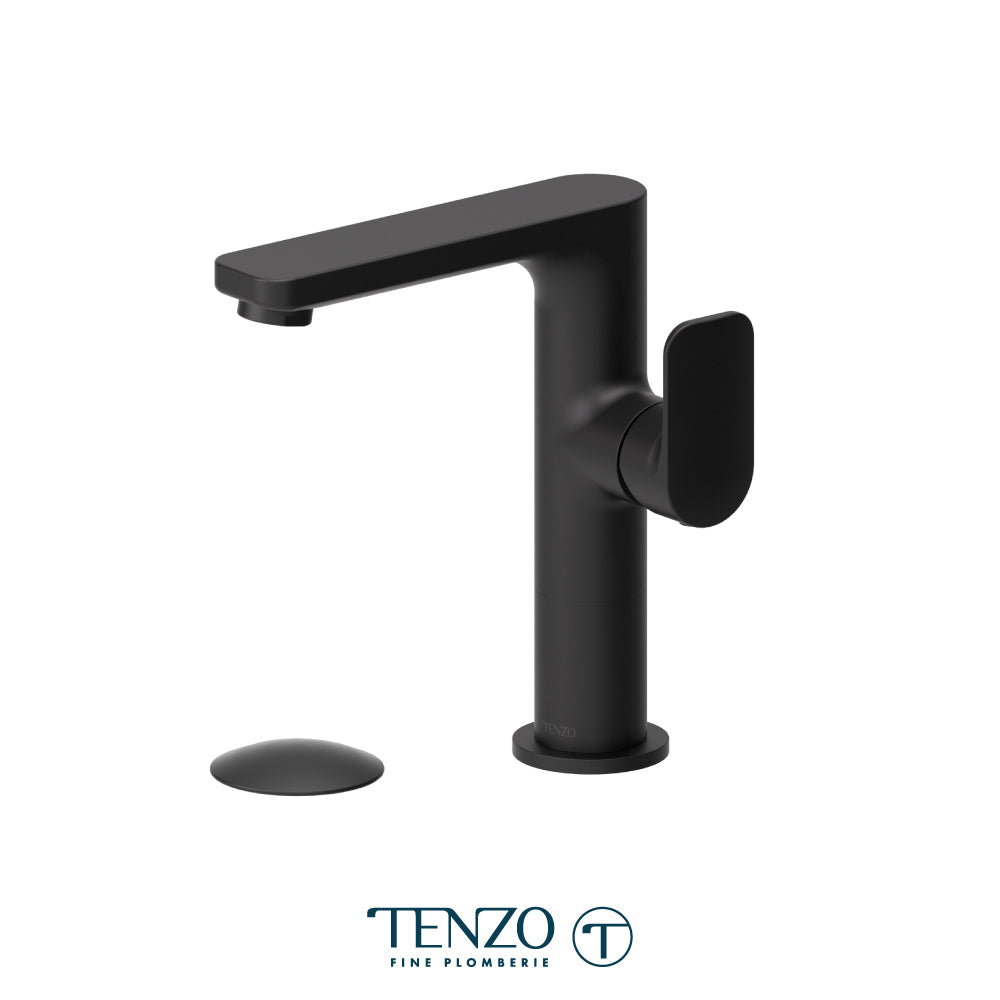

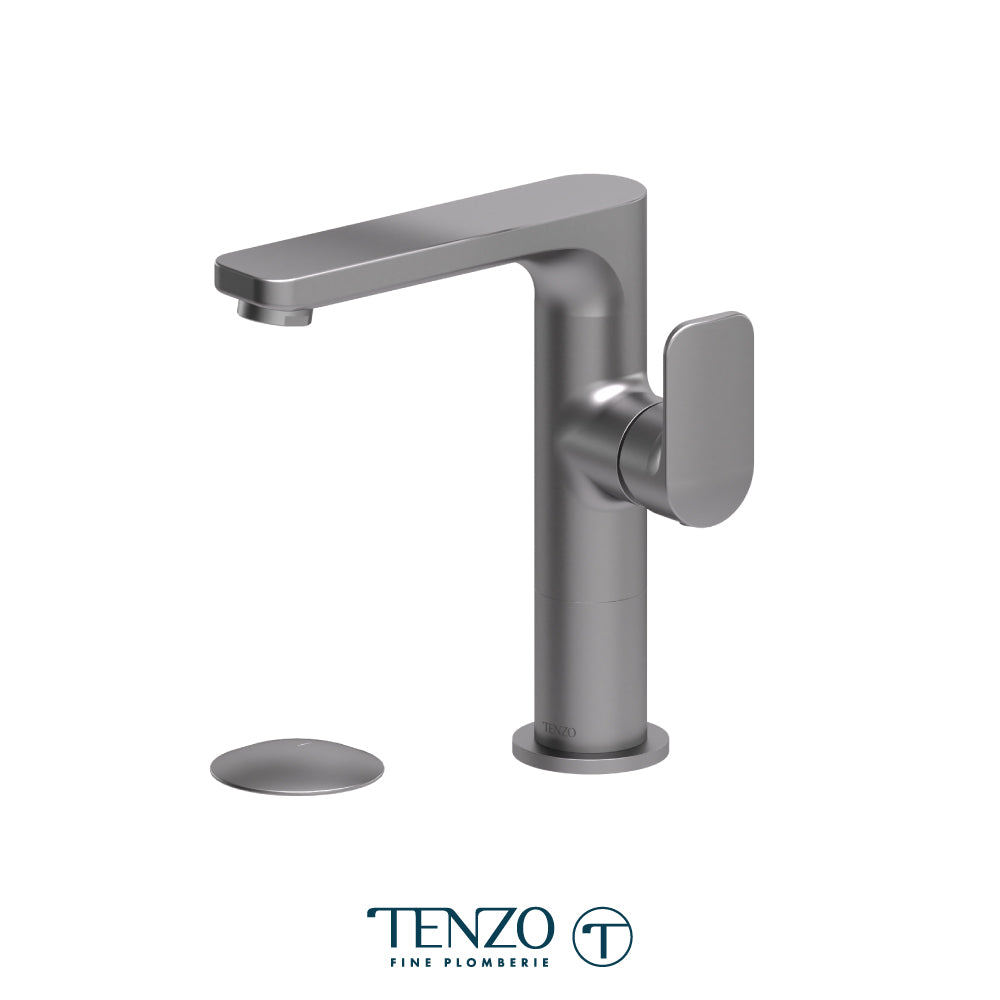

Tenzo Delano Side-Lever Mid-Height Single Hole Lavatory Faucet, Drain without Overflow - DE10M-W

Tenzo Delano Mid-Height Single Hole Lavatory Faucet, Drain without Overflow - DE10M-W

The Delano single-lever lavatory faucet in solid brass, 187 mm [7 3/8"] to the spout, supplied with its matching pop-up drain for a basin with no overflow.

What's included

• Single hole lavatory faucet, solid brass
• Matching pop-up drain, without overflow
• Nylon/PEX braided supply hoses

Features

• A flat, squared spout on a round column, with a soft-rectangular blade lever on the side of the body.
• Stands 210 mm [8 1/4"] overall, 187 mm [7 3/8"] to the spout outlet, reaching 170 mm [6 11/16"] from the centre of the base.
• Ceramic disc cartridge — one lever sets both temperature and volume.
• Pop-up drain included, finished to match the faucet.
• Braided nylon/PEX supply hoses supplied, so no separate connectors are needed.
• Solid brass body.
• Five finishes.

Specifications

• Room: Bathroom
• Product Type: Lavatory Faucet
• Collection: Delano
• Style: Modern
• Hole Configuration: 1
• Handles: Single lever
• Mounting Location: Sink / Countertop
• Installation Type: Deck Mount
• Overall Height: 210 mm [8 1/4"]
• Spout Height: 187 mm [7 3/8"]
• Spout Reach: 170 mm [6 11/16"]
• Base Diameter: 50 mm [1 15/16"]
• Flow Rate: 4.5 L/min [1.2 gpm] @ 60 psi
• Supply Connection: 3/8" female
• Cartridge: Ceramic (CAR-CT-SL25-01)
• Drain: Pop-up, without overflow
• Material: Solid brass

Good to know

• This is the version for a basin with no overflow. DE10M-P is the same faucet supplied with the drain for a basin that has an overflow.
• The Delano single-hole faucet comes in three heights for different basins. DE10 stands 169 mm [6 5/8"] for a standard basin, and DE10H stands 247 mm [9 3/4"] for a vessel.
• Replacement cartridge: CAR-CT-SL25-01.

Certifications & Warranty

• cUPC / ASME A112.18.1-2024 / CSA B125.1-24
• NSF / ANSI / CAN 61
• Lead free — NSF 372
• Limited lifetime warranty
