Tenzo Delano Extenza 2-Function Thermostatic High-Flow Shower Valve, Rough & Trim - DET42

Tenzo Delano Extenza 2-Function Thermostatic High-Flow Shower Valve, Rough & Trim - DET42

The complete Delano Extenza valve, sold as the high-flow rough-in body plus the 2-function thermostatic trim.

What's included

• Extenza rough-in valve body, 2 functions (R-42)

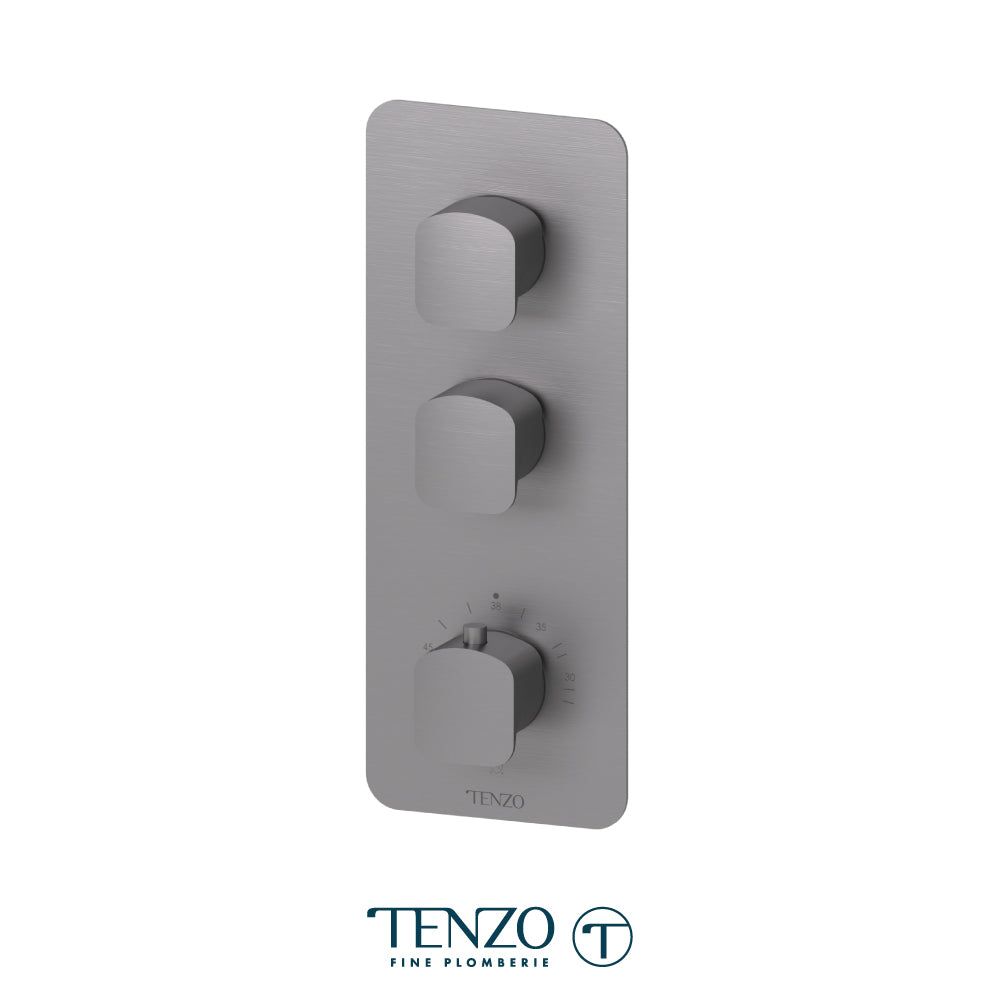

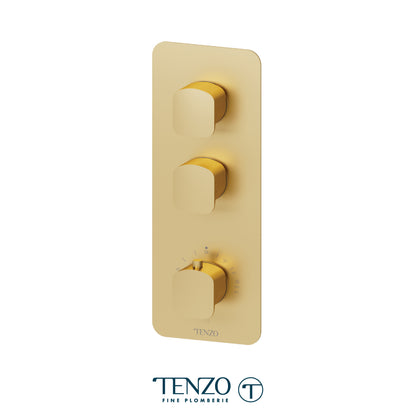

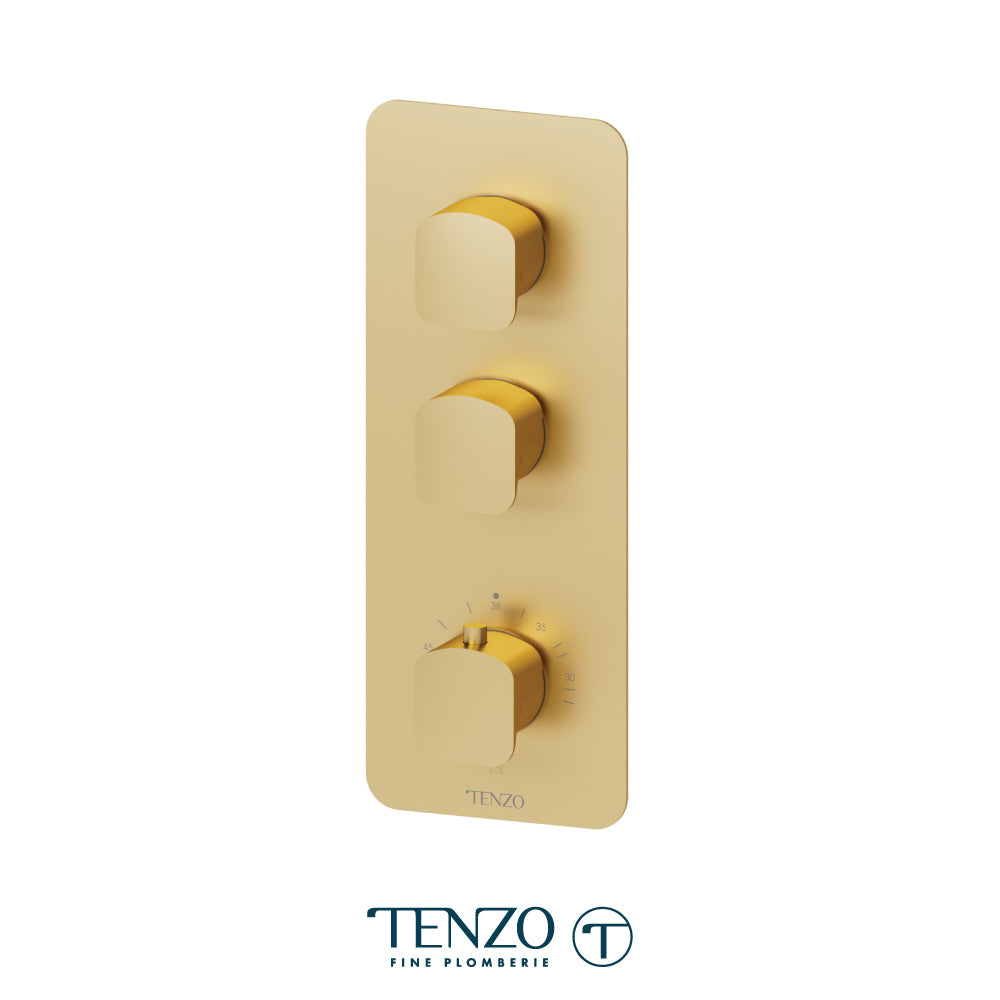

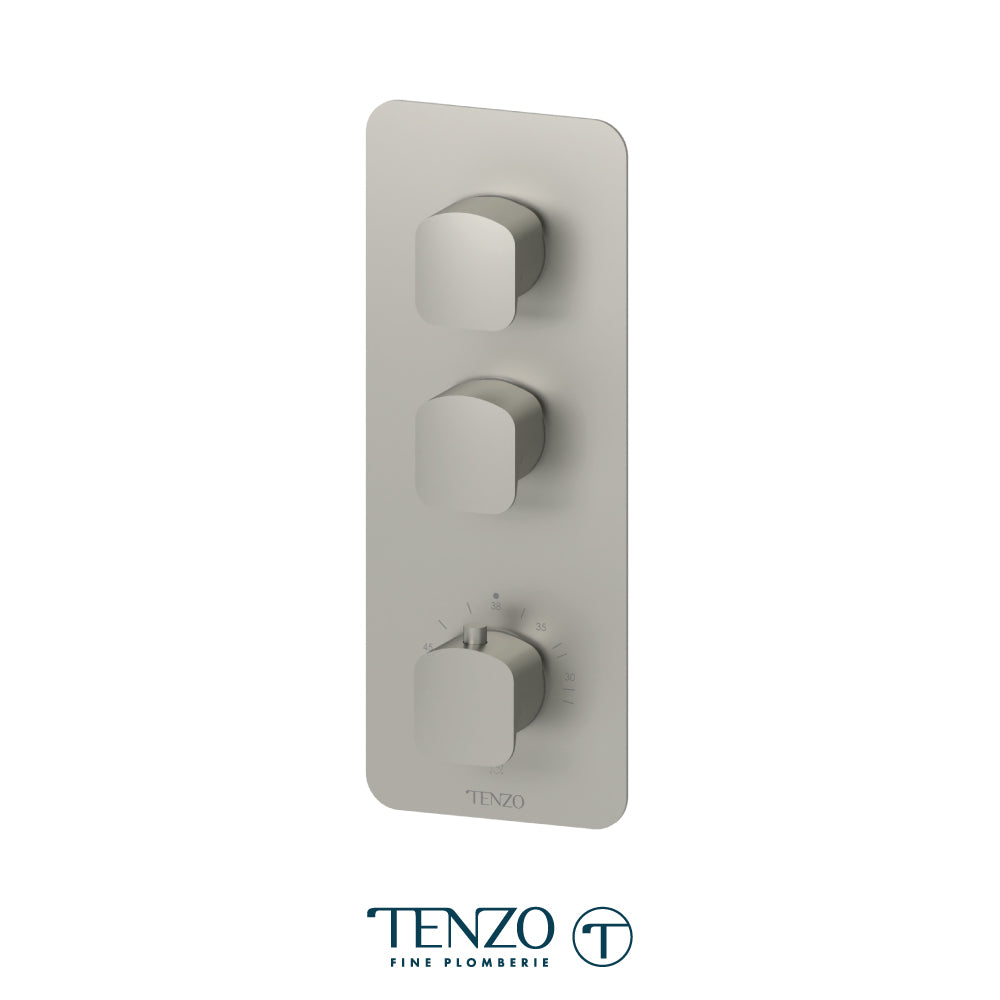

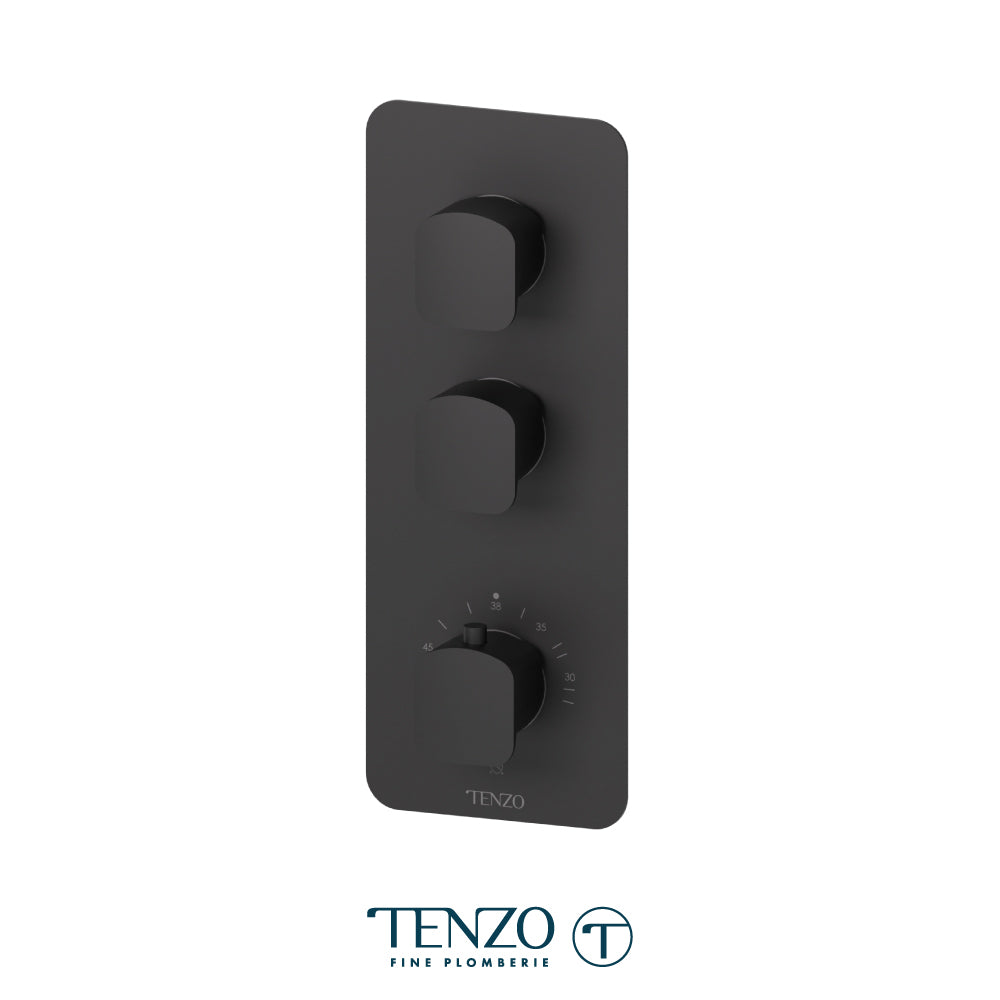

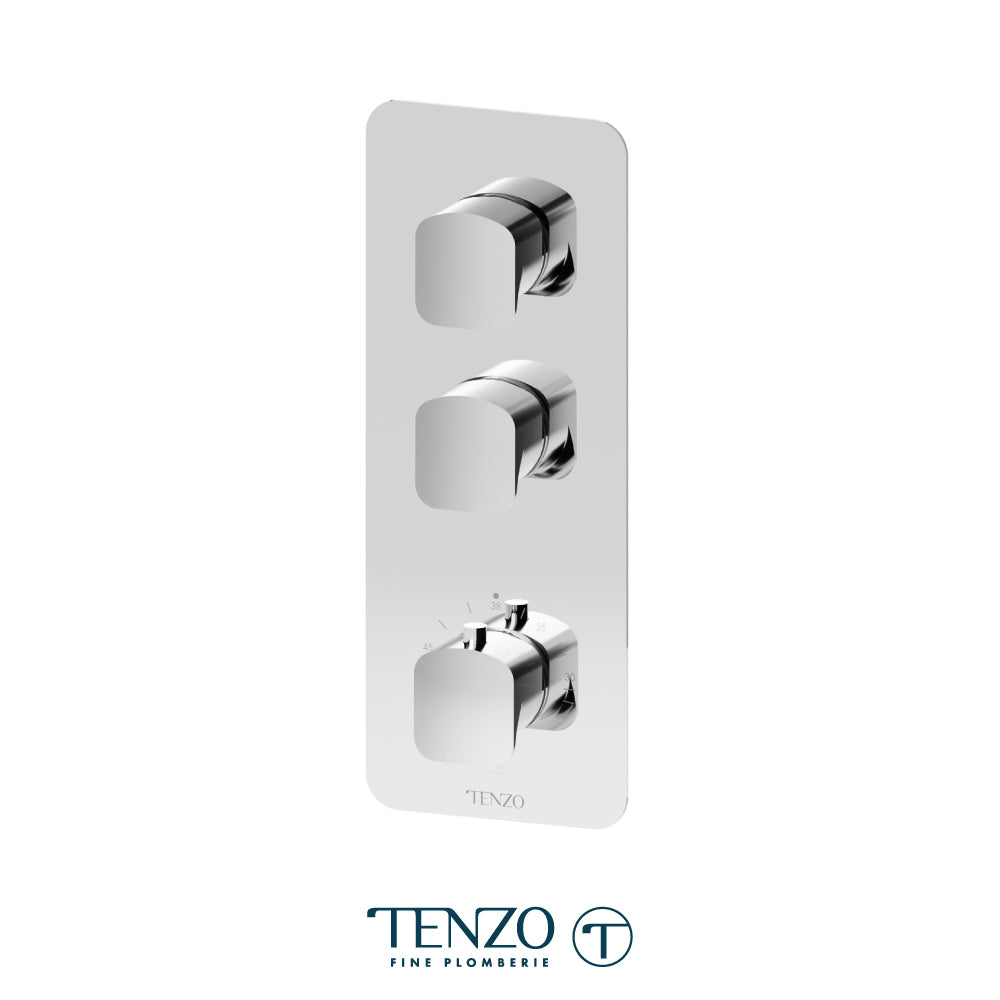

• Delano Extenza trim, 2 functions, thermostatic (F-DET42)

Features

• Extenza is the 3/4" platform, close to twice the throughput of the 1/2" T-Box, which is the headroom a multi-outlet shower needs.
• Thermostatic valve rated 45 L/min [12 gpm] at 60 psi.
• Vernet thermostatic cartridge, made in France.
• 2 shut-off valves, each with outlets on both sides, so every outlet runs on its own control and any combination can run at once.
• Additional direct 3/4" port on top for an independent shut-off added later.
• Service check and stop valves.
• Hot and cold inlets from the bottom and the side.
• Installation depth: min. 3 1/2", max. 4 1/2".
• Solid brass trim.
• 5 finishes.

Specifications

• Room: Bathroom
• Product Type: Shower Valve
• Collection: Delano
• Style: Modern
• System: Extenza
• Valve: Thermostatic, high flow
• Functions: 2
• Flow Rate: 45 L/min [12 gpm] @ 60 psi
• Supply Connection: 3/4" NPT female
• Thermostatic Cartridge: Vernet, made in France (CAR-VNT-T34-07)
• Shut-Off Cartridge: CAR-HA-SO34-108-01
• Material: Solid brass

Good to know

• Trim only, where the rough is already in the wall, is F-DET42.
• The rough on its own is R-42.
• Extenza is a different platform from T-Box: 3/4" NPT rather than 1/2" PEX, and a deeper body. Check the rough-in depth before specifying.
• The complete shower kits built on this trim are the DET42- range.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
