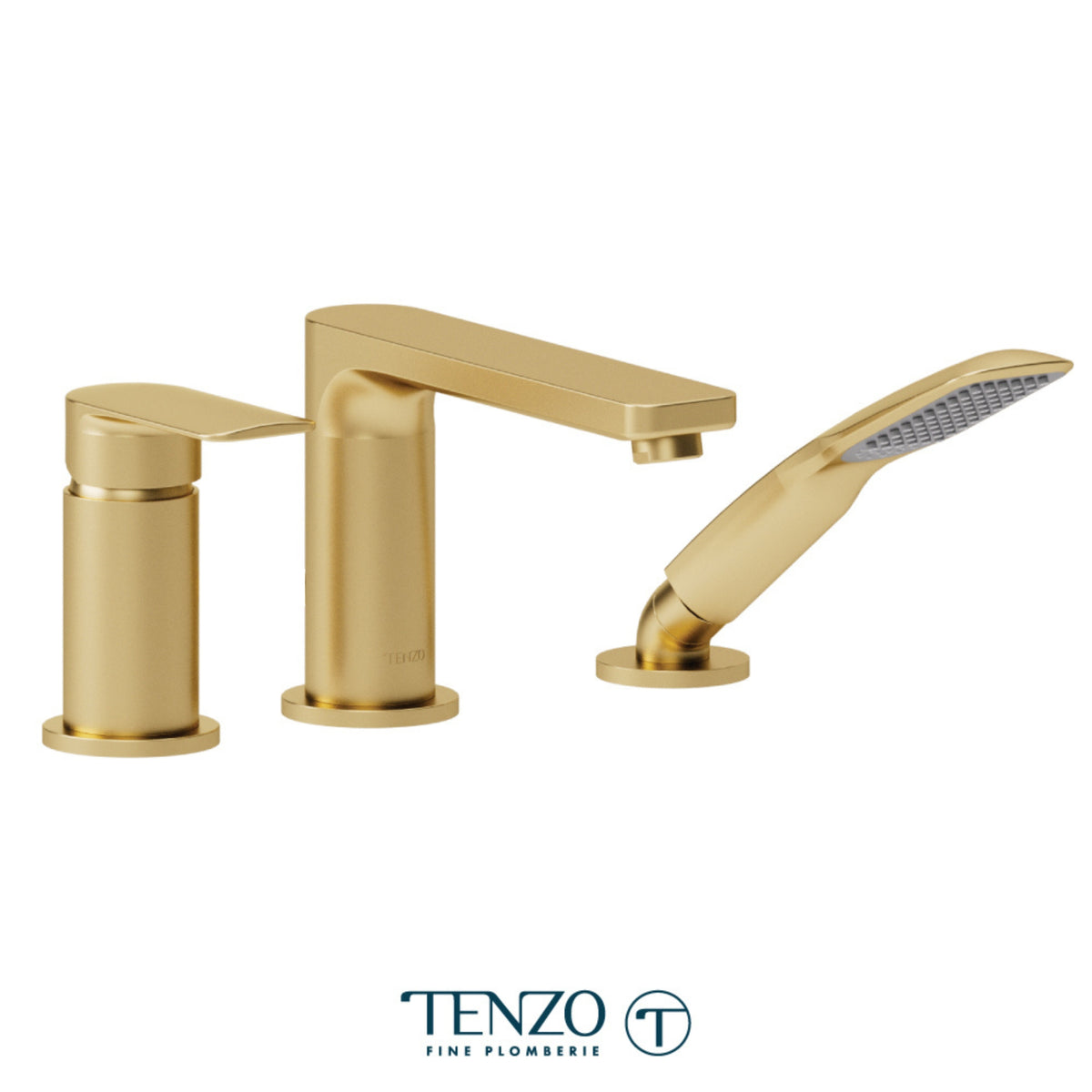

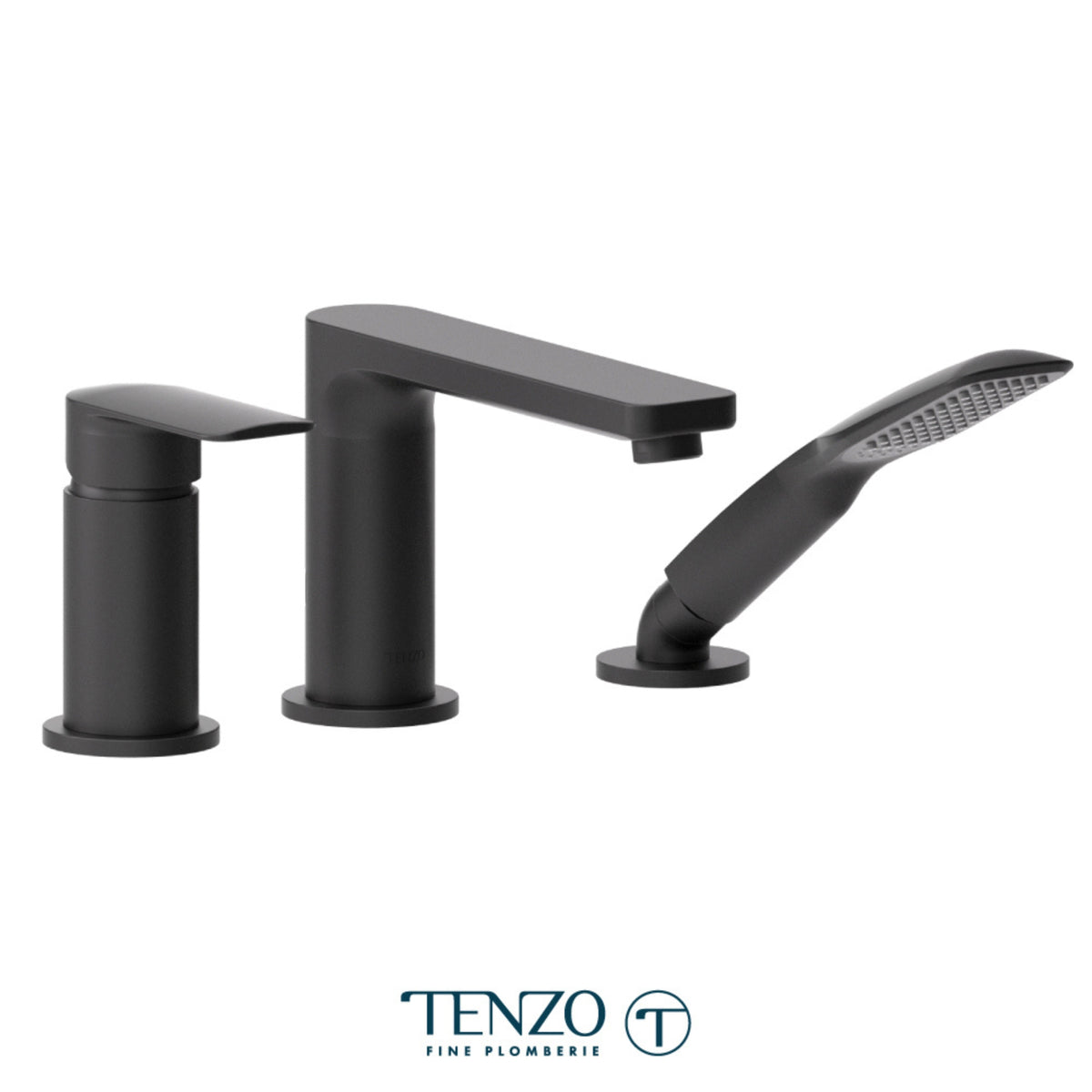

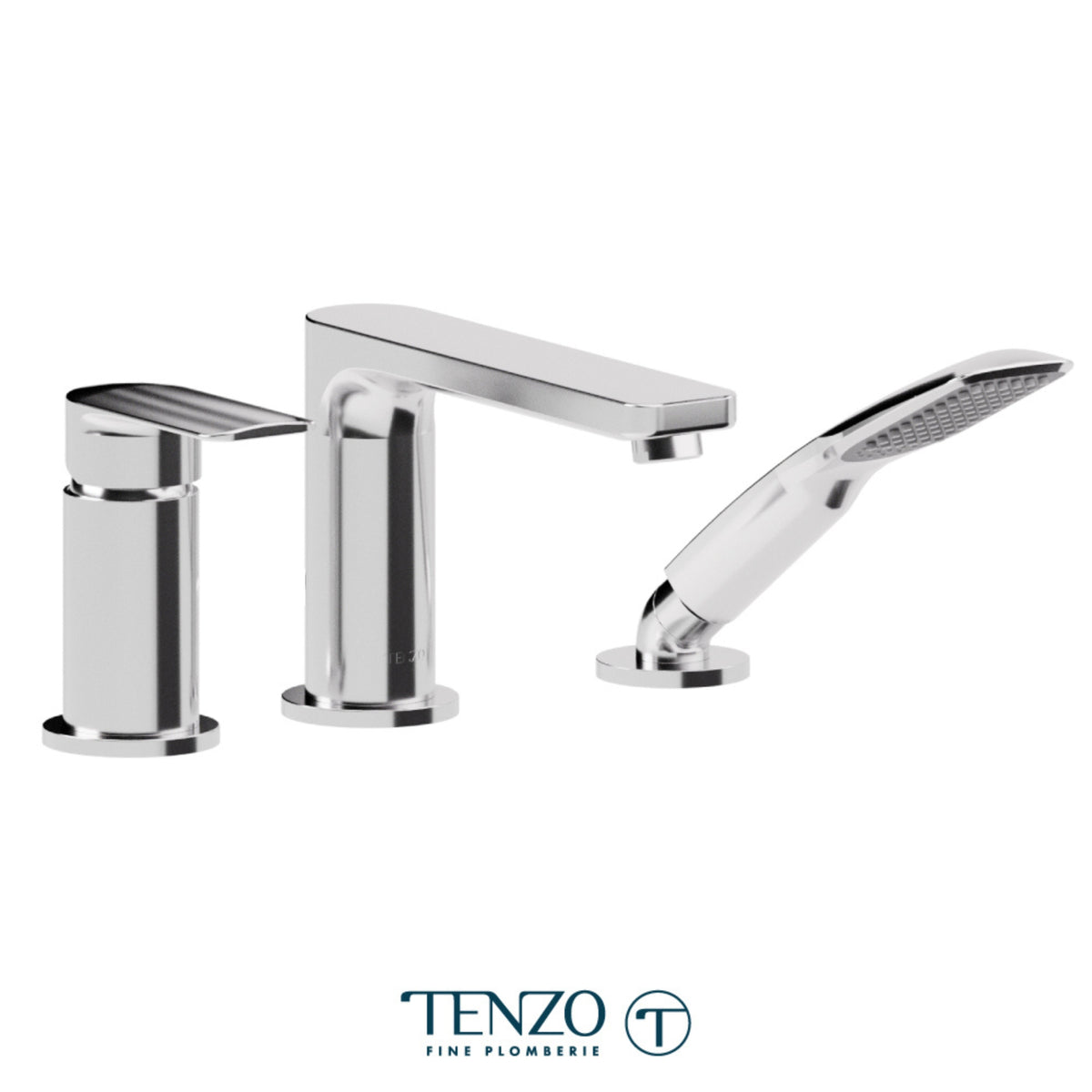

Tenzo Delano 3-Piece Deck Mount Tub Filler with Hand Shower - DE35-PB

Tenzo Delano 3-Piece Deck Mount Tub Filler with Hand Shower - DE35-PB

The Delano deck mount tub filler in solid brass, laid out across three deck holes with a pressure-balanced cartridge.

What's included

• Tub filler spout, solid brass
• Single lever handle
• Hand shower (HS-223)

Features

• Three deck holes: lever, spout and hand shower each on their own escutcheon.
• Pressure-balanced cartridge CAR-HY-PB-JH04BD holds temperature when another fixture draws water.
• Press-button diverter sends water to the hand shower.
• Spout runs 25 L/min [6.6 gpm] at 60 psi.
• Solid brass body.
• 5 finishes.

Specifications

• Room: Bathroom
• Product Type: Tub Filler
• Collection: Delano
• Style: Modern
• Hole Configuration: 3
• Handles: Single lever
• Mounting Location: Tub deck
• Installation Type: Deck Mount
• Spout Flow Rate: 25 L/min [6.6 gpm] @ 60 psi
• Supply Connection: 1/2" female
• Cartridge: Pressure balanced, ceramic
• Diverter: Press button
• Material: Solid brass

Good to know

• Tenzo is changing this model from a lever diverter to a push-button diverter. The difference sits at the back of the spout and is cosmetic; first-generation stock ships until it runs out.
• Replacement cartridge is CAR-HY-PB-JH04BD, the pressure balance cartridge.
• For two deck holes instead of three, DE31 puts the lever on the spout body.
• For a tub with no deck, DE52 is the freestanding floor-mount filler.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty

Shop the Tenzo Delano tub fillers at e-unoia.com
