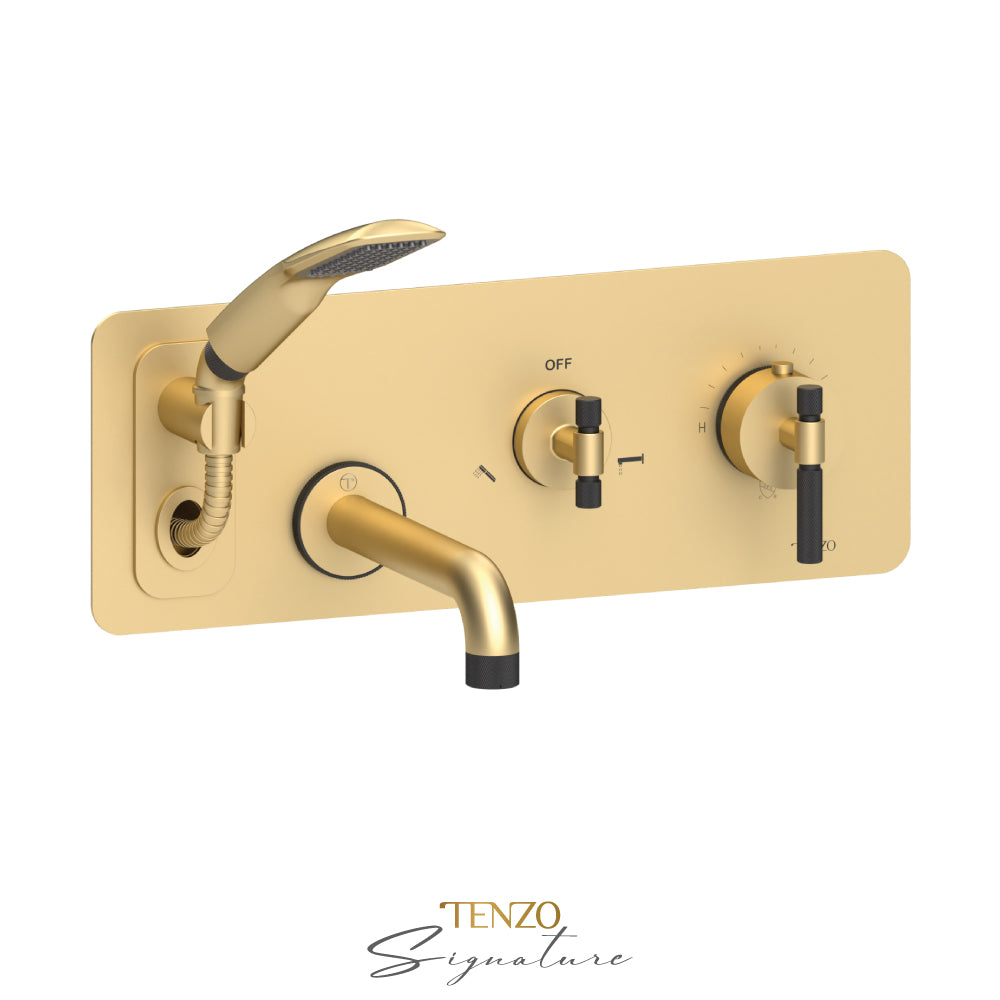

Tenzo Bellacio Wall Mount Thermostatic Tub Filler Trim With Hand Shower, Smaller Knurled - F-BET73-F

Tenzo Bellacio Wall Mount Thermostatic Tub Filler Trim With Hand Shower, Smaller Knurled - F-BET73-F

Every visible part of the Bellacio wall-mount thermostatic tub filler, for a wall where the rough-in valve is already in place.

What's included

• Bellacio-F thermostatic trim plate with handles and diverter trim (F-BET73-F-XX)
• Bellacio wall-mount tub spout, solid brass, slip-fit (BS-312-F-XX)
• Single-function hand shower (HS-223-XX) with a 150 cm [59"] retractable hose

Not included

• Wall-mount tub filler rough-in valve (R-70)

Features

• Trim only, every visible above-surface part, finished to match.
• Thermostatic cartridge holds the set temperature against both pressure and supply temperature changes, and shuts off if the cold supply fails.
• Two-function diverter with no shared zone: full flow to whichever outlet is open, tub spout or hand shower.
• Two controls on the plate: a diverter lever marked OFF above the two outlet positions, and a graduated temperature dial.
• Bellacio tub spout, solid brass, slip-fit, with a knurled base collar and tip band matching the handles.
• Hand shower in PVC with anti-limescale silicone nozzles, on a retractable hose that stows into the plate.
• Fine diamond knurl on the handles, collars and hand-shower grip, the same pattern cut at a much smaller pitch.
• F-BET73-C is the same trim with the larger knurl, at the same price.
• Solid brass.
• Eight finishes. Five are two-tone; the accent colour applies to the knurled detailing.

Specifications

• Room: Bathroom
• Product Type: Wall-Mount Tub Filler Trim
• Collection: Bellacio (Tenzo Signature)
• Style: Contemporary
• Valve Type: Thermostatic
• Functions: 2 (tub spout / hand shower)
• Tub Spout: Bellacio wall mount, solid brass, slip-fit
• Hand Shower: Single function, PVC, on a 150 cm [59"] retractable hose
• Tub Spout Flow Rate: 30 L/min [7.9 gpm] @ 60 psi
• Hand Shower Flow Rate: 7.6 L/min [2.0 gpm] @ 60 psi
• Supply Connection: 1/2" NPT female (on the rough-in)
• Supplied As: Trim only, no rough-in
• Material: Solid brass

Good to know

• The rough-in is not included. Ordered complete with the rough, this is BET73-F.
• Order this version only where the rough is already set in the wall and the finish is being changed or completed.
• The thermostatic cartridge (CAR-VNT-T34-01, Vernet) and the diverter cartridge (CAR-HA-DV3-33097-01) sit in the R-70 rough, not in the trim.
• The R-70 rough is shared across every Tenzo wall-mount tub filler, so the valve can go in before the collection is chosen.
• The diverter has no shared zone, so the spout and the hand shower run one at a time rather than together.
• F-BET74-F is the same trim with a 30 cm [12"] 180 degree swivel spout in place of the fixed Bellacio spout.
• On two-tone finishes the first colour is the body and the second the knurled detailing: handles, hand-shower grip, and the spout's base collar and tip band.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
