Tenzo Bellacio Extenza 3-Function Thermostatic Shower Kit Trim, 10" AirBoost Rain Head & 3 Body Jets, Larger Knurled - F-BET43-571168-C

Tenzo Bellacio Extenza 3-Function Thermostatic Shower Kit Trim, 10" AirBoost Rain Head & 3 Body Jets, Larger Knurled - F-BET43-571168-C

Every visible part of the Bellacio BET43-571168-C high-flow shower kit, for a wall where the rough-in valve and the body jet roughs are already in place.

What's included

• Bellacio-C Extenza valve trim, 3 functions, thermostatic (F-BET43-C-XX): escutcheon plate, levers and cartridge trim
• AirBoost rain shower head, round, 25 cm [10"], 2 mm stainless steel (SSTS-10-R-XX)
• Wall mount shower arm, solid brass (SA-612-C-XX)
• Ceiling shower arm, round, 15 cm [6"], solid brass (SA-709-06-XX)
• Sliding bar kit: solid brass sliding bar, 3-function hand shower and stretchable hose (KRD-362712-C-XX)
• Three round recessed body jets, solid brass (BJ-303-XX)

Not included

• Extenza rough-in valve body, 3 functions (R-43)
• Body jet rough-in kit, 3 units (R-BJ-300-KIT3)

Features

• Trim only, every visible above-surface part, finished to match.
• Extenza is Tenzo's 3/4" high-flow platform: 45 L/min [12 gpm] against the 1/2" T-Box's 30 L/min [7.9 gpm], the headroom a three-outlet shower needs.
• Three independent shut-off valves, one per outlet: rain head, hand shower, body jets. Each opens, closes and throttles on its own rather than sharing one diverter, so any combination can run together.
• Four controls on the trim plate: three levers for the three outlets, and a lower lever on a graduated dial for temperature.
• Thermostatic cartridge holds the set temperature against both pressure and supply temperature changes, and shuts off if the cold supply fails.
• Body jets are solid brass, recessed flush to the wall, and swivel 30 degrees in every direction.
• Both a wall arm and a 15 cm [6"] ceiling arm are supplied, so the rain head can be mounted either way.
• AirBoost head injects air for 30% more pressure. 2 mm stainless steel body, 75 anti-limestone silicone nozzles.
• Sliding bar is solid brass with a height-adjustable wall bracket.
• Stretchable hose, 150 cm [59"] extending to 225 cm [89"], stainless steel sheath with a swivel anti-twist end.
• Larger diamond cross-knurl on the trim handles and bar fittings.
• F-BET43-571168-F is the same trim with the finer knurl, at the same price.
• Eight finishes. Five are two-tone; the accent colour applies to the knurled detailing.

Specifications

• Room: Bathroom
• Product Type: Shower Kit Trim
• Collection: Bellacio (Tenzo Signature)
• Style: Contemporary
• System: Extenza
• Valve Type: Thermostatic, high flow
• Functions: 3
• Shower Head: 25 cm [10"] round, AirBoost, stainless steel
• Shower Arms: Wall mount and 15 cm [6"] ceiling, both supplied
• Hand Shower: 3-function, on a solid brass sliding bar
• Body Jets: Three, round, recessed, solid brass, 30 degree adjustable, 1/2" female NPT inlet
• Hose: Stretchable, 150 cm [59"] to 225 cm [89"]
• Shower Head Flow Rate: 7.6 L/min [2.0 gpm] @ 60 psi
• Hand Shower Flow Rate: 7.6 L/min [2.0 gpm] @ 60 psi
• Body Jet Flow Rate: 7.1 L/min [1.9 gpm] @ 60 psi, each
• Valve Flow: 45 L/min [12 gpm] @ 60 psi
• Supply Connection: 3/4" NPT female (on the rough-in)
• Installation Depth: 9 to 11.5 cm [3-1/2" to 4-1/2"]
• Supplied As: Trim only, no rough-in
• Material: Solid brass

Good to know

• The rough-in is not included. Ordered complete with the roughs, this is BET43-571168-C.
• Order this version only where the roughs are already set in the wall and the finish is being changed or completed.
• Two roughs are needed, not one: the Extenza valve body (R-43) and the body jet rough-in kit for three units (R-BJ-300-KIT3). Both are excluded here and ordered separately.
• On Extenza the thermostatic cartridge (CAR-VNT-T34-07, Vernet) and the shut-off cartridges (CAR-HA-SO34-108-01) sit in the rough-in body. This trim is the plate, the levers and the cartridge trim.

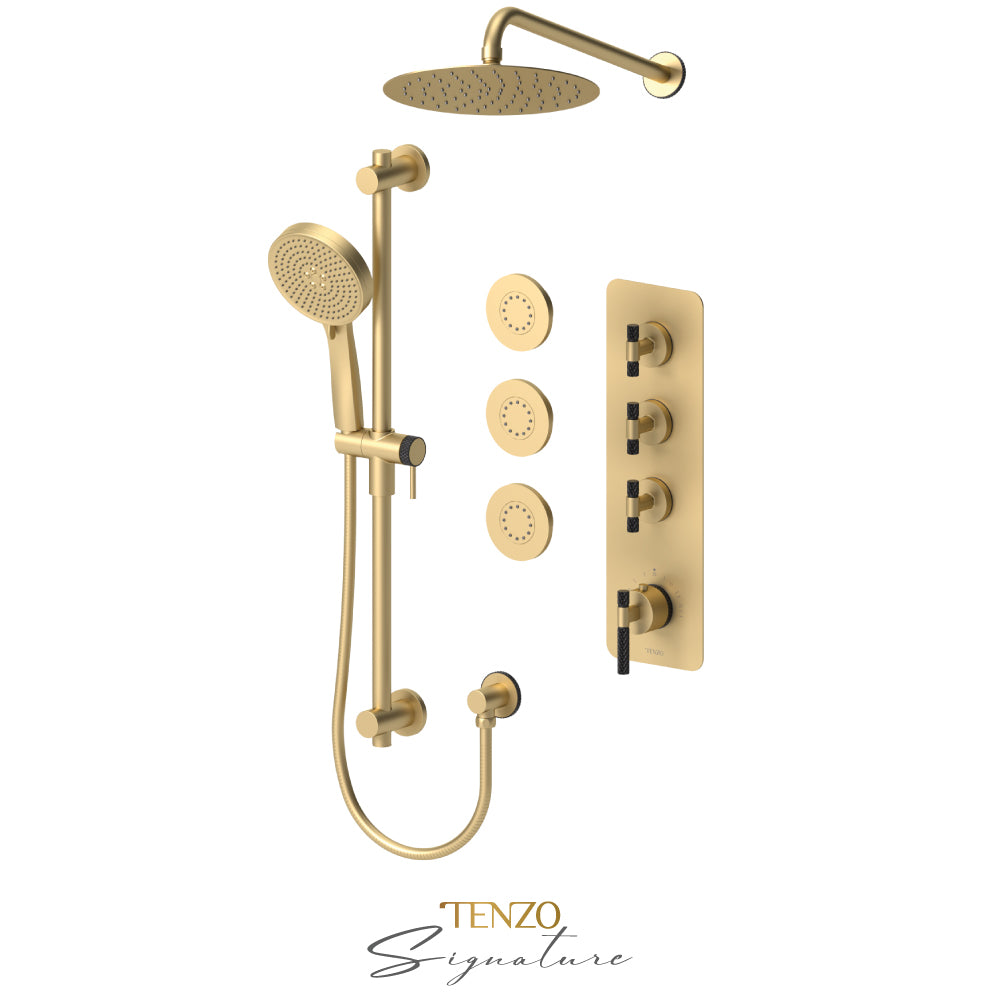

• The product photo shows the wall-arm configuration. The ceiling arm ships in the same box.
• Three body jets are supplied, not one.
• All three jets together draw about 21 L/min [5.6 gpm], well inside the 45 L/min [12 gpm] the Extenza valve carries.
• The Extenza rough is a 3/4" body and needs a wall cavity 9 to 11.5 cm [3-1/2" to 4-1/2"] deep.
• F-BET43-571112-C is the same trim with a 30 cm [12"] rain head.
• F-BET42-20111-C is the two-outlet version, without the body jets.
• On two-tone finishes the first colour is the body, the second the knurled detailing.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
