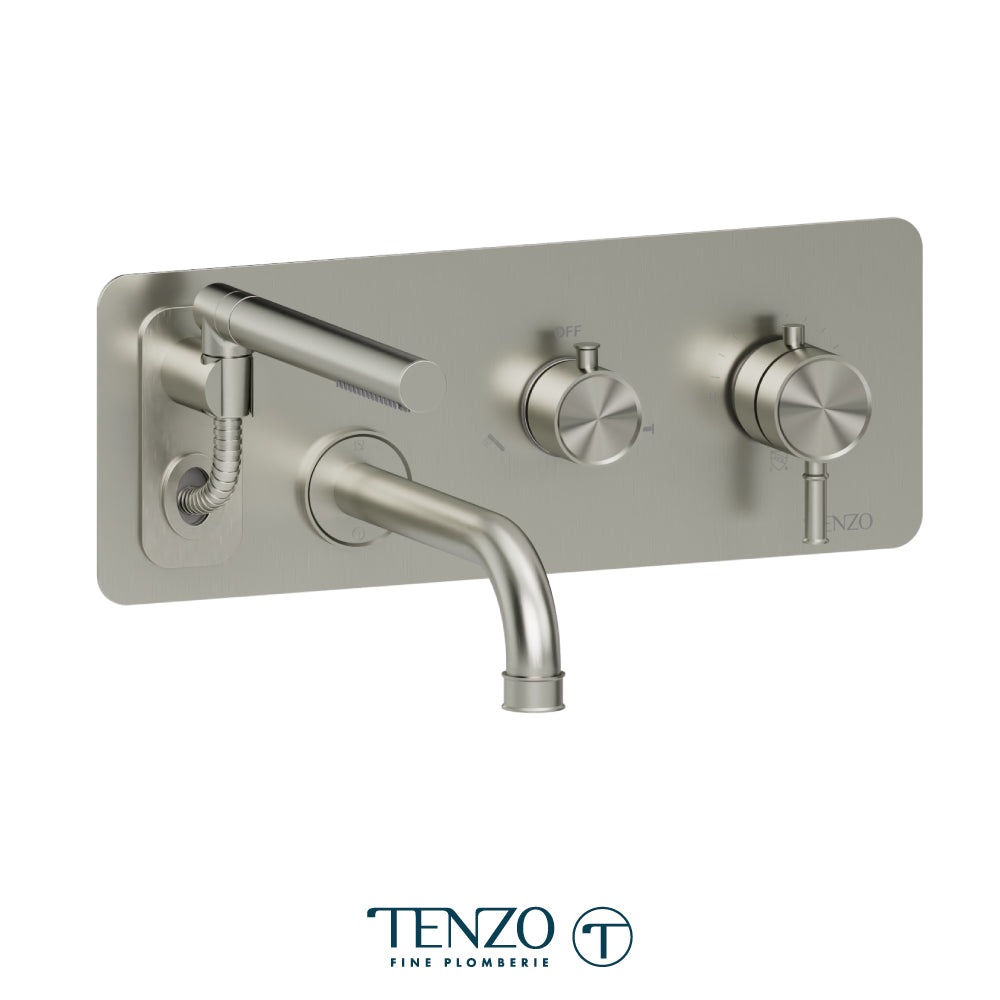

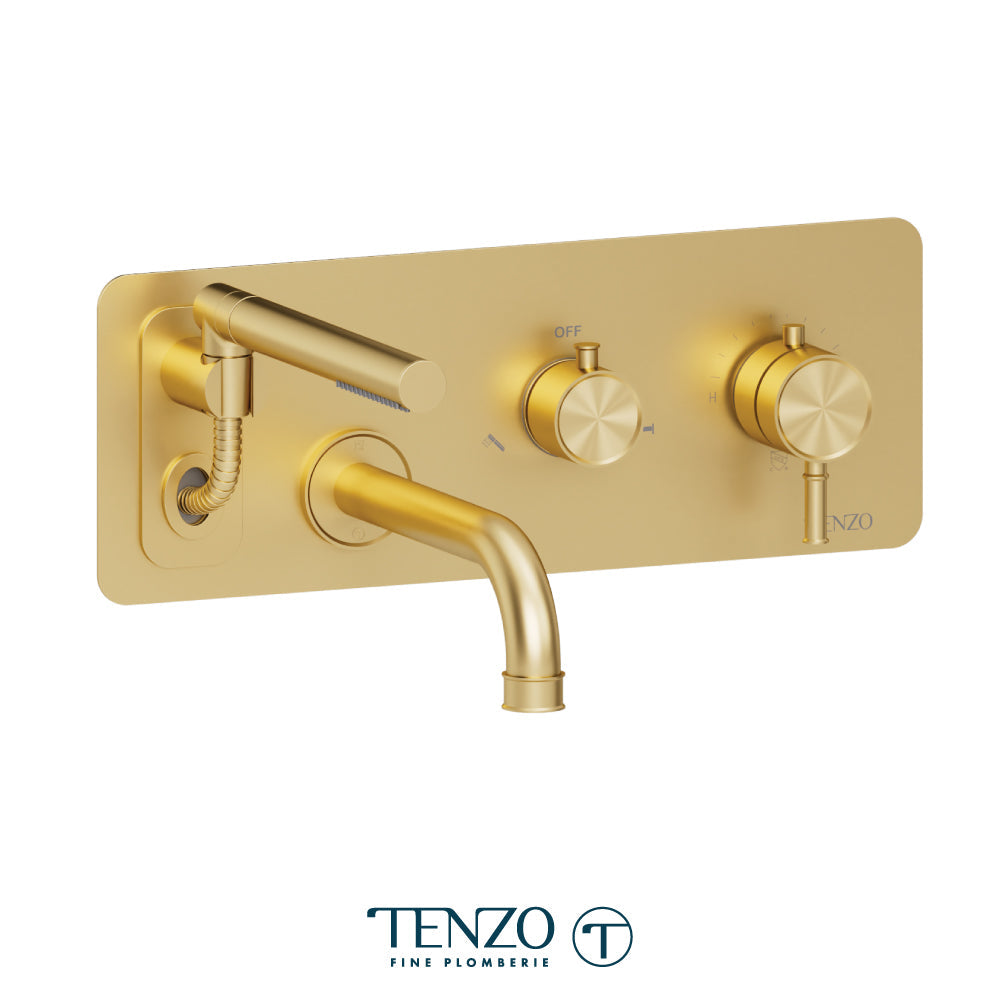

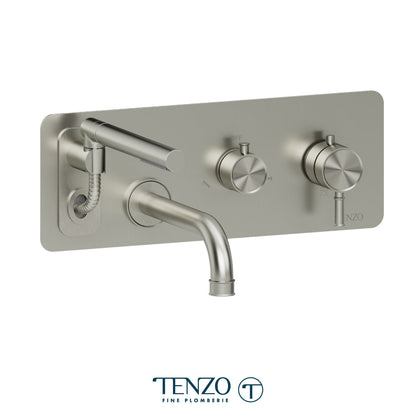

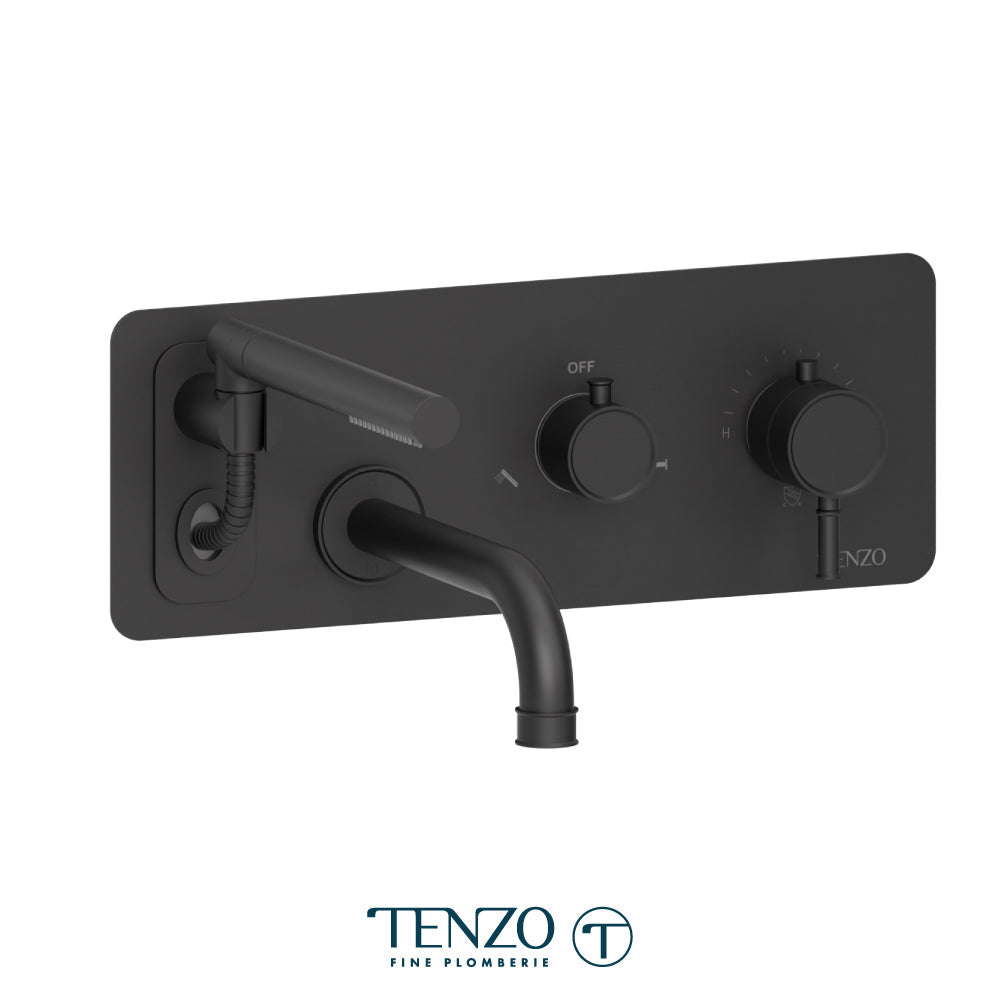

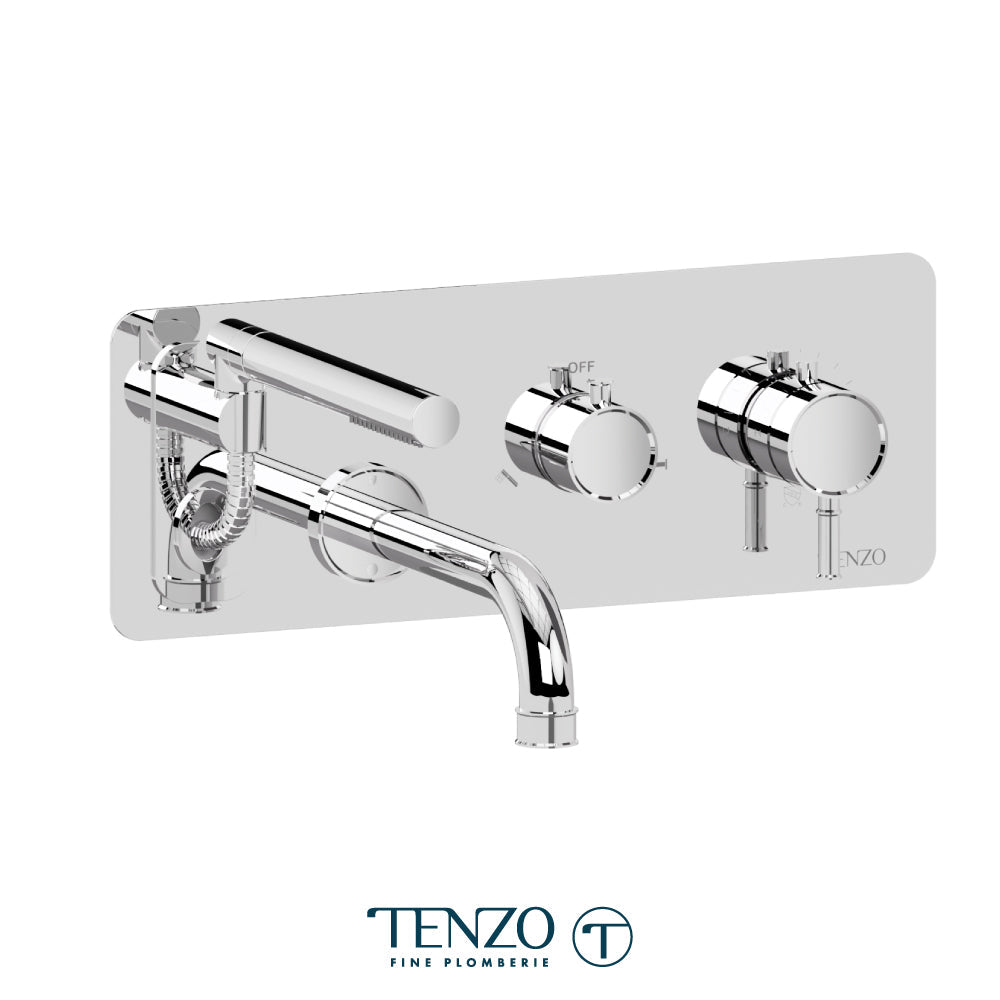

Tenzo Alyss Wall Mount Thermostatic Tub Filler With Hand Shower, Rough & Trim - ALYT73

Tenzo Alyss Wall Mount Thermostatic Tub Filler With Hand Shower, Rough & Trim - ALYT73

A complete wall-mounted tub filler on a single plate — the rough-in valve and the finished Alyss trim in one order. The Vernet thermostatic cartridge holds your set temperature no matter what the flow does elsewhere in the house, and a two-function diverter sends water either to the 8” tub spout or to the hand shower on its 59” retractable hose. Because the two zones are not shared, whichever one you choose gets the full flow.

What's included

• Wall mount tub filler rough-in valve (R-70)
• Alyss thermostatic trim with diverter (F-ALYT73-XX)
• 8” wall-mount tub spout (BS-313-XX)
• Single-function hand shower (HS-231-XX) with 59” retractable hose

Features

• Vernet thermostatic cartridge, made in France
• 2-function diverter with no shared zone — full flow to whichever outlet is open
• Solid brass tub spout, 8” [203 mm] reach, slip-fit
• Stainless steel hand shower with anti-limescale silicone nozzles
• Service check / stop valves

Specifications

• Room: Bathroom
• Product Type: Complete Wall Mount Tub Filler (rough-in and trim)
• Valve Type: Thermostatic
• Functions: 2 (tub spout / hand shower)
• Tub Spout Flow: 30 L/min [7.9 gpm] @ 60 psi
• Hand Shower Flow: 7.6 L/min [2.0 gpm] @ 60 psi
• Spout Reach: 8” [203 mm]
• Supply Connection: 1/2” NPT female

Good to know

• Need the trim only, because the rough is already in the wall? That is F-ALYT73-XX — ask us.
• Prefer a longer spout that swings out of the way? The ALYT74 is the same filler with a 12” 180° swivel spout.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
