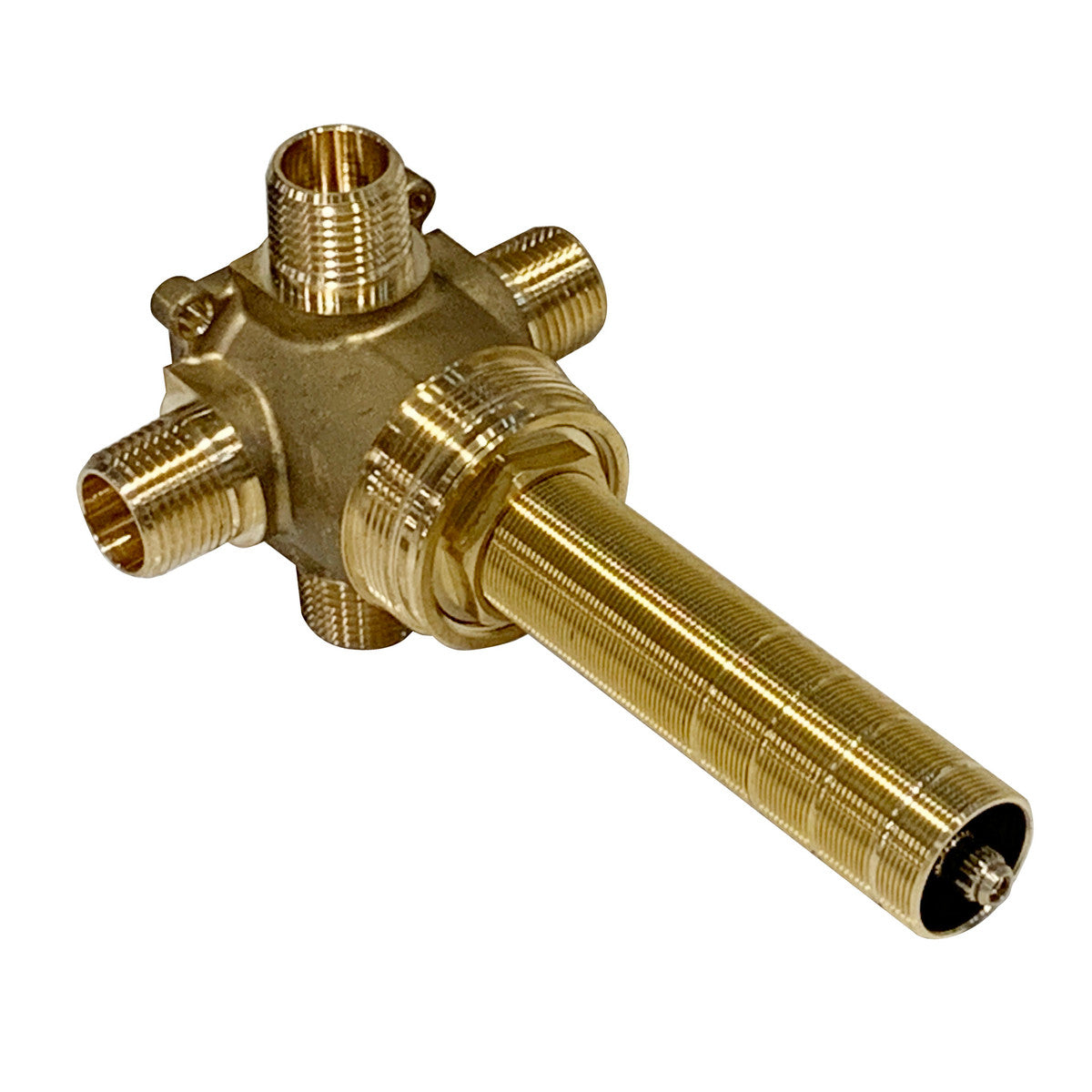

Rohl Universal 4-Port 3-Way Dedicated Diverter Rough Valve - R1062BO

• Must use with volume control(s) or pressure balance systems
• Ceramic disc control cartridge
• 1/2"M NPT inlet, 3 x 1/2"M NPT outlets
• Flow is dedicated. May not be split into two outlets at once.
• 2-function operation available, order 9.13862 for alternate cartridge
• Outlets may be capped if not used
• CALGreen compliant
• 5 GPM
• Min. depth is 2 3/16" from the centre of the outlet
• Max. depth is 4 11/16" from the centre of the outlet
• Includes 2 5/8" extension kit.
• Extension may be cut to length required.
• Must order trim to complete
• For shared functions, order 11417 cartridge


Shower design has evolved dramatically in the last 25 years. Originally created for purely functional reasons, modern showers have become virtual spas that define the 21st century bathroom. ROHL offers a variety of recommended shower packages, including body sprays, rain showers, ADA-compliant grab bars, coordinating shower arms, valve trims and valve options to transform your shower into a spa
