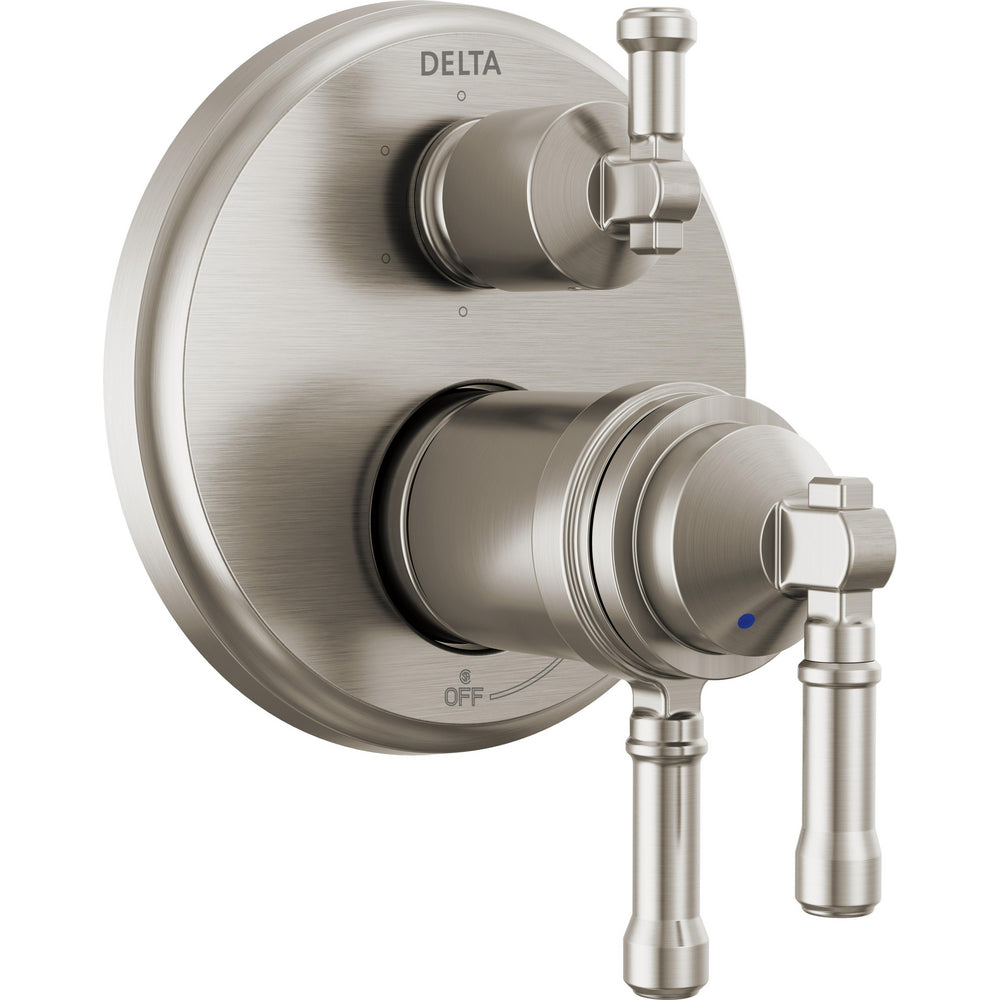

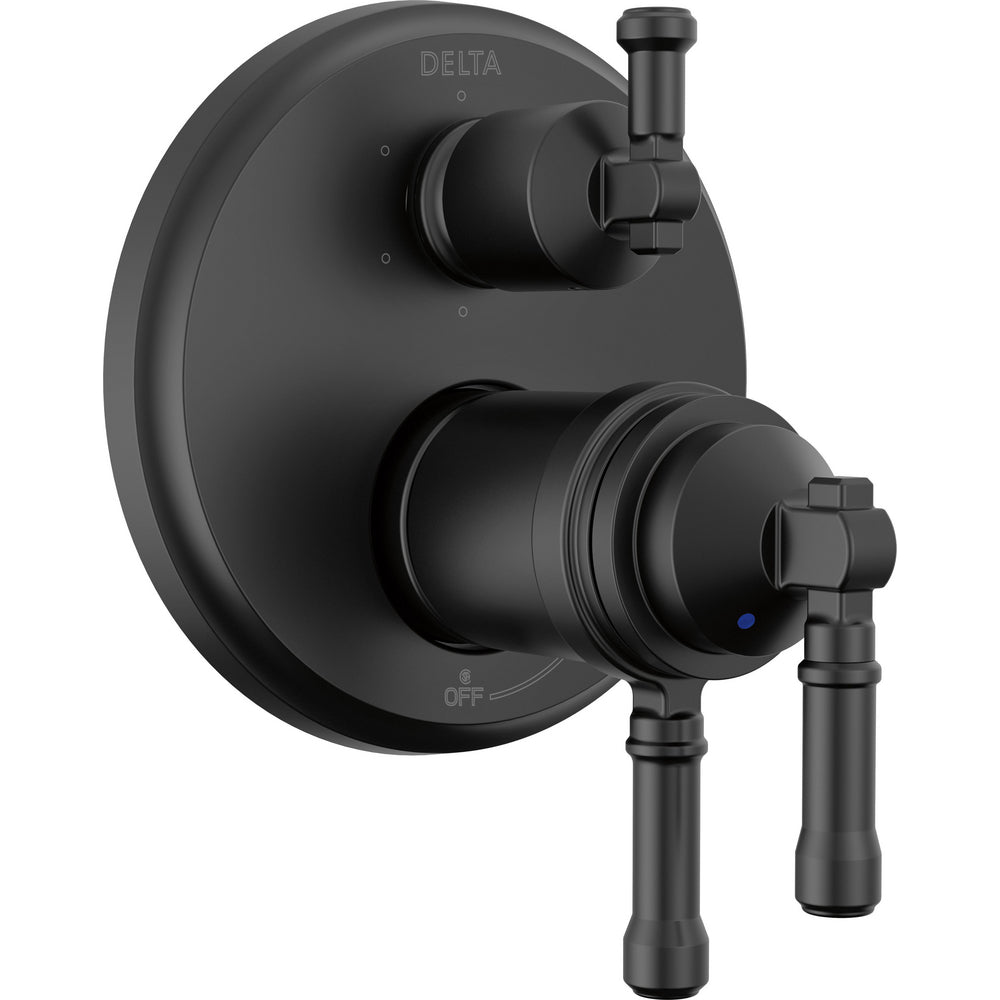

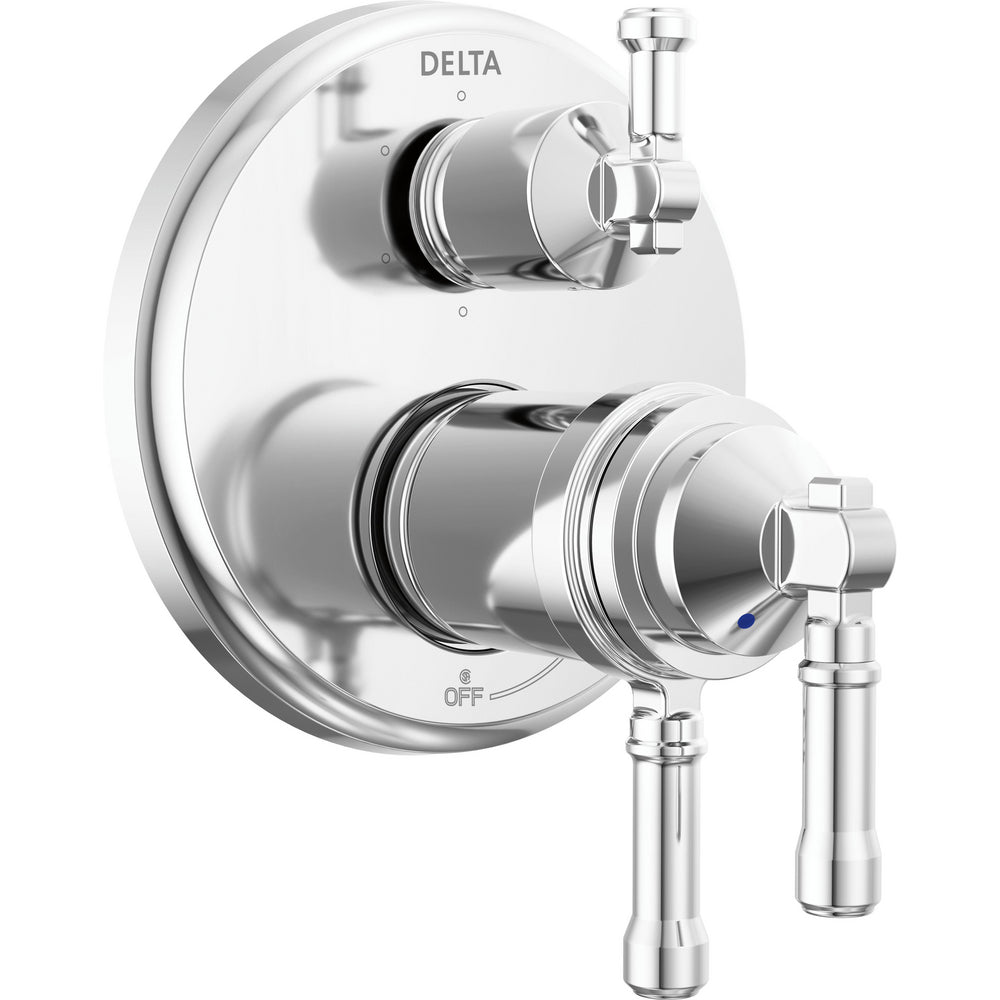

Delta T27T984 Broderick 17T Series 6-Setting Integrated Diverter Trim

Delta Broderick TempAssure 17T Series 6-Setting Integrated Diverter Trim - T27T984

The Delta Broderick T27T984 combines industrial-inspired traditional styling with TempAssure 17T thermostatic temperature control and a six-setting integrated diverter. Inspired by exposed hardware and machinery, the Broderick Collection brings distinctive character to the shower while the MultiChoice Integrated Shower Diverter combines temperature, volume, and diverter controls into one streamlined trim.

Features

• Part of the Delta Broderick Bath Collection
• Traditional design inspired by exposed hardware and industrial machinery
• TempAssure 17T Series thermostatic shower trim
• MultiChoice Integrated Shower Diverter
• 6-function diverter
• 3 individual positions and 3 shared positions
• Top handle controls diverter functions
• Separate bottom controls for on/off/volume and temperature
• Independent volume and temperature adjustment
• TempAssure thermostatic valve maintains outlet temperature within ±3.6°F (±1.7°C)
• Helps protect against sudden changes in hot or cold water pressure
• Field adjustable to limit handle rotation into the hot water zone
• Bottom handle has a maximum 90° rotation
• Red and blue temperature indicator markings
• Cartridges included
• ADA compliant
• Select Lumicoat finishes resist mineral buildup and hard water stains and wipe clean without cleaners or chemicals
• Trim kit only
• R22000 Series rough-in required and sold separately

Specifications

• Room: Bathroom
• Product Type: Thermostatic Shower Valve & Diverter Trim
• Collection: Broderick
• Style: Traditional / Industrial
• Series: TempAssure 17T
• Installation Type: Concealed
• Diverter Type: Integrated
• Diverter Settings: 6
• Individual Positions: 3
• Shared Positions: 3
• Temperature Control: Thermostatic
• Volume Control: Independent
• Temperature Stability: ±3.6°F (±1.7°C)
• Maximum System Flow Rate: 7.2 GPM @ 60 PSI with R22000
• Rough-In Size: 1/2”
• Bottom Handle Rotation: Maximum 90°
• Maximum Standard Finished Wall Thickness: 1-1/8”
• Cartridges Included: Yes
• Rough-In Included: No
• ADA Compliant: Yes

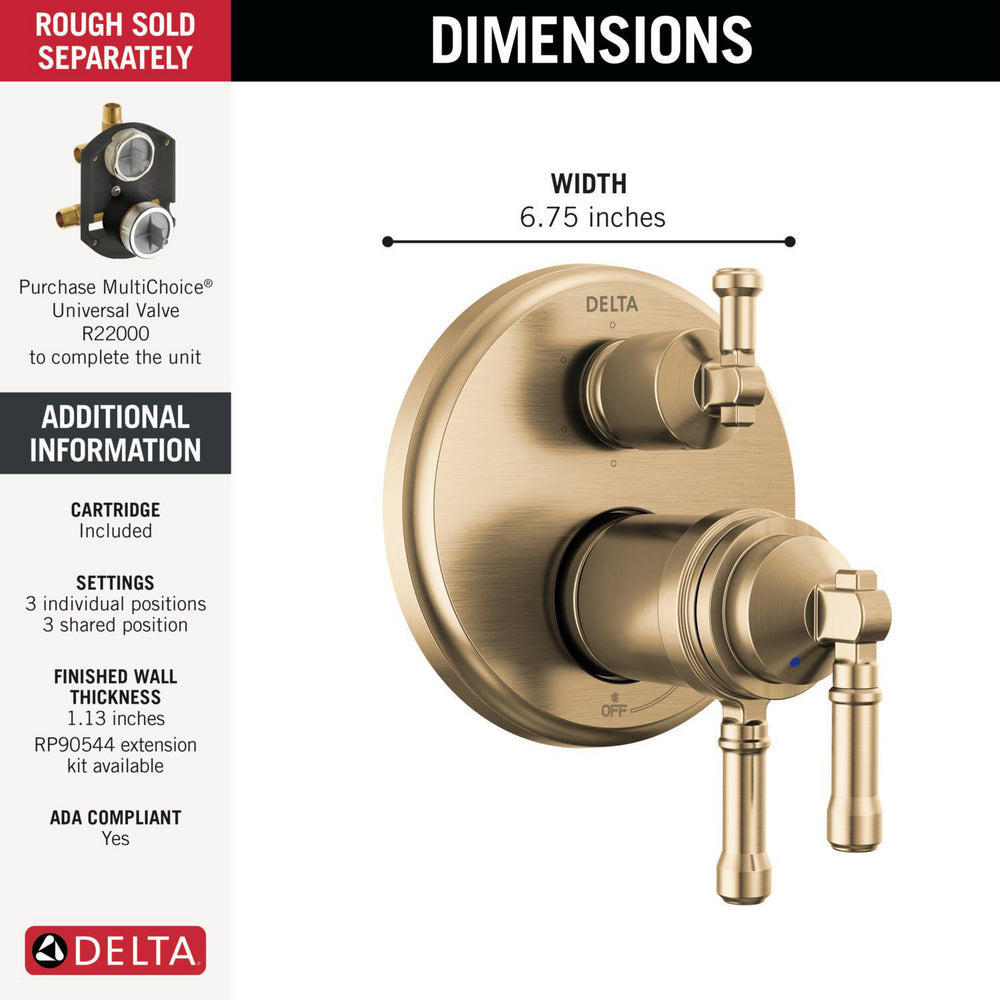

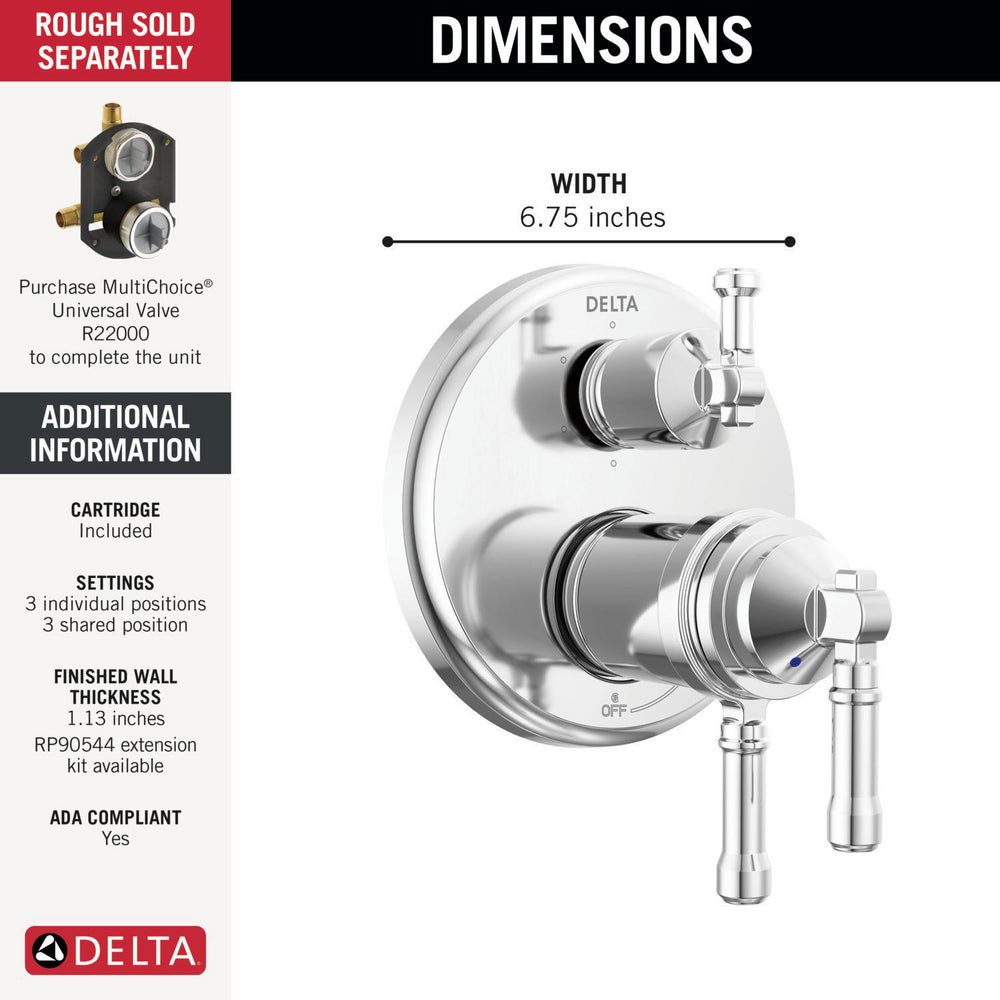

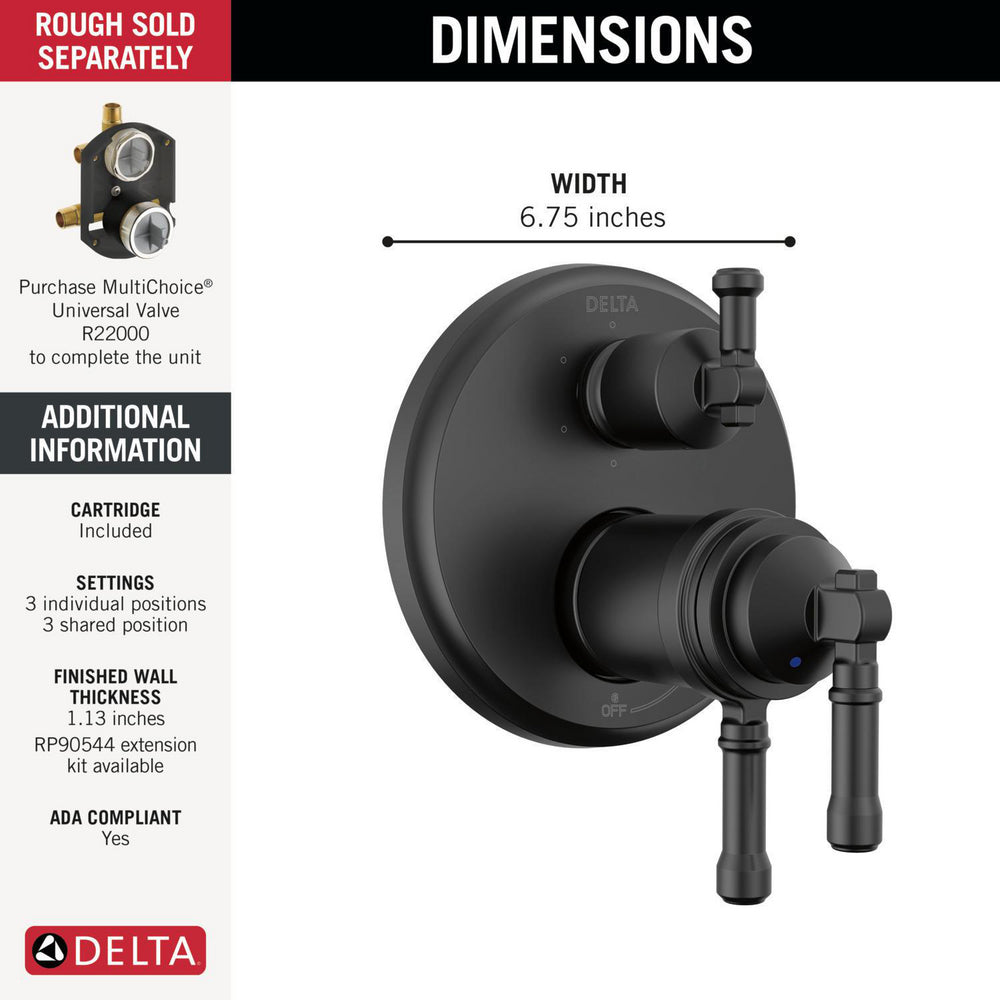

• Overall Height: 8-3/8”
• Model: T27T984

Included Components

• TempAssure 17T thermostatic valve cartridge
• 6-function diverter cartridge
• Broderick valve and diverter trim

Required for Installation

• Delta R22000 Series MultiChoice Universal Integrated Shower Diverter Rough-In Valve (Sold Separately)

Optional Configurations

• RP71718 – For three individual functions with no shared positions
• RP90544 – Thick Wall Installation Kit

Certifications & Warranty

• ADA Compliant
• Delta Faucet Lifetime Limited Warranty
