Baril Zip B66 Complete Thermostatic Pressure-Balanced Shower Kit - PRO-4303-66

Baril Zip B66 Complete Thermostatic Pressure-Balanced Shower Kit - PRO-4303-66

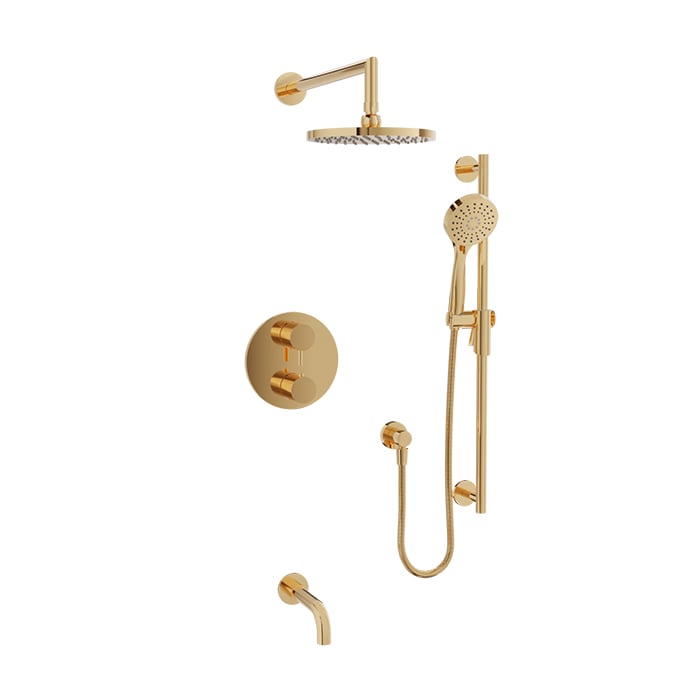

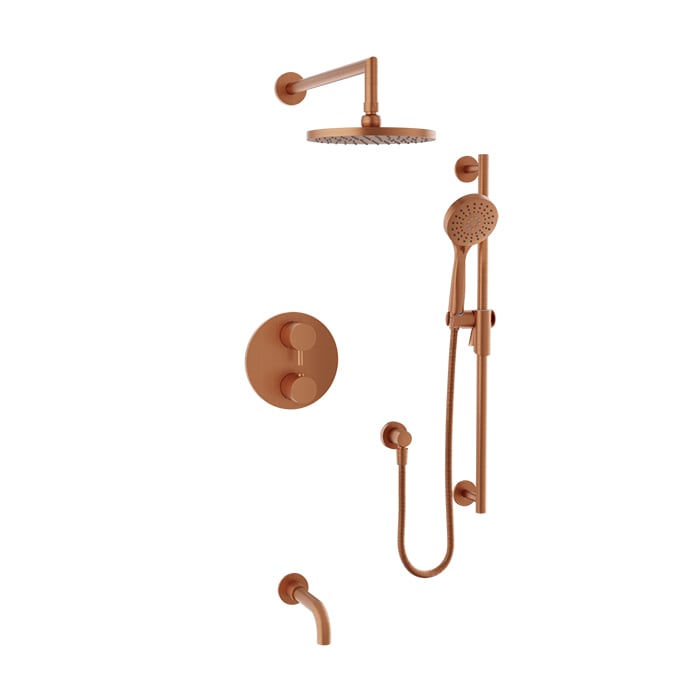

The Baril Zip B66 PRO-4303-66 is a complete 3-accessory thermostatic pressure-balanced tub and shower system featuring an 8” round shower head, a 3-spray sliding hand shower, and a modern tub spout. Designed with a 3-way diverter, the system allows two accessories to operate simultaneously while providing precise temperature and pressure control.

Features

• Photos of some finishes may not be available
• Complete thermostatic pressure-balanced tub and shower kit
• Part of the Baril Zip B66 collection
• Thermostatic pressure-balanced valve with 3-way diverter
• Three-accessory system
• 8” round shower head
• 16” wall-mounted shower arm
• 3-spray sliding hand shower
• Wall-mounted supply elbow
• Modern round tub spout without diverter
• Two accessories can operate simultaneously
• Rough-in and trim can be ordered separately
• Optional Non-Shared (NS) configuration allows one accessory to operate at a time

Specifications

• Room: Bathroom
• Product Type: Thermostatic Pressure-Balanced Tub & Shower System
• Collection: Zip B66
• Style: Contemporary
• Installation Type: Concealed Wall Mount
• Valve Type: Thermostatic Pressure-Balanced with 3-Way Diverter
• Number of Accessories: 3
• Shower Head Size: 8”
• Shower Head Shape: Round
• Shower Arm Length: 16”
• Hand Shower Spray Functions: 3
• Shower Accessory Flow Rate: Max. 1.75 GPM (6.6 L/min) @ 80 PSI per accessory
• Tub Spout Flow Rate: 7.1 GPM (27 L/min) @ 60 PSI
• Outlet Operation: Two accessories can operate simultaneously
• Model: PRO-4303-66

Included Components

• RVA-9501-00-B 1-2-3-Way TP Rough-In Valve (NPT / Welded Copper)
• T66-9531-01 Trim for Type TP Shower Valve with 3-Way Diverter
• BEC-0520-37 Round Modern Tub Spout Without Diverter
• TET-0810-01 8” Round Shower Head
• BRA-1612-66 16” Shower Arm
• DGL-2070-53 3-Spray Sliding Shower Bar
• RAC-9001-16 Wall-Mount Supply Elbow

Optional Configuration

• NS (Non-Shared) Version: One accessory operates at a time
• NS Complete Kit: PRO-4303-66-NS
• NS Trim Only: TRO-4303-66-NS

Certifications & Warranty

• Manufacturer Warranty
