Baril Zip B66 Complete Thermostatic Pressure-Balanced Shower Kit - PRO-4298-66

Baril Zip B66 Complete Thermostatic Pressure-Balanced Shower Kit - PRO-4298-66

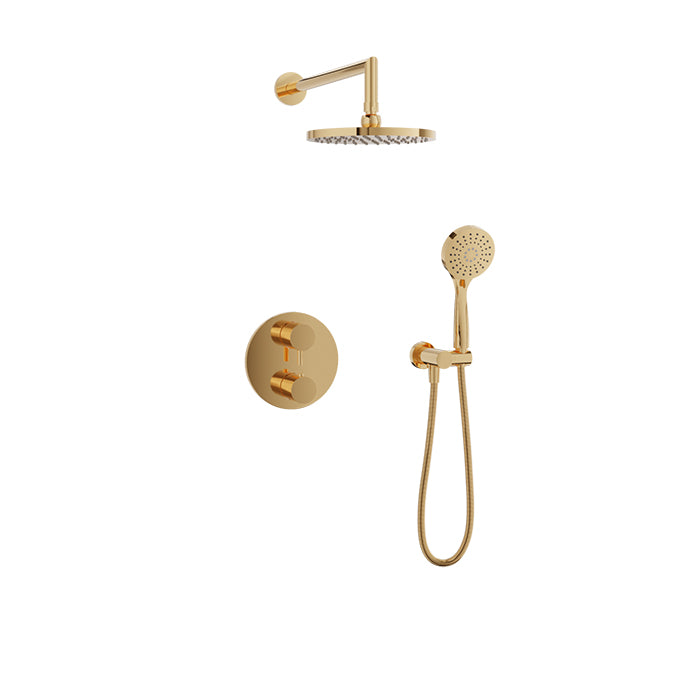

The Baril Zip B66 PRO-4298-66 is a complete thermostatic pressure-balanced shower system featuring an 8” round shower head and a 3-spray hand shower. Designed with a 2-way diverter, the system allows both shower accessories to operate simultaneously while providing precise temperature and pressure control.

Features

• Photos of some finishes may not be available
• Complete thermostatic pressure-balanced shower kit
• Part of the Baril Zip B66 collection
• Thermostatic pressure-balanced valve with 2-way diverter
• Two-accessory shower system
• 8” round shower head
• 16” wall-mounted shower arm
• 3-spray hand shower
• Hand shower mounted on wall-mounted supply elbow
• Two accessories can operate simultaneously
• Rough-in and trim can be ordered separately
• Optional Non-Shared (NS) configuration allows one accessory to operate at a time

Specifications

• Room: Bathroom
• Product Type: Thermostatic Pressure-Balanced Shower System
• Collection: Zip B66
• Style: Contemporary
• Installation Type: Concealed Wall Mount
• Valve Type: Thermostatic Pressure-Balanced with 2-Way Diverter
• Number of Accessories: 2
• Shower Head Size: 8”
• Shower Head Shape: Round
• Shower Arm Length: 16”
• Hand Shower Spray Functions: 3
• Maximum Flow Rate: 1.75 GPM (6.6 L/min) @ 80 PSI per accessory
• Outlet Operation: Two accessories can operate simultaneously
• Model: PRO-4298-66

Included Components

• RVA-9501-00-B 1-2-3-Way TP Rough-In Valve (NPT / Welded Copper)
• T66-9521-01 Trim for Type TP Shower Valve with 2-Way Diverter
• TET-0810-01 8” Round Shower Head
• BRA-1612-66 16” Shower Arm
• DSP-2566-19 3-Spray Hand Shower on Wall-Mounted Supply Elbow

Optional Configuration

• NS (Non-Shared) Version: One accessory operates at a time
• NS Complete Kit: PRO-4298-66-NS
• NS Trim Only: TRO-4298-66-NS

Certifications & Warranty

• Manufacturer Warranty
