Baril Rec B05 Complete Thermostatic Pressure-Balanced Shower Kit - PRR-4207-05

Baril Rec B05 Complete Thermostatic Pressure-Balanced Shower Kit - PRR-4207-05

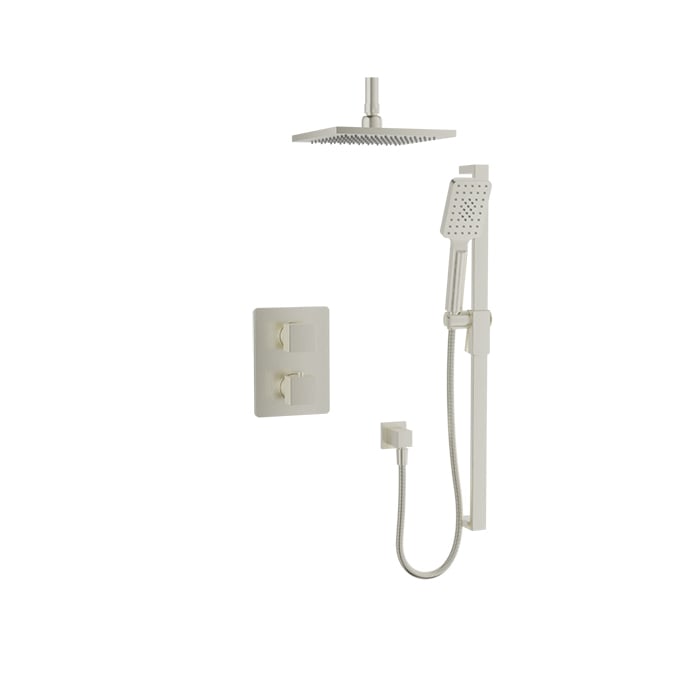

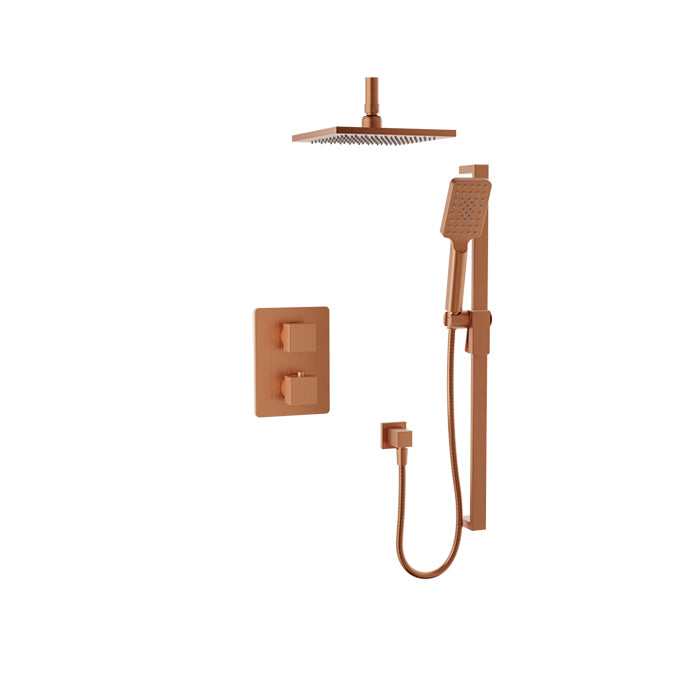

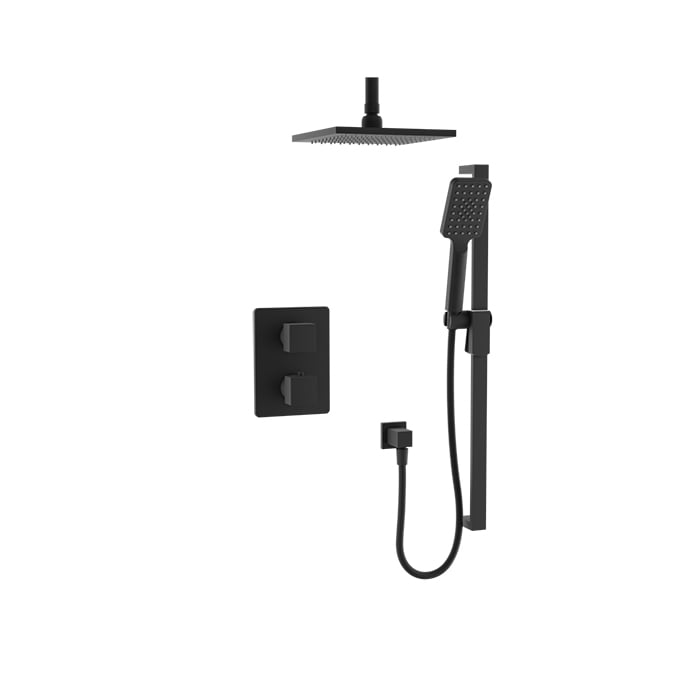

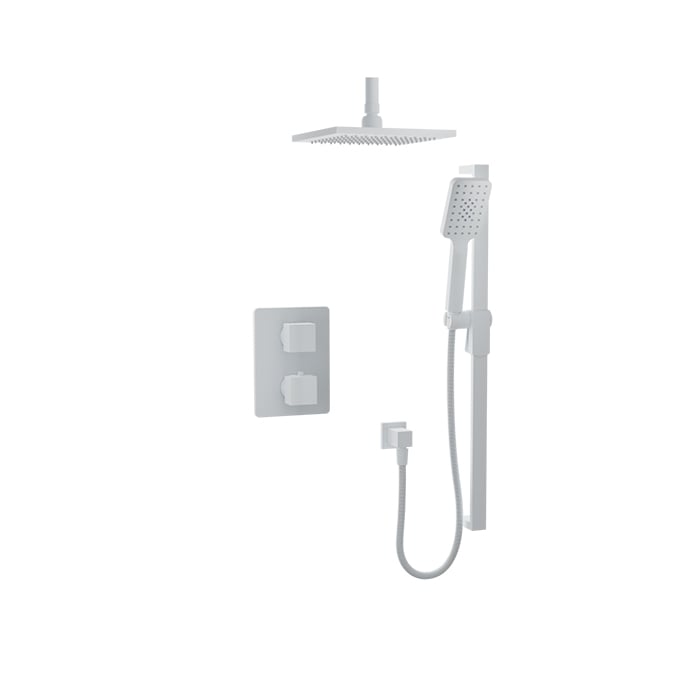

The Baril Rec B05 PRR-4207-05 complete kit combines a 8" square shower head on a 6" ceiling-mounted arm with a three-spray hand shower and sliding bar. The NPT rough-in valve is included.

Features

• 2-accessory complete kit.
• Two accessories can operate together.
• Maximum 1.75 gpm (6.6 L/min) at 80 psi per shower accessory.
• Three-spray hand shower with sliding bar.

Specifications

• Room: Bathroom
• Collection: Rec B05
• Model: PRR-4207-05
• Valve Type: Thermostatic Pressure-Balanced
• Shower Functions: Two Way
• Rough-In Included: Yes
• Shower Head Size: 8"
• Shower Arm: 6" ceiling-mounted
• Hand Shower: Three spray patterns

Included Components

• RVA-9501-00-B — 1-2-3-way thermostatic pressure-balanced rough-in (NPT / welded copper).
• T05-9521-01-xx — valve trim with 2-way diverter.
• TET-0811-02-xx — 8" square shower head.
• RAC-0618-14-xx — 6" ceiling-mounted shower arm.
• DGL-3070-53-xx — three-spray hand shower, sliding bar and hose.
• RAC-9001-18-xx — wall-mount supply elbow.

Ordering Options

• The trim and rough-in can also be ordered separately: TRR-4207-05-xx (trim) and RVA-9501-00-B (NPT) or RVA-9501-P0-B (PEX). These are alternative ordering options; the complete kit includes its NPT rough-in.
• Non-shared kit: PRR-4207-05-xx-NS; non-shared trim: TRR-4207-05-xx-NS. One accessory operates at a time.

Certifications

• ASME A112.18.1 / CSA B125.1

Photos of some finishes may not be available.
