Baril Profile B46 Trim Only for Thermostatic Shower Kit - TRR-3950-46

Baril Profile B46 Trim Only for Thermostatic Shower Kit - TRR-3950-46

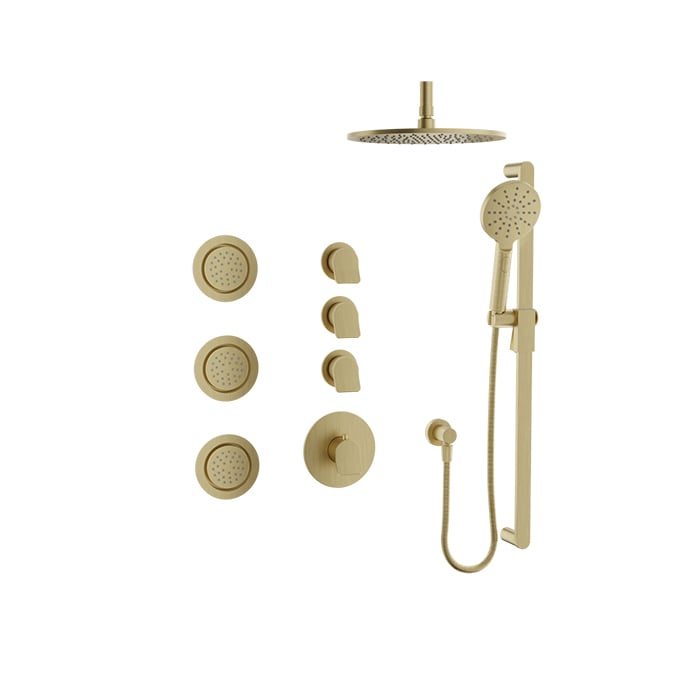

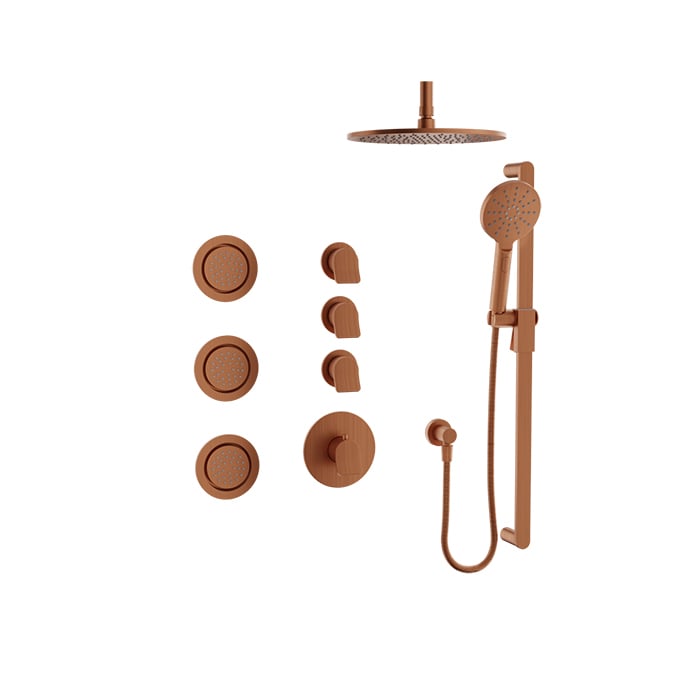

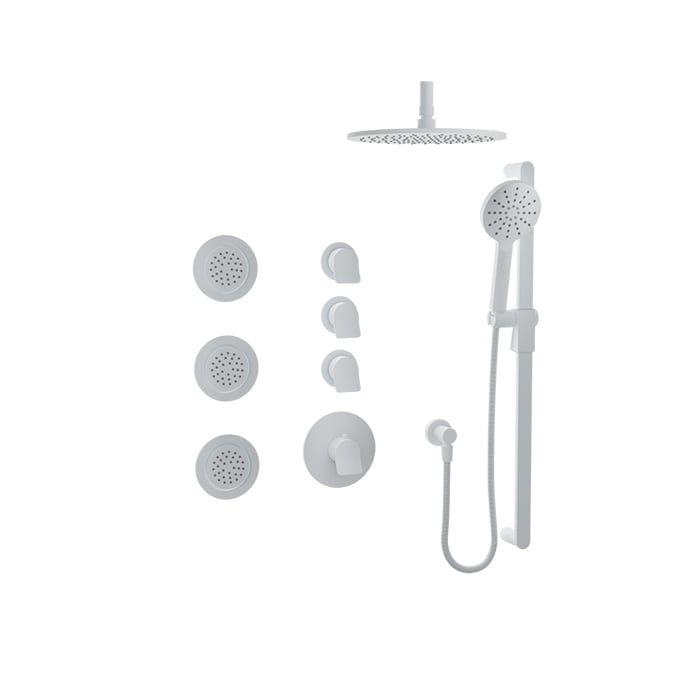

The Baril TRR-3950-46 Profile B46 trim kit combines an 8" round shower head on a 6" ceiling-mounted arm with a three-spray hand shower and three body jets. Rough-in valves are purchased separately.

Features

• 8" round shower head with a 6" ceiling-mounted arm.
• Maximum 1.75 gpm (6.6 L/min) per shower accessory at 80 psi, as listed on Baril’s current product page.
• Three accessory groups can operate together, controlled by separate shut-off valves.
• Three-spray push-button hand shower: rain, mist and combined spray.
• Easy-to-clean shower nozzles.
• 59" (150 cm) flexible hose with rotating nut and two non-return valves.
• Sliding shower bar with adjustable metal slider and built-in hook.
• Three round swivel body jets with rain spray.
• Combined body-jet flow: 5.25 gpm (19.8 L/min), as listed on Baril’s current product page.
• Rough-in valves are sold separately.

Specifications

• Room: Bathroom
• Collection: Profile B46
• Product Type: Shower kit trim
• Model: TRR-3950-46
• Shower Head Size: 8"
• Shower Arm: 6" ceiling-mounted
• Valve Type: Thermostatic
• Controls: Three separate shut-off controls
• Hand Shower: Three-spray
• Rough-In Included: No

Included Components

• T46-9404-00-xx — thermostatic valve trim.
• TET-1010-01-xx — 8" round shower head.
• RAC-0618-02-xx — 6" ceiling-mounted shower arm.
• DGL-3080-73-xx — three-spray hand shower, sliding bar and hose.
• RAC-9001-16-xx — wall-mounted supply elbow.
• T46-9649-00-xx — three shut-off valve trims.
• BOD-5007-01-xx — three round built-in lateral body jets.

Required Components

Order RVA-3404-00-B (quantity 1) and RVA-2719-34-B (quantity 3) separately. All four rough-in valves are required.

Certifications

• ASME A112.18.1 / CSA B125.1
• cUPC marking shown on Baril’s specification sheet.

Photos of some finishes may not be available.
