Baril Profile B46 Trim Only for Thermostatic Pressure-Balanced Shower Kit - TRR-4307-46

Baril Profile B46 Trim Only for Thermostatic Pressure-Balanced Shower Kit - TRR-4307-46

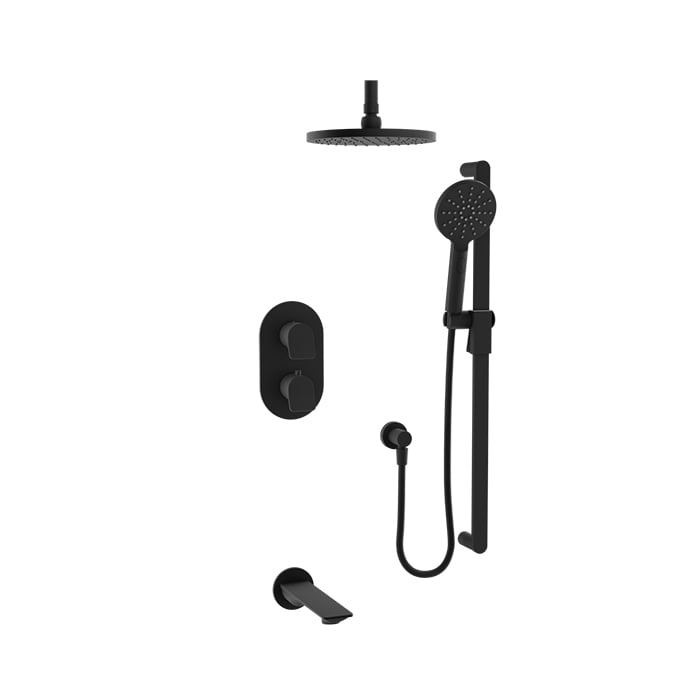

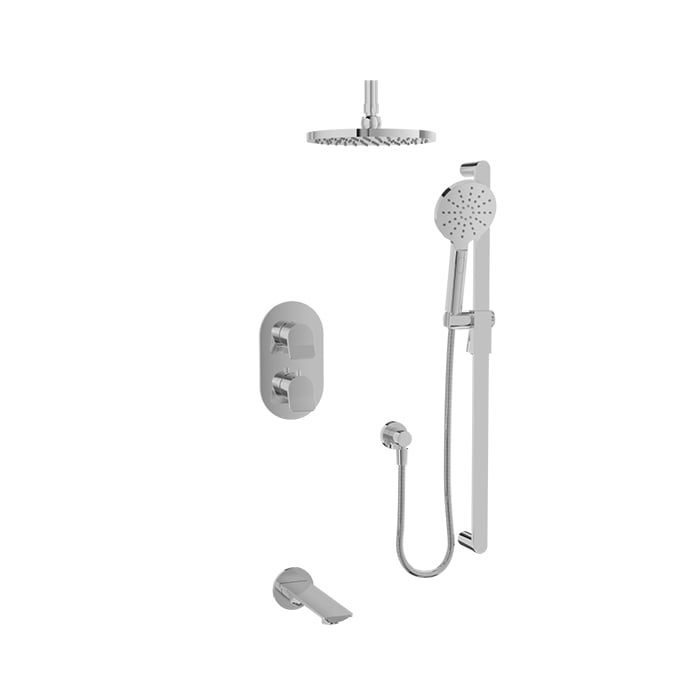

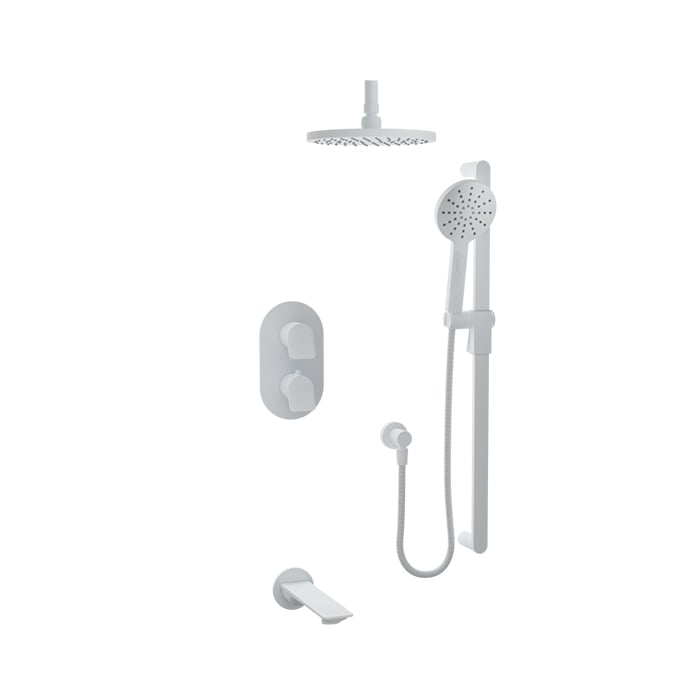

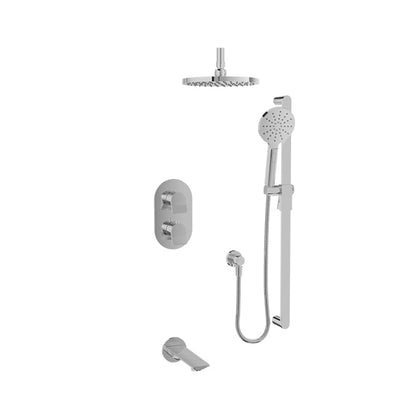

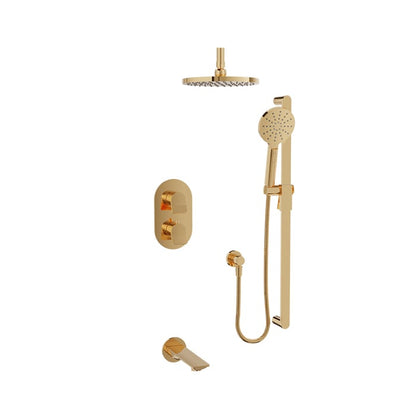

The Baril TRR-4307-46 Profile B46 trim kit combines an 8" round ceiling-mounted shower head, three-spray hand shower and tub spout. The rough-in valve is sold separately.

Features

• Three-accessory kit with a three-way diverter.
• Two accessories can operate together.
• Tub spout: 7.1 gpm (27 L/min) at 60 psi.
• Maximum 1.75 gpm (6.6 L/min) per shower accessory at 80 psi, as listed on Baril’s current product page.
• Three-spray push-button hand shower: rain, mist and combined spray.
• Easy-to-clean shower nozzles.
• Sliding bar with an adjustable metal slider and built-in hook.
• 59" (150 cm) flexible hose with rotating nut and two non-return valves.
• Thin brass valve trim plate; cartridges supplied with the trim.
• Tub spout with slip-on installation and laminar stream.

Specifications

• Room: Bathroom
• Product Type: Shower kit trim
• Collection: Profile B46
• Model: TRR-4307-46
• Shower Head Size: 8"
• Shower Arm: 6", ceiling-mounted
• Diverter: Three-way, shared operation
• Hand Shower: Three spray patterns
• Rough-In Included: No

Included Components

• T46-9531-01-xx — thermostatic pressure-balanced trim with three-way diverter and cartridges.
• BEC-0520-46-xx — Profile tub spout without diverter.
• TET-0810-01-xx — 8" round shower head.
• RAC-0618-02-xx — 6" ceiling-mounted shower arm.
• DGL-3080-73-xx — three-spray hand shower, sliding bar and hose.
• RAC-9001-16-xx — wall-mounted supply elbow.

Required Components

Order one compatible rough-in separately: RVA-9501-00-B (NPT/sweat) or RVA-9501-P0-B (PEX). Only one rough-in is required.

Separate Ordering Options

Non-shared version: TRR-4307-46-xx-NS, allowing one accessory to operate at a time.

Certifications

• ASME A112.18.1 / CSA B125.1
• cUPC marking shown on Baril’s specification sheet.

Photos of some finishes may not be available.
