Baril Profile B46 Trim Only for Pressure-Balanced Shower Kit - TRR-2896-46

Baril Profile B46 Trim Only for Pressure-Balanced Shower Kit - TRR-2896-46

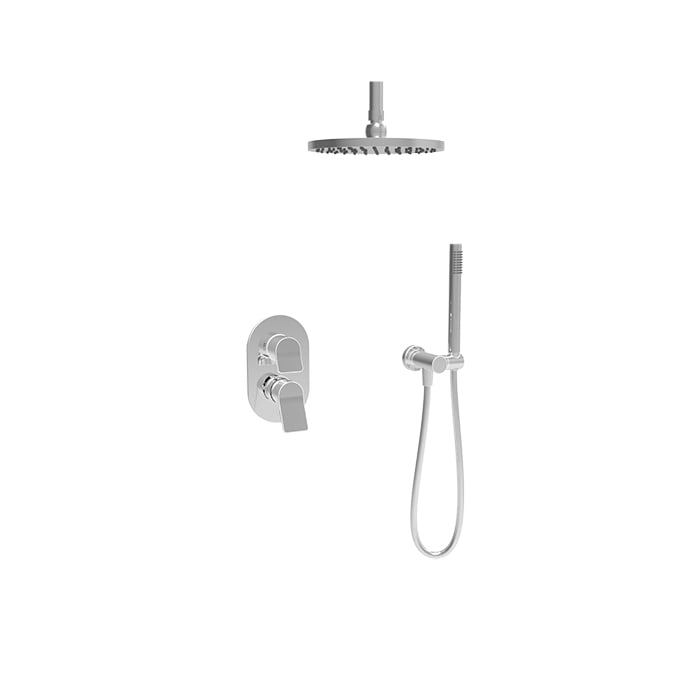

The Baril TRR-2896-46 Profile B46 trim kit combines an 8" round shower head on a 6" ceiling-mounted arm with a single-spray hand shower. Rough-in valves are purchased separately.

Features

• 8" round shower head with a 6" ceiling-mounted arm.
• Maximum 1.75 gpm (6.6 L/min) per shower accessory at 80 psi, as listed on Baril’s current product page.
• Two accessories can operate together.
• Single-spray hand shower on a wall-mounted supply elbow.
• Easy-to-clean shower nozzles.
• 59" (150 cm) flexible hose with rotating nut and two non-return valves.
• Rough-in valve is sold separately.

Specifications

• Room: Bathroom
• Collection: Profile B46
• Product Type: Shower kit trim
• Model: TRR-2896-46
• Shower Head Size: 8"
• Shower Arm: 6" ceiling-mounted
• Valve Type: Pressure-Balanced
• Controls: Two-way shared diverter
• Hand Shower: Single-spray
• Rough-In Included: No

Included Components

• T46-9180-00-xx — pressure-balanced valve trim with two-way diverter.
• TET-0810-01-xx — 8" round shower head.
• RAC-0618-02-xx — 6" ceiling-mounted shower arm.
• DSP-2604-19-xx — single-spray hand shower, wall-mounted supply elbow and hose.

Required Components

Order one compatible rough-in separately: RVA-9181-00-B (NPT/sweat) or RVA-9181-P0-B (PEX). Only one rough-in is required.

Separate Ordering Options

Non-shared trim version: TRR-2896-46-xx-NS, allowing one accessory to operate at a time. Use RVA-9181-00-NS-B or RVA-9181-P0-NS-B with the NS version.

Certifications

• ASME A112.18.1 / CSA B125.1
• cUPC marking shown on Baril’s specification sheet.

Photos of some finishes may not be available.
