Baril Profile B46 Complete Thermostatic Pressure-Balanced Shower Kit - PRR-4217-46

Baril Profile B46 Complete Thermostatic Pressure-Balanced Shower Kit - PRR-4217-46

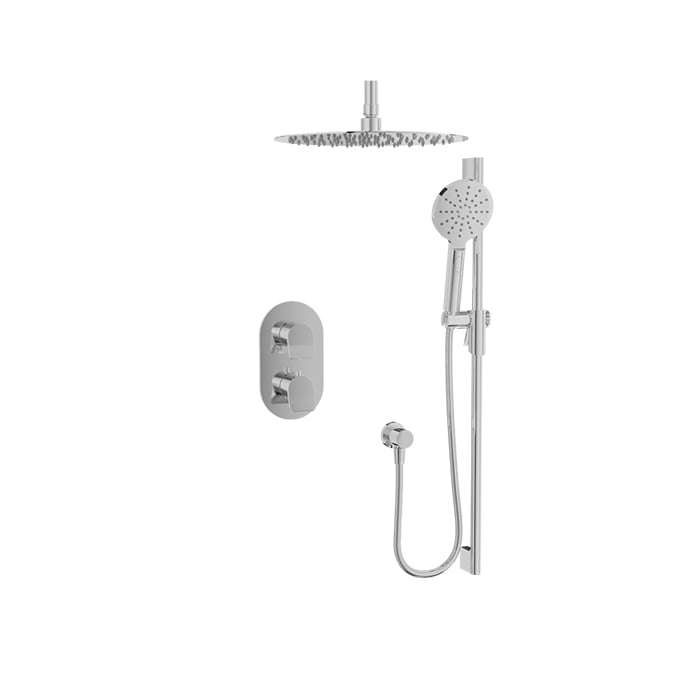

The Baril PRR-4217-46 Profile B46 complete kit combines a 10" round shower head on a 6" ceiling-mounted arm with a three-spray hand shower. The rough-in valve is included.

Features

• 10" round shower head with a 6" ceiling-mounted arm.
• Maximum 1.75 gpm (6.6 L/min) per shower accessory at 80 psi, as listed on Baril’s current product page.
• Two accessories can operate together.
• Three-spray push-button hand shower: rain, mist and combined spray.
• Easy-to-clean shower nozzles.
• 59" (150 cm) flexible hose with rotating nut and two non-return valves.
• Sliding shower bar with adjustable metal slider and built-in hook.
• Thin brass valve trim plate; cartridges supplied with the trim.
• Rough-in valve is included.

Specifications

• Room: Bathroom
• Collection: Profile B46
• Product Type: Complete shower kit
• Model: PRR-4217-46
• Shower Head Size: 10"
• Shower Arm: 6" ceiling-mounted
• Valve Type: Thermostatic Pressure-Balanced
• Controls: Two-way shared diverter
• Hand Shower: Three-spray
• Rough-In Included: Yes

Included Components

• RVA-9501-00-B — included installation rough-in valve.
• T46-9521-01-xx — thermostatic pressure-balanced valve trim with two-way diverter.
• TET-1050-01-xx — 10" round shower head.
• RAC-0618-02-xx — 6" ceiling-mounted shower arm.
• DGL-2580-53-xx — three-spray hand shower, sliding bar and hose.
• RAC-9001-26-xx — wall-mounted supply elbow.

Separate Ordering Options

Trim only: TRR-4217-46-xx. Rough-in options: RVA-9501-00-B or RVA-9501-P0-B. These are separate ordering alternatives; the complete kit already includes RVA-9501-00-B.

Non-shared version: PRR-4217-46-xx-NS; trim only: TRR-4217-46-xx-NS. One accessory operates at a time.

Certifications

• ASME A112.18.1 / CSA B125.1
• cUPC marking shown on Baril’s specification sheet.

Photos of some finishes may not be available.
