Baril Flora B47 Complete Thermostatic Shower Kit - PRO-3352-47

Baril Flora B47 Complete Thermostatic Shower Kit - PRO-3352-47

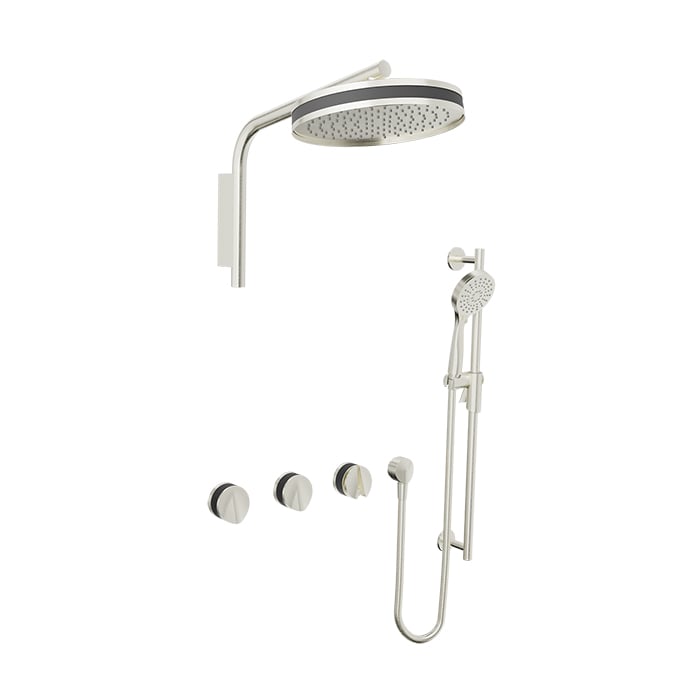

The Baril Flora B47 PRO-3352-47 is a complete thermostatic shower kit with a 10" round shower head and 3-spray hand shower on a sliding bar. The standard kit includes its thermostatic and diverter rough-ins and allows both shower accessories to operate together.

Features

• 10" Flora round shower head with a 17" L-shaped wall shower arm.
• 3-spray hand shower on a sliding bar.
• Maximum flow: 1.75 gpm (6.6 L/min) at 80 psi per accessory.
• Two accessories can operate simultaneously in the standard configuration.
• Double hook integrated into the thermostatic valve trim.
• Main finish and colour accent options.
• Rough-ins and trim included; they can also be ordered separately.
• Photos of some finishes may not be available.

Specifications

• Room: Bathroom
• Collection: Flora B47
• Model: PRO-3352-47
• Product Type: Complete thermostatic shower kit
• Thermostatic valve: 3/4"
• Shower functions: Two Way
• Shower head size: 10"
• Shower head shape: Round
• Shower arm: 17", wall mounted
• Hand shower: 3 sprays
• Maximum flow per accessory: 1.75 gpm (6.6 L/min) at 80 psi

Included Components

• RVA-3453-00-B — 3/4" female NPT thermostatic rough-in
• T47-9453-00-xx — 3/4" thermostatic valve trim
• RVA-9562-00-B — 2-port diverter rough-in, NPT / welded copper
• T47-9649-00-xx — trim for 2-port diverter with stop
• TET-1010-47-xx — 10" Flora round shower head
• BRA-1608-00-xx — 17" L-shaped shower arm
• DGL-2070-53-xx — 3-spray sliding shower bar
• RAC-9001-13-xx — wall-mounted supply elbow

Separate Ordering Options

• Trim only: TRO-3352-47-xx
• Rough-in valves: RVA-3453-00-B AND RVA-9562-_0-B. Both are needed when purchasing the trim and rough-ins separately.

NS Option

• Non-shared operation: one accessory works at a time.
• Complete NS kit: PRO-3352-47-xx-NS
• NS trim only: TRO-3352-47-xx-NS
• NS rough-in valves: RVA-3453-00-B AND RVA-9562-_0-NS-B.
• NS maximum flow: 1.75 gpm (6.6 L/min) at 80 psi.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1

Flora finish visuals are original renderings © Eunoia Home, made in-house for our customers' reference (colors may vary slightly). Unauthorized use or reproduction is prohibited.
