The Baril Air B80 PRO-2201-80 is a complete pressure-balanced tub and shower kit with a 7" diverter tub spout and 3-spray sliding-bar hand shower. The rough-in is included; choose and order a compatible handle kit separately.

Features

• 7" round tub spout with diverter.
• 3-spray push-button hand shower: rain, mist and a combination of both.
• Easy-to-move metal slider with integrated hook.
• 59" (150 cm) flexible hose with rotating nut and two non-return valves.
• Maximum shower flow: 1.75 gpm (6.6 L/min) at 80 psi per shower accessory.
• Bath spout flow: 6 gpm (23 L/min) at 60 psi.
• One accessory operates at a time.
• Pressure-balanced rough-in included.
• Handle kit M80-9100-_0-xx must be ordered separately.
• Photos of some finishes may not be available.

Specifications

• Room: Bathroom
• Product Type: Complete pressure-balanced tub and shower kit
• Collection: Air B80
• Model: PRO-2201-80
• Shower functions: Two Way
• Hand shower: 3 sprays
• Tub spout: 7", with diverter
• Bath spout flow: 6 gpm (23 L/min) at 60 psi
• Maximum shower flow: 1.75 gpm (6.6 L/min) at 80 psi
• Rough-in included: Yes
• Handle included: No

Included Components

• RVA-9020-00-B — pressure-balanced rough-in, NPT / welded copper
• T80-9101-00-xx — pressure-balanced valve trim, without handle
• BEC-0520-74-xx — 7" round tub spout with diverter
• DGL-2580-53-xx — 3-spray sliding shower bar
• RAC-9001-16-xx — wall-mounted supply elbow

Required for Installation

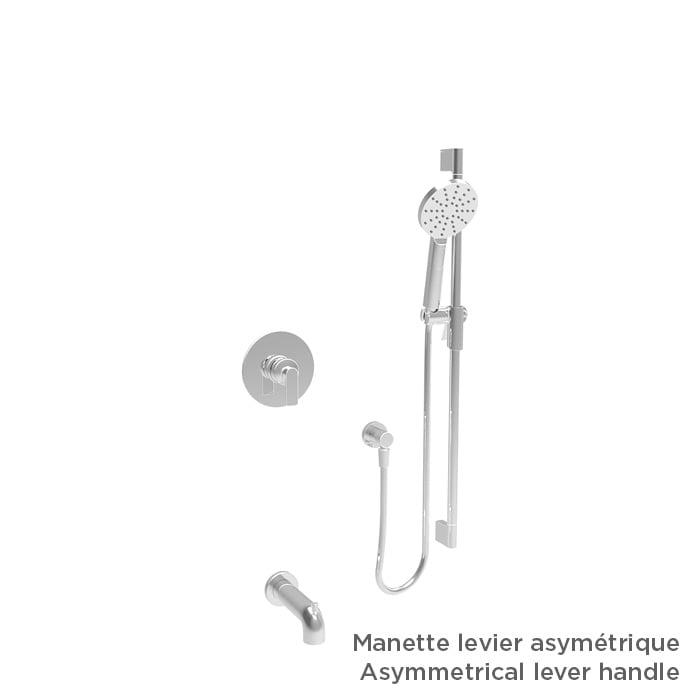

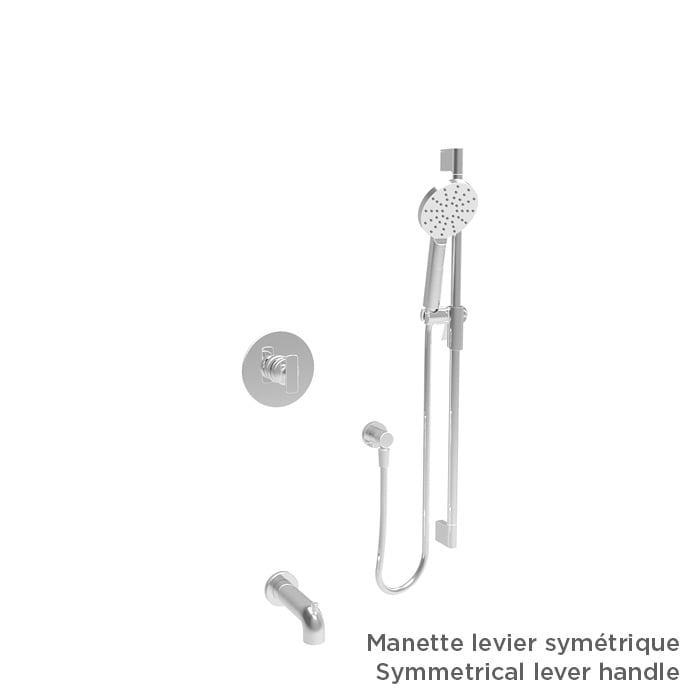

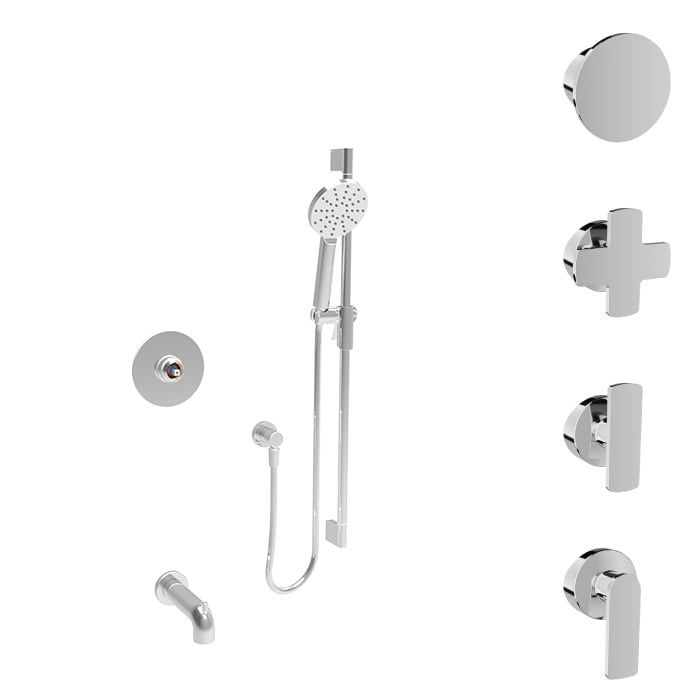

• Order ONE compatible handle kit: M80-9100-10-xx, M80-9100-20-xx, M80-9100-30-xx or M80-9100-40-xx (sold separately).

Separate Ordering Options

• Trim only: TRO-2201-80-xx
• Rough-in: RVA-9020-00-B or RVA-9020-P0-B.
• These are separate purchasing options; the complete kit already includes its rough-in.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
