Baril Air B80 Complete Pressure-Balanced Shower Kit (Handle Options) - PRO-2891-80

Baril Air B80 Complete Pressure-Balanced Shower Kit (Handle Options) - PRO-2891-80

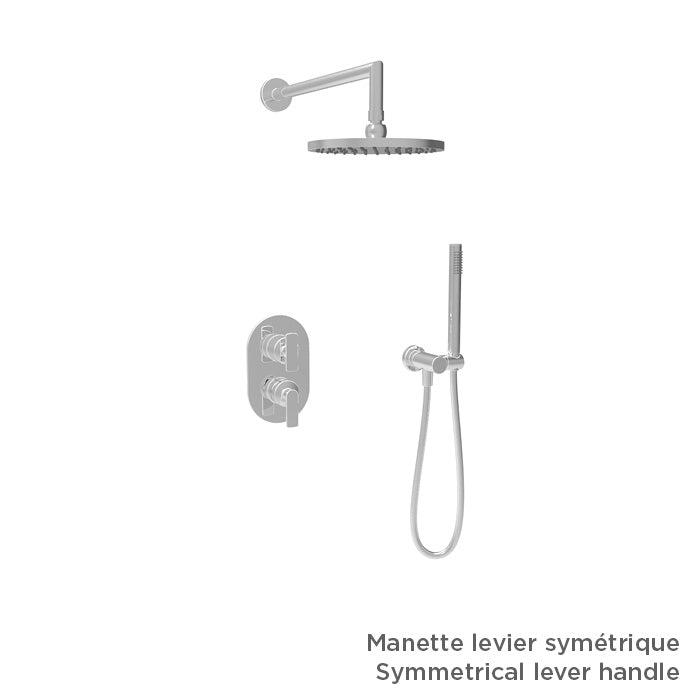

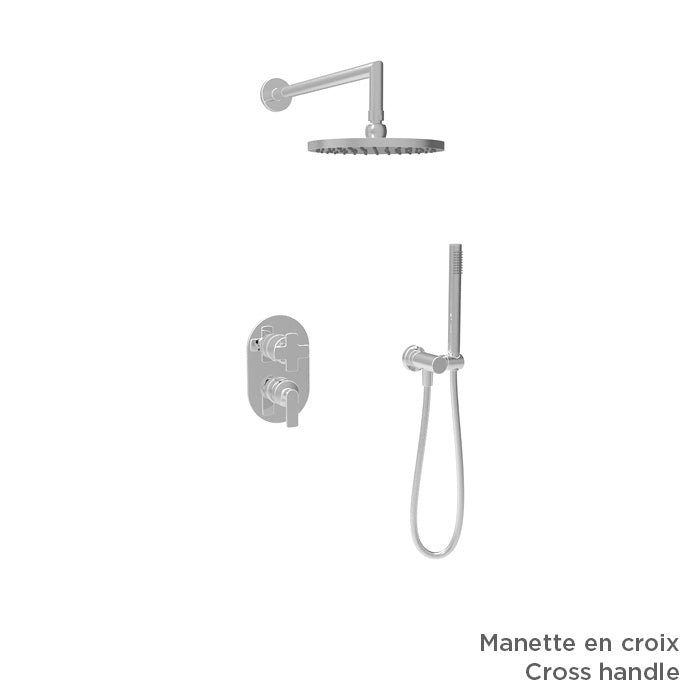

The Baril Air B80 PRO-2891-80 is a complete pressure-balanced shower kit with a 8" round shower head on a 16" wall-mounted arm and a 1-spray wall-mounted hand shower. The rough-in is included; one compatible handle kit is required separately.

Features

• 8" round shower head with a 16" wall-mounted shower arm.
• 1-spray hand shower on a wall-mounted supply elbow.
• Maximum flow: 1.75 gpm (6.6 L/min) at 80 psi per accessory.
• Two accessories can operate simultaneously in the standard shared configuration.
• Rough-in valve included.
• Order one M80-9180-_4-xx handle kit separately.
• Photos of some finishes may not be available.

Specifications

• Room: Bathroom
• Product Type: Complete pressure-balanced shower kit
• Collection: Air B80
• Model: PRO-2891-80
• Shower functions: Two Way
• Shower head size: 8"
• Shower head shape: Round
• Shower arm: 16" wall-mounted
• Hand shower: 1 spray
• Maximum flow per accessory: 1.75 gpm (6.6 L/min) at 80 psi
• Rough-ins included: Yes
• Handles included: No

Included Components

• RVA-9181-00-B — 2-way pressure-balanced rough-in, NPT / welded copper
• T80-9181-00-xx — pressure-balanced valve trim with 2-way diverter, without handle
• TET-0810-01-xx — 8" round shower head
• BRA-1612-66-xx — 16" wall-mounted shower arm
• DSP-2604-19-xx — hand shower on wall-mounted supply elbow

Required for Installation

• Order ONE handle kit: M80-9180-14-xx, M80-9180-24-xx or M80-9180-34-xx (sold separately).

Separate Ordering Options

• Trim only: TRO-2891-80-xx
• Rough-in valve: RVA-9181-00-B or RVA-9181-P0-B.
• These are separate purchasing options; the complete kit already includes its rough-in components.

NS Option

• Non-shared operation: one accessory operates at a time.
• Complete NS kit: PRO-2891-80-xx-NS
• NS trim only: TRO-2891-80-xx-NS
• NS rough-in valve: RVA-9181-00-NS-B or RVA-9181-P0-NS-B.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
