Baril Air B80 Complete Pressure-Balanced Shower Kit (Handle Options) - PRO-2801-80

Baril Air B80 Complete Pressure-Balanced Shower Kit (Handle Options) - PRO-2801-80

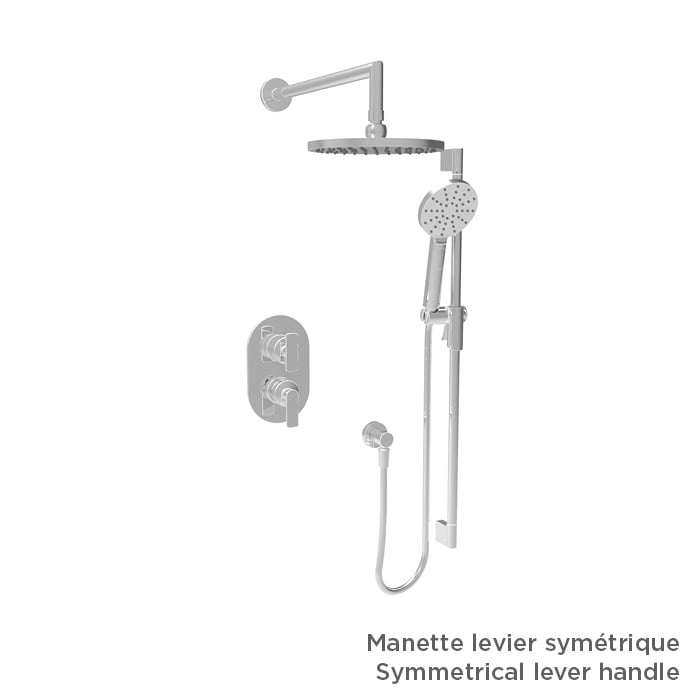

The Baril Air B80 PRO-2801-80 is a complete pressure-balanced shower kit with an 8" round shower head, 16" wall arm and 3-spray sliding-bar hand shower. The rough-in is included; choose and order a compatible handle kit separately.

Features

• 8" round shower head with easy-to-clean nozzles and a 16" wall-mounted arm.
• 3-spray push-button hand shower: rain, mist and a combination of both.
• Easy-to-move metal slider with integrated hook.
• 59" (150 cm) flexible hose with rotating nut and two non-return valves.
• Maximum shower flow: 1.75 gpm (6.6 L/min) at 80 psi per shower accessory.
• Two shower accessories can operate simultaneously in the standard configuration.
• Pressure-balanced rough-in included.
• Handle kit M80-9180-_4-xx must be ordered separately.
• Photos of some finishes may not be available.

Specifications

• Room: Bathroom
• Product Type: Complete pressure-balanced shower kit
• Collection: Air B80
• Model: PRO-2801-80
• Shower functions: Two Way
• Hand shower: 3 sprays
• Shower head: 8", round
• Shower arm: 16", wall mounted
• Maximum shower flow: 1.75 gpm (6.6 L/min) at 80 psi
• Rough-in included: Yes
• Handle included: No

Included Components

• RVA-9181-00-B — 2-way pressure-balanced rough-in, NPT / welded copper
• T80-9181-00-xx — pressure-balanced valve trim with 2-way diverter, without handle
• TET-0810-01-xx — 8" round shower head
• BRA-1612-66-xx — 16" wall-mounted shower arm
• DGL-2580-53-xx — 3-spray sliding shower bar
• RAC-9001-16-xx — wall-mounted supply elbow

Required for Installation

• Order ONE compatible handle kit: M80-9180-14-xx, M80-9180-24-xx or M80-9180-34-xx (sold separately).

Separate Ordering Options

• Trim only: TRO-2801-80-xx
• Rough-in: RVA-9181-00-B or RVA-9181-P0-B.
• These are separate purchasing options; the complete kit already includes its rough-in.

NS Option

• Non-shared configuration: one accessory operates at a time.
• Complete NS kit: PRO-2801-80-xx-NS
• NS trim only: TRO-2801-80-xx-NS
• NS rough-in: RVA-9181-00-NS-B or RVA-9181-P0-NS-B.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
