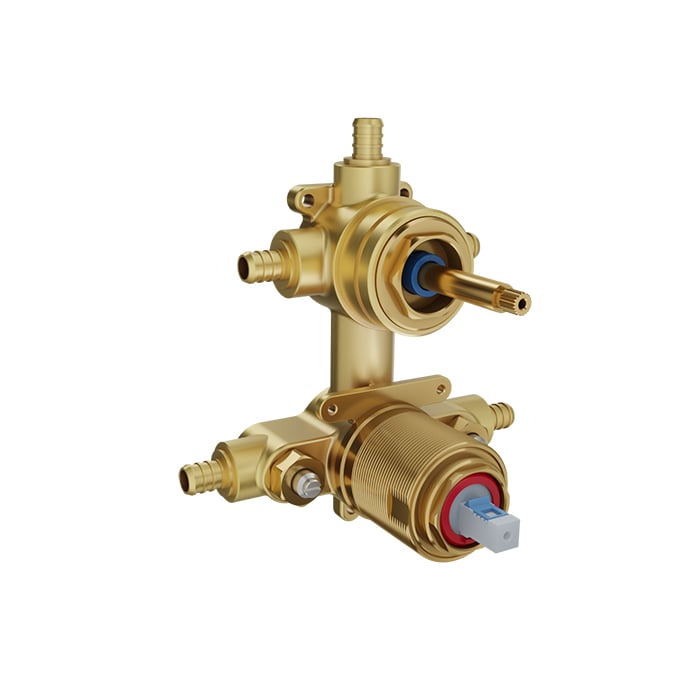

Baril 3-Way Pressure-Balanced Rough-In (PEX) - RVA-9191-P0

Baril 3-Way Pressure-Balanced Rough-In (PEX) – RVA-9191-P0

Pressure-balanced rough-in valve with integrated diverter and volume control for multi-function shower systems.

Features

• 3-way pressure-balanced rough-in valve for custom shower installations
• Integrated volume control valve
• 3-way diverter with shared port allows two accessories to operate together
• Supports simultaneous operation of 2 shower accessories
• Built-in service stop-check valves for easier maintenance and servicing
• PEX connection configuration for simplified installation
• High flow performance for multi-function shower systems
• Optional non-shared configuration available for one-function-at-a-time operation

Flow Rates

• 1 outlet: 5 GPM (19 L/min) @ 60 PSI
• 2 outlets operating together: 2.6 GPM (9.5 L/min) @ 60 PSI

NS Option (Non-Shared Ports)

• One accessory operates at a time
• 3-way diverter with non-shared port configuration
• Model: RVA-9191-P0-NS-B

Specifications

• Room: Bath
• Product Type: Pressure-Balanced Rough-In Valve
• Style: Contemporary / Modern
• Mounting Location: Wall Mount
• Installation Type: In-Wall
• Connection Type: PEX
• Diverter Type: 3-Way Diverter
• Shared Functions: Yes
• Built-In Volume Control: Yes
• Service Stop Valves: Included

Certifications & Warranty

• Limited lifetime warranty
