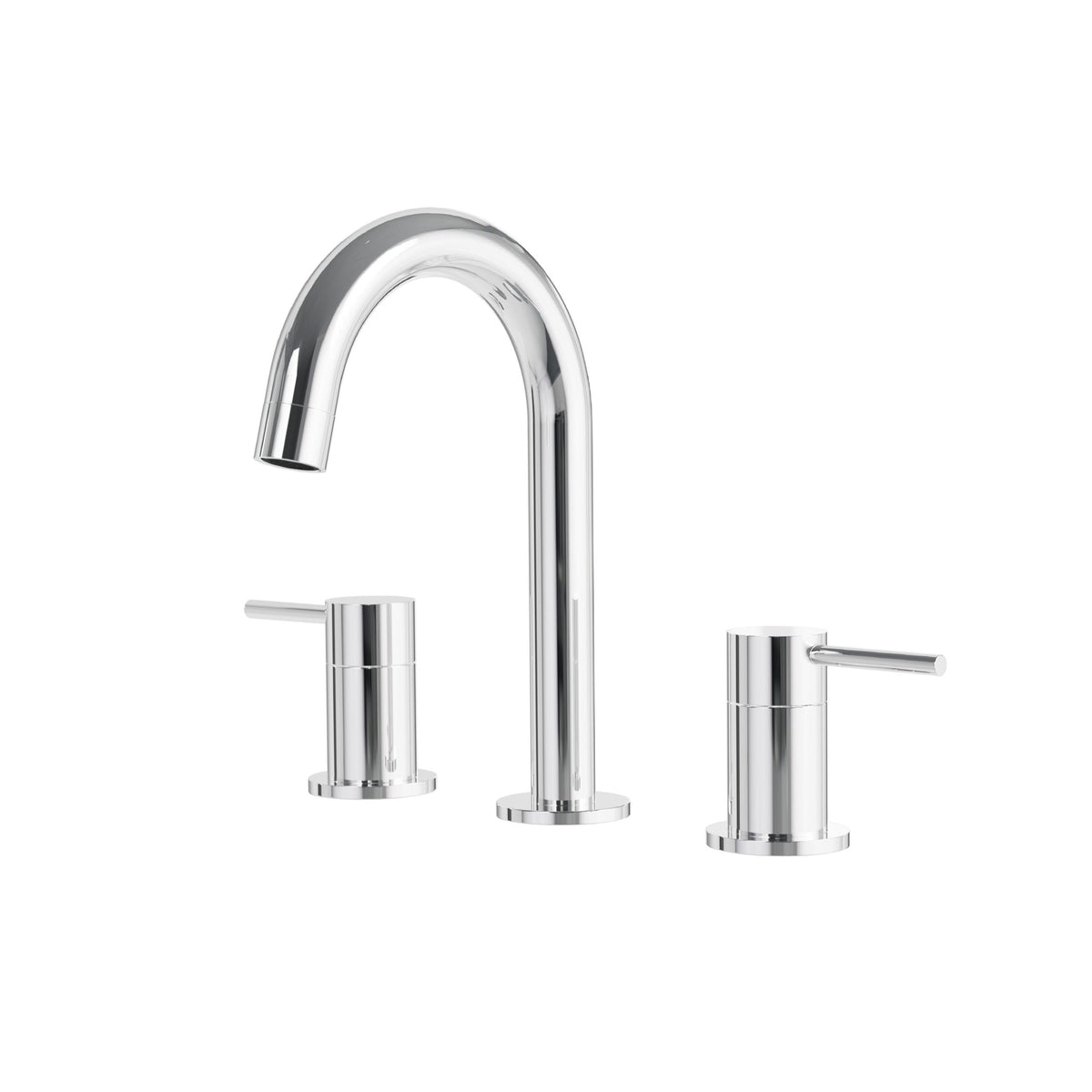

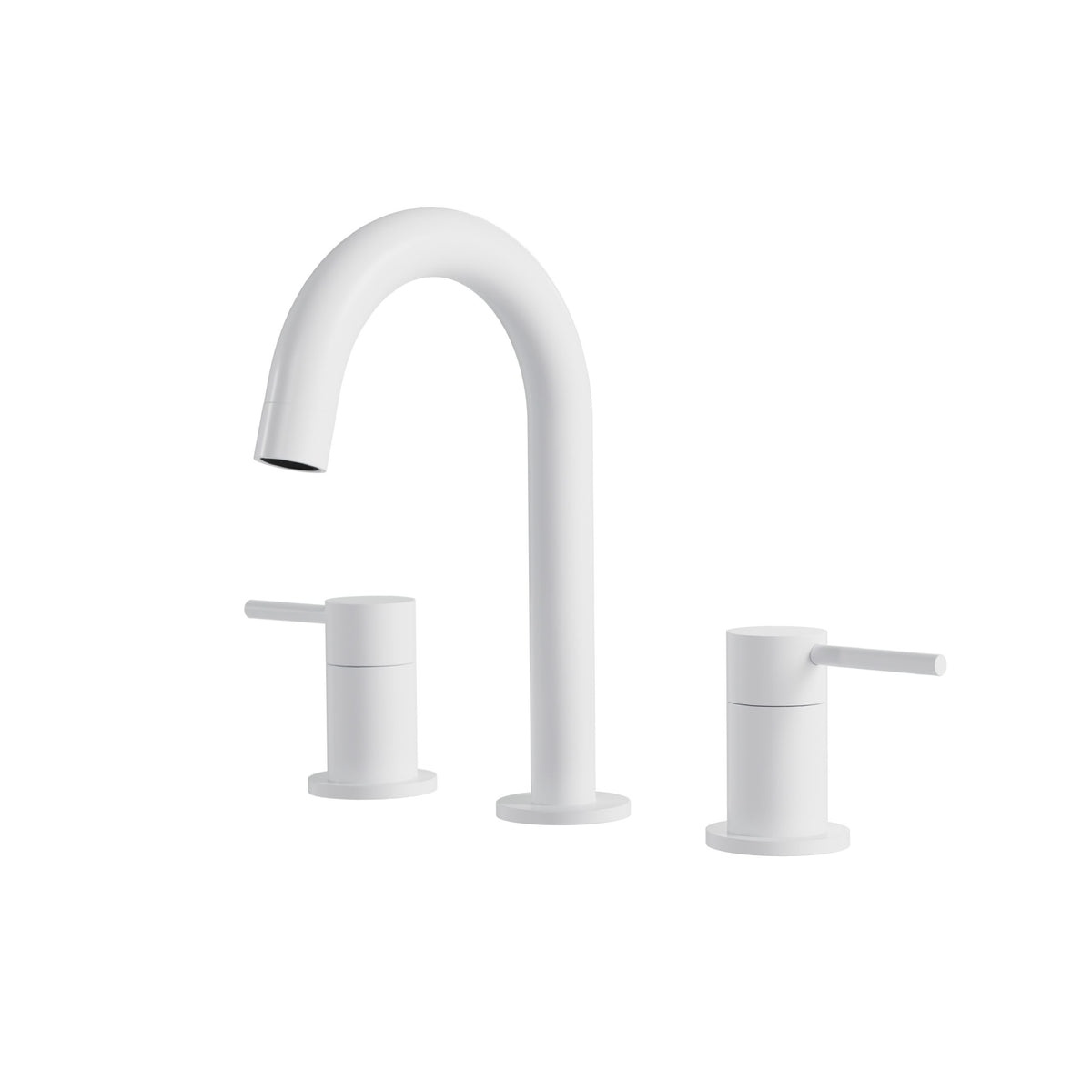

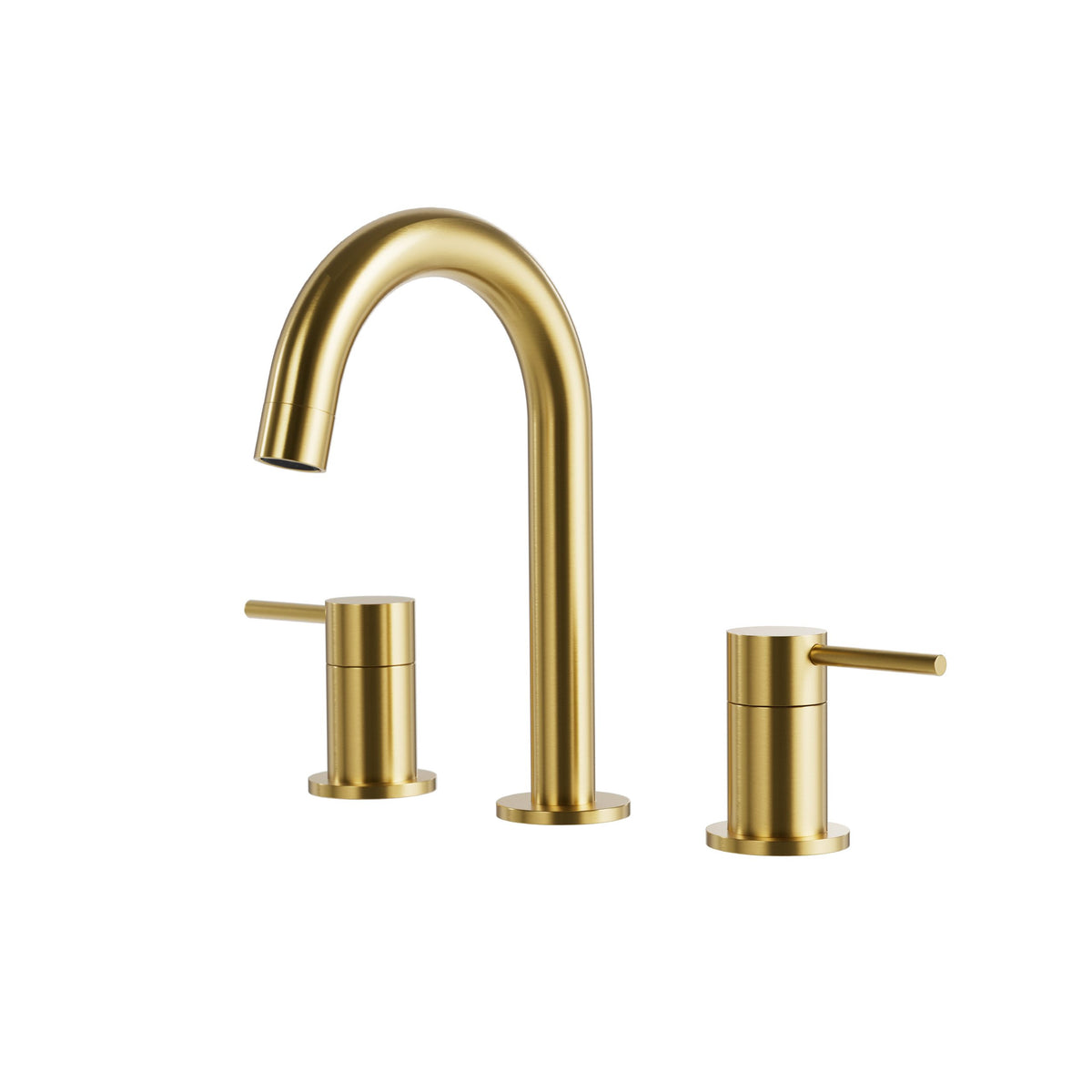

Aquabrass Xpress Umix Widespread Lavatory Faucet - 62316

SKU:ABFB62316PC

Aquabrass Xpress Umix Widespread Lavatory Faucet - 62316

A three-hole bathroom faucet with separate hot and cold handles, a laminar water stream and an included pop-up drain with overflow.

Features

Solid brass construction.
Laminar aerator produces a clear water stream.
Separate hot and cold lever handles for widespread installation.
Press pop-up drain with overflow included: ABDR00899.
3/8" water connections.
Ceramic hot cartridge ALT75553000 and ceramic cold cartridge ALT75553100.
Flow rate: 1.2 gpm (4.5 L/min) at 60 psi.
Mounting-hole diameter: 1 3/8".
Manufacturer-specified ...Read more

Aquabrass Xpress Umix Widespread Lavatory Faucet - 62316

A three-hole bathroom faucet with separate hot and cold handles, a laminar water stream and an included pop-up drain with overflow.

Features

Solid brass construction.
Laminar aerator produces a clear water stream.
Separate hot and cold lever handles for widespread installation.
Press pop-up drain with overflow included: ABDR00899.
3/8" water connections.
Ceramic hot cartridge ALT75553000 and ceramic cold cartridge ALT75553100.
Flow rate: 1.2 gpm (4.5 L/min) at 60 psi.
Mounting-hole diameter: 1 3/8".
Manufacturer-specified counter depth: 1 3/8" minimum to 2 3/8" maximum.
Quick Connect system shown in the installation guide.
UMIX components allow colour customization; optional knurled handle bases are sold separately.

Specifications

Room: Bathroom
Product type: Widespread lavatory faucet
Collection: UMIX
Model: 62316
Installation: Deck mount; three holes; 8" centres
Handles: Two levers
Material: Solid brass
Flow: 1.2 gpm (4.5 L/min) at 60 psi
Overall spout height: 8 11/16" (221 mm)
Spout outlet height: 5 5/16" (135 mm)
Spout reach shown: 5 5/16" (135 mm)
Overall spout projection: 6 3/4" (171 mm)
Spout tube diameter: 15/16" (24 mm)
Handle assembly height: 2 15/16" (75 mm)
Handle assembly width shown: 4 1/8" (105 mm)
Handle body diameter: 1 3/8" (35 mm)
Spout and handle base diameters: 2" (50 mm)
Water connections: 3/8"
Mounting-hole diameter: 1 3/8"
Counter depth: 1 3/8" minimum to 2 3/8" maximum
Cartridges: ALT75553000 hot; ALT75553100 cold (ALT7-555-30-00 and ALT7-555-31-00 in the manual)

Included Components

Spout with laminar aerator.
Hot and cold handle/valve assemblies with ceramic cartridges.
ABDR00899 press pop-up drain with overflow.
Quick Connect system, water supply hoses and mounting assemblies shown in the installation guide.

Required for Installation

No separately purchased, model-specific rough-in is specified. Provide three 1 3/8" mounting holes and 3/8" supply connections. The included drain is intended for a sink with overflow.

Optional Accessories

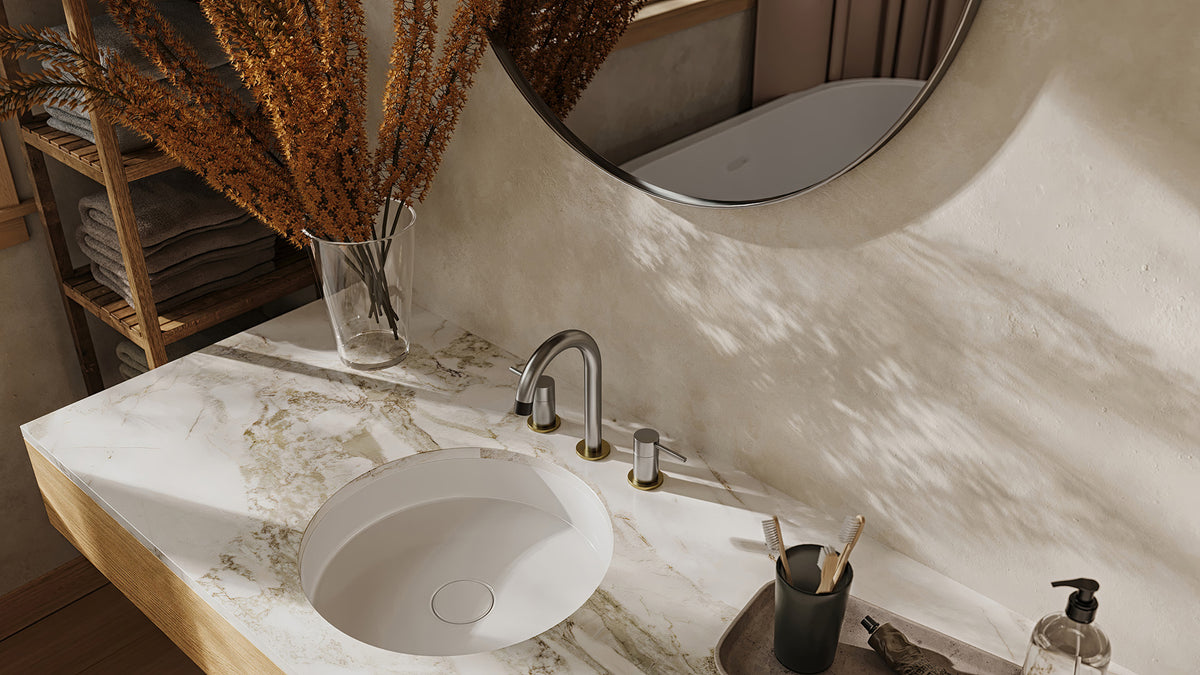

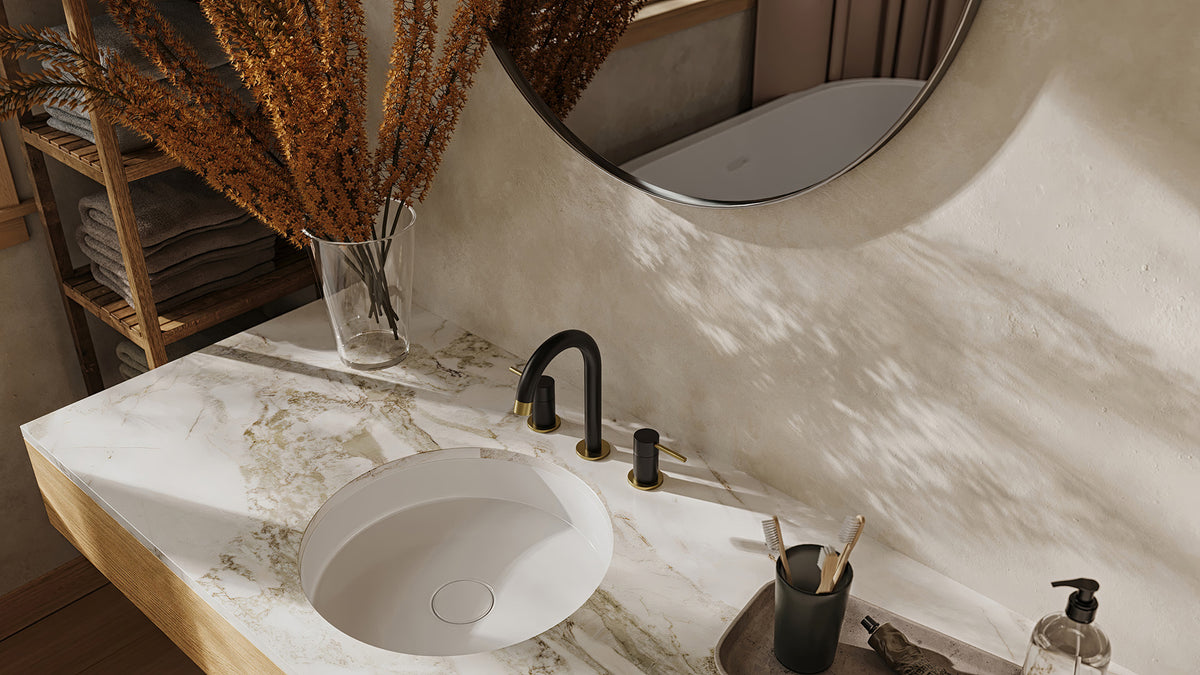

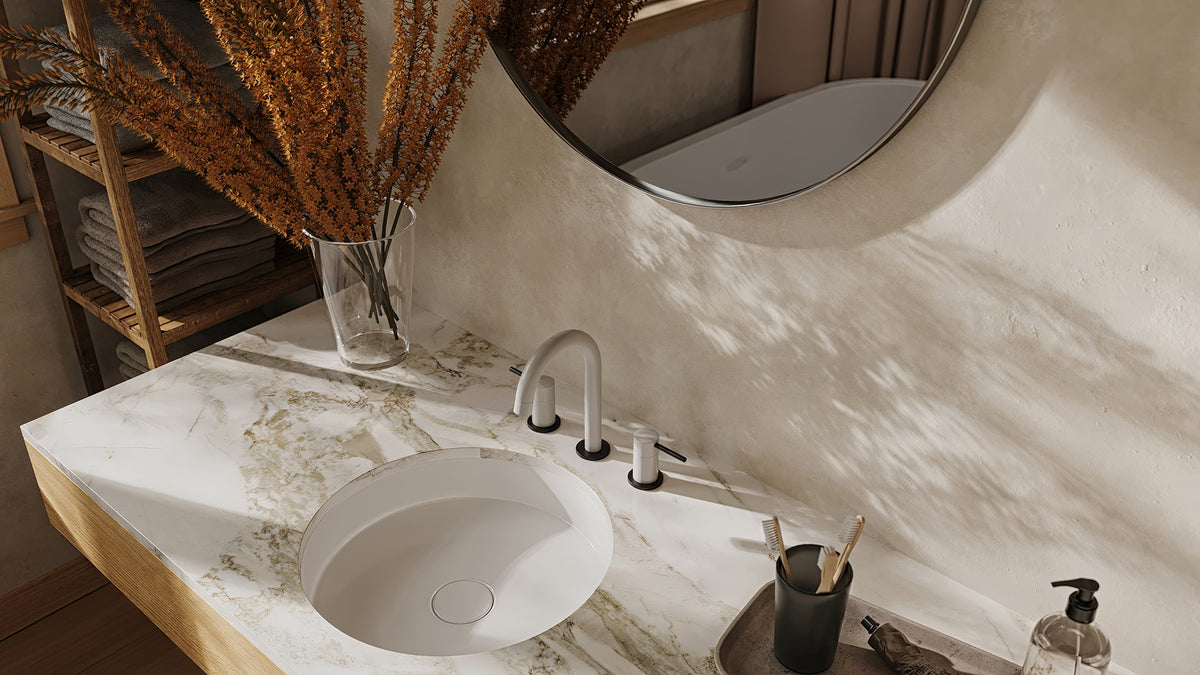

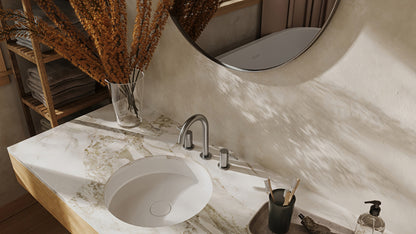

The 62306 UMIX knurled handle-base set contains two bases and is sold separately. Lifestyle images may show optional contrasting accents; the listed variants are the five standard single-finish SKUs.
