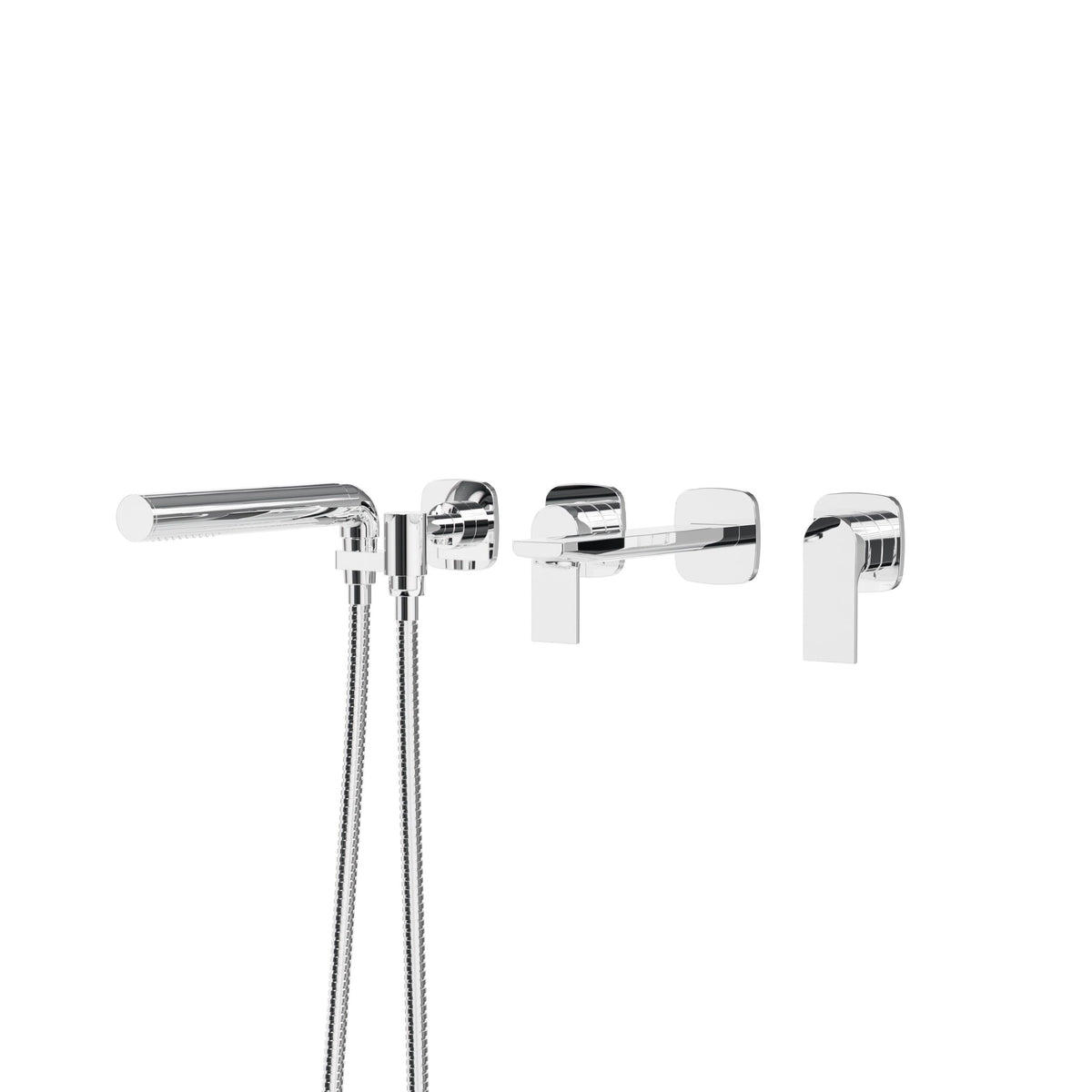

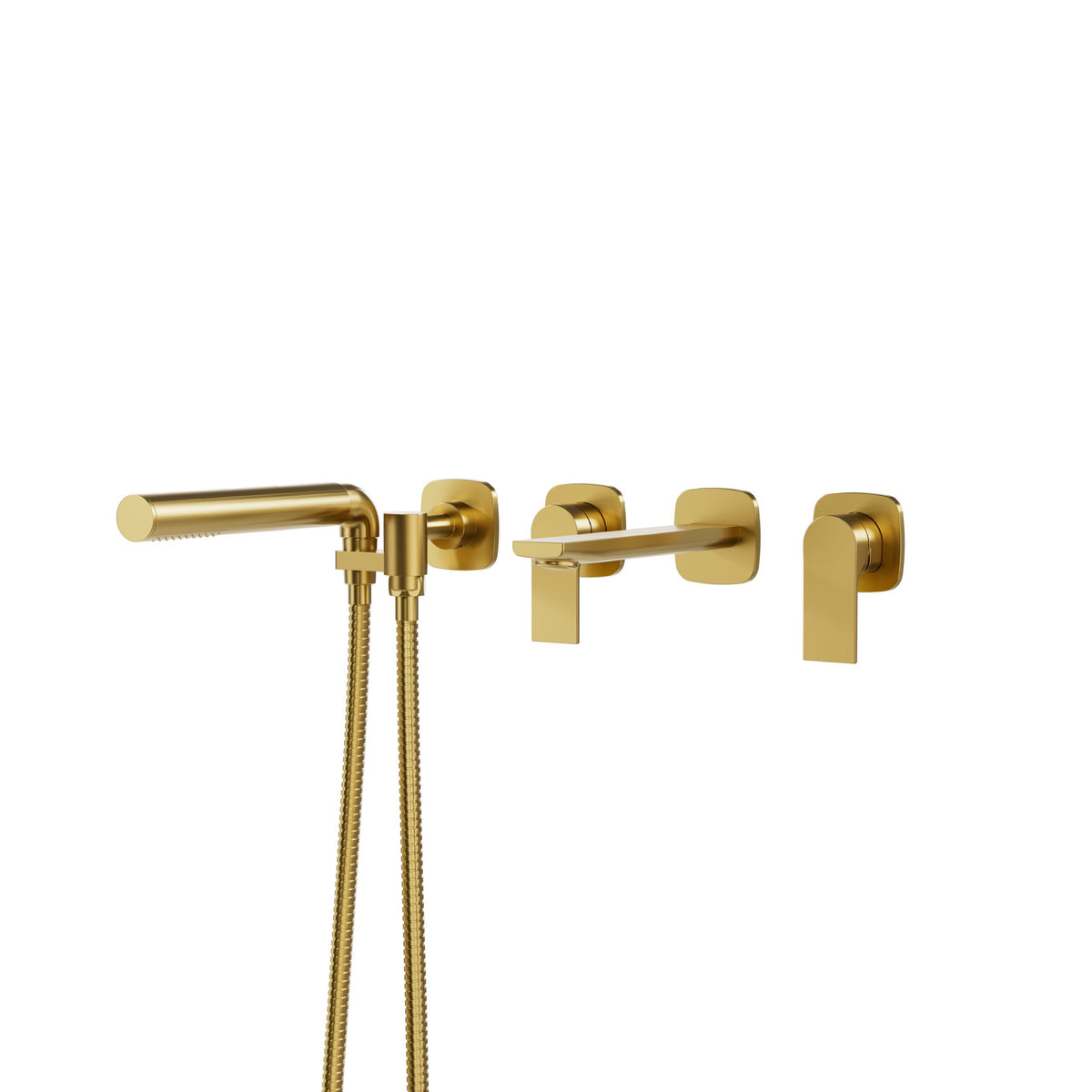

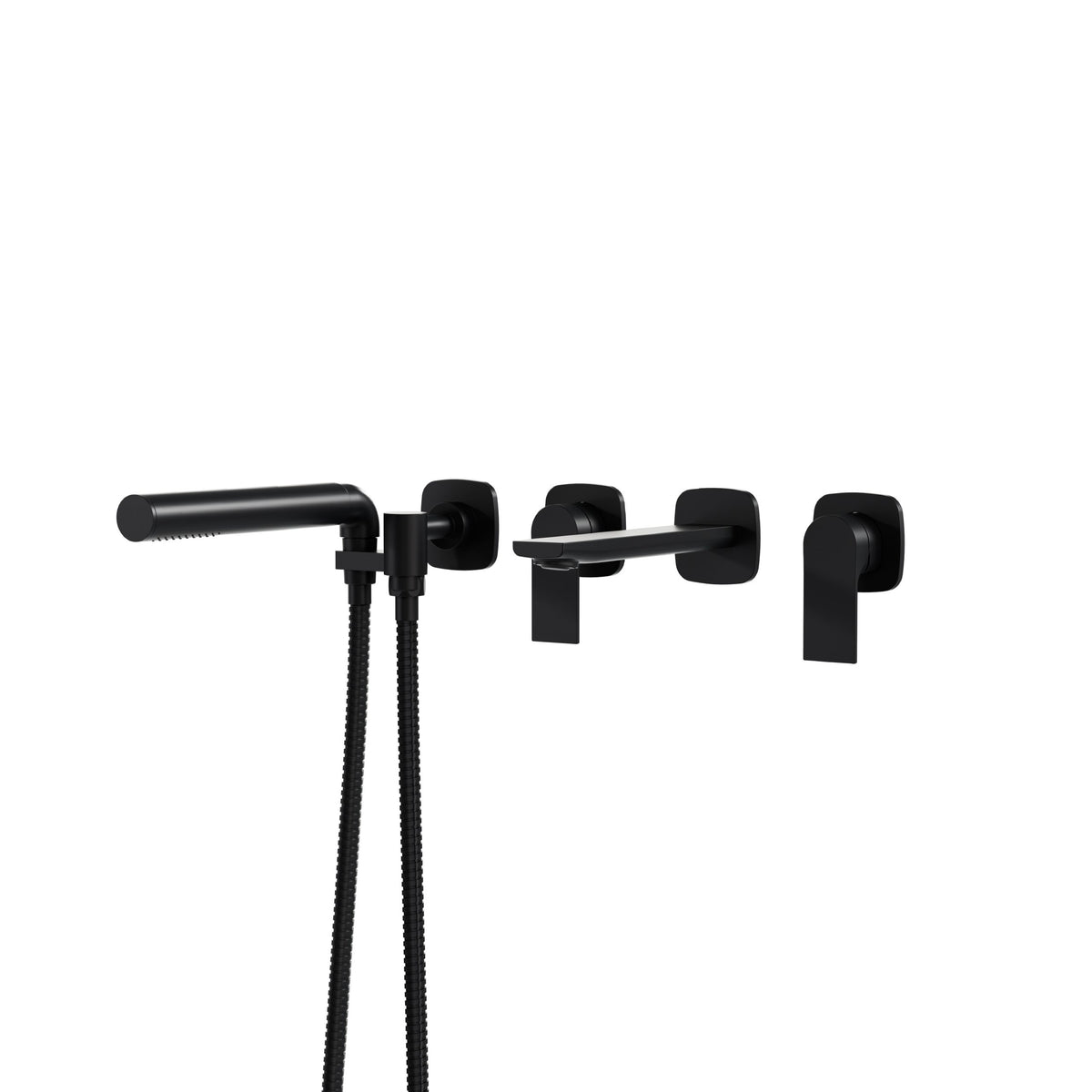

Aquabrass Xpress TMR Plus Wallmount Tub Filler with Handshower - TMR04

Aquabrass Xpress TMR Plus Wallmount Tub Filler with Handshower - TMR04

A wall-mounted tub filler trim set with a handshower and separate lever controls for each outlet. The two-rough-in package R2904-2 is purchased separately.

Features

• Solid brass construction.
• Laminar aerator produces a clear water stream.
• Two independent mixing controls, each with a single lever for volume and temperature.
• Adjustable temperature limit stops.
• Tub spout and handshower assemblies can be positioned independently to suit the installation.
• Handshower with a 5-foot double-helix hose.
• R2904-2 rough-in package required and sold separately.
• 1/2" water connection.
• Manufacturer-specified ceramic cartridge: ALT75554500, used with the separately purchased rough-ins.
• Tub spout flow: 5.1 gpm (19 L/min).
• Handshower flow: 1.8 gpm (6.8 L/min).
• Manufacturer-specified mounting hole: 1 3/8".

Specifications

• Room: Bathroom
• Product type: Wall-mounted tub filler trim with handshower
• Collection: TMR Plus
• Model: TMR04
• Installation: Wall mount
• Controls: Two independent single-lever mixers, one per outlet
• Material: Solid brass
• Flow: tub spout 5.1 gpm (19 L/min); handshower 1.8 gpm (6.8 L/min)
• Spout-to-control centre spacing: 3 15/16" (100 mm)
• Overall spout projection: 7 7/8" (200 mm)
• Spout outlet reach: 7 3/16" (182 mm)
• Escutcheon height: 2 3/8"
• Handle assembly height: 3 1/2" (88 mm)
• Handle width: 1 3/8" (35 mm)
• Spout height shown: 1 9/16"
• Handshower length: 7 3/8" (187 mm)
• Handshower diameter: 1 1/8" (28 mm)
• Handshower holder projection shown: 2 3/4"
• Hose length: 5 feet
• Connection: 1/2"
• Mounting-hole diameter: 1 3/8"; installation guide specifies maximum wall openings of 2" (50 mm)
• Installation guide requires a maximum temperature setting of 120°F (49°C) or lower.

Included Components

• Tub spout with tub-spout aerator and trim.
• Two lever handles with trim covers and escutcheons.
• Handshower, wall holder, connector and 5-foot double-helix hose.

Required for Installation

Purchase one R2904-2 package (SKU ABGRPR2904-2) separately. It contains two rough-ins, and both are required: one for the tub spout and one for the handshower. Do not order two R2904-2 packages for one TMR04 set.

Certifications

• ASME A112.18.1 and CSA B125.1
• ADA compliance
• EPA WaterSense: handshower only
