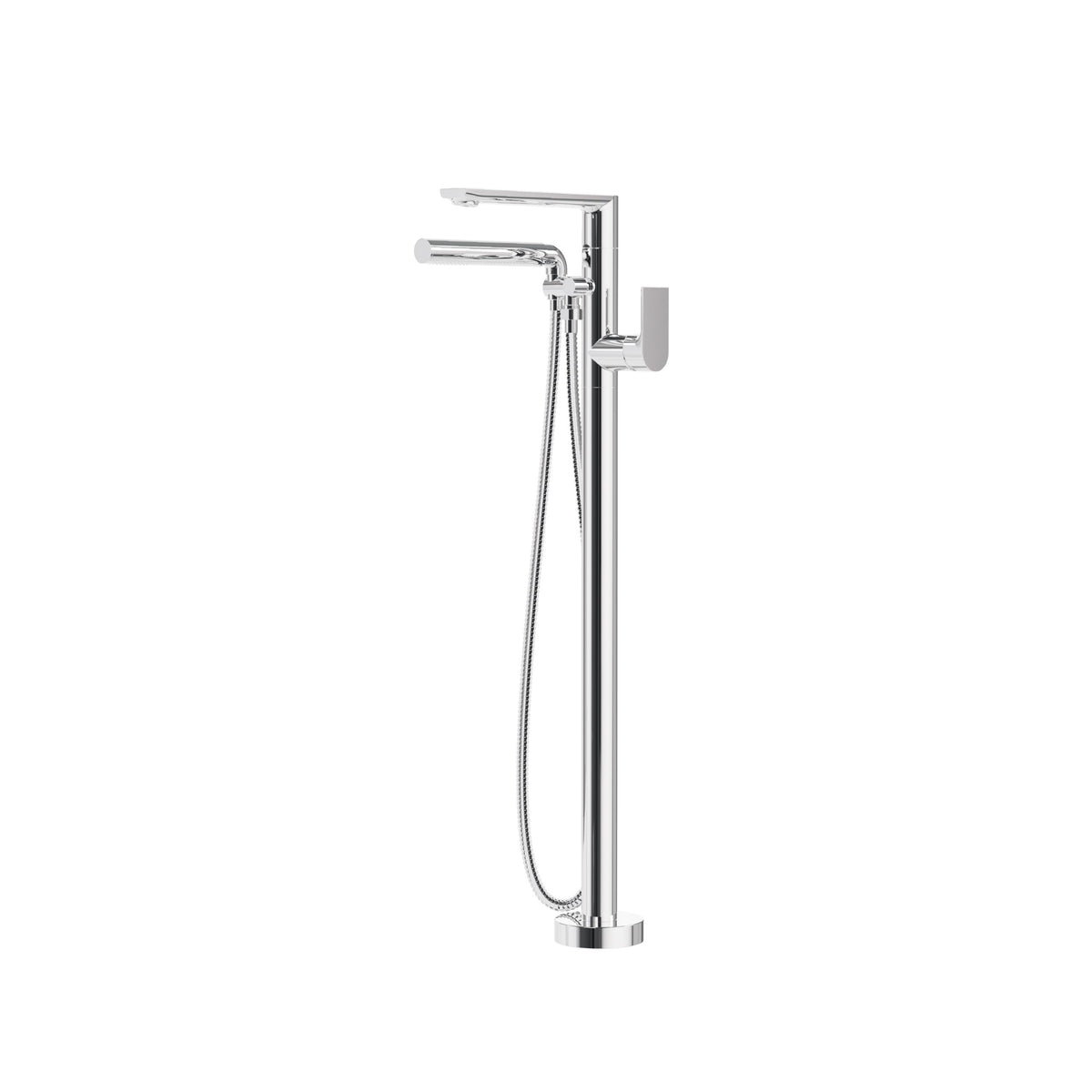

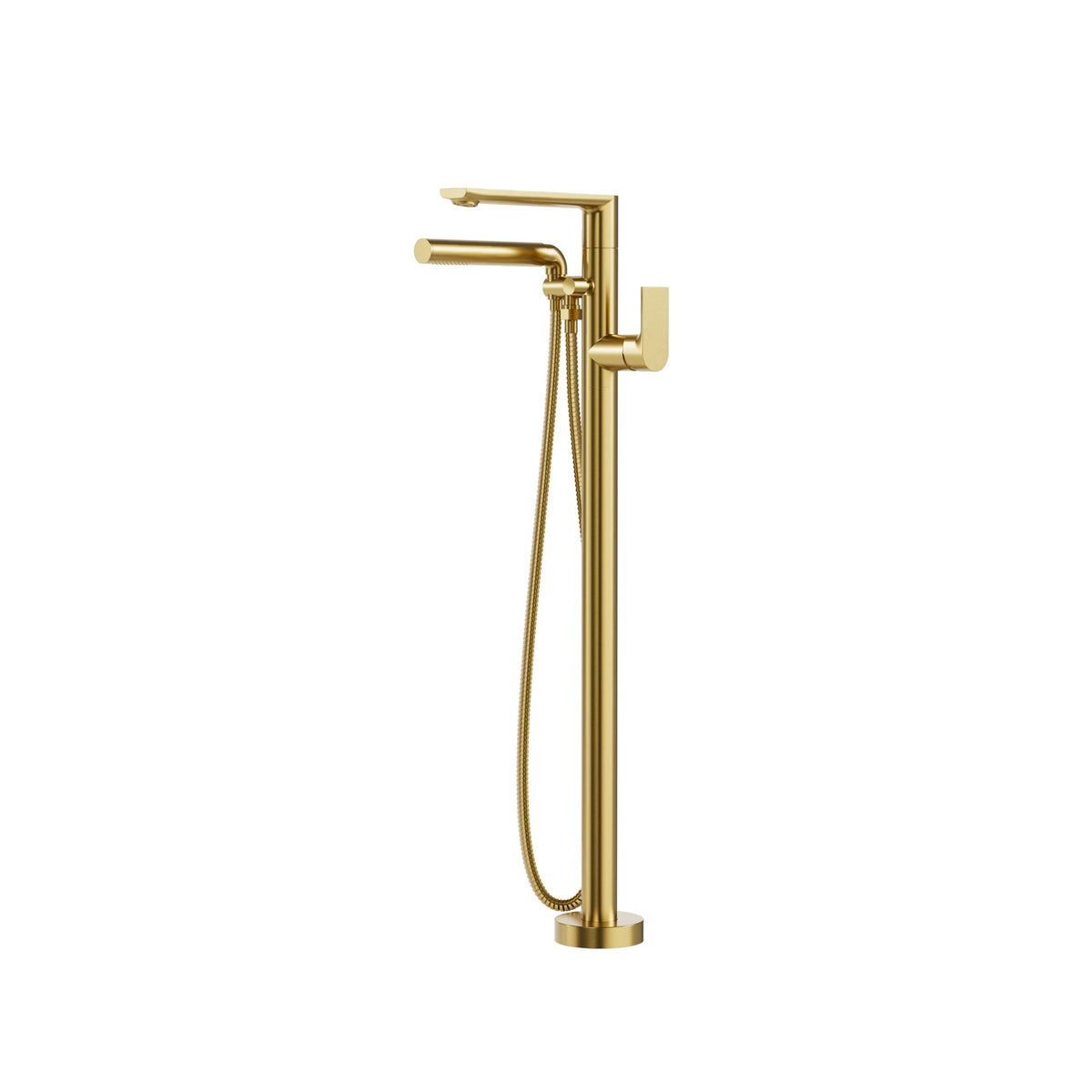

Aquabrass Xpress TMR Plus Floormount Tub Filler with Handshower - TMR84

Aquabrass Xpress TMR Plus Floormount Tub Filler with Handshower - TMR84

A floor-mounted bath faucet with pressure-balanced single-lever control, a front diverter and a separate handshower.

Features

• Solid brass construction.
• Laminar aerator produces a clear water stream.
• One lever controls water volume and temperature.
• Adjustable temperature limit stop.
• Pressure-balance cartridge ABCA84099.
• Handshower with a 5-foot double-helix hose.
• Pull-button diverter on the front of the spout selects tub spout or handshower.
• Easy-fit installation system included.
• 1/2" water connection.
• Tub spout flow: 4.8 gpm (18 L/min).
• Handshower flow: 1.8 gpm (6.8 L/min).

Specifications

• Room: Bathroom
• Product type: Floor-mounted tub filler with handshower
• Collection: TMR Plus
• Model: TMR84
• Installation: Floor mount
• Control: Single lever; two-way diverter
• Material: Solid brass
• Cartridge: ABCA84099, pressure balance
• Flow: tub spout 4.8 gpm (18 L/min); handshower 1.8 gpm (6.8 L/min)
• Spout outlet height: 32 9/16" (827 mm)
• Spout reach: 8 1/4" (210 mm)
• Overall spout depth: 11 5/16" (287 mm)
• Base diameter: 4 1/8" (105 mm)
• Connection: 1/2"
• Hose length: 5 feet
• Recommended floor opening: 2 1/2" diameter or less
• Supply connection depth below finished floor: 1/2" minimum to 2" maximum without extensions
• Hot and cold supply connections should be arranged close together; their orientation is independent of the final spout position.

Included Components

• TMR84 tub filler with lever, pressure-balance cartridge and diverter.
• Handshower with 5-foot double-helix hose.
• Easy-fit installation system.

Required for Installation

No separately purchased, model-specific rough-in is specified. If supply connections are deeper than 2", the installation guide requires commercially available standard male-to-female extensions; no manufacturer part code is provided.

Certifications

• ASME A112.18.1 and CSA B125.1
• ADA compliance
• EPA WaterSense: handshower only
