Tenzo Mylo SMART-TRIM Pressure Balance Shower Valve Trim, Two Rotary Functions, Not Shared - F-MYPB22R

Tenzo Mylo SMART-TRIM Pressure Balance Shower Valve Trim, Two Rotary Functions, Not Shared - F-MYPB22R

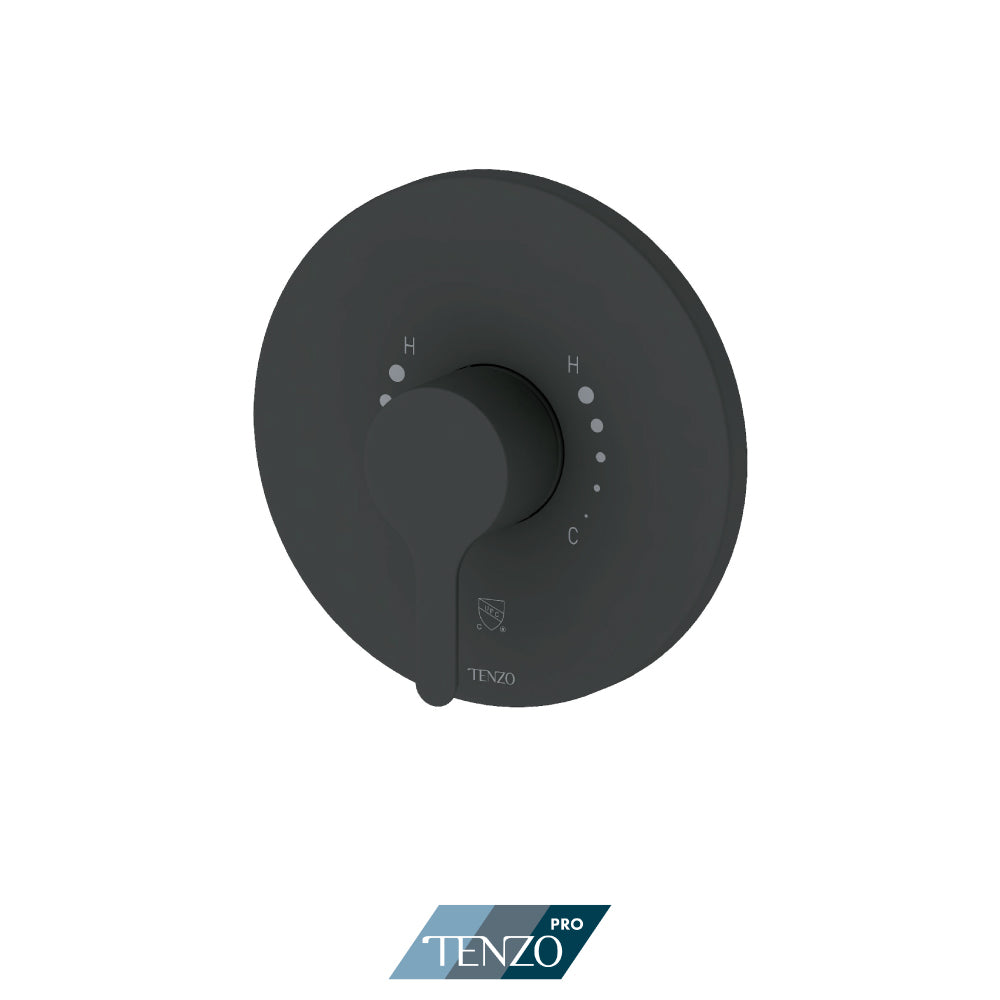

The finished trim for the Tenzo Pro Mylo SMART-TRIM pressure balance valve, two rotary functions, not shared, for a wall where the rough-in is already in place.

What's included

• Mylo SMART-TRIM valve trim, two rotary functions, not shared (F-MYPB22R-XX): escutcheon plate, handle and cartridge

Not included

• Tenzo Pro rough-in valve body (R-PB22R)

Features

• Trim only, every visible above-surface part, finished to match.
• Pressure-balanced cartridge holds the set temperature as other outlets draw.
• SMART-TRIM is the Tenzo Pro trim platform: one rough-in body in the wall, and the plate, handle and cartridge supplied together in the trim.
• Rotary control, with the two functions on one turning handle.
• Solid brass.

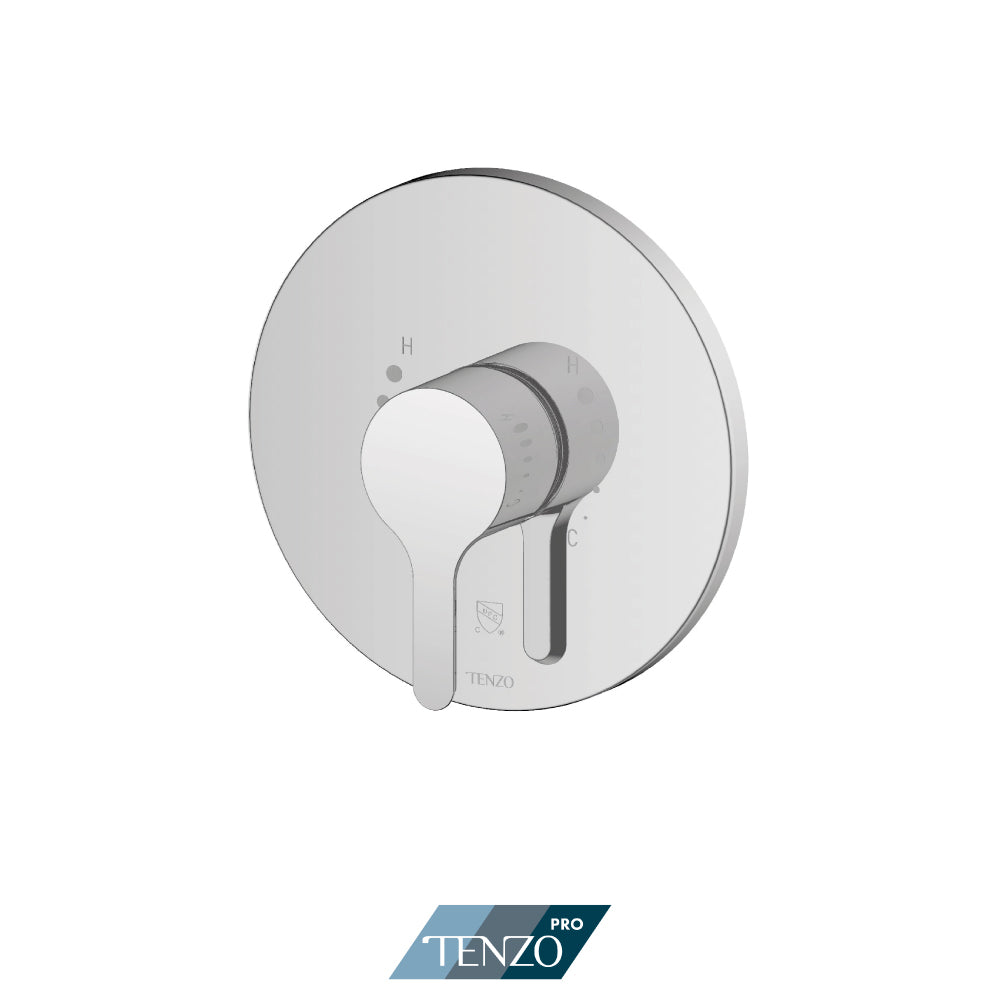

• 2 finishes.

Specifications

• Room: Bathroom
• Product Type: Shower Valve Trim
• Collection: Mylo (Tenzo Pro)
• Style: Modern
• System: SMART-TRIM
• Valve Type: Pressure Balance
• Functions: 2
• Valve Flow: 22 L/min [4.8 gpm] @ 60 psi
• Pressure Balance Cartridge: CAR-HY-PB-RO40-01
• Supplied As: Trim only, no rough-in
• Material: Solid brass

Good to know

• The rough-in is not included. The matching Tenzo Pro rough is R-PB22R.
• Order this version only where the rough is already set in the wall and the finish is being changed or completed.
• The cartridge ships with the trim, not in the rough, so the valve body can go in the wall before the finish is chosen.
• The rough is available with PEX, NPT or expansion PEX connections, and carries integrated service valves with non-return valves.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty

Shop the Tenzo Mylo collection at e-unoia.com
