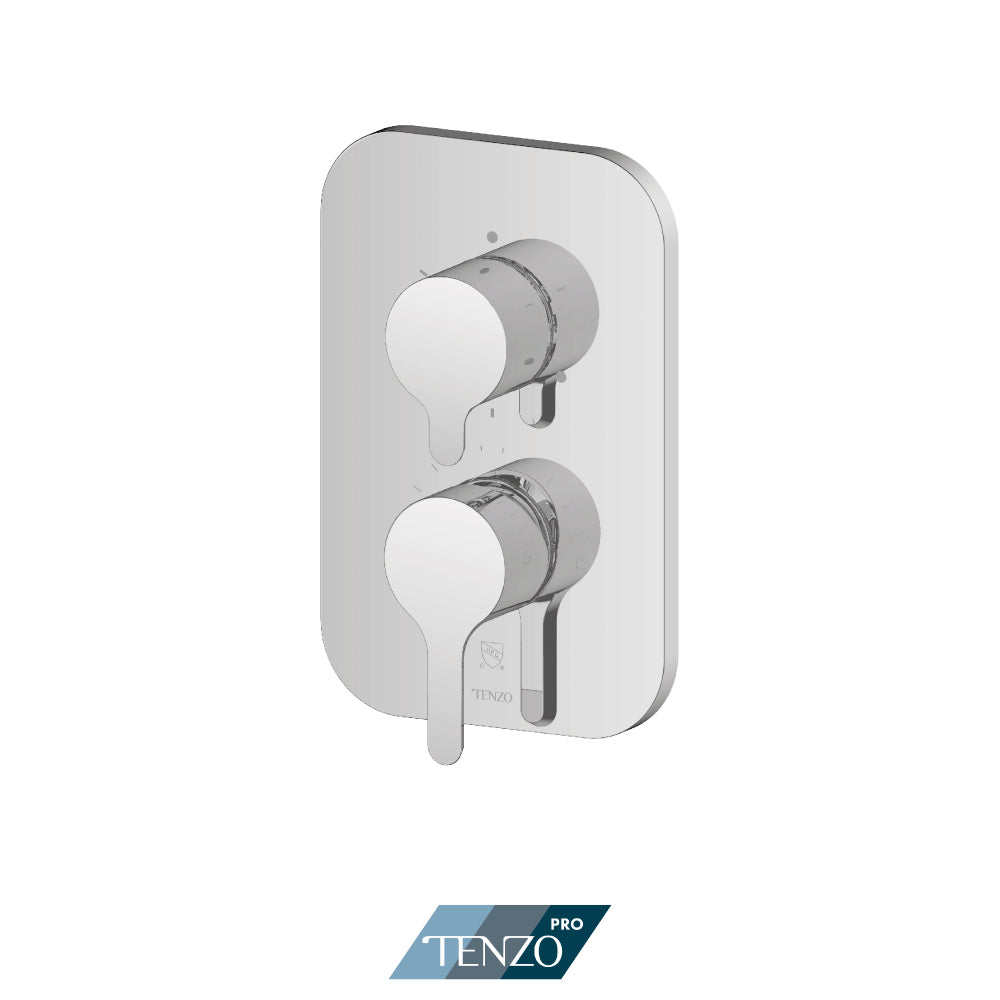

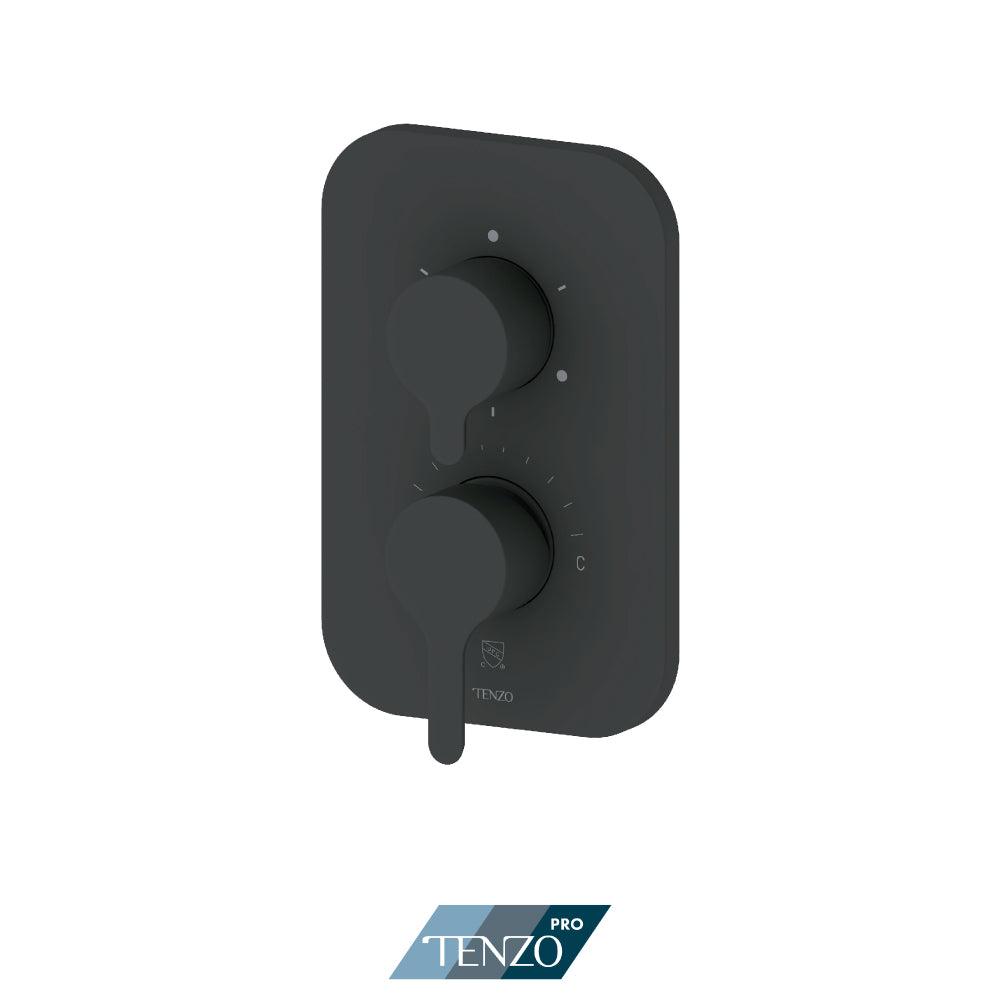

Tenzo Mylo SMART-TRIM Pressure Balance Shower Valve Trim, Three Functions, Shared - F-MYPB23S

Tenzo Mylo SMART-TRIM Pressure Balance Shower Valve Trim, Three Functions, Shared - F-MYPB23S

The finished trim for the Tenzo Pro Mylo SMART-TRIM pressure balance valve, three functions, shared, for a wall where the rough-in is already in place.

What's included

• Mylo SMART-TRIM valve trim, three functions, shared (F-MYPB23S-XX): escutcheon plate, handle and cartridge

Not included

• Tenzo Pro rough-in valve body (R-PB23)

Features

• Trim only, every visible above-surface part, finished to match.
• Pressure-balanced cartridge holds the set temperature as other outlets draw.
• SMART-TRIM is the Tenzo Pro trim platform: one rough-in body in the wall, and the plate, handle and cartridge supplied together in the trim.
• Shared zones, so more than one outlet can run at the same time.
• Solid brass.
• 2 finishes.

Specifications

• Room: Bathroom
• Product Type: Shower Valve Trim
• Collection: Mylo (Tenzo Pro)
• Style: Modern
• System: SMART-TRIM
• Valve Type: Pressure Balance
• Functions: 3
• Valve Flow: 25.5 L/min [6.7 gpm] @ 60 psi
• Pressure Balance Cartridge: CAR-HY-PB-JH04BD
• Diverter Cartridge: CAR-HA-DV3-33058 (shared)
• Supplied As: Trim only, no rough-in
• Material: Solid brass

Good to know

• The rough-in is not included. The matching Tenzo Pro rough is R-PB23.
• Order this version only where the rough is already set in the wall and the finish is being changed or completed.
• The cartridge ships with the trim, not in the rough, so the valve body can go in the wall before the finish is chosen.
• The rough is available with PEX, NPT or expansion PEX connections, and carries integrated service valves with non-return valves.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
