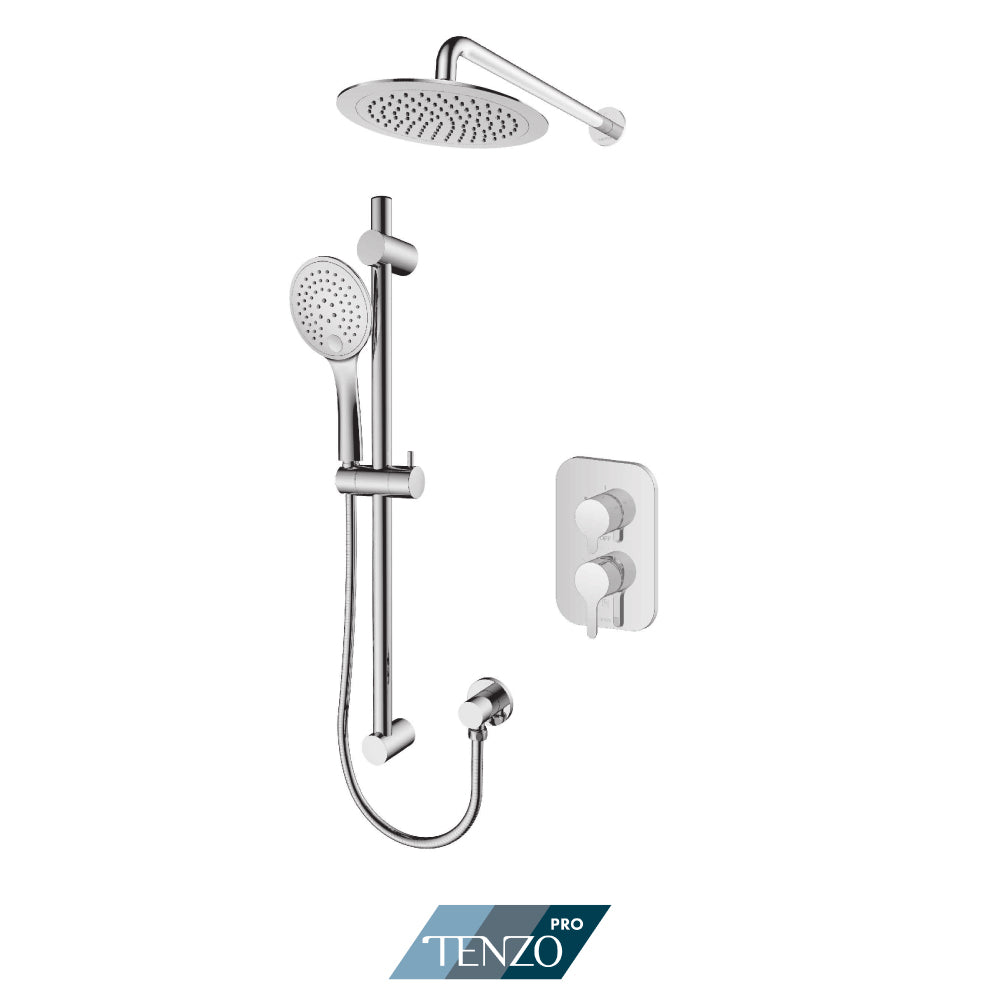

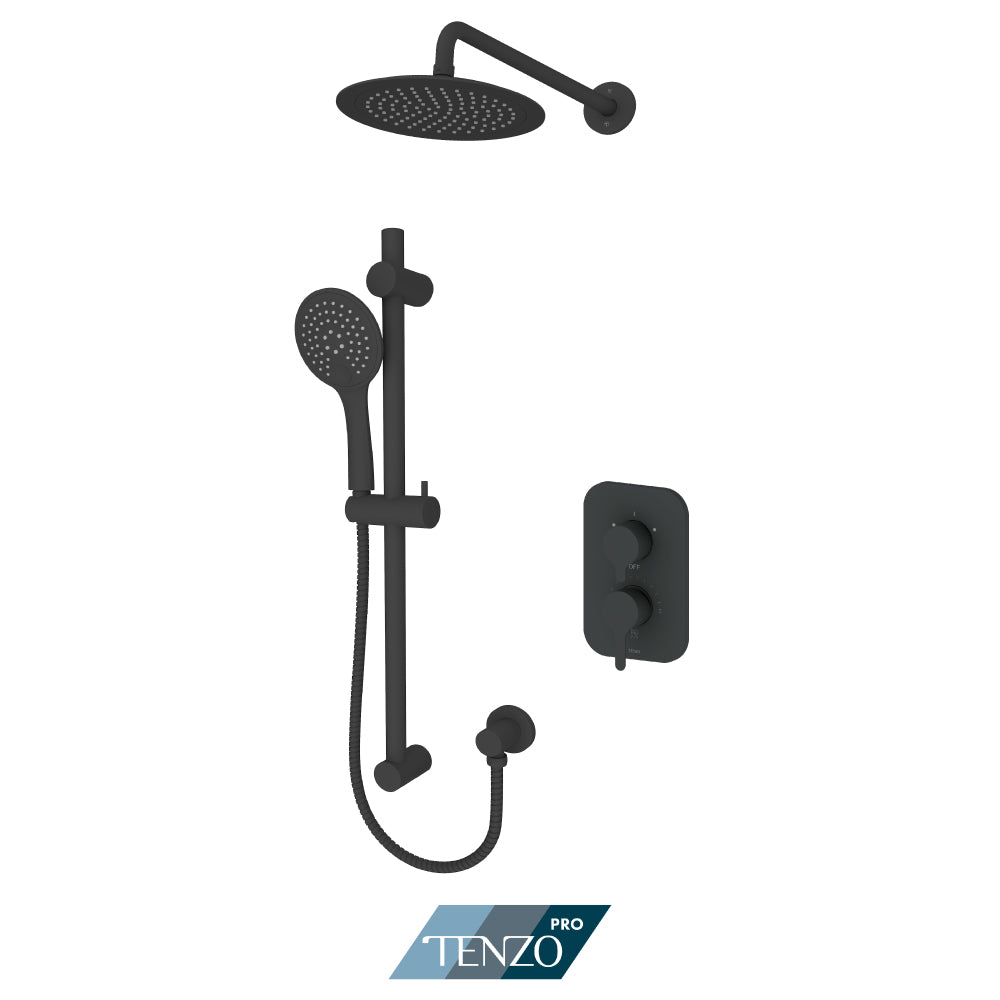

Tenzo Mylo Pressure Balance Shower Kit Trim, 9" Round Rain Head & Sliding Bar Kit - F-MYPB22-1130

Tenzo Mylo Pressure Balance Shower Kit Trim, 9" Round Rain Head & Sliding Bar Kit - F-MYPB22-1130

Every visible part of the Tenzo Pro Mylo MYPB22-1130 shower kit, for a wall where the rough-in valve is already in place.

What's included

• Mylo SMART-TRIM valve trim (F-MYPB22S-XX): escutcheon plate, handle and cartridge
• Round shower head, 23 cm [9"] (PVTS-09-R-XX)
• Wall mount shower arm, 40 cm [16"] (SA-609-XX)
• Sliding bar kit with wall elbow (KRD-108229-XX): sliding bar, 3-function hand shower, wall supply elbow and hose

Not included

• Tenzo Pro rough-in valve body (R-PB23)

Features

• Trim only, every visible above-surface part, finished to match.
• Pressure-balanced cartridge holds the set temperature as other outlets draw.
• SMART-TRIM is the Tenzo Pro trim platform: one rough-in body in the wall, and the plate, handle and cartridge supplied together in the trim.
• Sliding bar kit is supplied complete with its wall supply elbow and hose.
• Solid brass.
• 2 finishes.

Specifications

• Room: Bathroom
• Product Type: Shower Kit Trim
• Collection: Mylo (Tenzo Pro)
• Style: Modern
• System: SMART-TRIM
• Valve Type: Pressure Balance
• Functions: 2
• Rain Head: 23 cm [9"] round
• Shower Head Installation: Wall arm, 40 cm [16"]
• Hand Shower: 3-function, on a sliding bar
• Valve Flow: 25.5 L/min [6.7 gpm] @ 60 psi
• Pressure Balance Cartridge: CAR-HY-PB-JH04BD
• Diverter Cartridge: CAR-HA-DV3-33058 (shared)
• Supplied As: Trim only, no rough-in
• Material: Solid brass

Good to know

• The rough-in is not included. Ordered complete with the rough, this is MYPB22-1130.
• Order this version only where the rough is already set in the wall and the finish is being changed or completed.
• The matching Tenzo Pro rough is R-PB23, the 2 and 3 function body, available with PEX, NPT or expansion PEX connections.
• The cartridge ships with the trim, not in the rough, so the valve body can go in the wall before the finish is chosen.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
