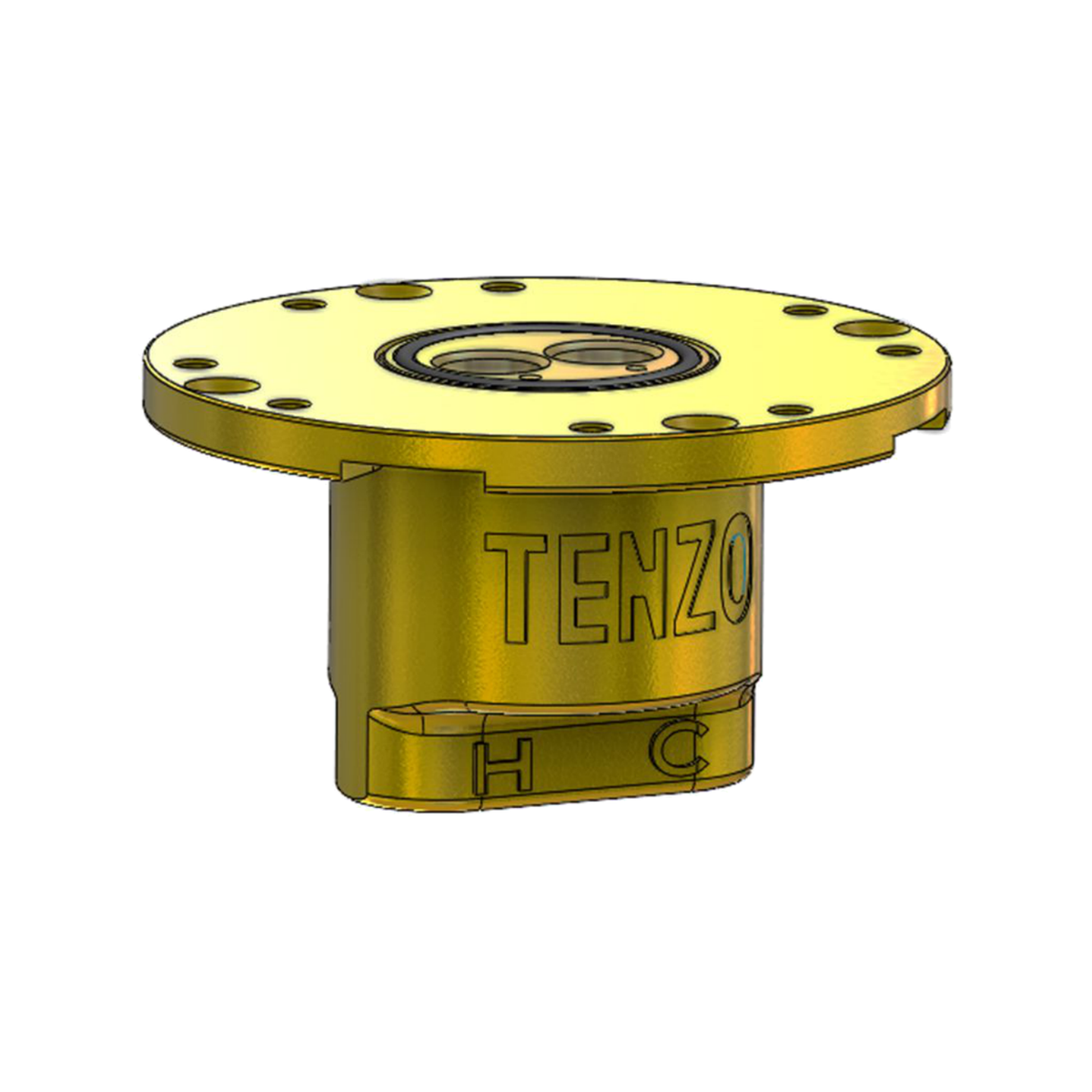

Floor rough-in for Tenzo freestanding tub fillers — a brass base the tub filler mounts on top of.

Installation at a glance

• The brass base sets into the subfloor before the finished floor goes down
• Needs a 2½” [63.5 mm] hole in the floor, with a second layer of wood beneath for at least 1¼” total thickness
• Fixed with 4 screws through the flange
• Takes a test cap so the system can be pressure-tested before the finish flooring goes in
• Marked H and C so hot and cold cannot be reversed
• The tub filler rotates on the base for final alignment

Specifications

• Room: Bathroom
• Product Type: Freestanding Tub Filler Rough-In
• Installation Type: Floor mount, in-floor
• Floor Opening: 2½” [63.5 mm] diameter
• Minimum Floor Thickness: 1¼”
• Material: Brass
• Finish: Unfinished — concealed below the floor

Please note

• PEX connectors are not included. The two supply adapters thread onto the base of the faucet and are sealed with Teflon tape; the connectors themselves are bought separately.

Certifications & Warranty

• cUPC certified
• Limited lifetime warranty — 5 years in a commercial installation
