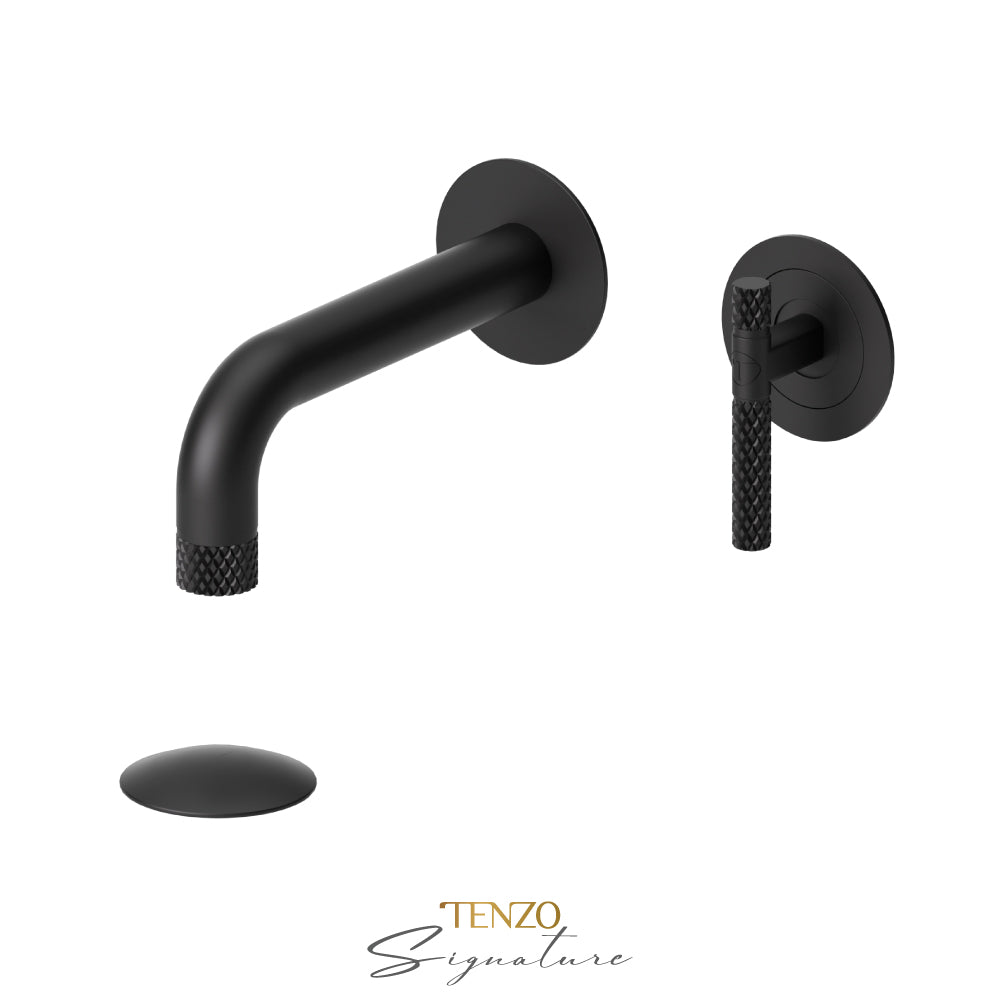

Tenzo Bellacio Wall Mount Lavatory Faucet Without Overflow Drain, Larger Knurled - BE14-C-W

Tenzo Bellacio Wall Mount Lavatory Faucet Without Overflow Drain, Larger Knurled - BE14-C-W

The Bellacio mounted on the wall rather than the basin, supplied complete with its in-wall rough-in valve.

What's included

• Wall mount lavatory faucet, solid brass
• R-14 rough-in valve — the in-wall half of the faucet
• Matching pop-up drain without overflow

Features

• Ships complete — rough-in valve and finished trim in one order. The R-14 rough is included, so there is no second part to buy
• Larger diamond cross-knurl on the spout tip, the lever handle and the escutcheons, deep enough to read across the room — the BE14-F-W is the same faucet with a much finer knurl

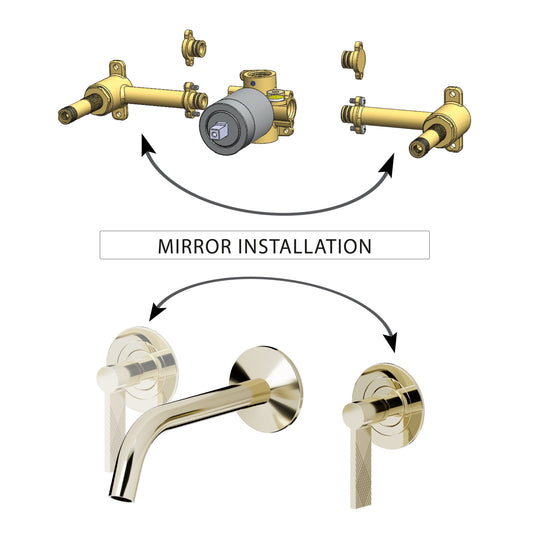

• Mirror installation — the handle can be set to the left or the right of the spout
• Curved spout with a knurled tip, on a round escutcheon

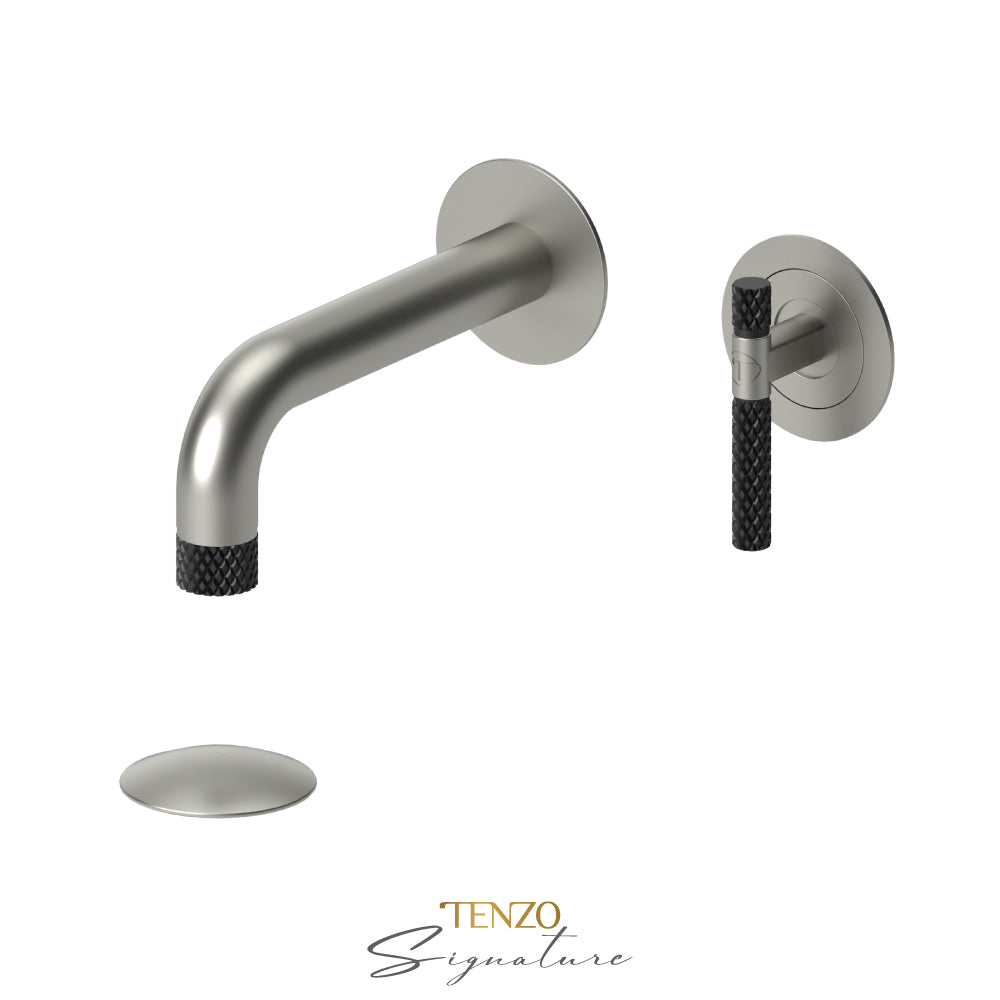

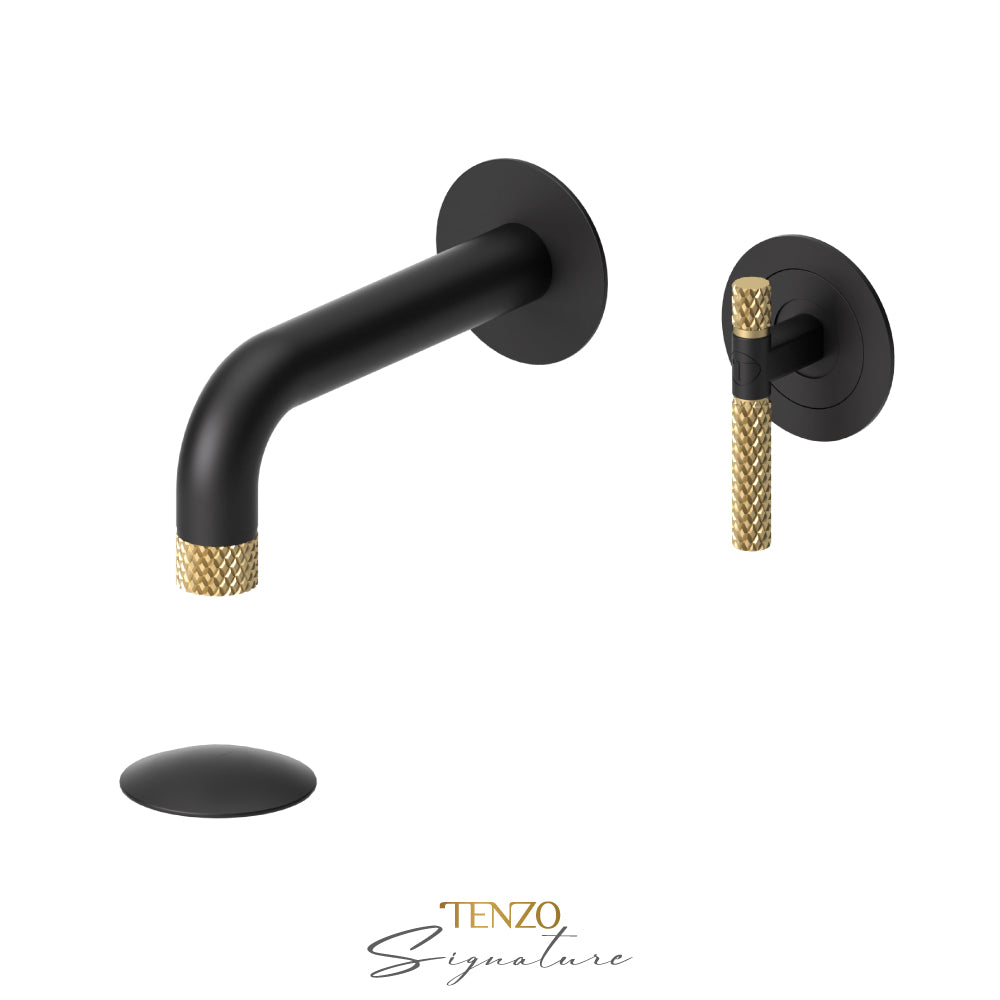

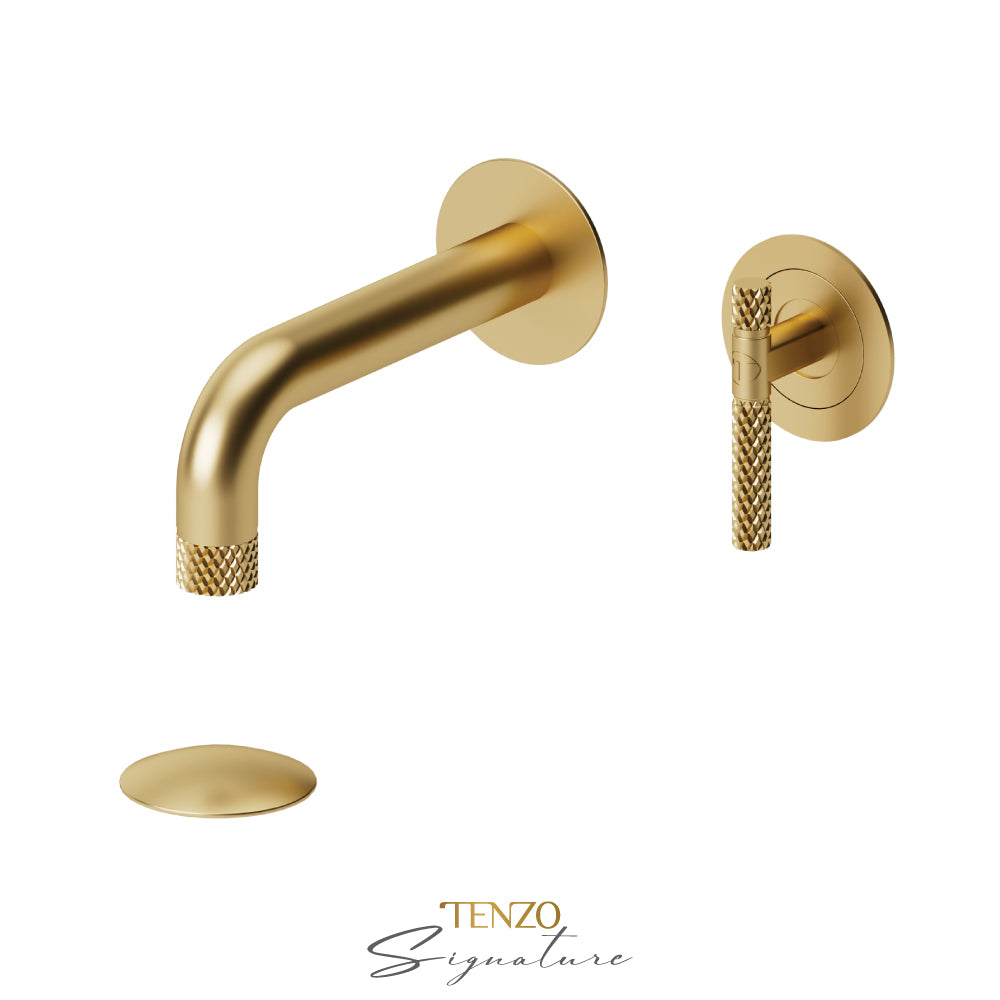

• Eight finishes, five of them two-tone, so the knurled details can be picked out in a contrasting metal
• Solid brass construction
• Ceramic cartridge
• Pop-up drain without overflow included, finished to match the faucet
• Flow rate: 5.7 L/min [1.5 gpm] @ 60 psi
• Female 1/2” connection

Specifications

• Room: Bathroom
• Product Type: Lavatory Faucet
• Collection: Bellacio (Tenzo Signature)
• Style: Contemporary
• Hole Configuration: 2
• Handles: Single lever, reversible left or right
• Mounting Location: Wall
• Installation Type: Wall Mount, in-wall valve
• Spout Reach: 6-15/16” (177 mm)
• Overall Projection: 7-7/16” (190 mm)
• Escutcheon Diameter: 2-9/16” (65 mm)
• Spout to Handle Centres: 4-5/16” (110 mm)
• Rough-In Depth: 1-13/16” (46 mm) min to 3-5/16” (84 mm) max from the finished wall
• Drain: Pop-up, without overflow
• Flow Rate: 5.7 L/min [1.5 gpm] @ 60 psi
• Supply Connection: 1/2” female

Good to know

• This is the version for a basin with no overflow hole, which is what most vessel and above-counter basins are. BE14-C-P is the same faucet with the overflow drain.
• The rough-in goes into the wall during framing and the finished trim goes on afterwards, so this is a decision to make before the wall is closed.
• The valve body sets between 1-13/16” and 3-5/16” behind the finished wall — worth checking against your wall build-up before rough-in.
• On the two-tone finishes the first colour is the body and the second is the knurled detailing.
• Prefer the finer texture? That is the BE14-F-W, the same faucet with a much finer knurl.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
