Tenzo Bellacio Top-Lever Single Hole Tall Vessel Faucet Without Overflow Drain, Smaller Knurled - BE11H-F-W

Tenzo Bellacio Top-Lever Single Hole Tall Vessel Faucet Without Overflow Drain, Smaller Knurled - BE11H-F-W

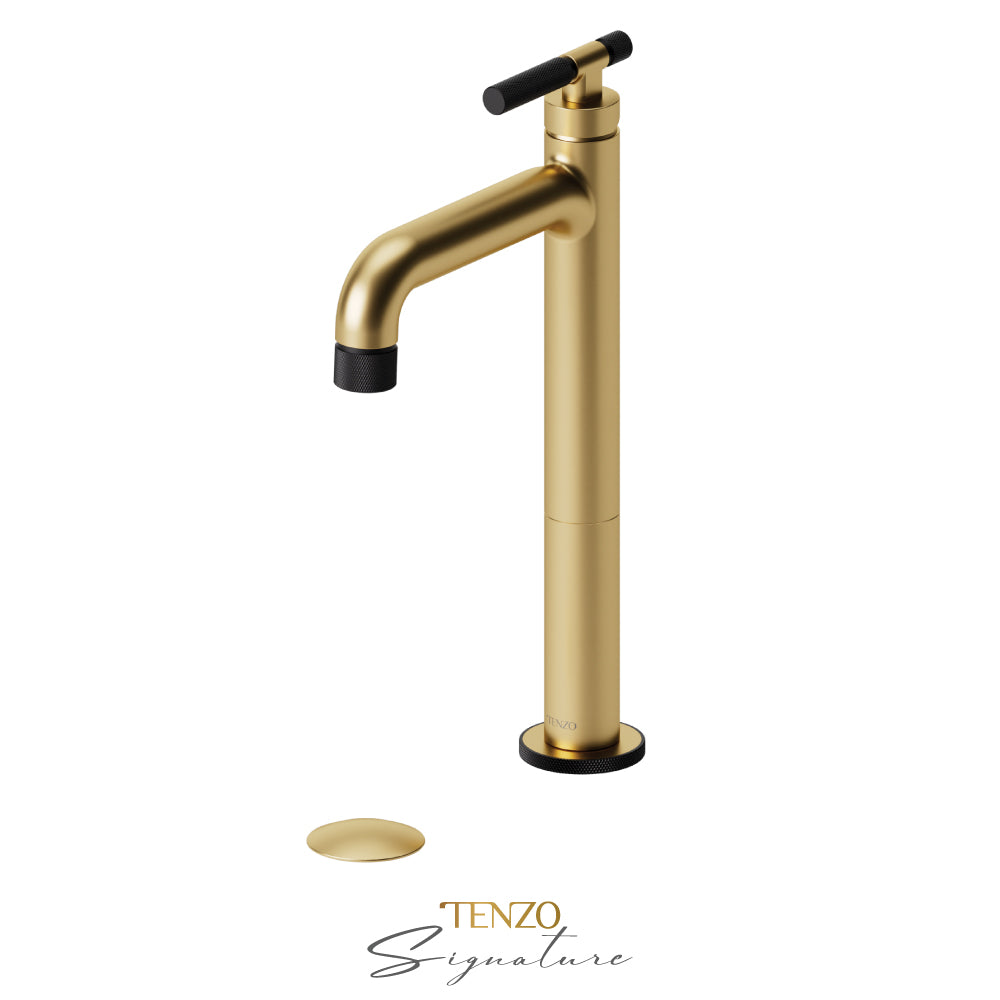

Tall single hole lavatory faucet from the Bellacio range, the BE11 on an extended column so the spout clears the rim of a vessel basin.

What's included

• Tall single hole lavatory faucet, solid brass
• Matching pop-up drain without overflow

Features

• Slim horizontal lever mounted across the top of the column. The BE10H is the side-lever version.
• Spout curves in a single arc rather than hard right angles.
• Fine diamond knurl on the spout collar, lever and base ring. The same pattern as the -C at a much smaller pitch.
• Eight finishes, five of them two-tone; the accent colour applies to the collar, lever and base ring.
• Solid brass construction.
• Ceramic cartridge.
• Pop-up drain without overflow included, finished to match the faucet.
• Flow rate 4.5 L/min [1.2 gpm] @ 60 psi.
• Female 3/8” compression connection.

Specifications

• Room: Bathroom
• Product Type: Tall Lavatory / Vessel Faucet
• Collection: Bellacio (Tenzo Signature)
• Style: Contemporary
• Hole Configuration: 1
• Handles: Single lever, top-mounted
• Mounting Location: Sink / Countertop
• Installation Type: Deck Mount
• Overall Height: 11-11/16” (296 mm)
• Spout Height: 7-11/16” (195 mm)
• Spout Reach: 5-9/16” (141 mm)
• Base Diameter: 1-15/16” (50 mm)
• Drain: Pop-up, without overflow
• Flow Rate: 4.5 L/min [1.2 gpm] @ 60 psi
• Supply Connection: 3/8” female compression

Good to know

• For a basin with no overflow hole, which is what most vessel and above-counter basins are. BE11H-F-P is the same faucet with the overflow drain.
• The spout sits 7-11/16” (195 mm) above the counter. Measure from counter to basin rim and allow clearance above that figure, or the water lands on the rim instead of in the bowl.
• A top-mounted lever needs clearance above the faucet rather than beside it. Confirm clearance where a window sill or a low mirror sits behind the basin.
• On two-tone finishes the first colour is the body, the second the knurled collar, lever and base ring.
• BE11-F-W is the shorter version of this faucet, for a standard drop-in or undermount sink. BE10H-F-W is the angular spout with a side lever.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
