Tenzo Bellacio T-Box 2-Function Pressure Balance Shower Kit, 12” AirBoost Rain Head, Larger Knurled - BEPB32-20112-C

Tenzo Bellacio T-Box 2-Function Pressure Balance Shower Kit, 12” AirBoost Rain Head, Larger Knurled - BEPB32-20112-C

Complete Bellacio shower kit built on the universal T-Box pressure balance rough-in, supplied with a 12” AirBoost rain head, both a wall and a ceiling shower arm, and a three-function hand shower on a sliding bar.

What's included

• T-Box universal rough-in valve, PEX connection (R-31-P)
• Bellacio-C T-Box valve trim, 2 functions, pressure balance (F-BEPB32-C-XX)
• AirBoost rain shower head, round, 30 cm [12”], 2 mm stainless steel (SSTS-12-R-XX)
• Wall mount shower arm, solid brass (SA-612-C-XX)
• Ceiling shower arm, round, 15 cm [6”], solid brass (SA-709-06-XX)
• Sliding bar kit — solid brass sliding bar, 3-function hand shower and stretchable hose (KRD-362712-C-XX)

Features

• Pressure-balanced cartridge holds the set temperature as other outlets draw.
• Two-function diverter shares flow between the rain head and the hand shower.
• Both a wall arm and a 6” ceiling arm are supplied, so the rain head can be mounted either way.
• AirBoost head injects air for 30% more pressure. 2 mm stainless steel body, 91 anti-limestone silicone nozzles.
• Sliding bar is solid brass with a height-adjustable wall bracket.
• Stretchable hose, 150 cm [59”] extending to 225 cm [89”], stainless steel sheath with a swivel anti-twist end.
• Service check/stop valves built into the rough-in.
• Larger diamond cross-knurl on the trim handles and bar fittings. The BEPB32-20112-F carries the same pattern at a much finer pitch.
• Eight finishes. Five are two-tone; the accent colour applies to the knurled detailing.

Specifications

• Room: Bathroom
• Product Type: Complete Shower Kit
• Collection: Bellacio (Tenzo Signature)
• Style: Contemporary
• Valve Type: Pressure Balance
• Functions: 2
• Rough-In: Universal T-Box (R-31-P)
• Shower Head: 30 cm [12”] round, AirBoost, stainless steel
• Shower Arms: Wall mount and 15 cm [6”] ceiling, both supplied
• Hand Shower: 3-function, PVC, on a solid brass sliding bar
• Hose: Stretchable, 150 cm [59”] to 225 cm [89”]
• Shower Head Flow Rate: 7.6 L/min [2.0 gpm] @ 60 psi
• Hand Shower Flow Rate: 7.6 L/min [2.0 gpm] @ 60 psi
• Valve Flow: 25 L/min [6.6 gpm] @ 60 psi
• Supply Connection: 1/2” male PEX (R-31-P) — 1/2” male NPT/weld version (R-31-N) available on request
• Knurling: Coarse

Good to know

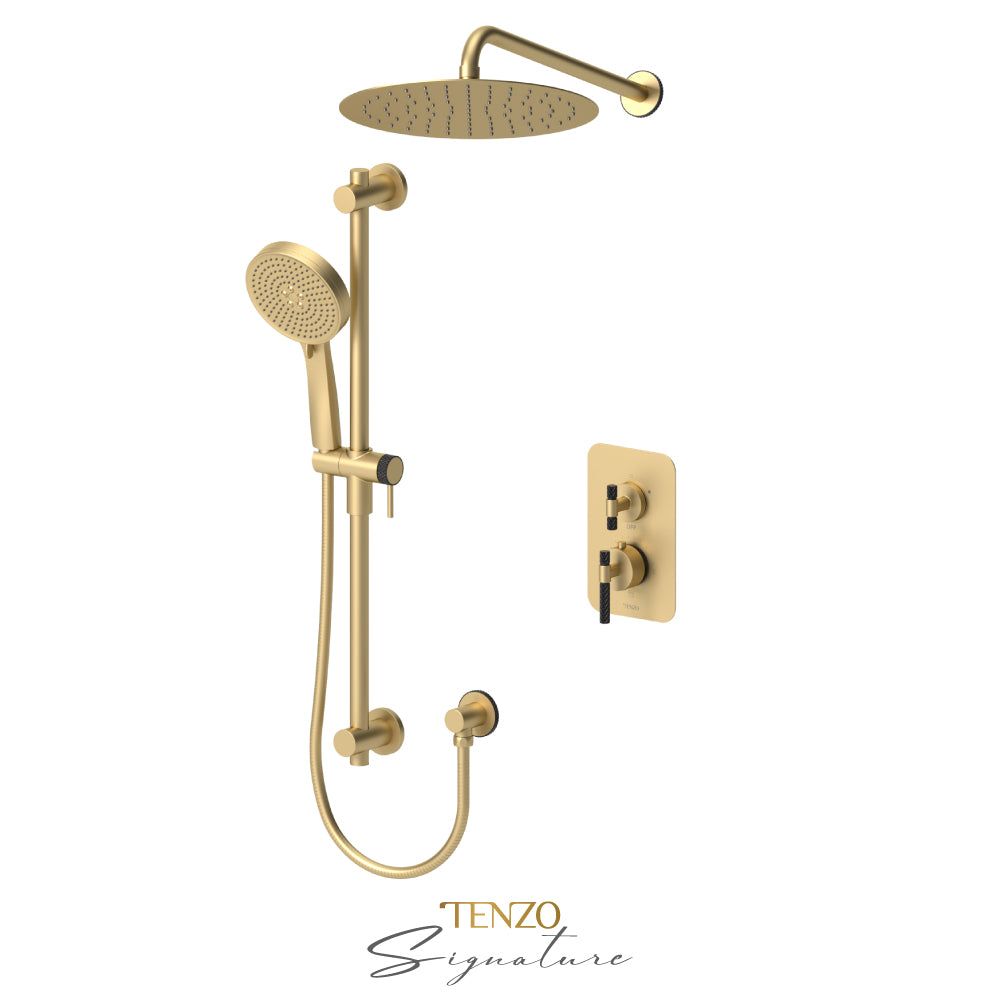

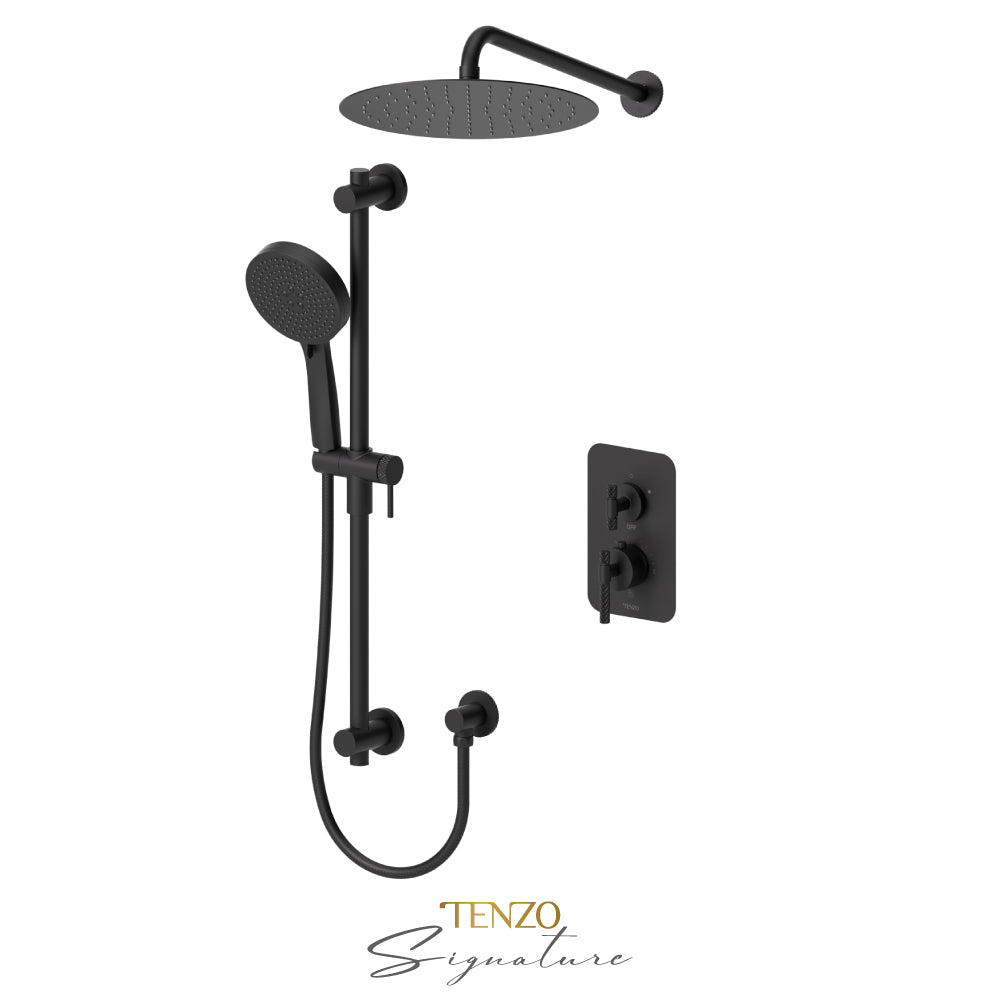

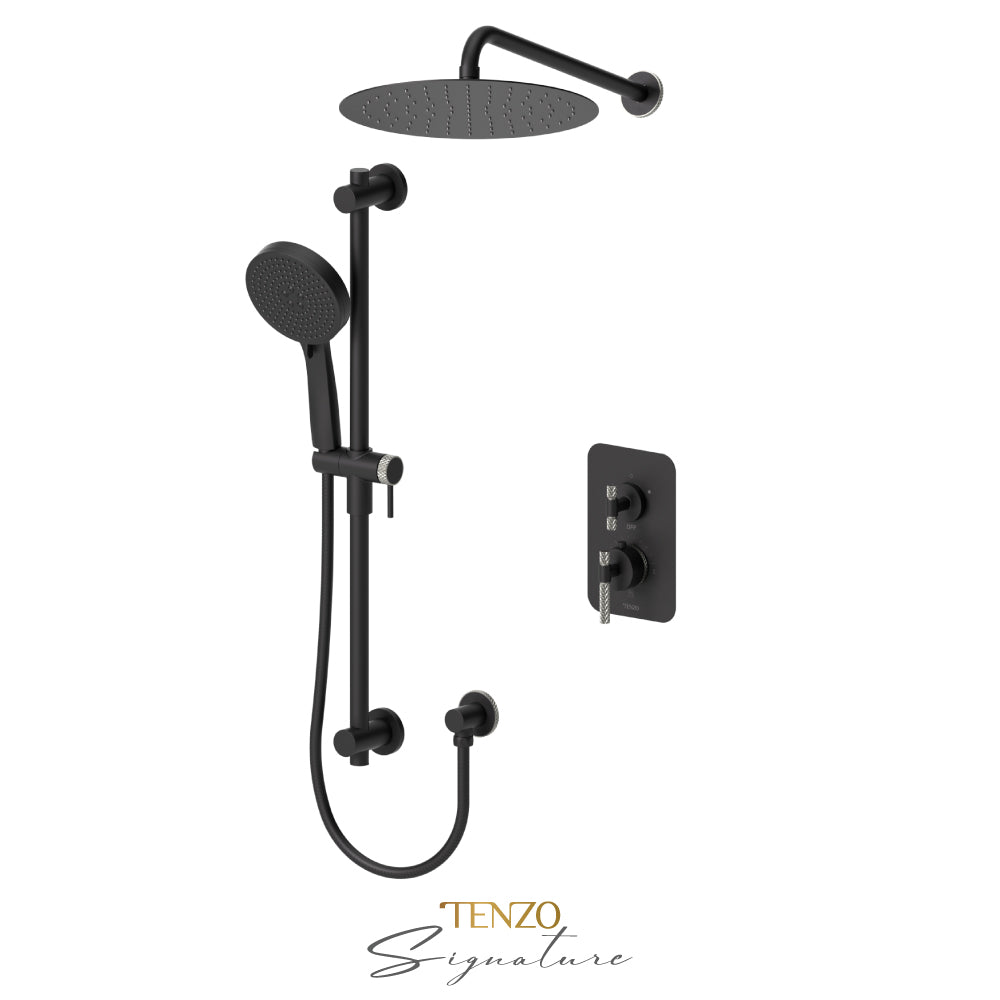

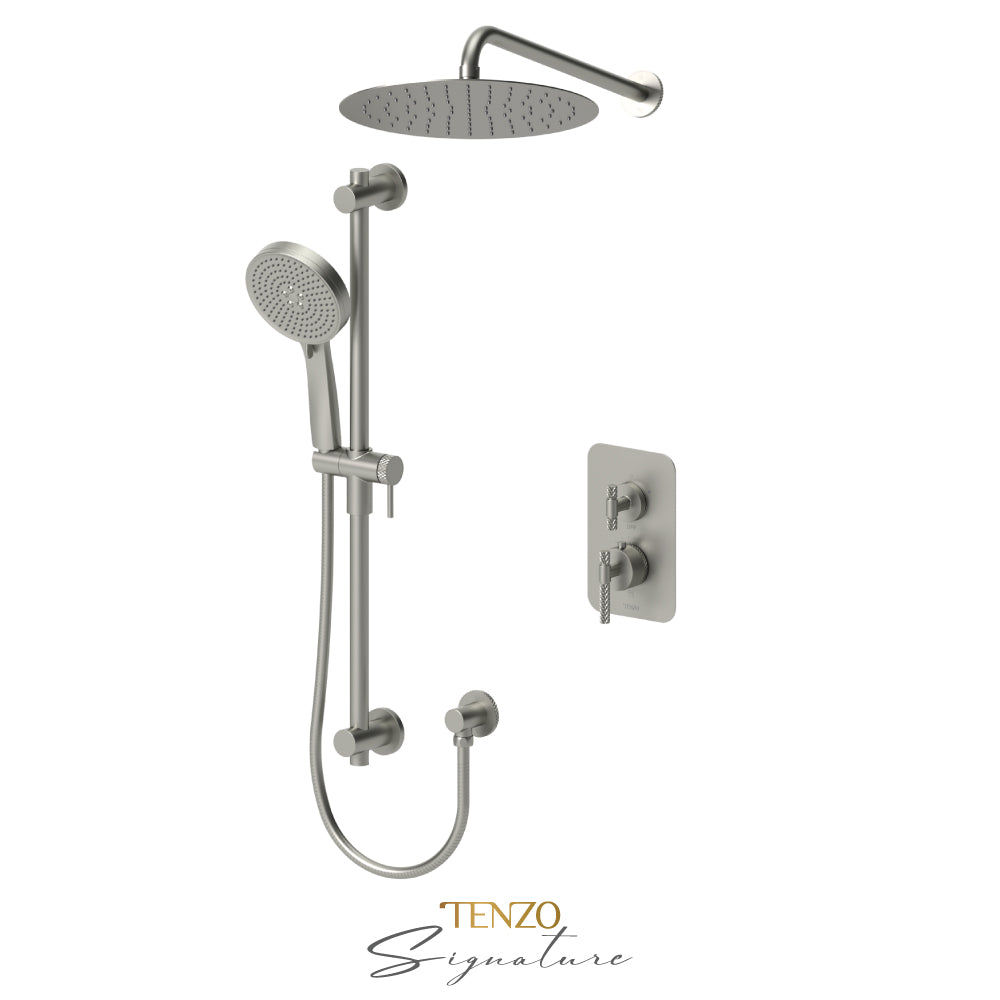

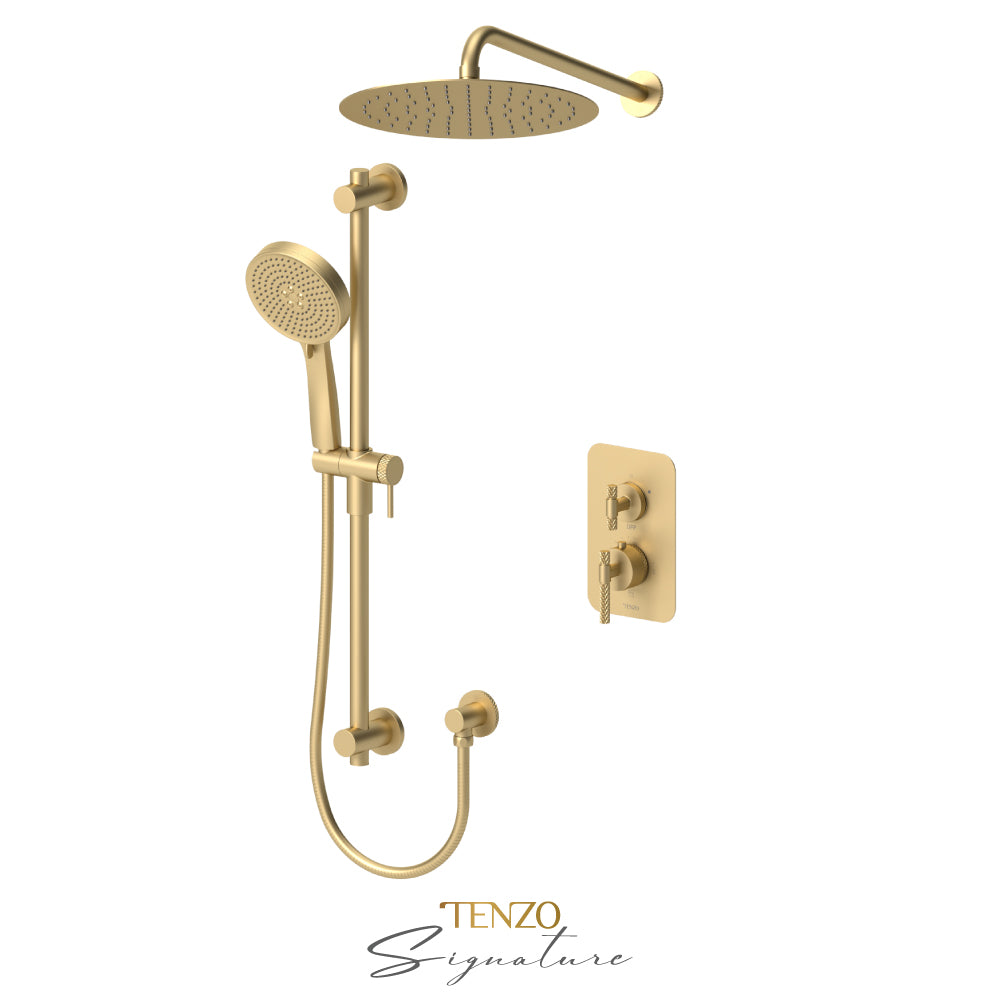

• The product photo shows the wall-arm configuration. The ceiling arm ships in the same box.
• The diverter is set up for shared zones, so the rain head and hand shower can run together. Tenzo builds a non-shared version to order.
• Pressure balanced, not thermostatic — it holds temperature against pressure changes, not against supply temperature drift.
• On two-tone finishes the first colour is the body, the second the knurled detailing.
• BEPB32-20112-F is the same kit with a finer knurl.
• BEPB32-20111-C is the same kit with a 10” rain head.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
