Tenzo Bellacio Pot Filler, Larger Knurled - BE160-C

Tenzo Bellacio Pot Filler, Larger Knurled - BE160-C

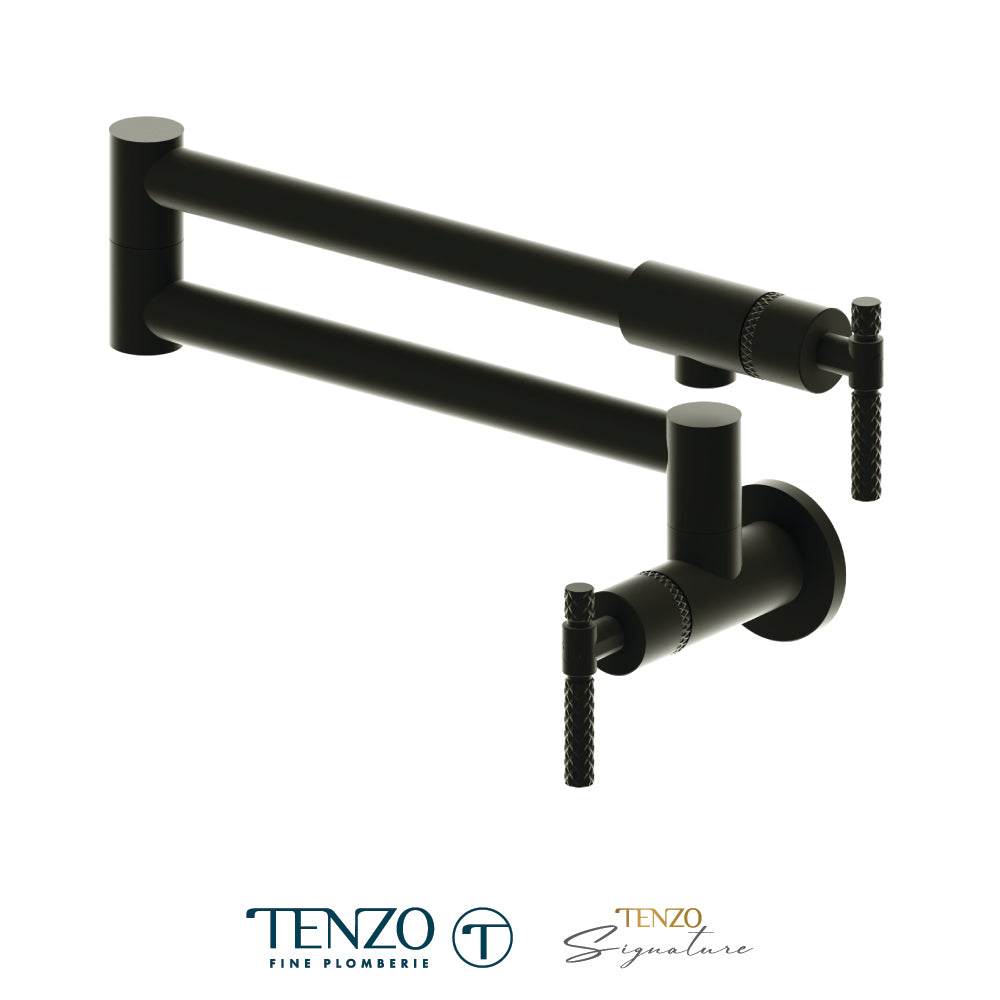

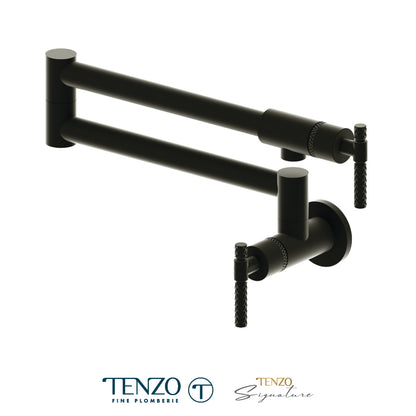

Wall mount pot filler from the Bellacio range, on a double-jointed arm that folds back against the wall when not in use.

Features

• Double-jointed arm reaches 24” (610 mm) from the wall across the hob, and folds back to a 15-1/16” (383 mm) projection.
• Larger diamond cross-knurl on both handles and the joint collars. The BE160-F carries the same pattern at a much finer pitch.
• Two 1/4-turn ceramic cartridges — one at the wall, one at the spout.
• Solid brass, lead-free.

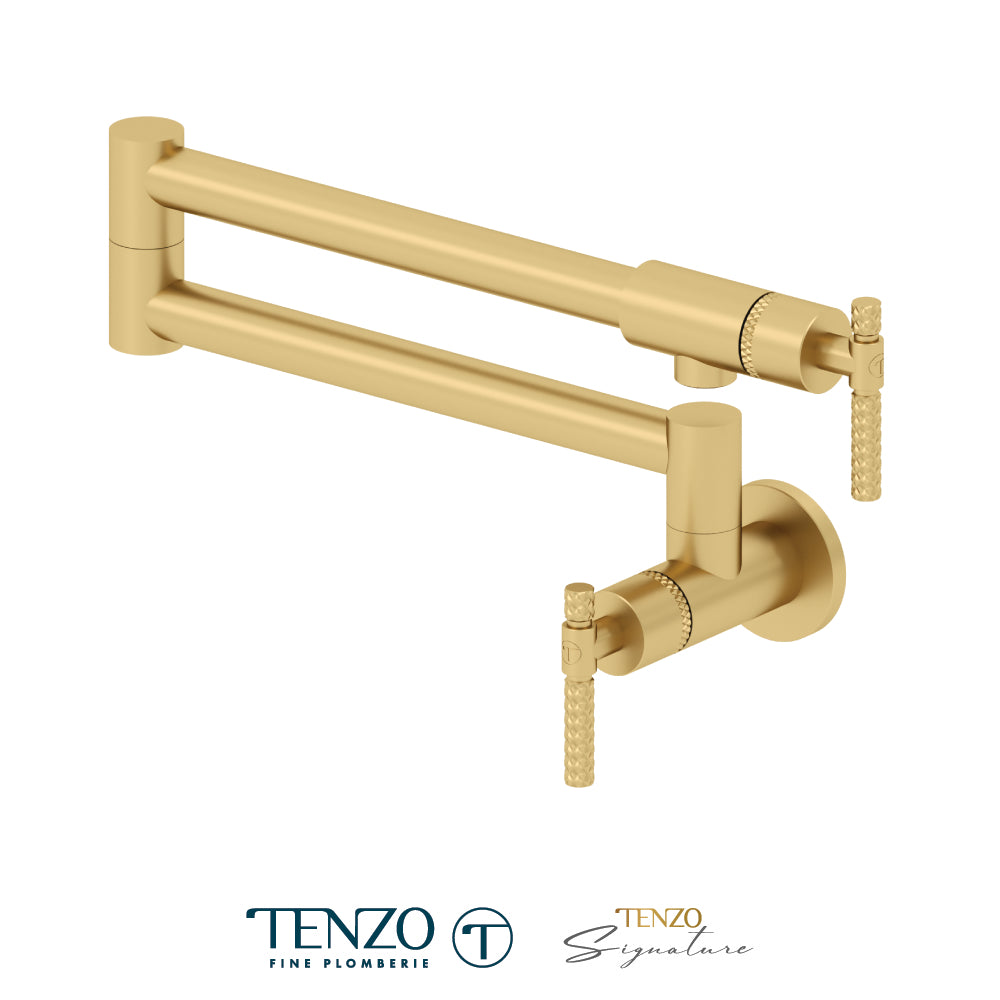

• Ten finishes. Seven are two-tone; the accent colour applies to the handles and the knurled collars.
• Flow rate 9.1 L/min [2.4 gpm] @ 60 psi.
• Slip-fit installation. Inlet 1/2” male NPT.

Specifications

• Room: Kitchen
• Product Type: Pot Filler
• Collection: Bellacio (Tenzo Signature)
• Style: Contemporary
• Hole Configuration: 1
• Handles: Two — wall valve and spout valve
• Mounting Location: Wall
• Installation Type: Wall Mount, slip-fit
• Reach: 24” (610 mm) from the finished wall
• Overall Extended: 27-7/16” (698 mm)
• Arm Segments: 14-7/16” (368 mm) and 11” (280 mm)
• Folded Projection: 15-1/16” (383 mm)
• Height: 7-3/4” (198 mm)
• Escutcheon Diameter: 2-9/16” (65 mm)
• Cartridge: CAR-CT-SO-8H-01
• Flow Rate: 9.1 L/min [2.4 gpm] @ 60 psi
• Supply Connection: 1/2” male NPT

Good to know

• One inlet, 1/2” male NPT. Plumb to a single supply line stubbed out behind the hob.
• Slip-fit installation — the escutcheon slides over the stub-out at the finished wall.
• Two valves: the spout valve is the one used day to day; the wall valve isolates the faucet.
• Folds to 15-1/16” (383 mm). Confirm clearance over the hob and under any shelving before setting the stub-out height.

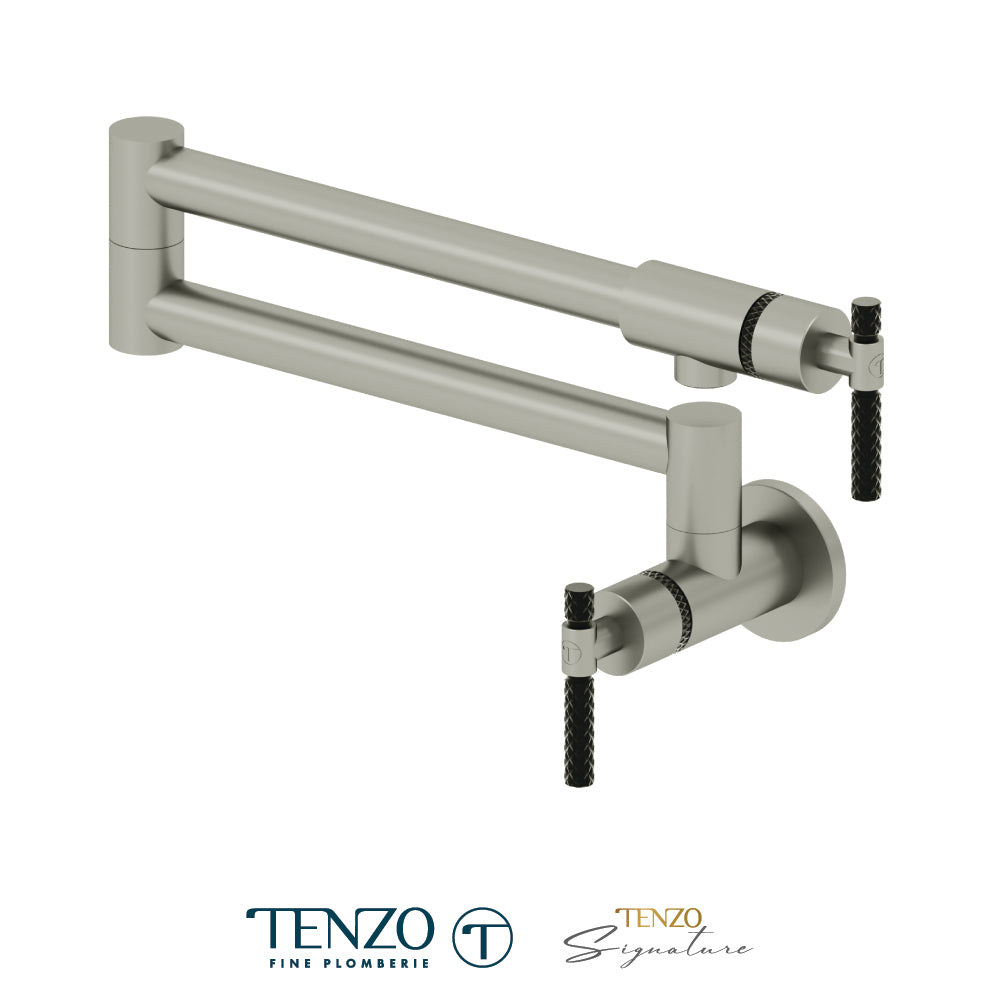

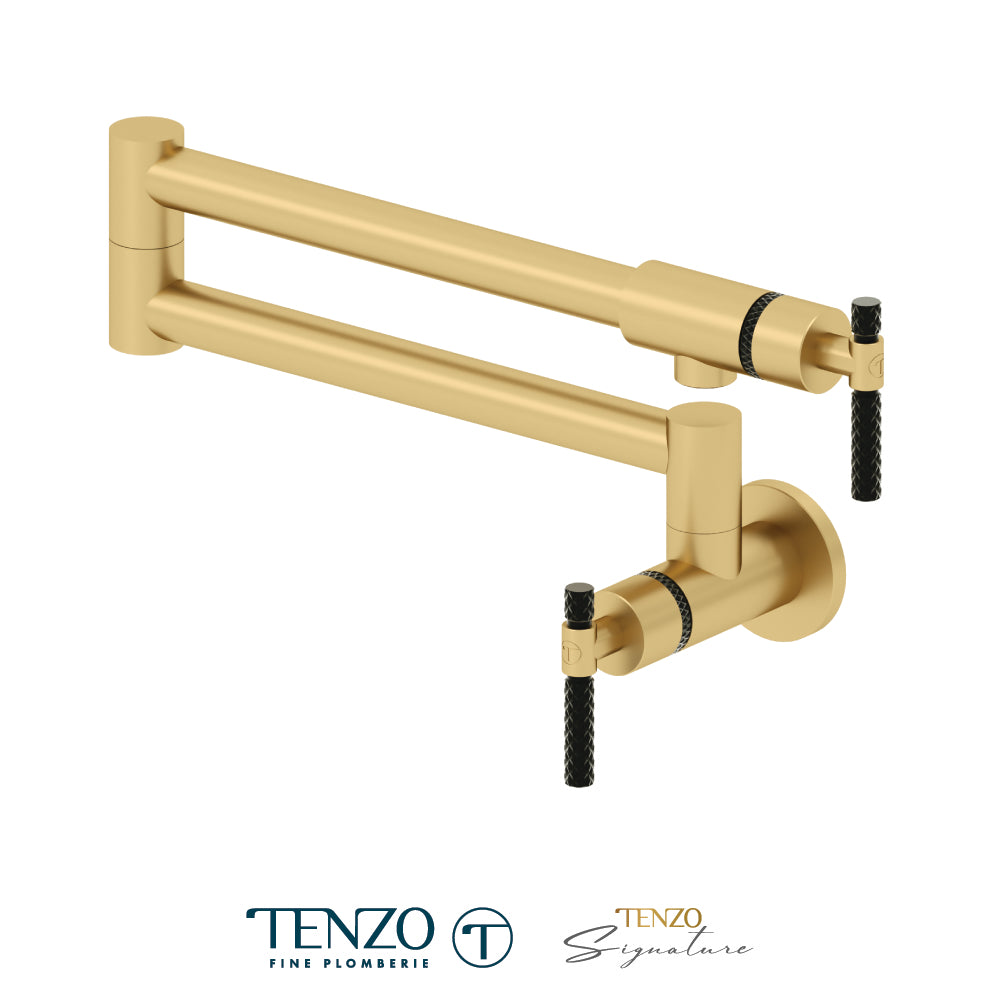

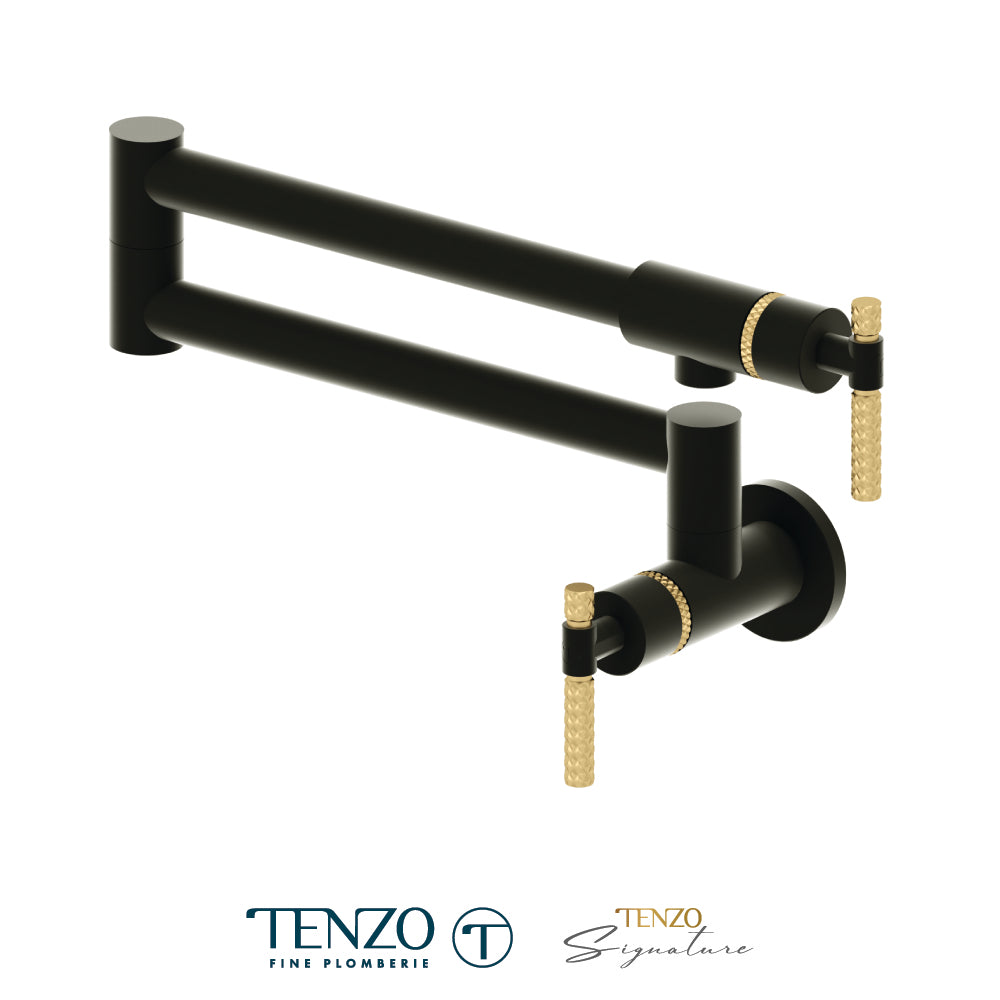

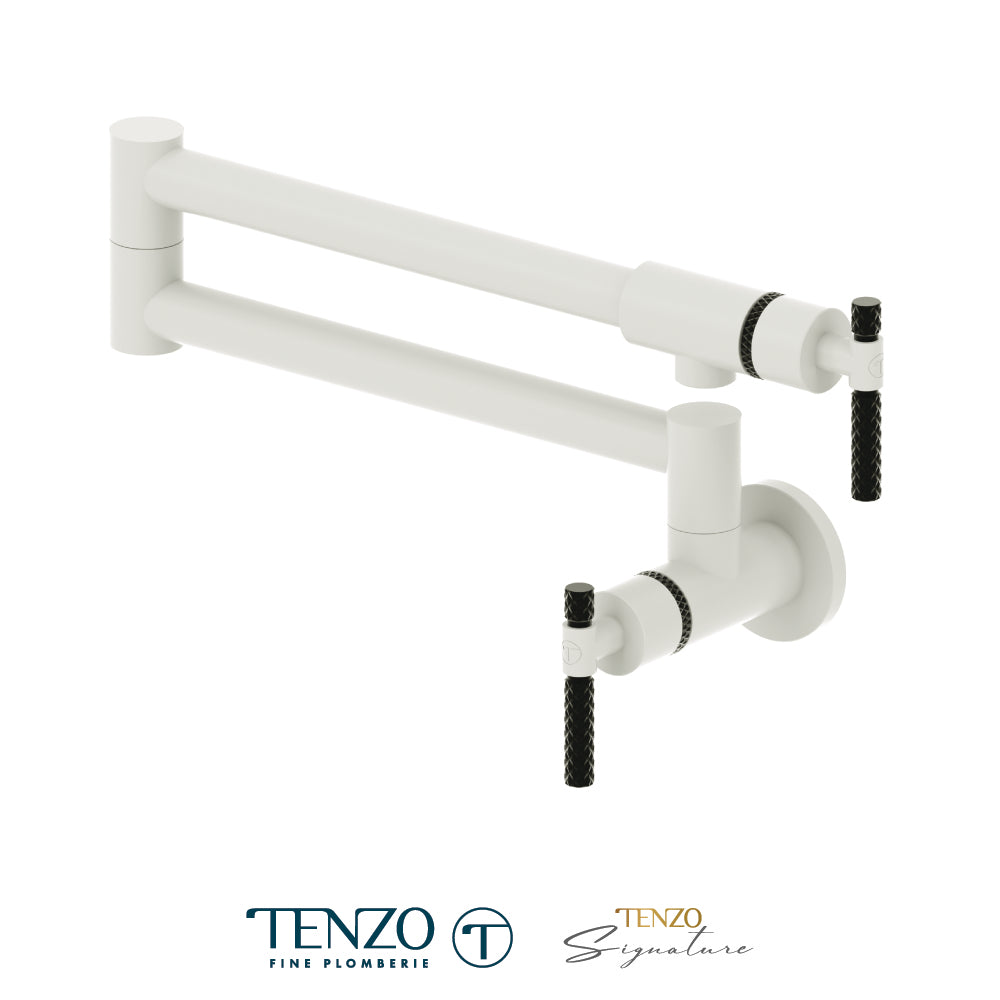

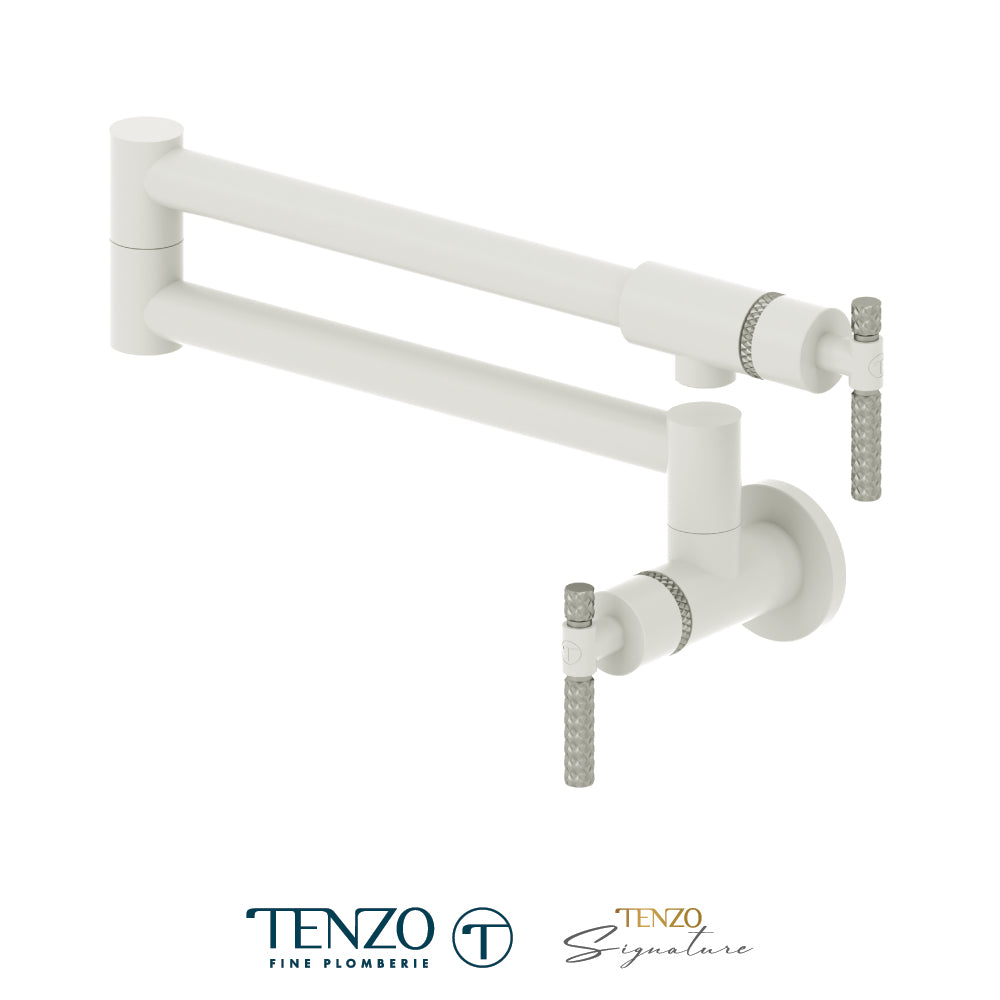

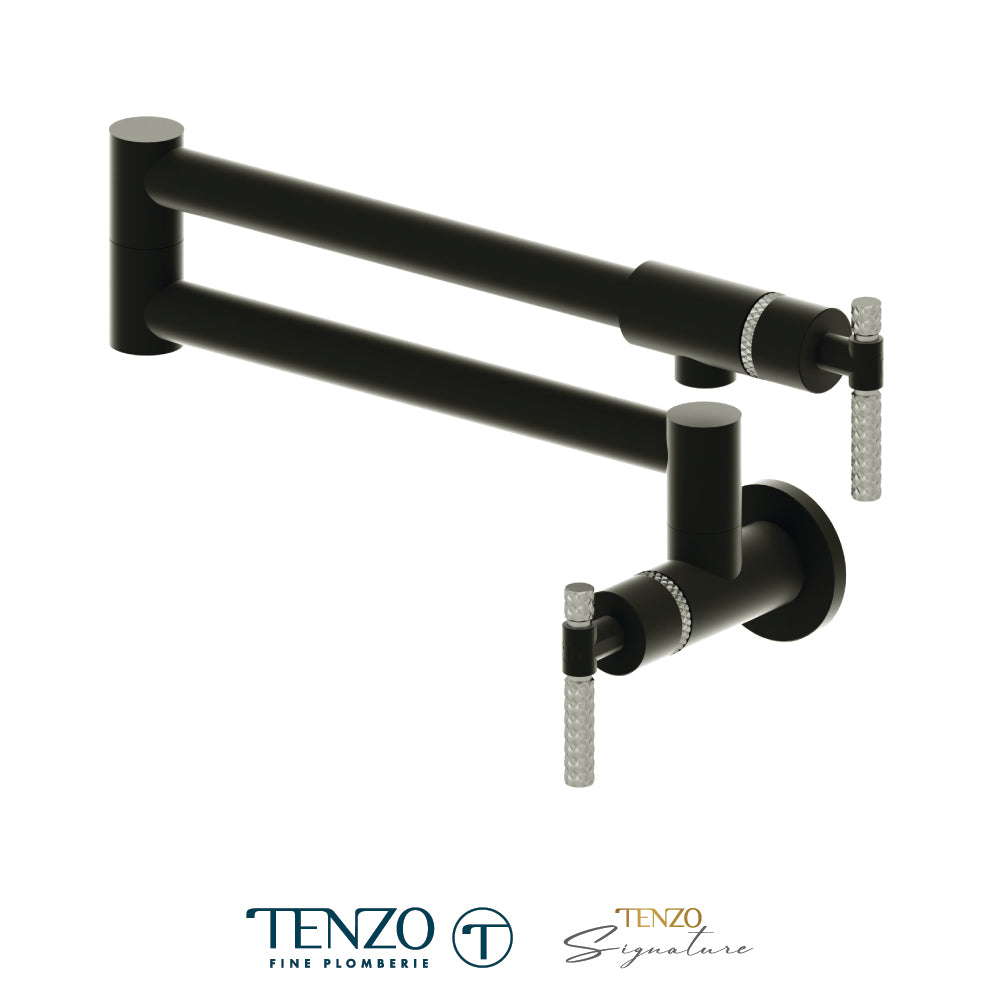

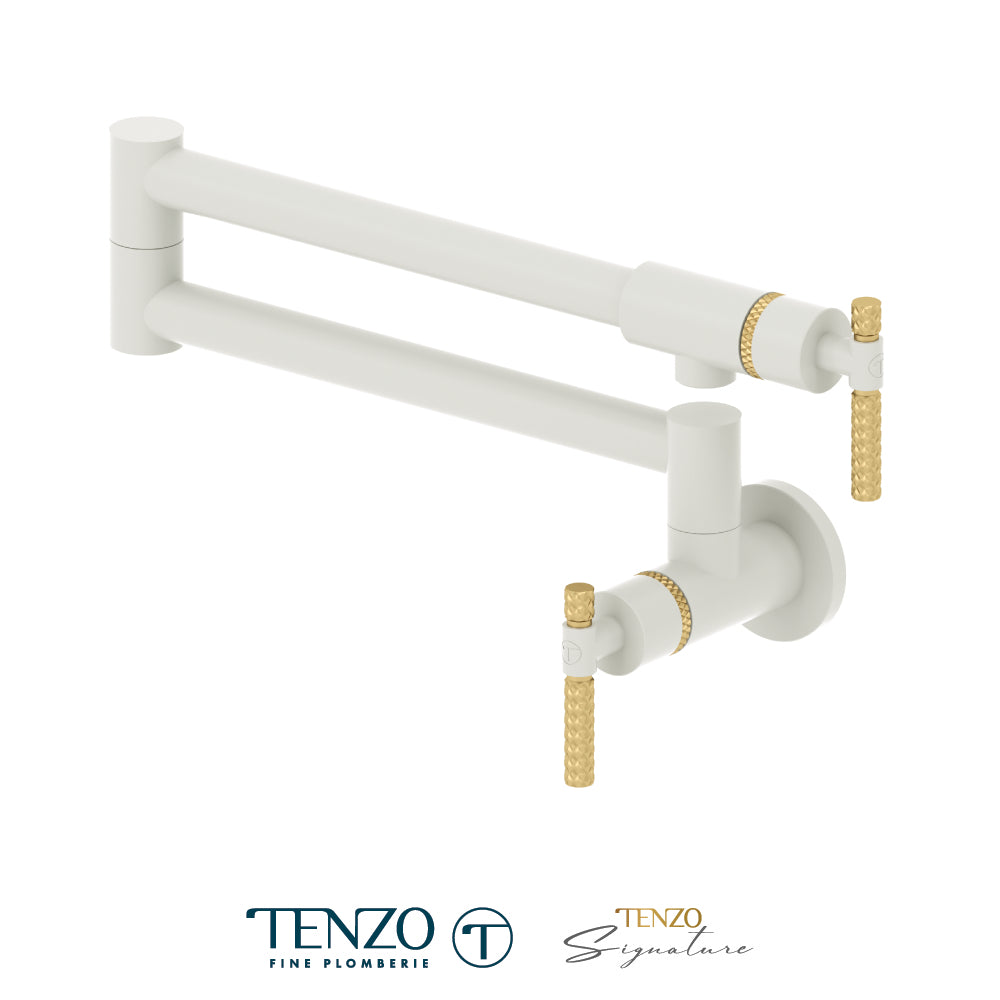

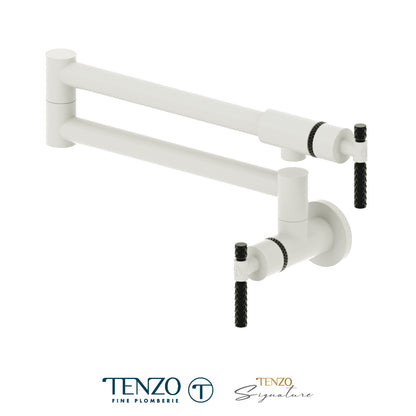

• On two-tone finishes the first colour is the body, the second the handles and knurled collars.
• BE160-F is the same pot filler with a finer knurl.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
