Tenzo Alyss Extenza 2-Function Thermostatic High-Flow Shower Valve, Rough & Trim - ALYT42

Tenzo Alyss Extenza 2-Function Thermostatic High-Flow Shower Valve, Rough & Trim - ALYT42

The complete Alyss Extenza valve — the rough-in body and the finished trim in one order.

What's included

• Extenza rough-in valve body, 2 functions (R-42)

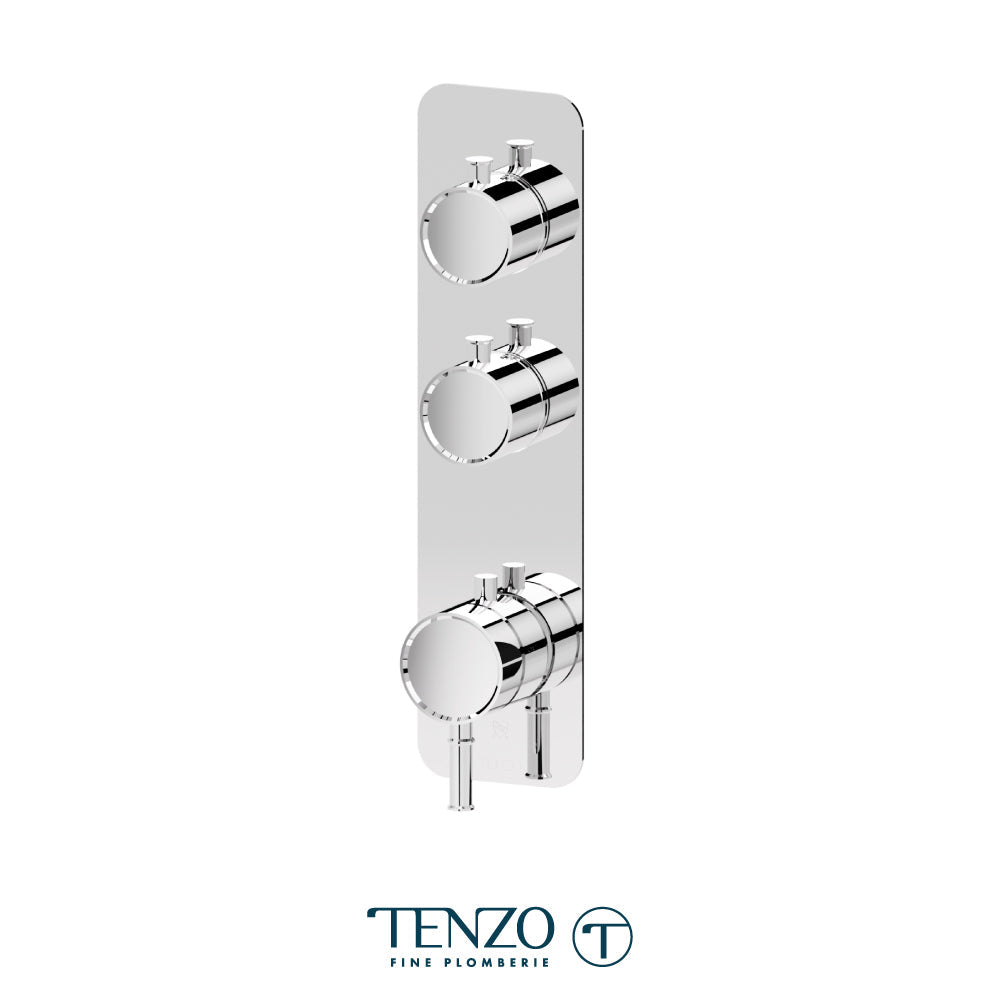

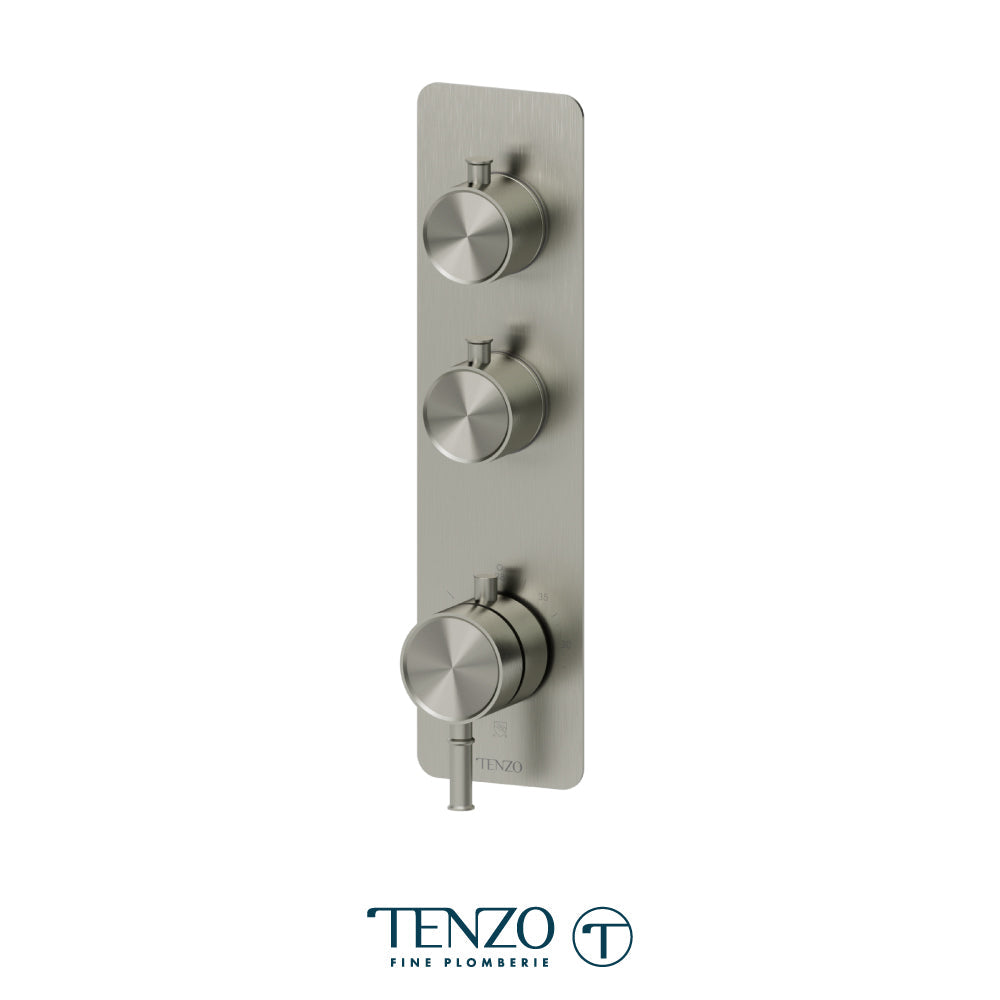

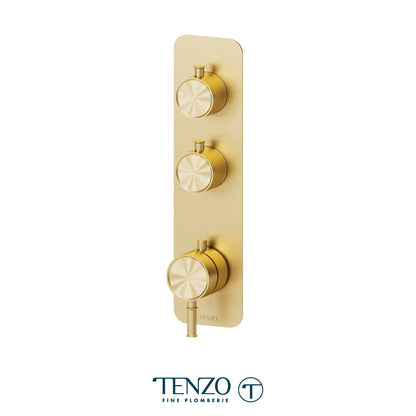

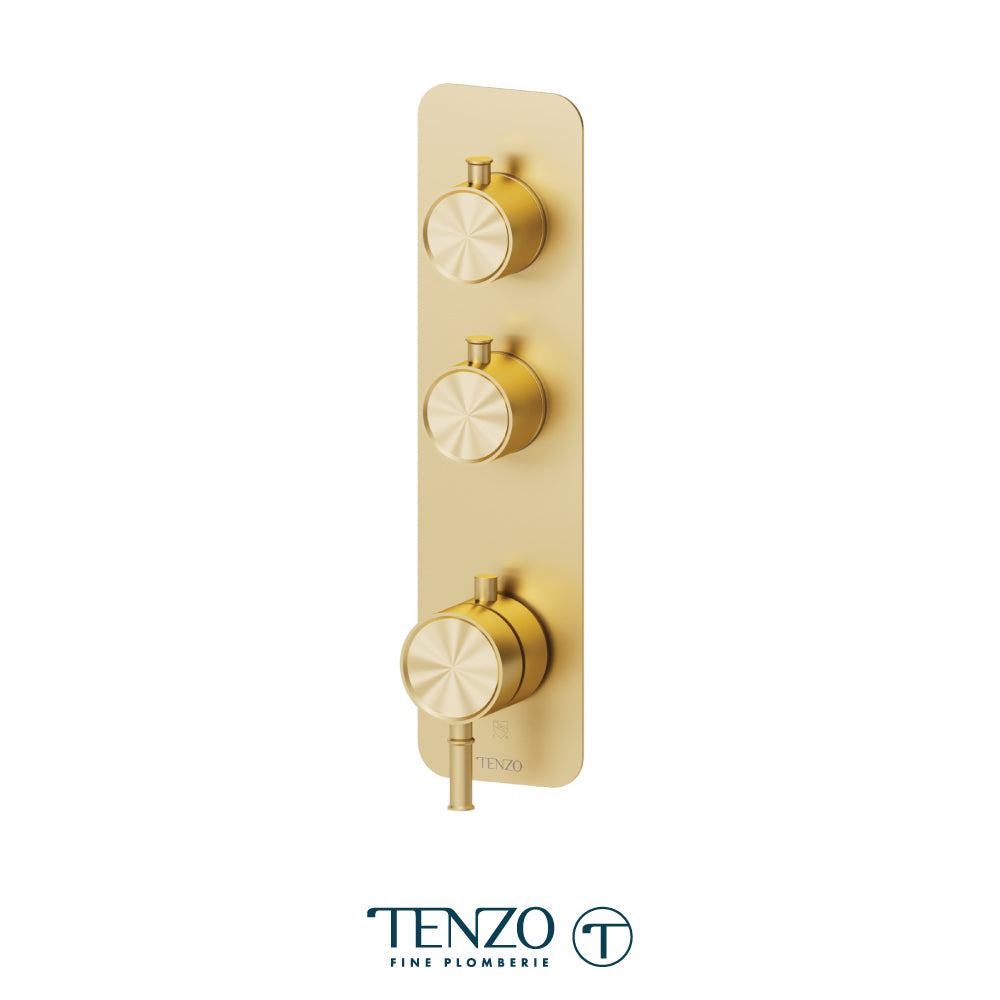

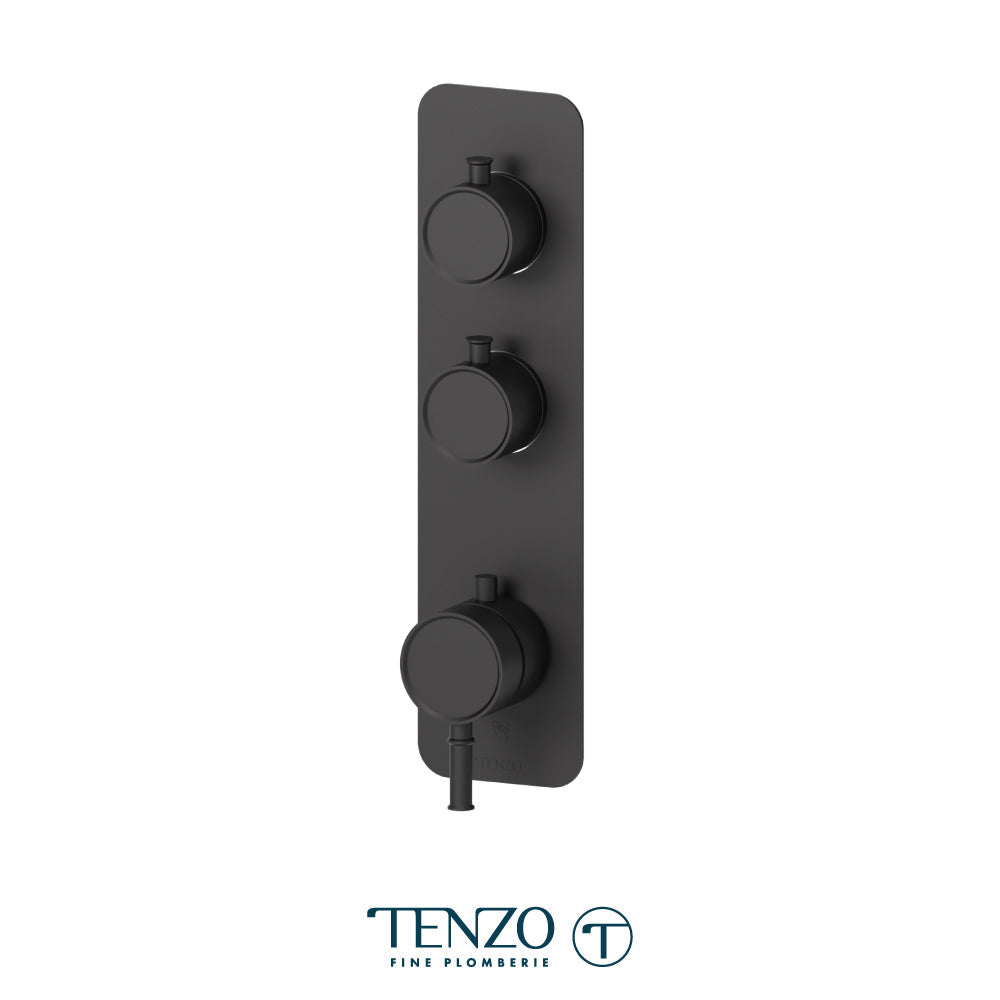

• Alyss Extenza valve trim, 2 functions, thermostatic (F-ALYT42-XX)

Features

• Extenza is Tenzo's high-flow platform — nearly twice the throughput of the 1/2” T-Box, which is what lets a shower run a rain head and a second outlet properly at the same time
• The Vernet thermostatic cartridge holds your chosen temperature independently of the flow, and the two independent shut-off valves put each outlet on its own control
• 3/4” thermostatic high-flow valve — 45 L/min [12 gpm] @ 60 psi
• Vernet thermostatic cartridge, made in France
• 2 shut-off valves, each with outlets on both sides
• Additional direct 3/4” port on top
• Service check / stop valves
• Hot and cold inlets from the bottom and the side, for easier installation
• Installation depth: min. 3½”, max. 4½”

Specifications

• Room: Bathroom
• Product Type: Complete Shower Valve (rough-in and trim)
• System: Extenza
• Valve Type: Thermostatic, high-flow
• Functions: 2
• Valve Flow: 45 L/min [12 gpm] @ 60 psi
• Supply Connection: 3/4” NPT female

Good to know

• Need the trim only, because the rough is already in the wall? That is F-ALYT42-XX — ask us.
• Extenza is a different platform from T-Box: 3/4” NPT rather than 1/2” PEX, and a deeper body. Check the rough-in depth before specifying.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
