InSinkErator Involve View Instant Hot and Cool Water Dispenser System - Satin Nickel - 44717A

InSinkErator Involve View Instant Hot and Cool Water Dispenser System - Satin Nickel - 44717A

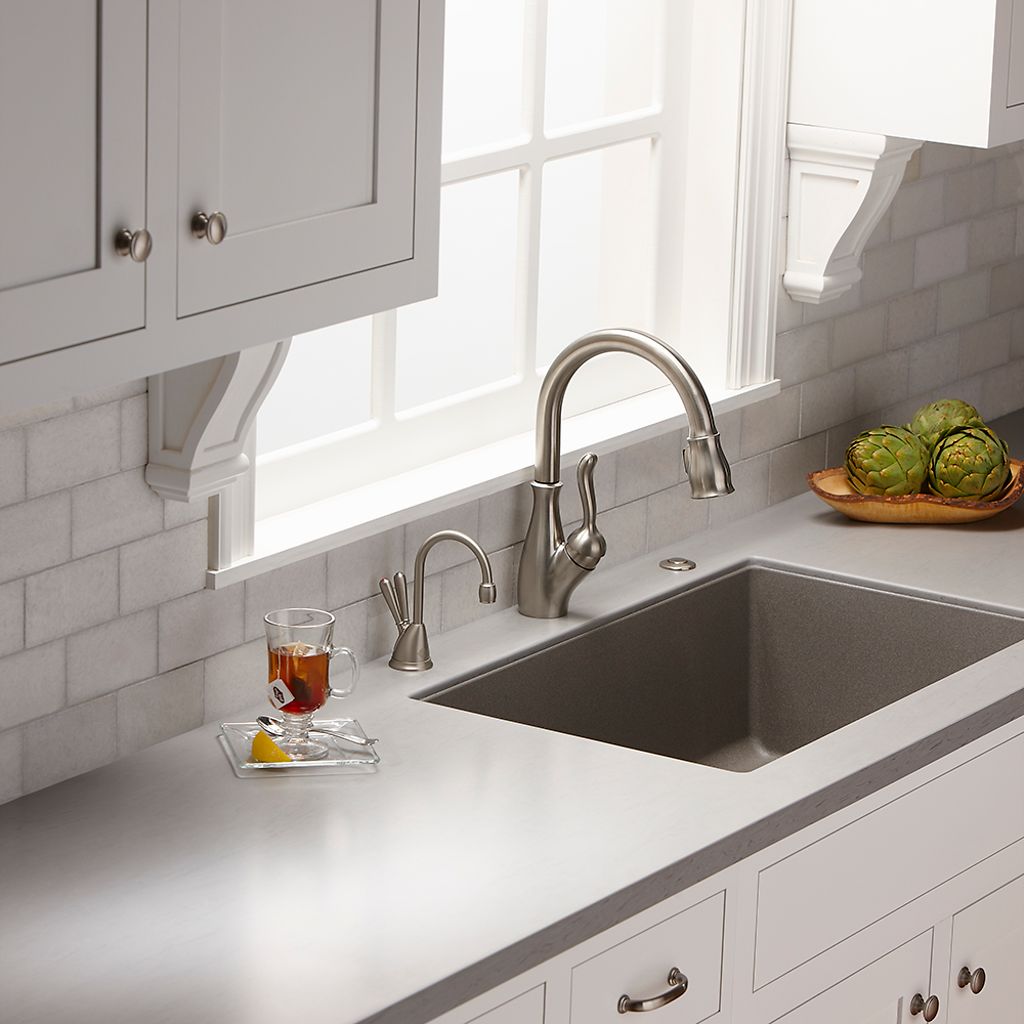

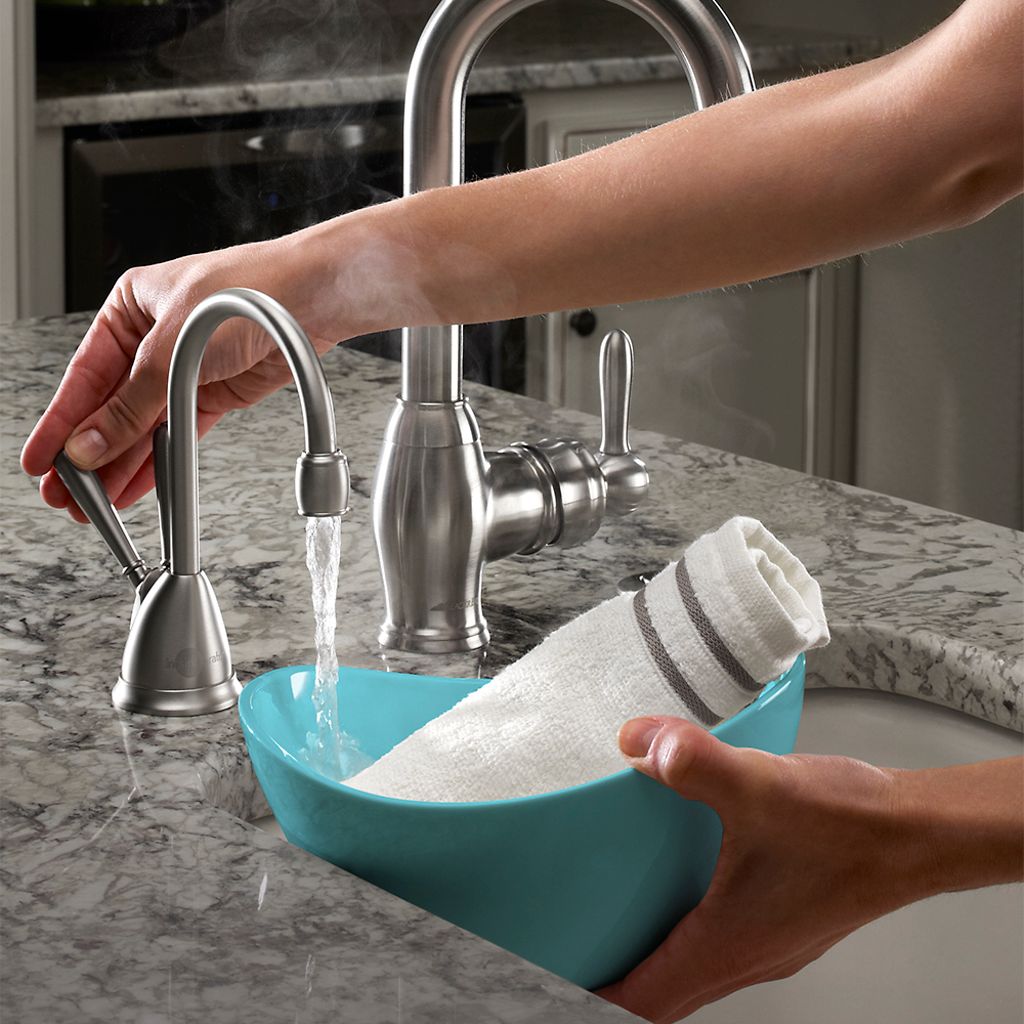

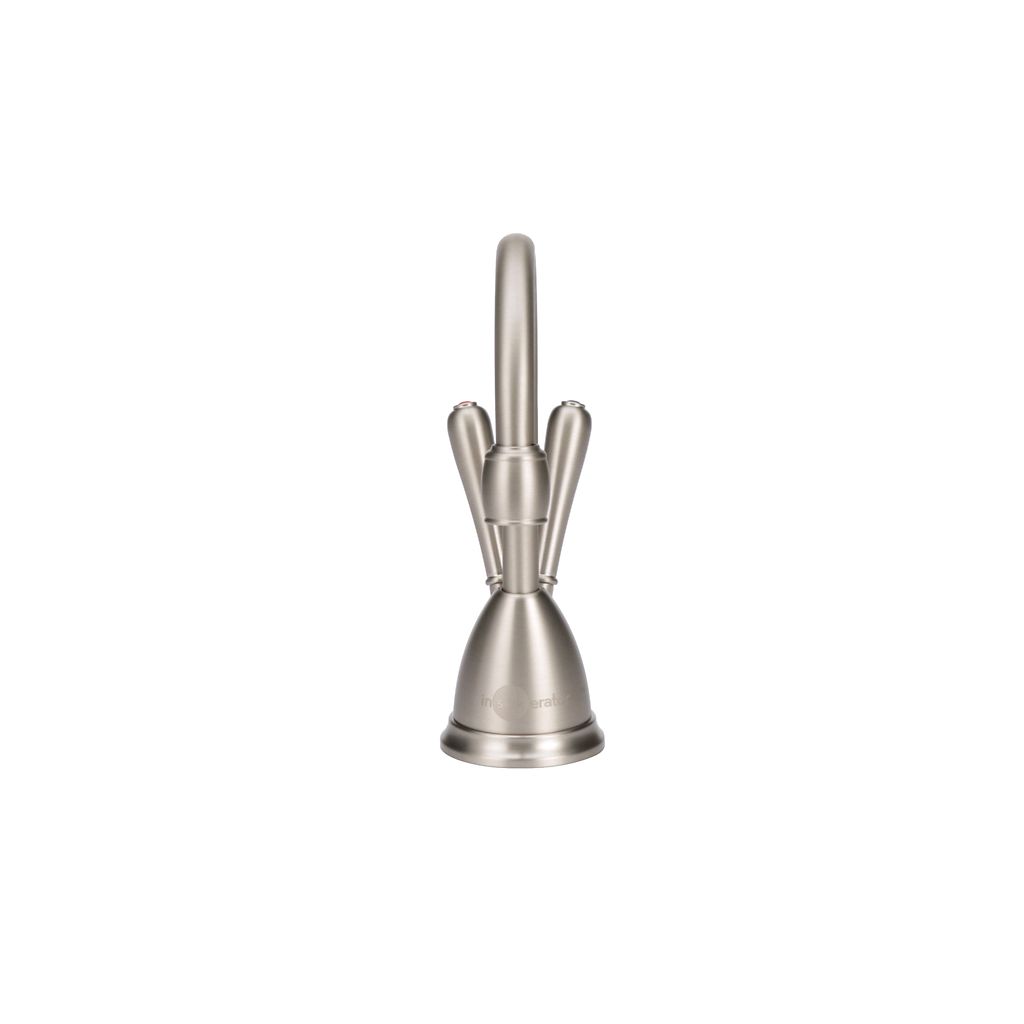

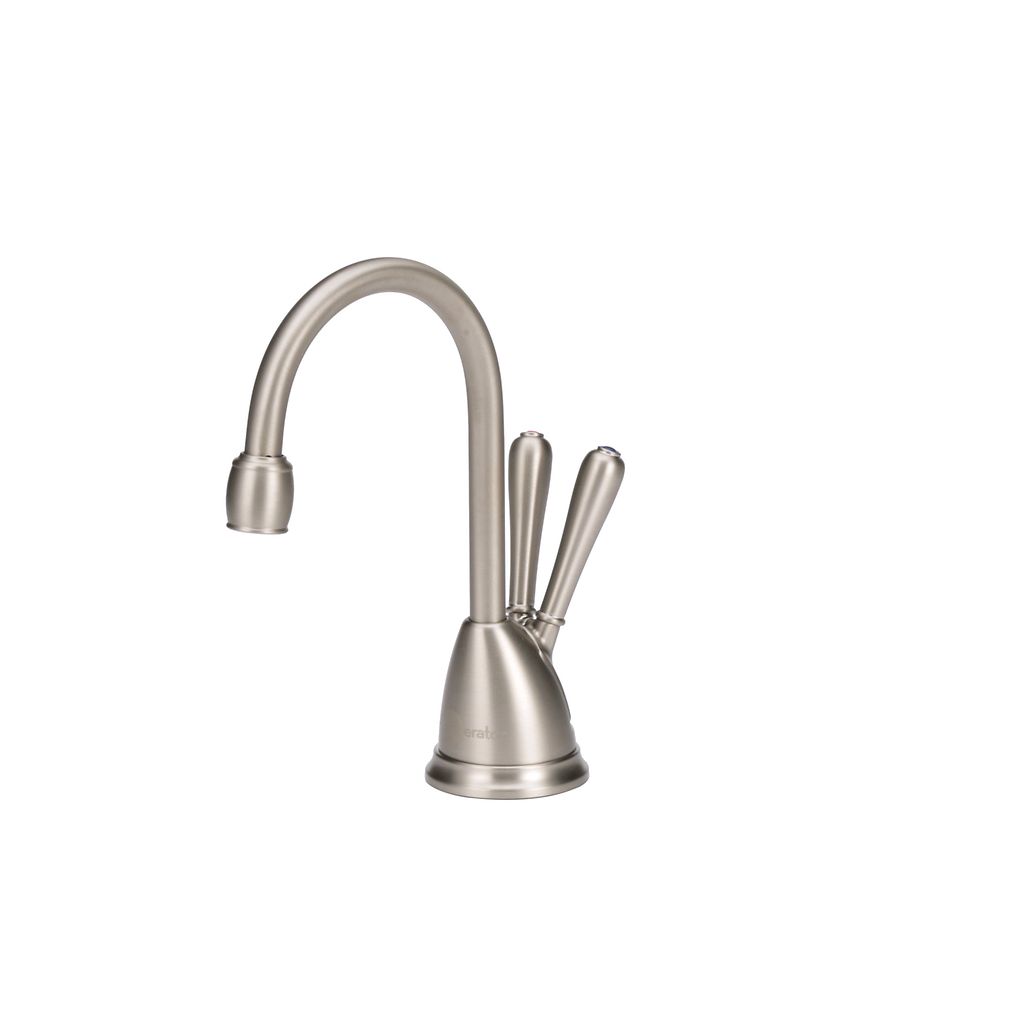

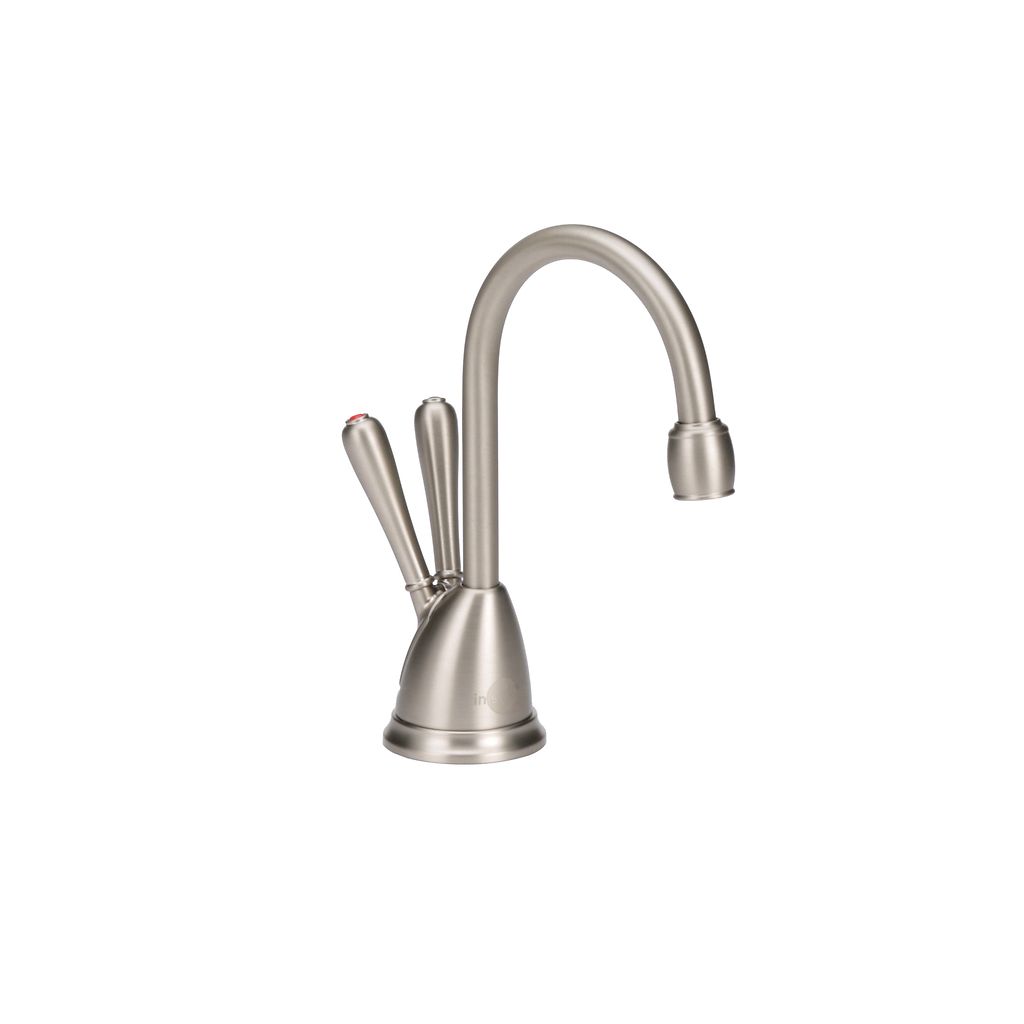

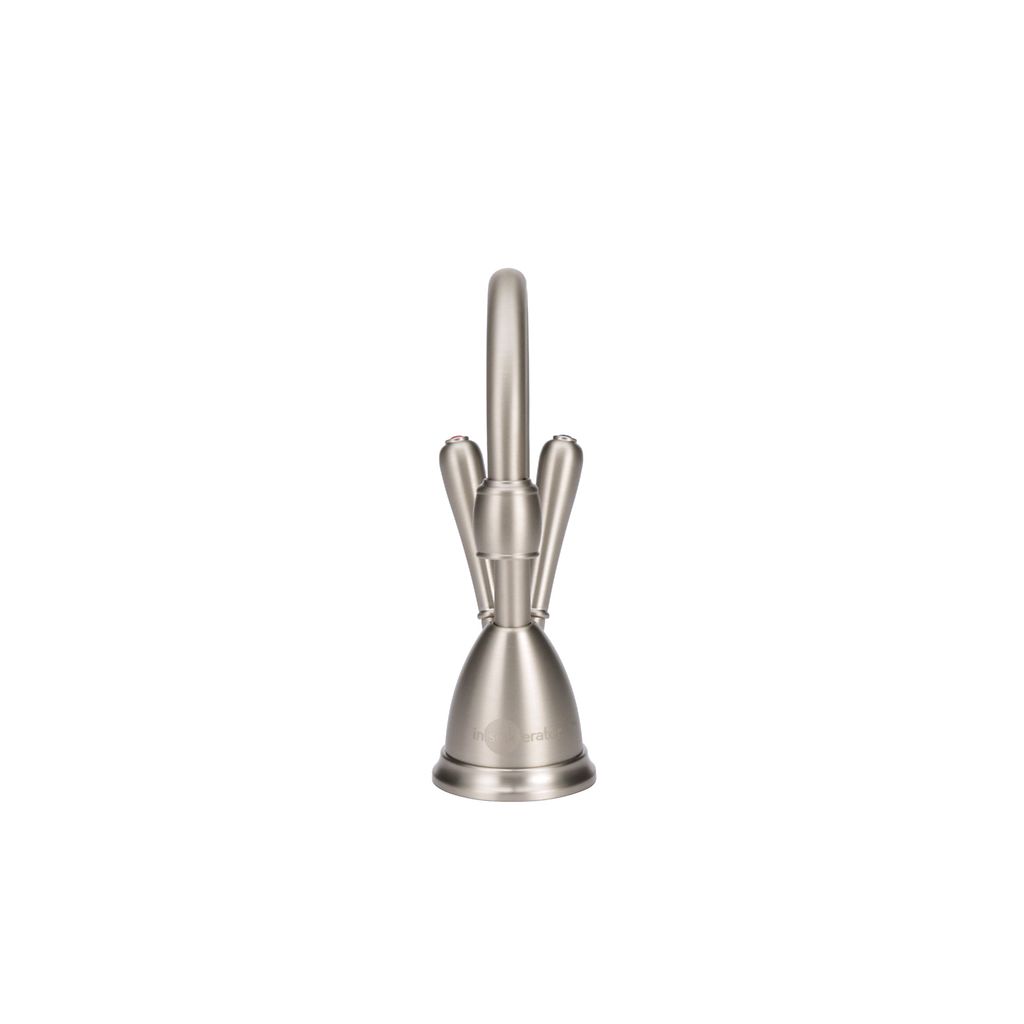

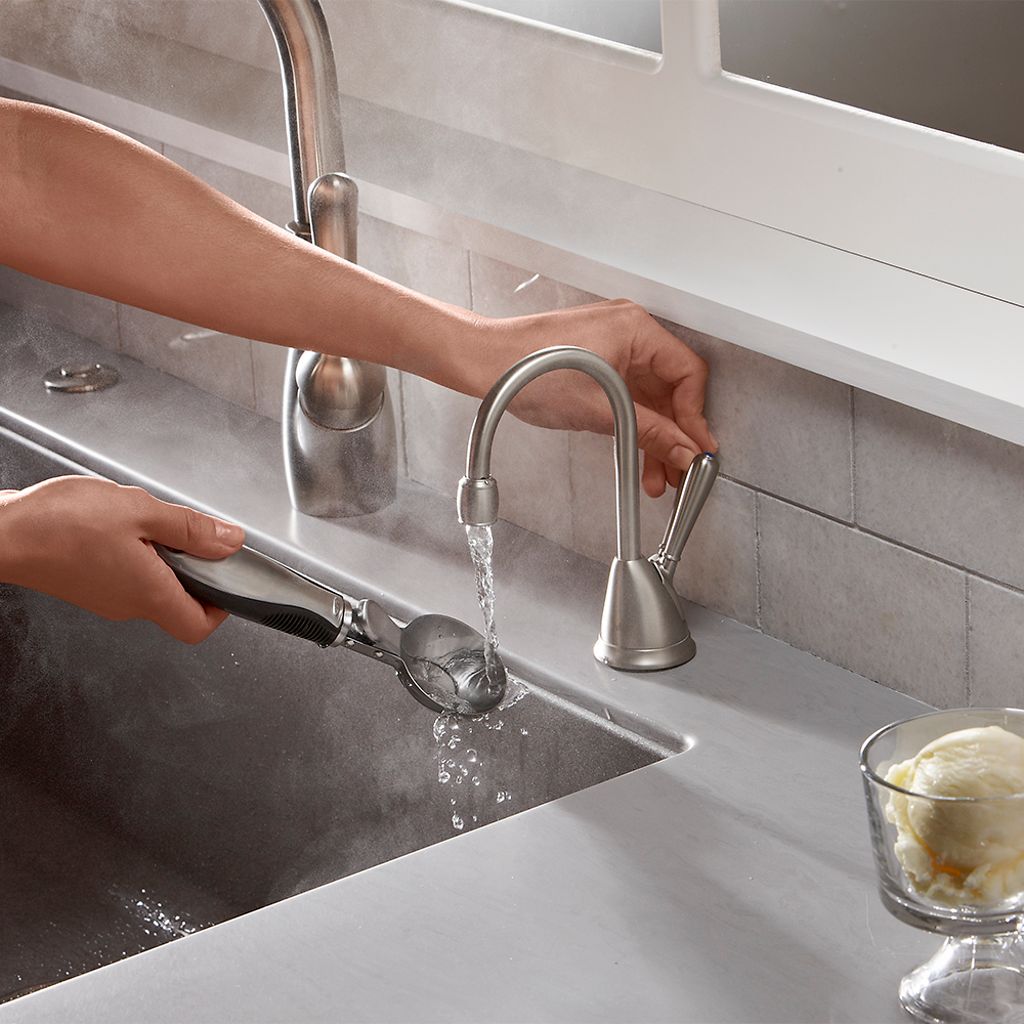

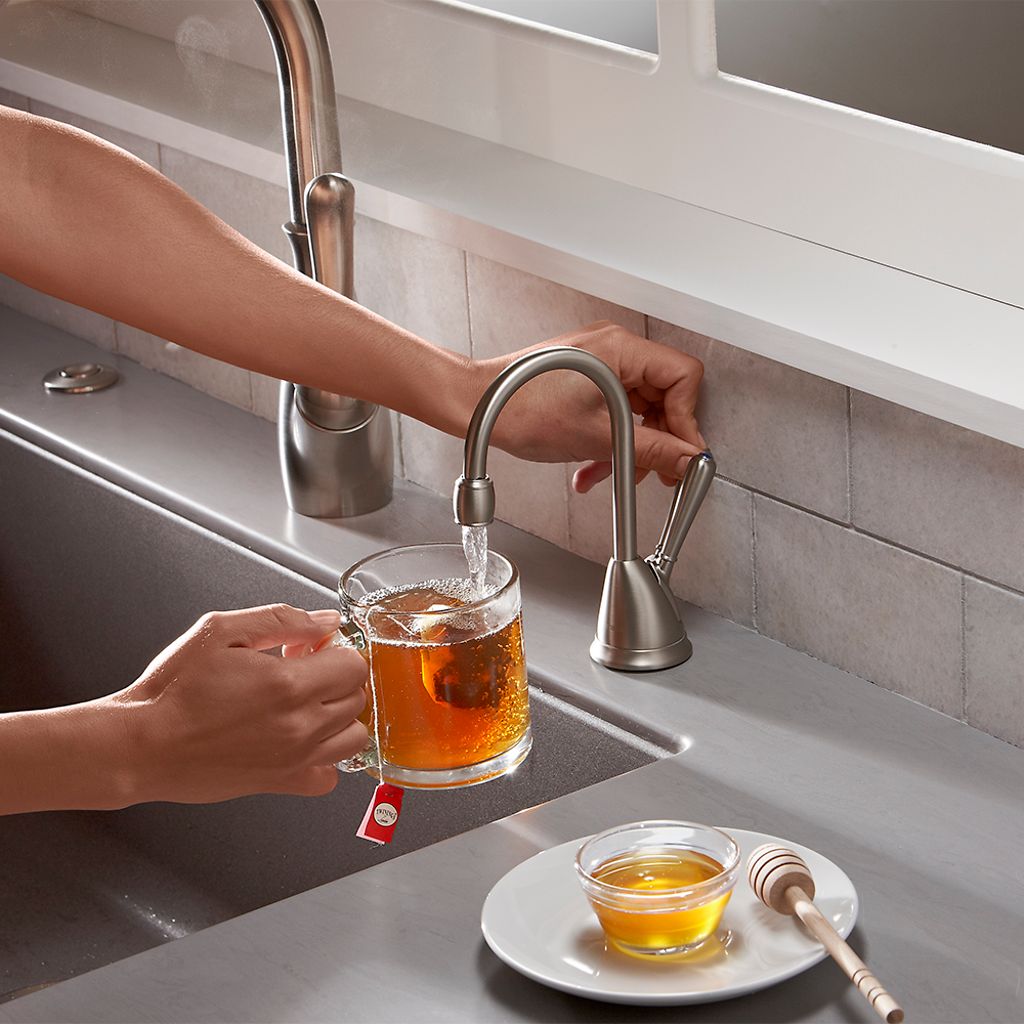

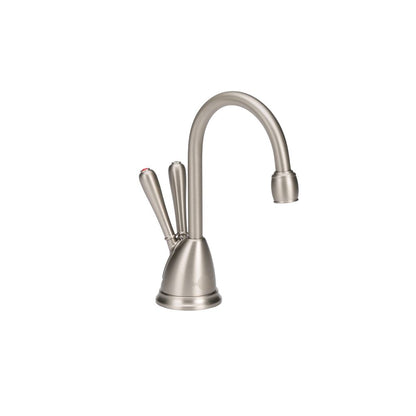

The InSinkErator HC-VIEWSN-SS pairs a Satin Nickel faucet with an under-sink hot-water tank for near-boiling water on demand. A separate control also dispenses cool drinking water.

Features

• Includes a faucet and 2/3-US-gallon stainless steel hot-water tank.
• Self-closing hot-water valve stops the flow when released.
• Adjustable tank temperature and tool-free tank connections.
• Dry-start protection helps protect the tank during installation.
• Durable metal faucet construction.

Specifications

• Room: Kitchen
• Product type: Hot and Cold Water Dispenser System
• Collection: Involve View
• Installation: Single-hole deck-mounted faucet with under-sink tank
• Finish: Satin Nickel
• Water function: Instant hot and cool drinking water
• Tank capacity: 2/3 US gallon (approximately 2.5 L)
• Electrical: 115 V AC, 750 W; grounded three-prong plug
• Temperature adjustment: 160°F–210°F (approximately 71°C–99°C)
• Faucet height: 6-3/4″ (17.15 cm)
• Tank dimensions: 10-7/8″ H × 6-1/8″ W × 6-3/4″ D
• Required sink hole: 1-3/8″
• Maximum countertop thickness: 3″
• Supply pressure: 30–80 psi
• Model: HC-VIEWSN-SS
• SKU: 44717A

Included Components

• Hot-and-cool dispenser faucet with tubing
• 2/3-US-gallon stainless steel hot-water tank
• Faucet mounting hardware
• Tank mounting screws

Required for Installation

Connect to a cold-water supply using the appropriate shutoff valve and fittings. The tank requires a grounded, continuously powered electrical outlet beneath the sink. Follow the supplied installation manual for connections and clearances.

Optional Accessories

A compatible InSinkErator water filtration system is available separately; it is not included.

Warranty

We Come To You® 3-Year In-Home Limited Warranty covering parts and labour.
