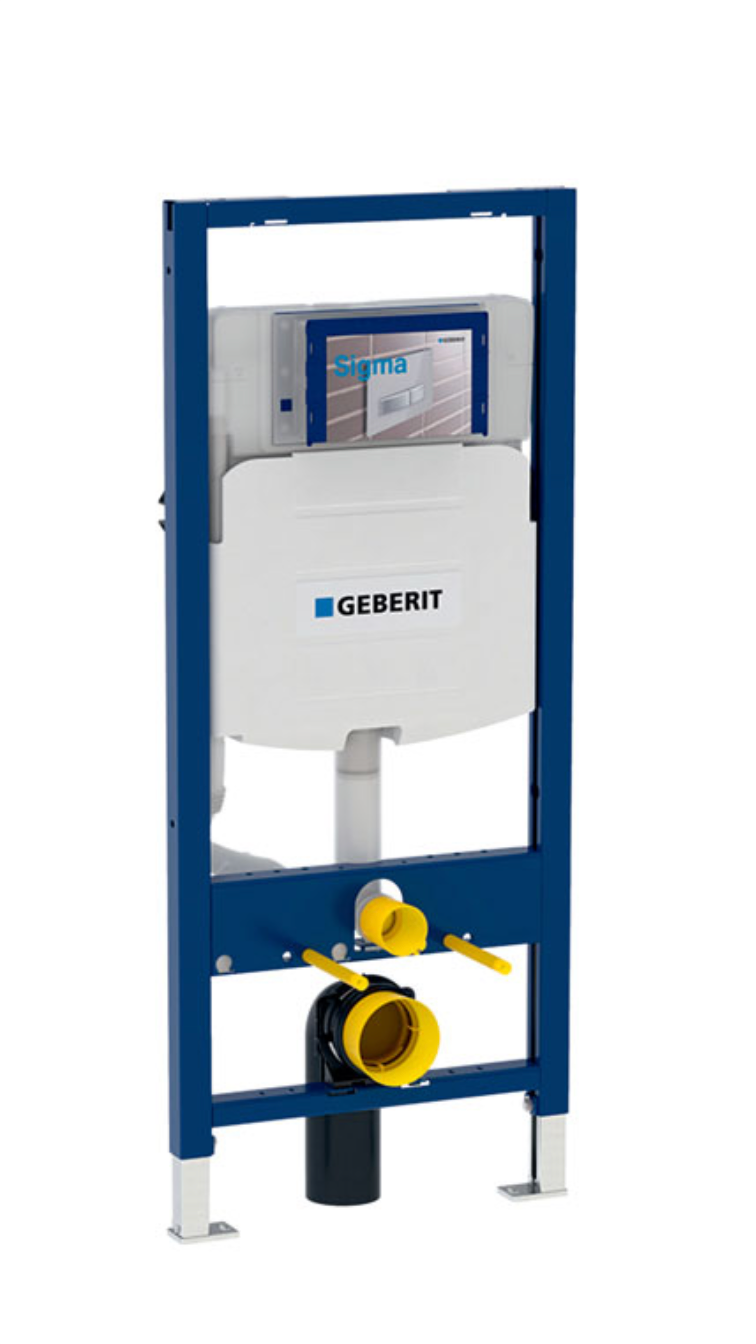

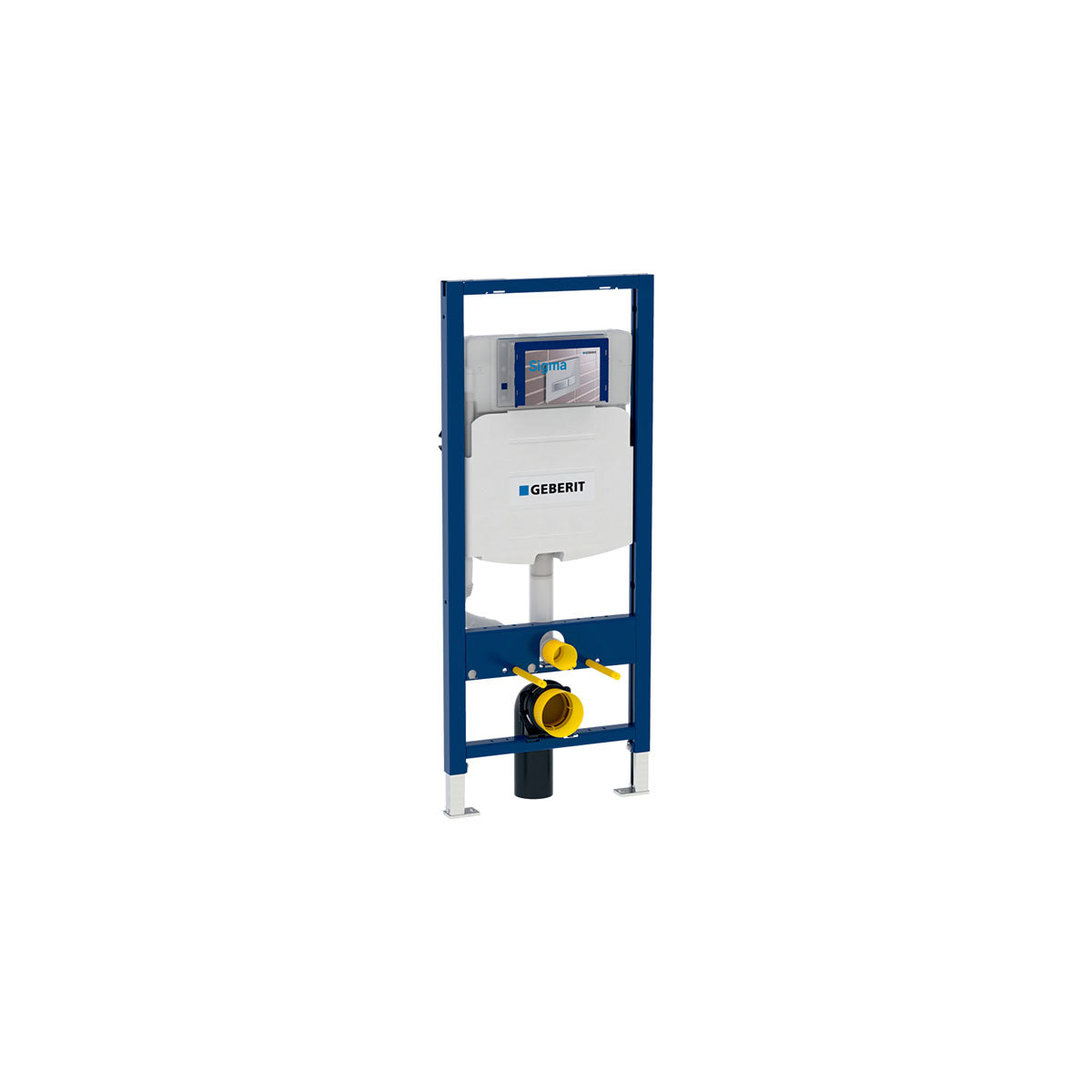

Geberit Duofix In-Wall System For Wall-Mount Toilets 2X6 Construction 1.6/0.8 GPF - 111.335.00.5

Geberit Duofix In-Wall System For Wall-Mount Toilets 2x6 Construction 1.6/0.8 GPF – 111.335.00.5

The Geberit Duofix in-wall carrier system with Sigma concealed tank is designed for 2x6 construction, offering reliable performance, water efficiency, and design flexibility for wall-hung toilets.

Features

• Compatible with most wall-hung washdown toilets from leading ceramic manufacturers
• Dual-flush system with 1.6/0.8 GPF for significant water savings
• Adjustable bowl height to meet personal preference or ADA requirements
• Wall-hung design allows full floor access for easier cleaning and improved accessibility
• Engineered Geberit fill and flush valves eliminate chains and flappers for long-term reliability
• Includes Duofix carrier frame with Sigma concealed tank, water supply stop, drainage elbow, and pre-installed fill and flush valves
• Mounting hardware included


Technical Details

• In-wall Duofix carrier system and Sigma concealed tank with actuator flush panel or pneumatic push button for washdown wall-hung toilets
• System fits within minimum 5-1/2” (146 mm) framing wall or plumbing chase with wood construction or steel framing members spaced 19-3/4” (500 mm) apart
• Framing members must support up to 880 lbs (400 kg) without wall damage
• Water supply requires minimum 1/2” (13 mm) copper tube flow diameter and minimum flow pressure of 2 PSI (0.01 MPa)
• Compatible with third-party listed, 2-hole wall-hung bowls in 1.6 GPF (6 LPF), 1.28 GPF (4.8 LPF) single flush, or 1.6/0.8 GPF (6/3 LPF), 1.28/0.8 GPF (4.8/3 LPF) dual flush
• Carrier frame adjustable for bowl rim heights from 15” to 19” (381 to 483 mm)
• Actuator flush panels available in diecast zinc, molded plastic, or fabricated stainless steel with protective plating
• All components comply with applicable codes and standards

Specifications

• Room: Bath
• Product Type: In-Wall Toilet Carrier System
• Style: Modern
• Installation Type: In-Wall
• Flush Type: Dual Flush (1.6/0.8 GPF)


Certifications & Warranty

• Limited lifetime warranty on tank and carrier, 10-year warranty on fill valve and flush valve.
