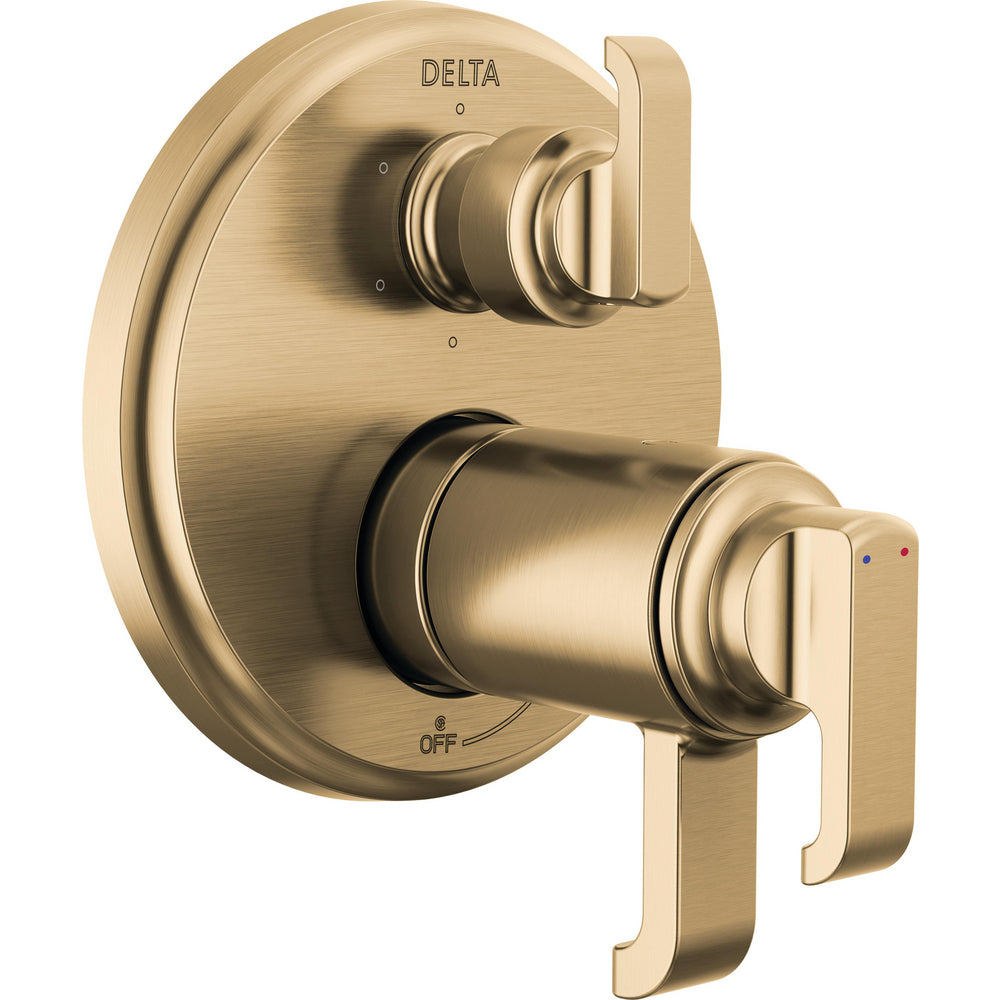

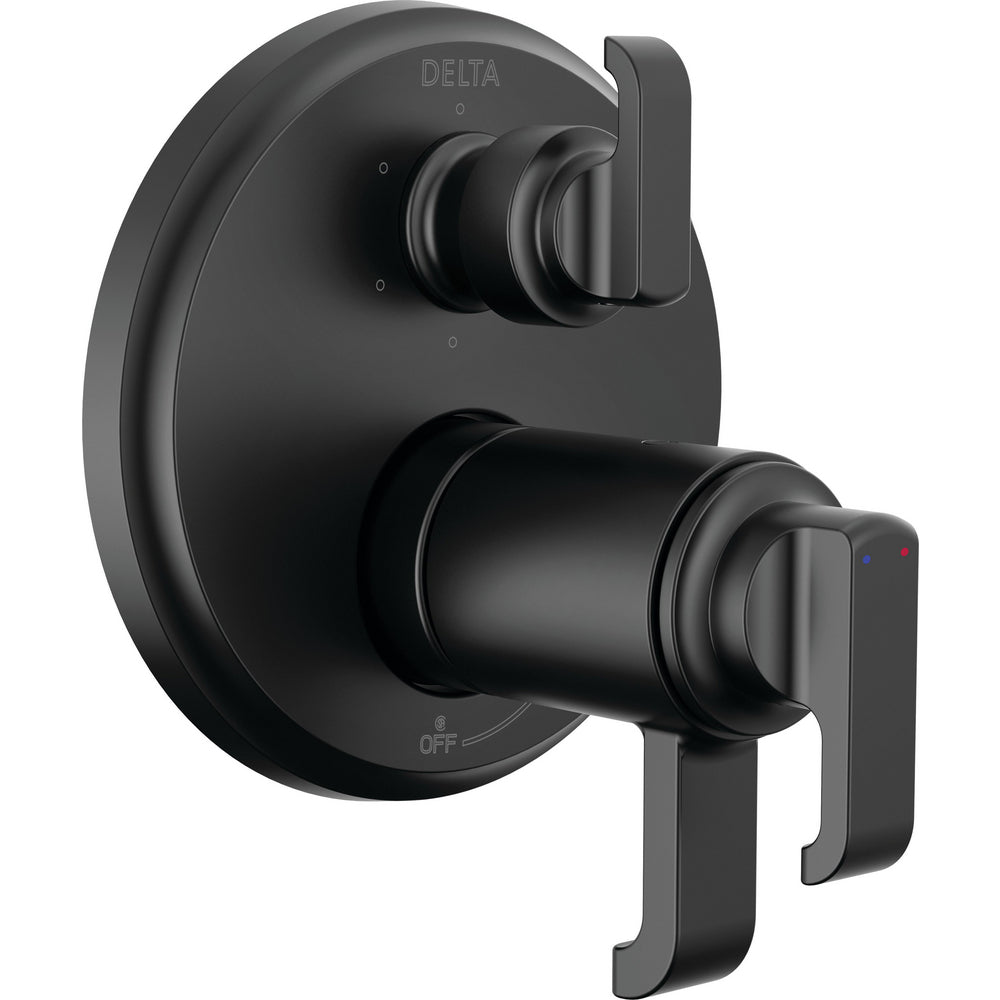

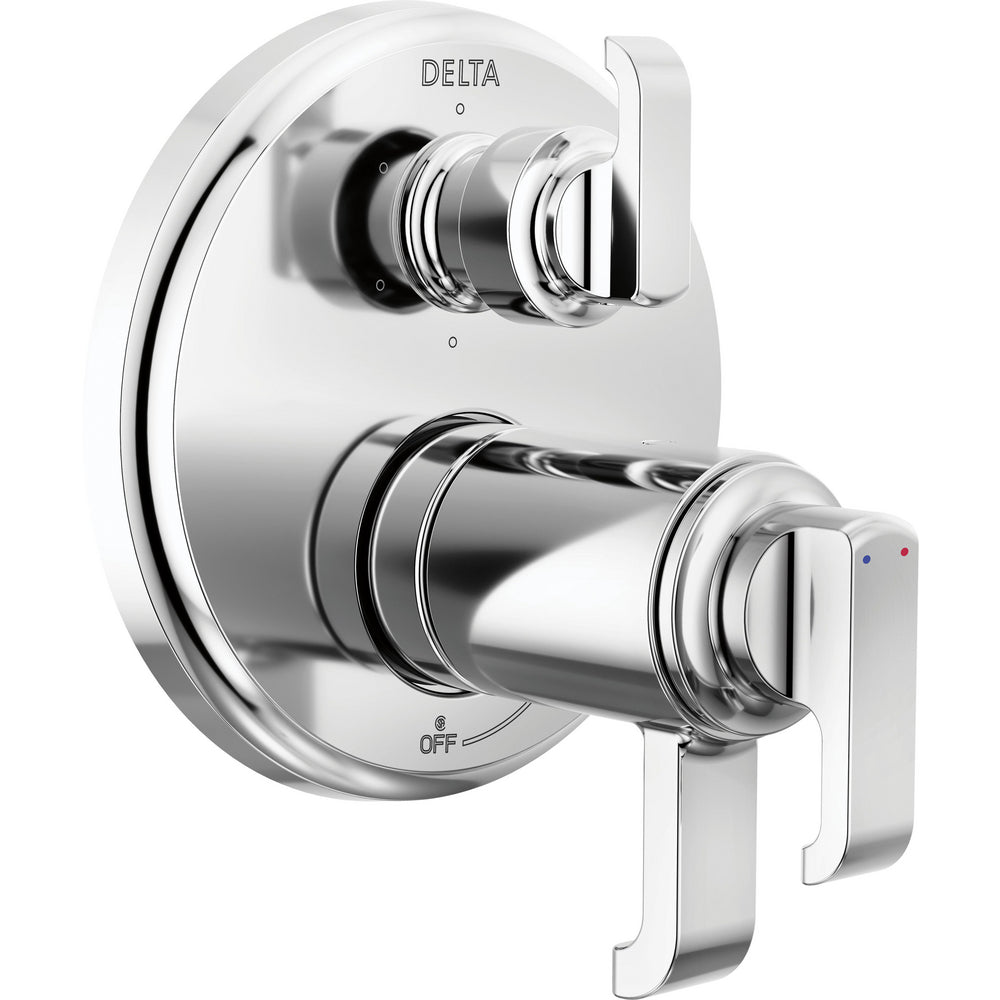

Delta T27T989 Tetra TempAssure 17T 6-Setting Integrated Diverter Trim

Delta Tetra TempAssure 17T 6-Setting Integrated Diverter Trim - T27T989

The Delta Tetra T27T989 combines the sleek architectural styling of the Tetra Bath Collection with TempAssure 17T thermostatic temperature control and a six-setting integrated diverter. The MultiChoice Integrated Shower Diverter brings temperature, volume, and diverter controls together in one streamlined trim while supporting three individual and three shared shower functions.

Features

• Part of the Delta Tetra Bath Collection
• Sleek, architectural design with subtle curves
• TempAssure 17T Series thermostatic shower trim
• MultiChoice Integrated Shower Diverter
• 6-function diverter
• 3 individual positions and 3 shared positions
• Top handle controls diverter functions
• Separate controls for on/off/volume and temperature
• Independent volume and temperature adjustment
• TempAssure thermostatic valve maintains outlet temperature within ±3.6°F (±1.7°C)
• Helps protect against sudden changes in hot or cold water pressure
• Field adjustable to limit handle rotation into the hot water zone
• Maximum bottom handle rotation of 90°
• Red and blue temperature indicator markings
• Cartridges included
• ADA compliant
• Select Lumicoat finishes wipe clean easily without cleaners or chemicals on commonly touched areas
• Trim kit only
• R22000 Series rough-in required and sold separately

Specifications

• Room: Bathroom
• Product Type: Thermostatic Shower Valve & Diverter Trim
• Collection: Tetra
• Style: Contemporary / Architectural
• Series: TempAssure 17T
• Installation Type: Concealed
• Diverter Type: Integrated
• Diverter Settings: 6
• Individual Positions: 3
• Shared Positions: 3
• Temperature Control: Thermostatic
• Volume Control: Independent
• Temperature Stability: ±3.6°F (±1.7°C)
• Maximum System Flow Rate: 7.2 GPM @ 60 PSI with R22000
• Rough-In Size: 1/2”
• Bottom Handle Rotation: Maximum 90°
• Maximum Standard Finished Wall Thickness: 1-1/8”
• Maximum Finished Wall Thickness with RP90544: 2-1/8”
• Cartridges Included: Yes
• Rough-In Included: No
• ADA Compliant: Yes
• Model: T27T989

Included Components

• TempAssure 17T thermostatic valve cartridge
• 6-function diverter cartridge
• Tetra valve and diverter trim

Required for Installation

• Delta R22000 Series MultiChoice Universal Integrated Shower Diverter Rough-In Valve (Sold Separately)

Optional Configurations

• RP71718 – For three individual functions with no shared positions
• RP90544 – Thick Wall Installation Kit for finished wall thicknesses up to 2-1/8”

Certifications & Warranty

• ADA Compliant
• Delta Faucet Lifetime Limited Warranty on Parts and Finish
