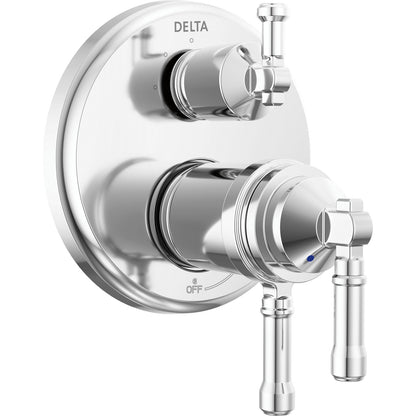

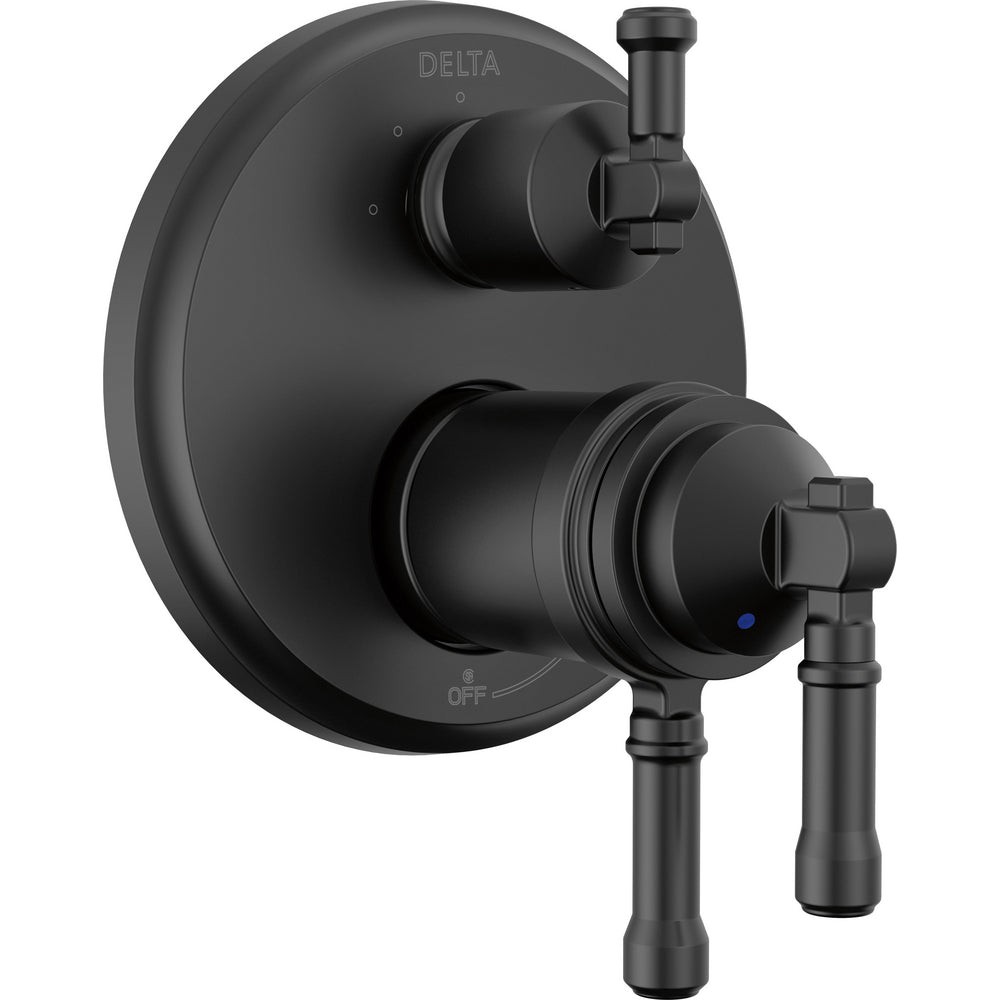

Delta T27T884 Broderick 17T Series 3-Setting Integrated Diverter Trim

Delta Broderick TempAssure 17T Series 3-Setting Integrated Diverter Trim - T27T884

The Delta Broderick T27T884 combines heritage-inspired styling with TempAssure thermostatic temperature control and an integrated 3-setting diverter. Designed for use with the R22000 Series MultiChoice Universal integrated shower diverter rough, it provides independent control of water volume and temperature with two individual shower positions and one shared position.

Features

• Part of the Delta Broderick Collection
• TempAssure 17T thermostatic valve trim
• Thermostatic wax element maintains outlet temperature within ±3.6°F (±1.7°C)
• MultiChoice integrated shower diverter design
• 3-setting diverter with 2 individual positions and 1 shared position
• Top handle controls diverter functions
• Separate bottom controls for on/off/volume and temperature
• Independent volume and temperature control
• Field-adjustable hot water temperature limit
• Maximum 90° bottom handle rotation
• Red and blue temperature indicator markings
• Maximum system flow rate of 7.2 GPM at 60 PSI with R22000
• Cartridges included
• ADA compliant
• Lumicoat finish on -PR models resists mineral buildup and hard water stains
• R22000 Series rough-in required and sold separately

Specifications

• Room: Bathroom
• Product Type: Integrated Diverter Trim
• Collection: Broderick
• Style: Traditional
• Valve Series: TempAssure 17T
• Valve Type: Thermostatic
• Diverter Settings: 3
• Individual Positions: 2
• Shared Positions: 1
• Temperature Accuracy: ±3.6°F / ±1.7°C
• Maximum System Flow Rate: 7.2 GPM @ 60 PSI with R22000
• Rough-In Size: 1/2”
• Standard Finished Wall Thickness: Up to 1-1/8”
• Maximum Finished Wall Thickness with RP90544: Up to 2-1/8”
• Cartridges Included: Yes
• Rough-In Included: No
• ADA Compliant: Yes
• Model: T27T884

Required for Installation

• R22000 Series – MultiChoice Universal Integrated Shower Diverter Rough (Sold Separately)

Configuration Options

• Standard T27T884 – 2 individual positions + 1 shared position
• RP71717 – Optional diverter cartridge for 2 individual functions with no shared function
• RP90544 – Optional thick-wall installation kit for finished walls up to 2-1/8”

Certifications & Warranty

• ADA Compliant
• Delta Lifetime Limited Warranty
