Brizo Litze Pressure Balance Valve with Integrated 3-Function Diverter Trim - Less Handles - T75P535

Brizo Litze Pressure Balance Valve with Integrated 3-Function Diverter Trim - Less Handles - T75P535

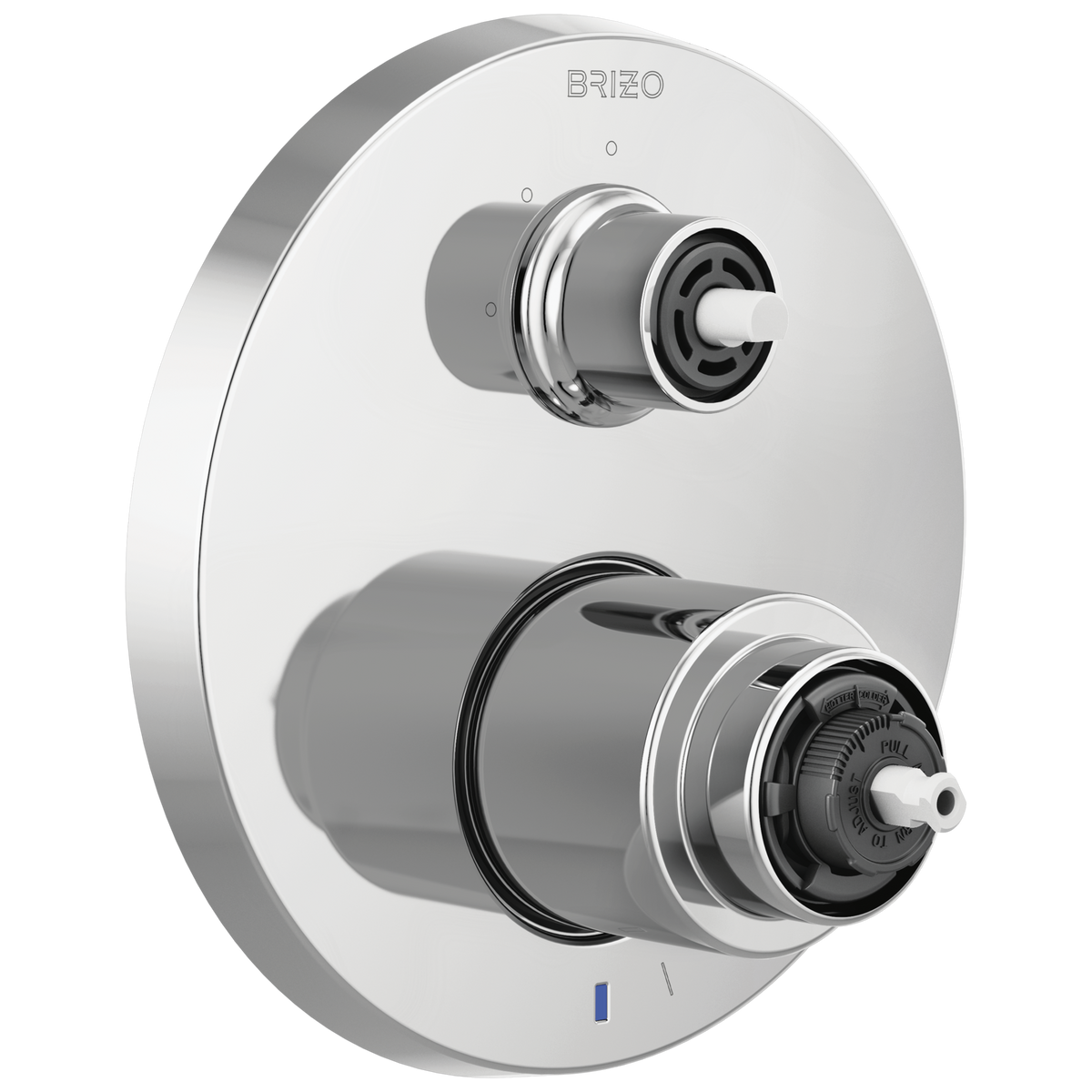

The Brizo Litze T75P535 combines pressure-balanced temperature control with a three-function diverter in one wall-mounted trim. It directs water to two shower outlets using two individual and one shared position. Handles and the rough-in are sold separately.

Features

• Single-function pressure-balance cartridge helps maintain balanced hot and cold water pressure.
• Upper control selects diverter functions; lower control operates on/off and temperature.
• Two individual and one shared diverter position serve two shower outlets.
• Field-adjustable rotational limit stop restricts travel into the hot-water range.
• Back-to-back installation capability.
• Red/blue temperature indicators and a maximum 120° rotation of the lower handle.
• Compatible with the MultiChoice Universal Integrated Shower Diverter Rough, R75000 Series.

Specifications

• Room: Bathroom
• Product Type: Pressure Balance Valve Trim with Integrated Diverter
• Collection: Litze
• Installation: Wall Mount
• Diverter: 3 functions / 2 outlets
• Maximum System Flow Rate: 7.2 gpm at 60 psi with R75000; this is valve-system capacity, not a shower-head flow rating.
• Rough-In Connection: 1/2"

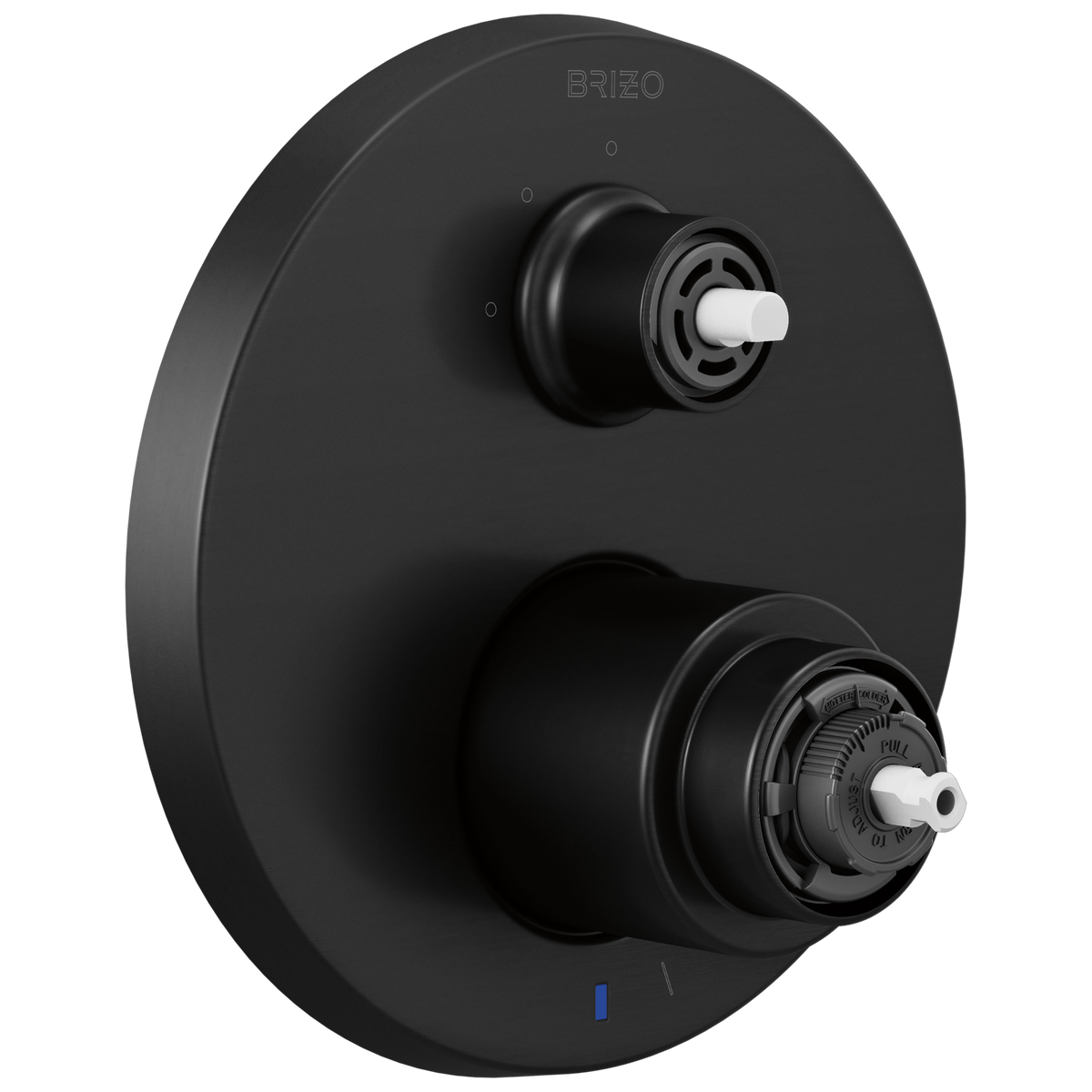

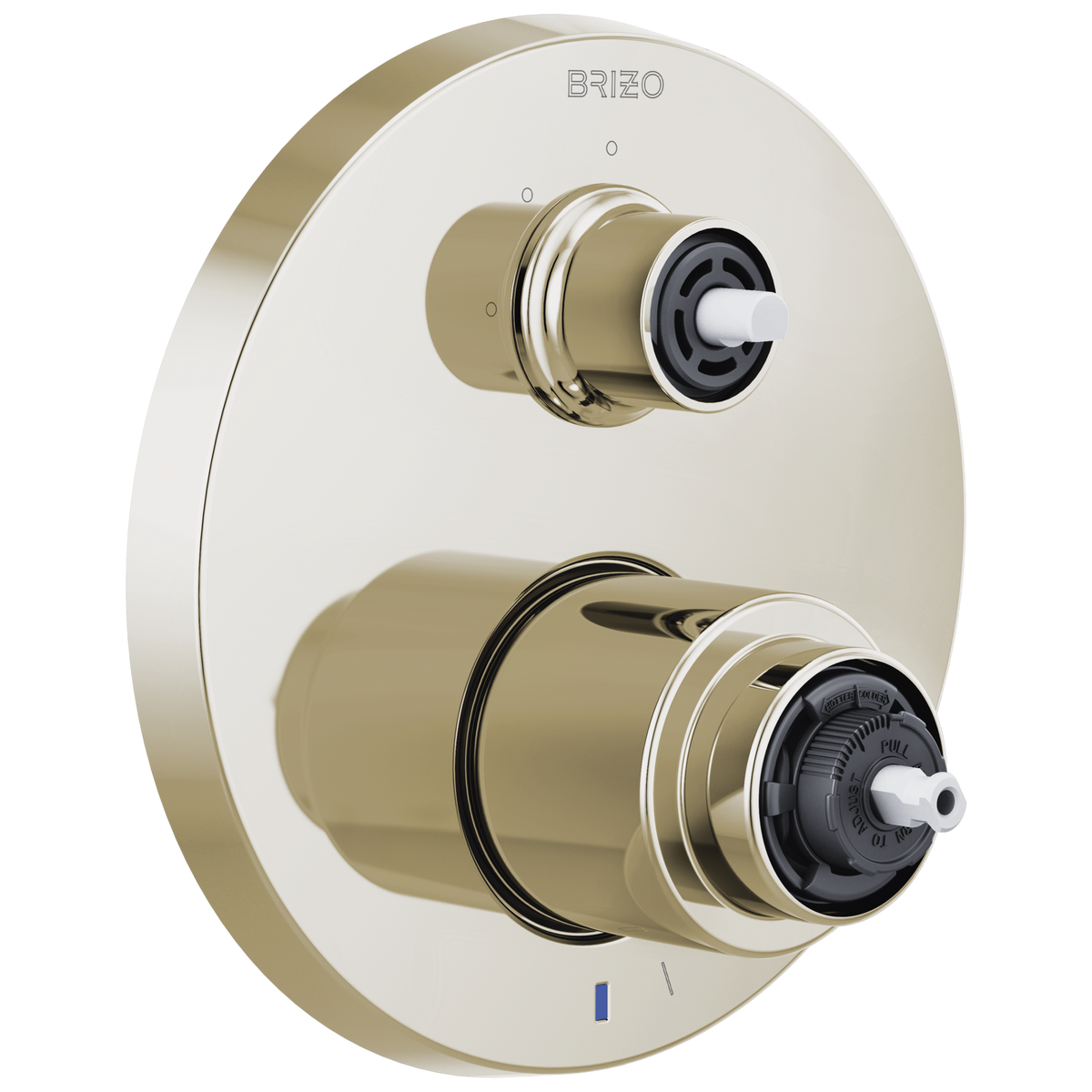

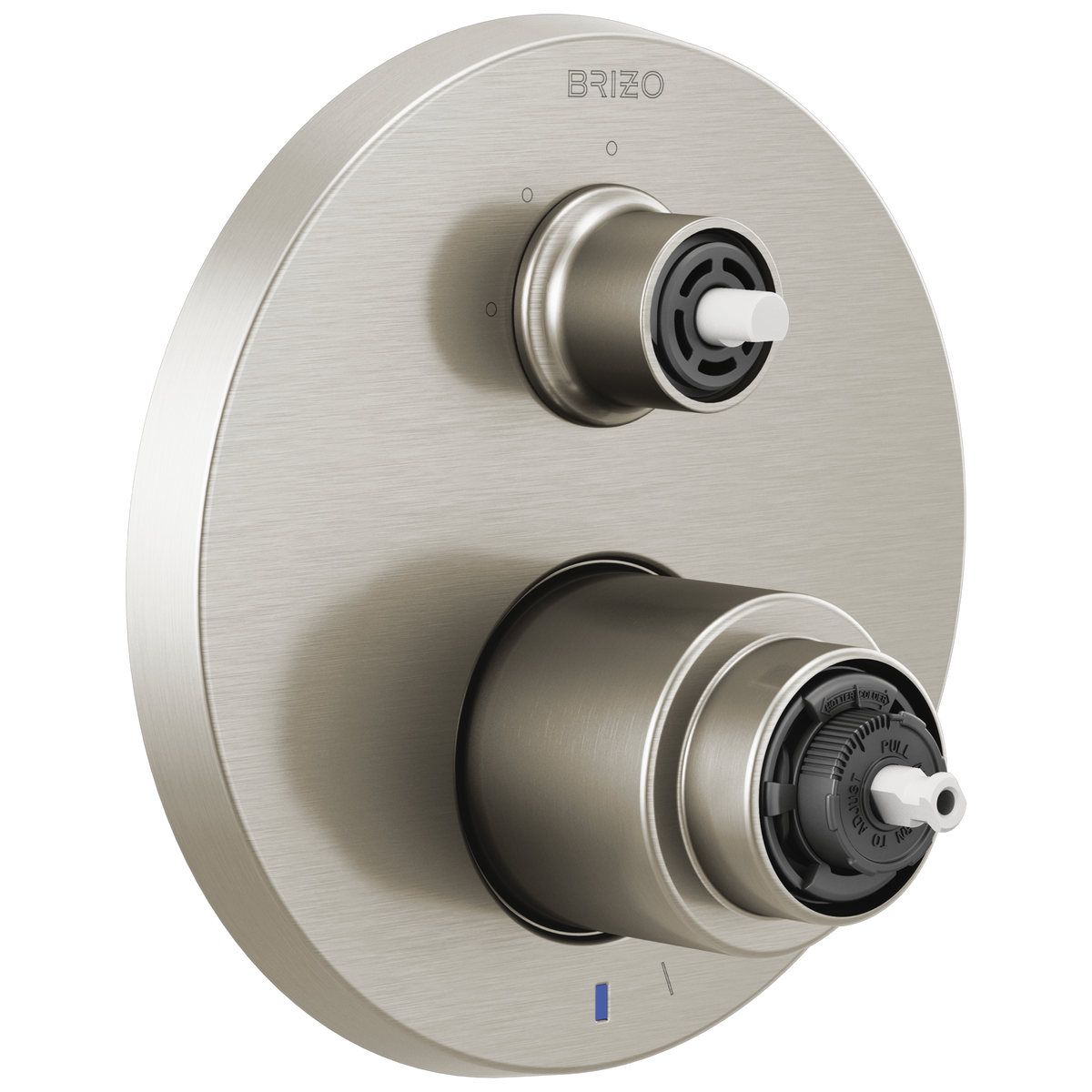

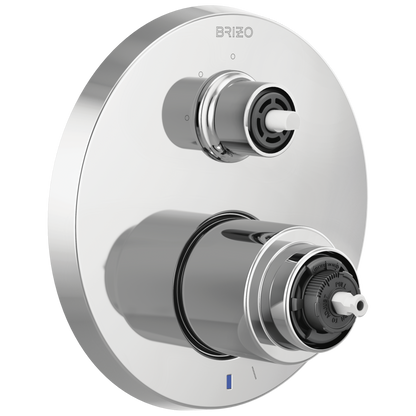

• Model: T75P535 (LHP; less handles)

Included Components

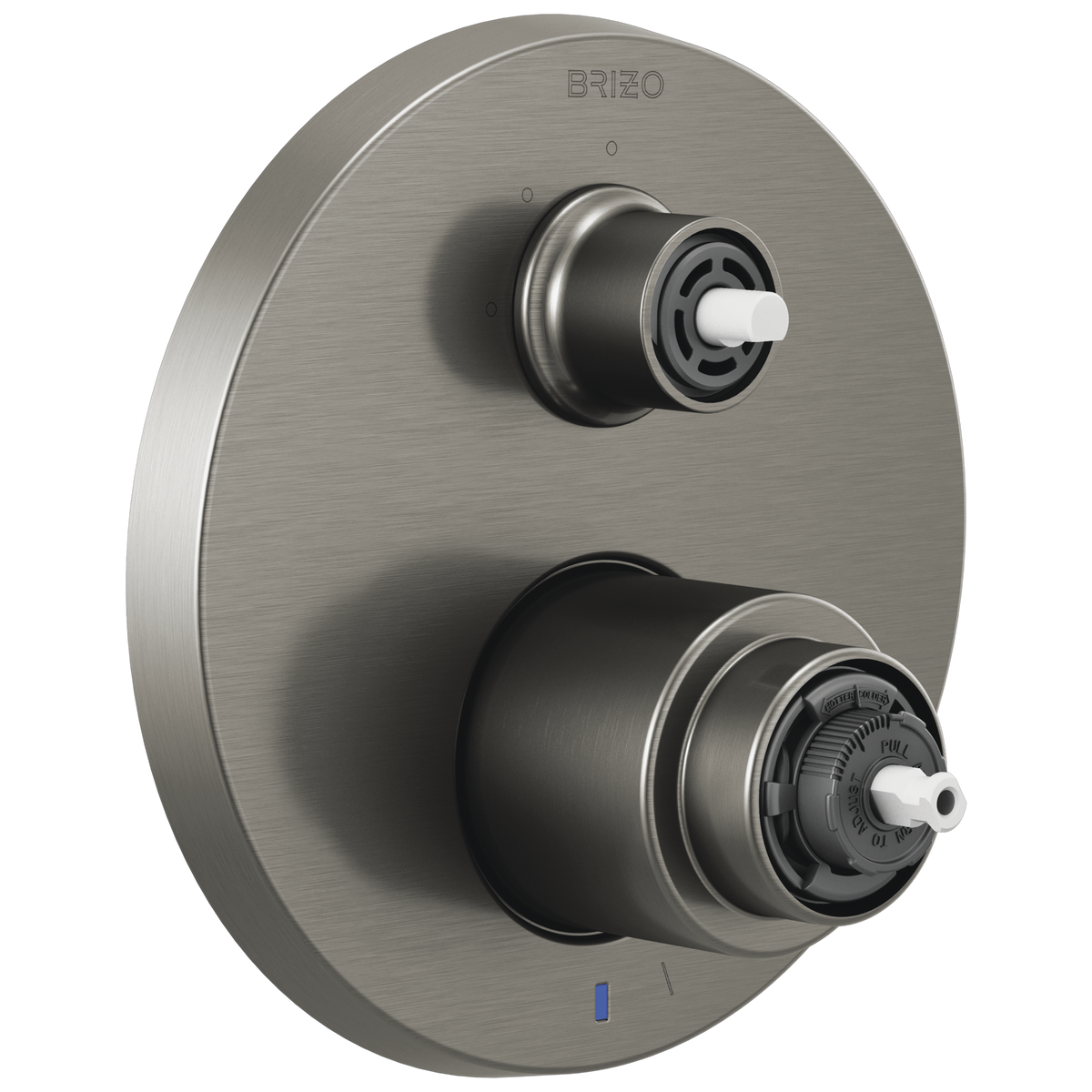

• Pressure-balance and diverter cartridges.

Required for Installation

• Choose ONE compatible R75000 Series rough-in, sold separately: R75000 (universal connections), R75000-WS (universal connections with stops), R75000-PX (PEX connections) or R75000-PXWS (PEX connections with stops).

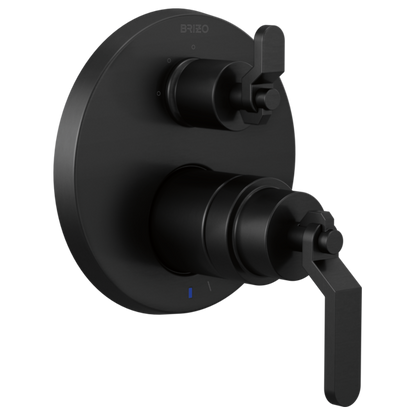

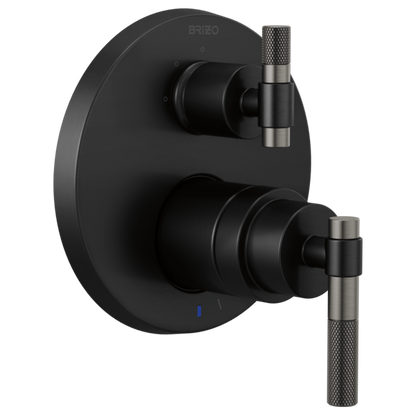

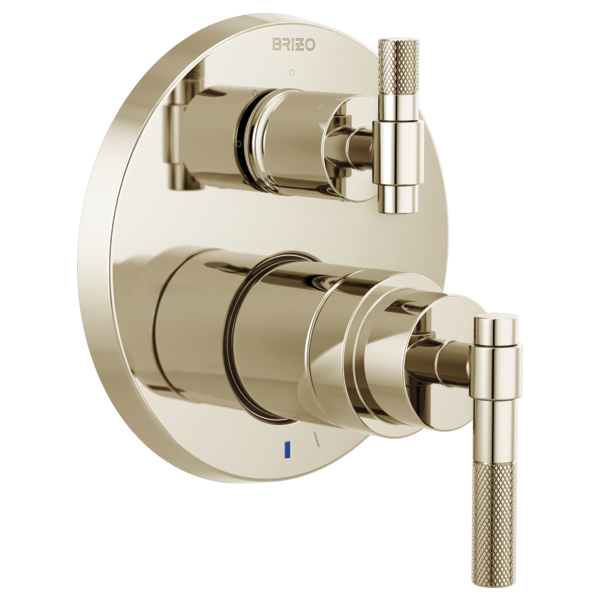

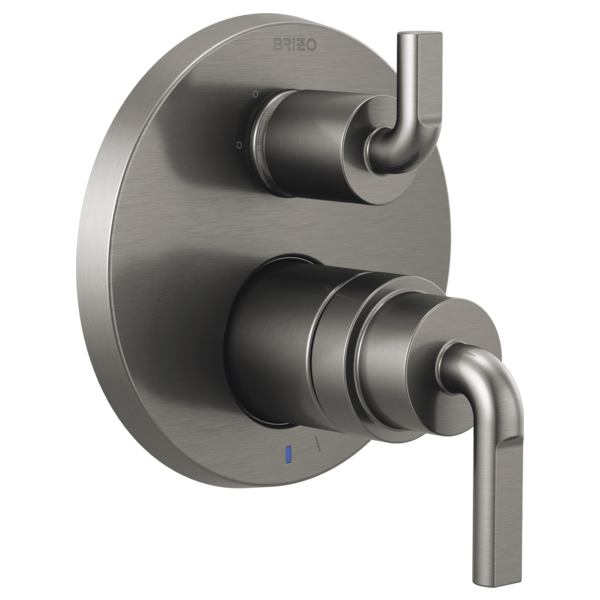

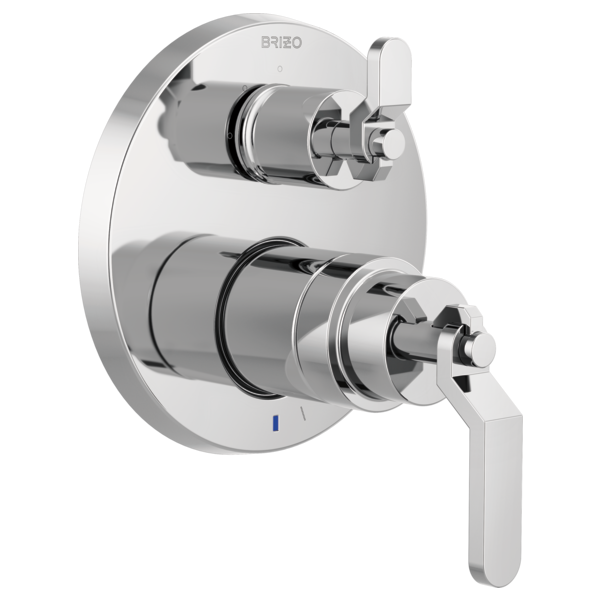

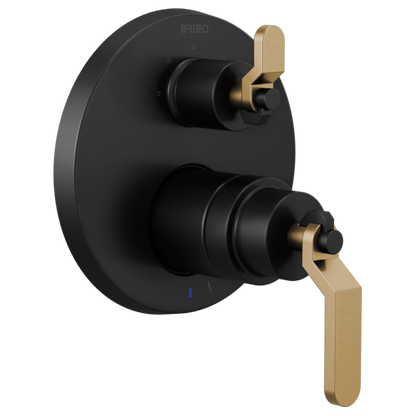

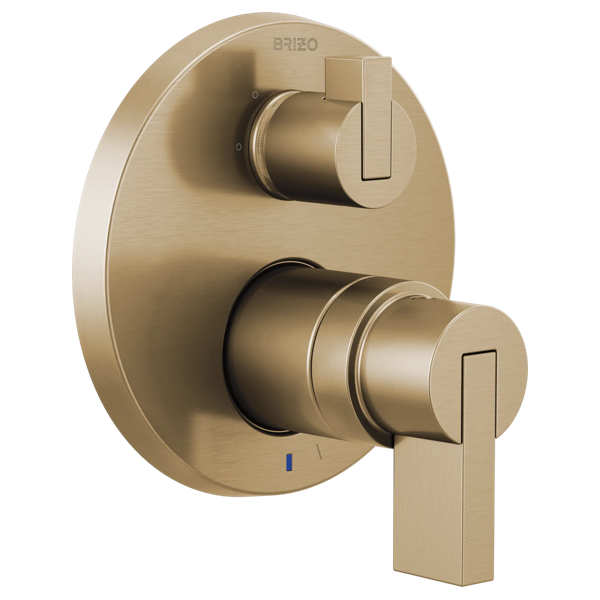

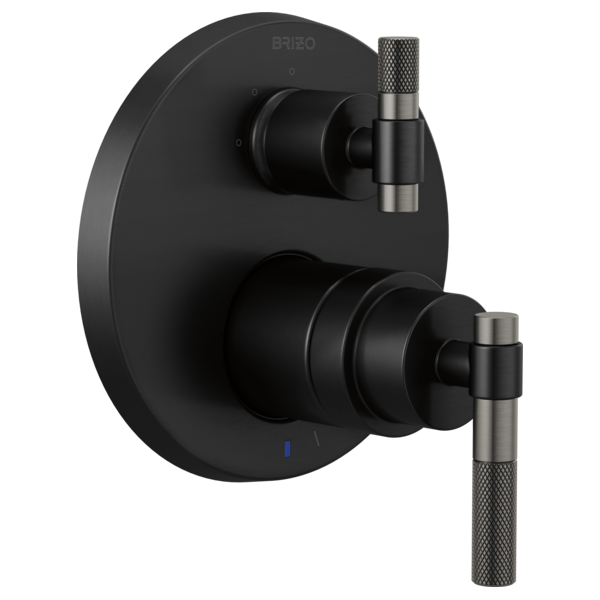

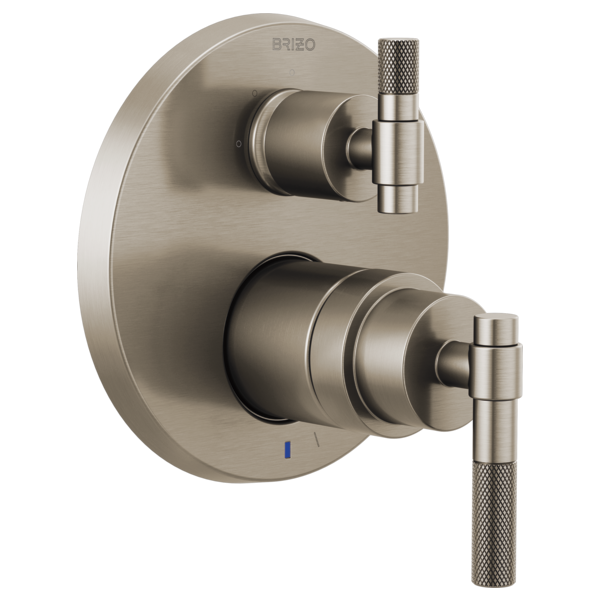

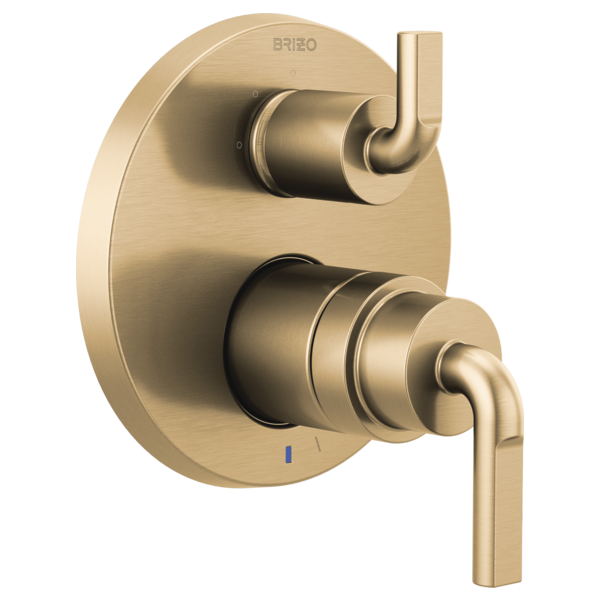

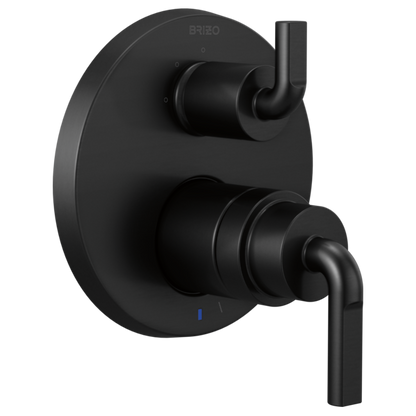

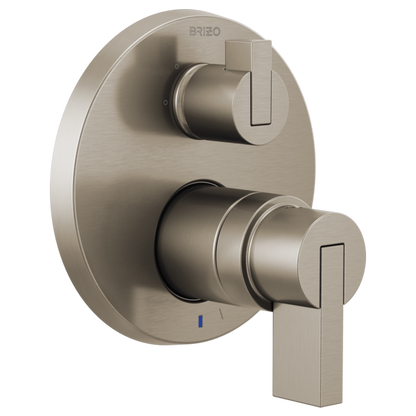

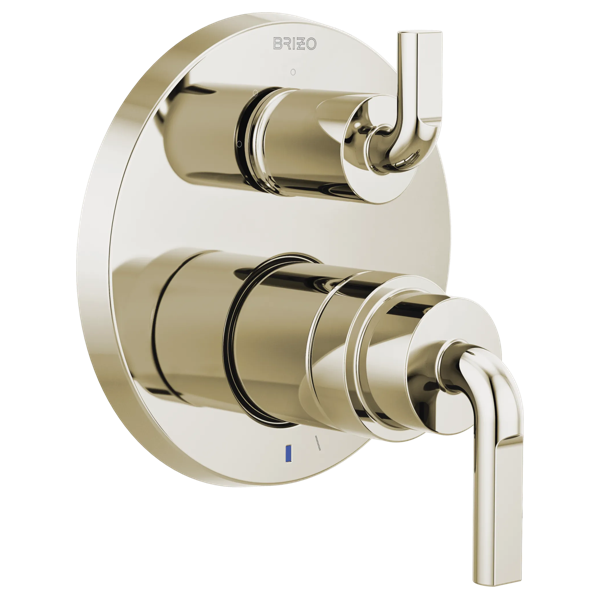

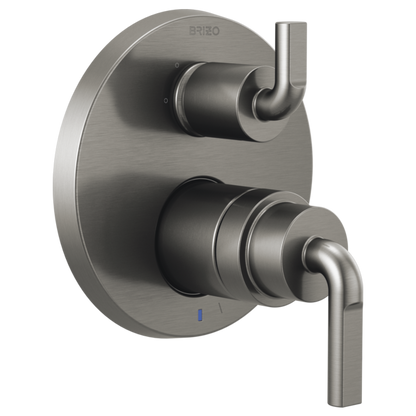

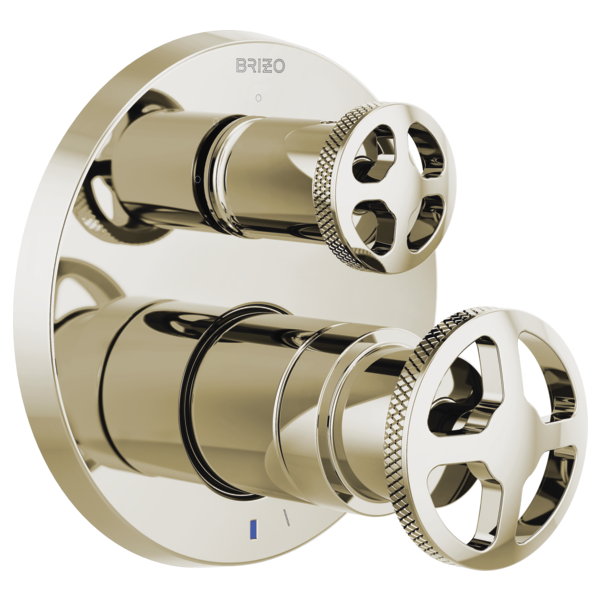

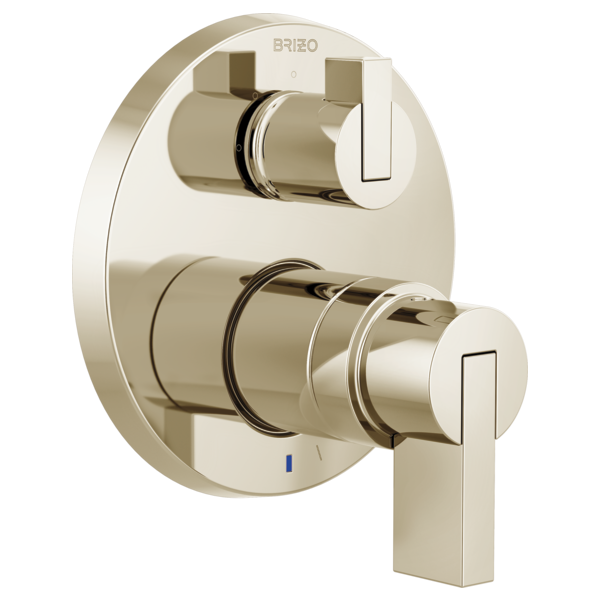

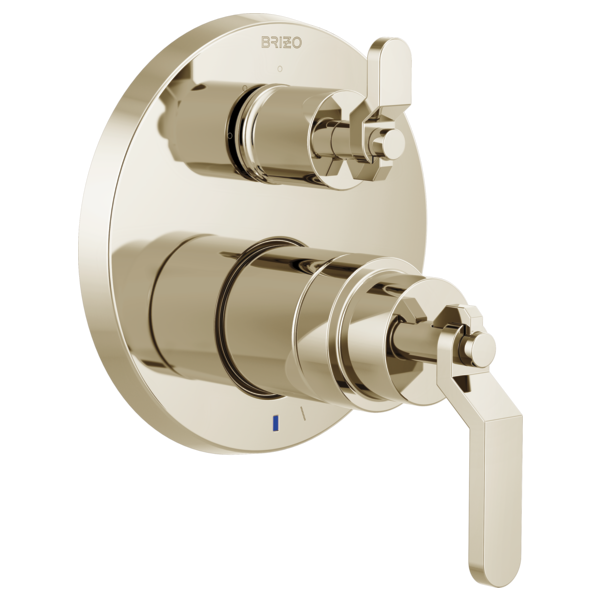

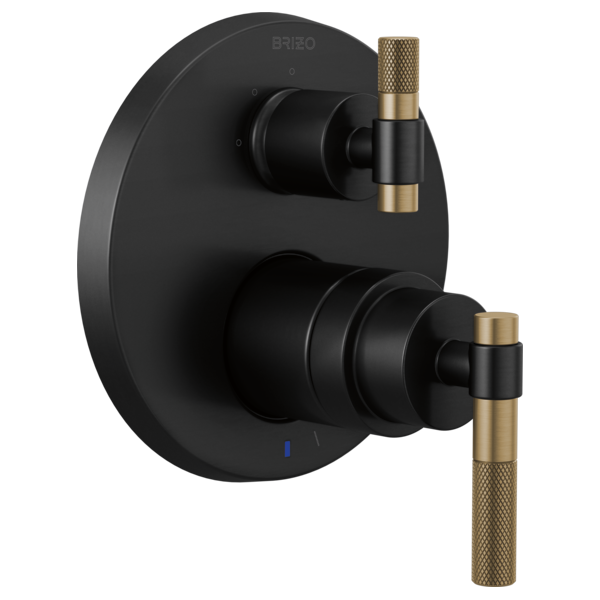

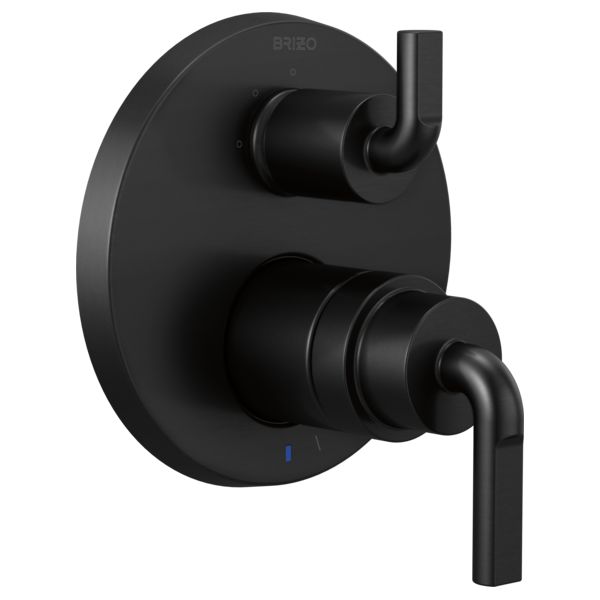

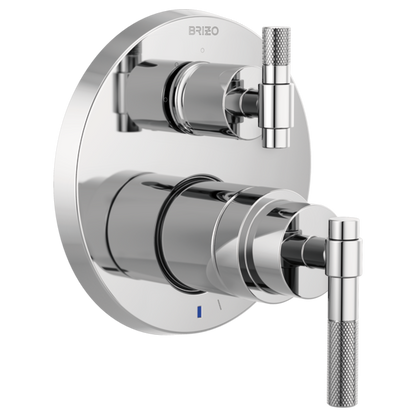

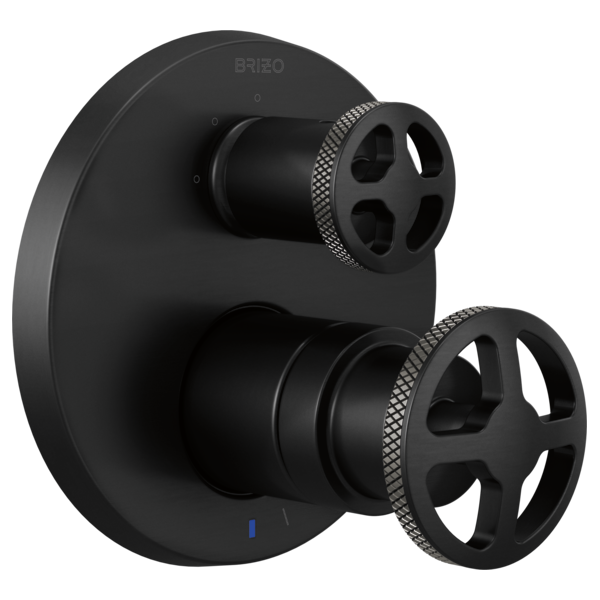

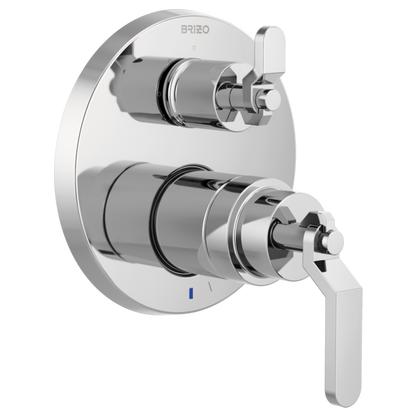

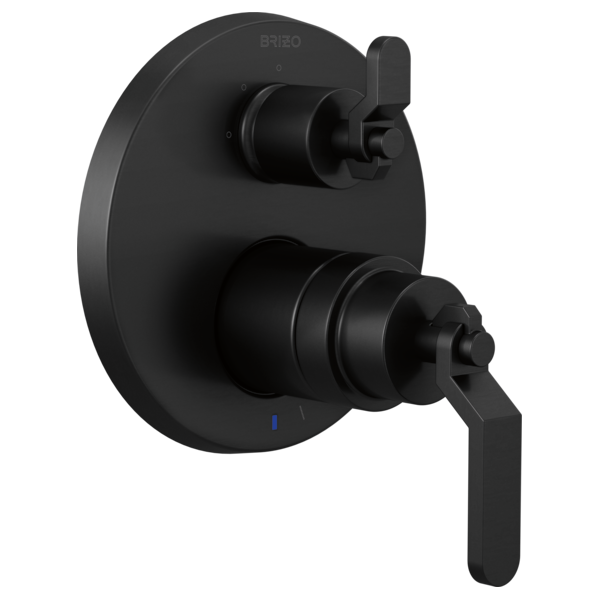

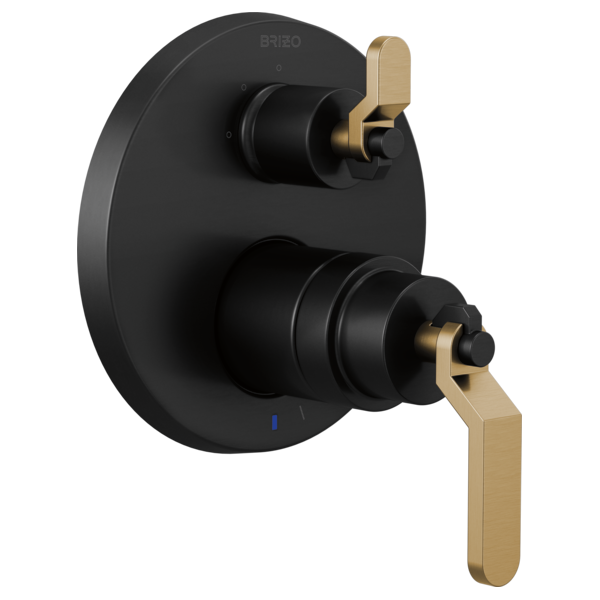

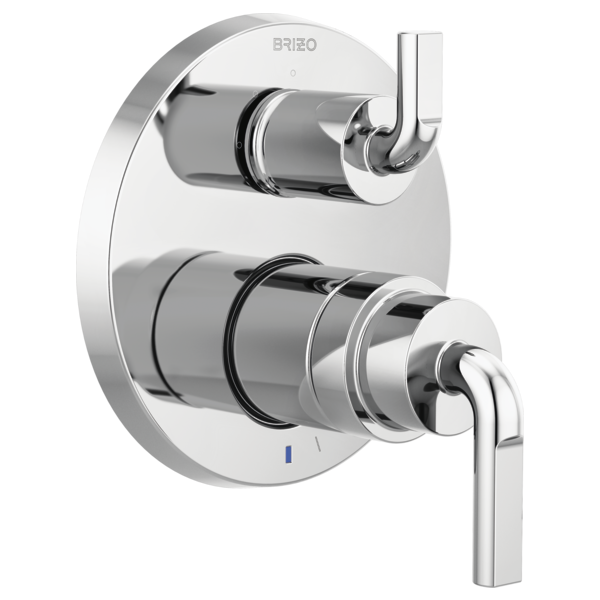

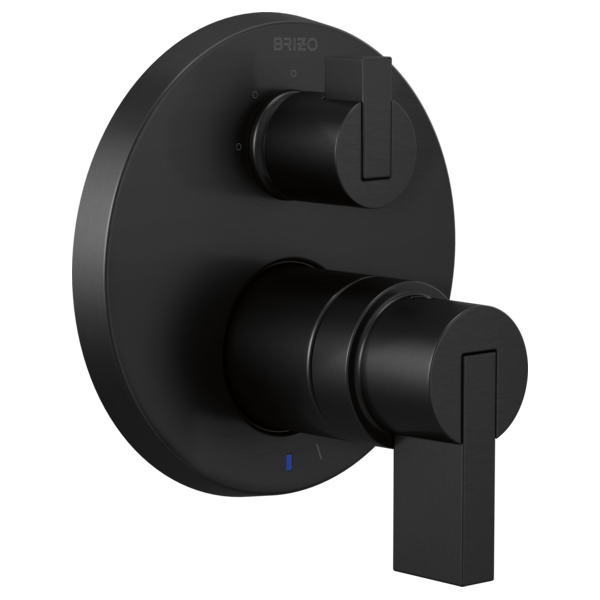

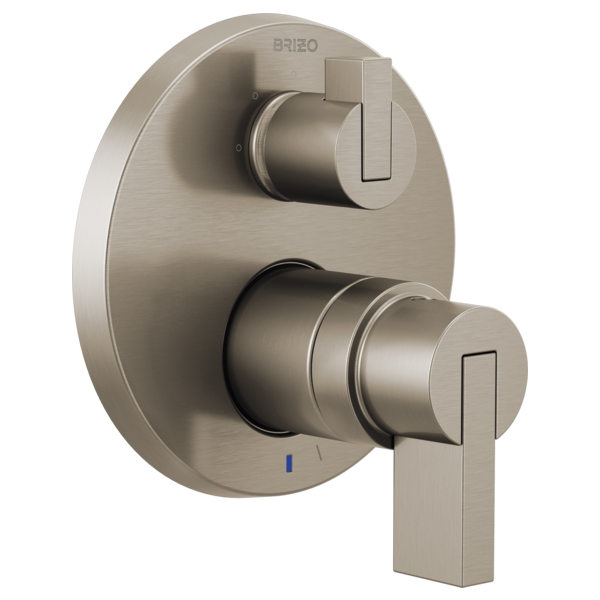

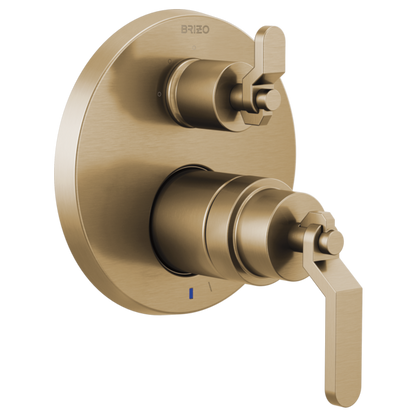

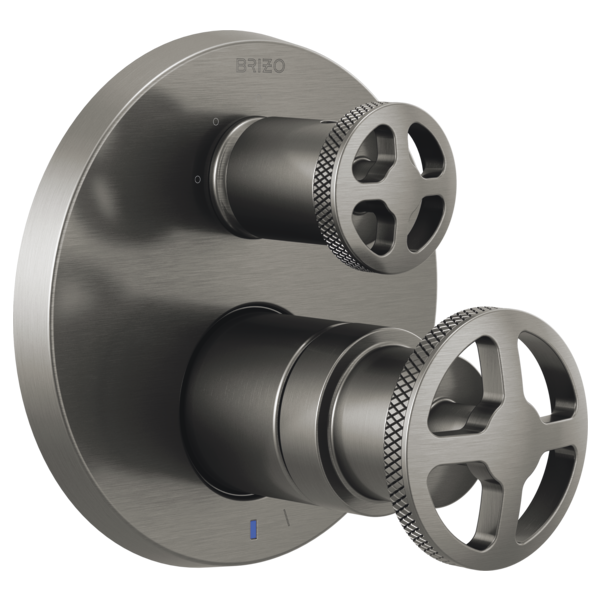

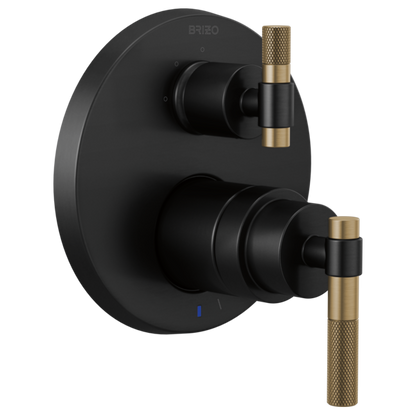

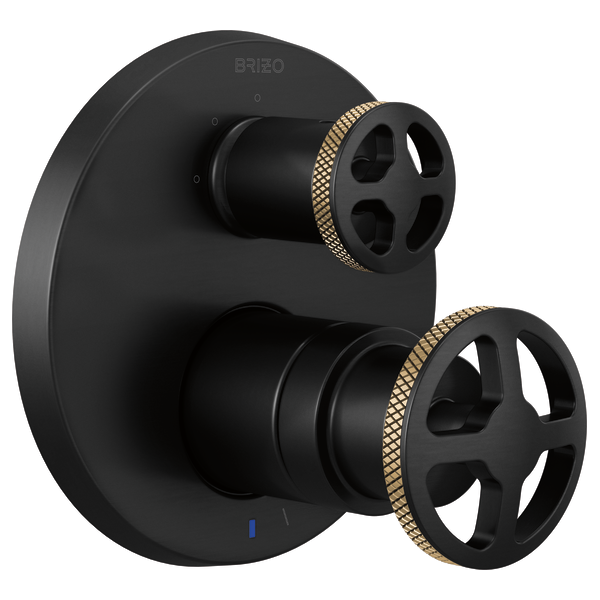

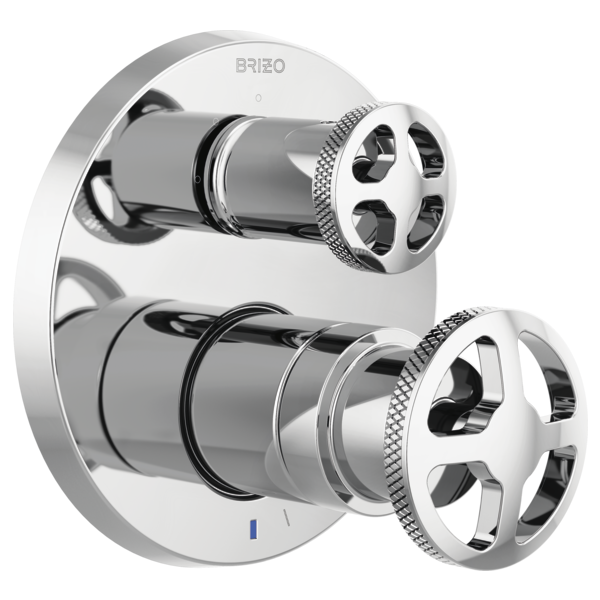

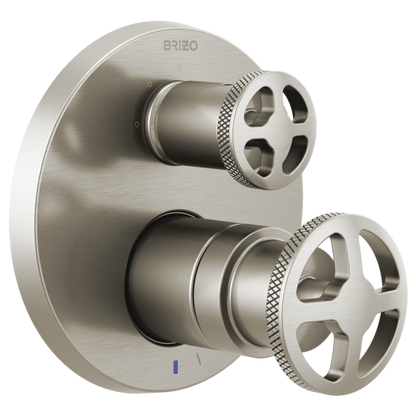

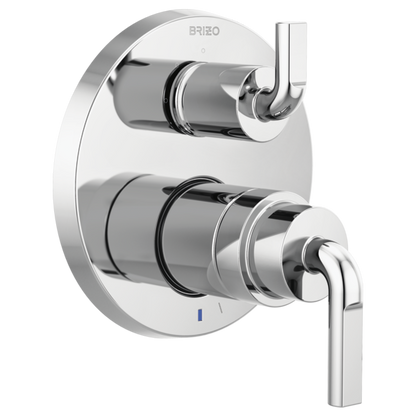

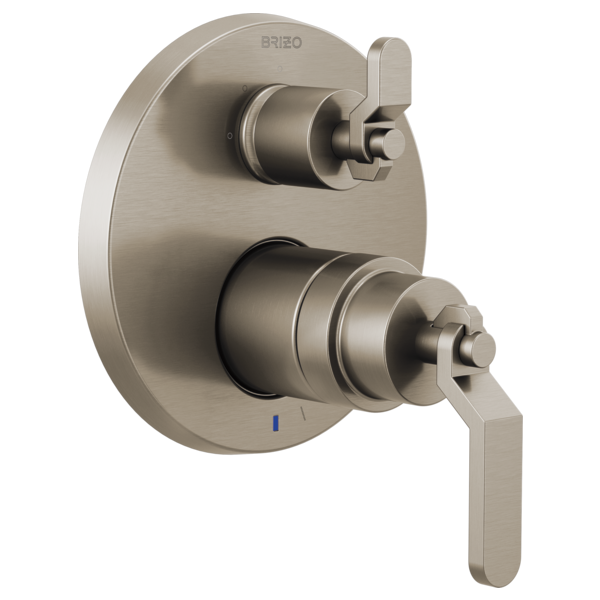

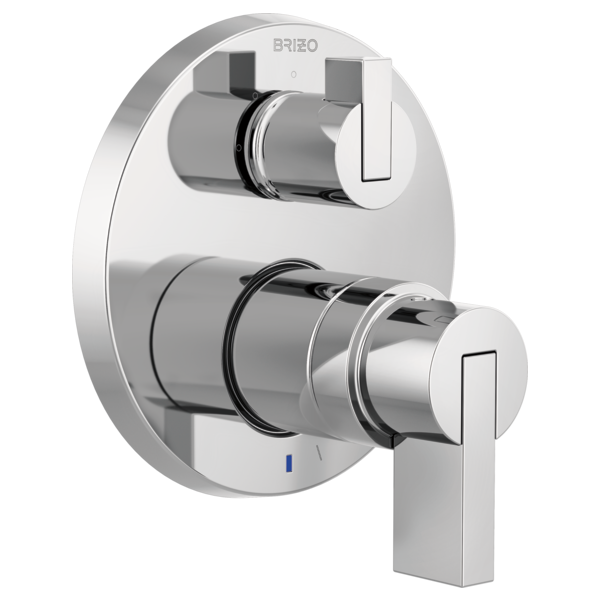

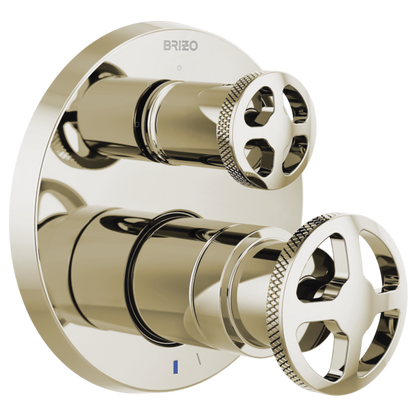

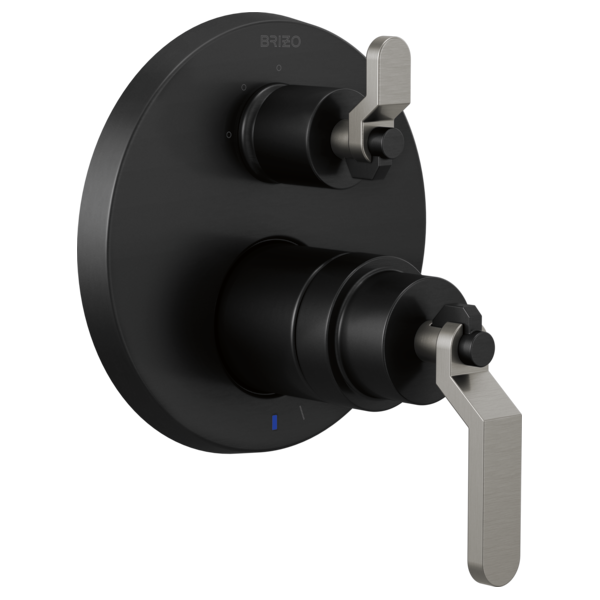

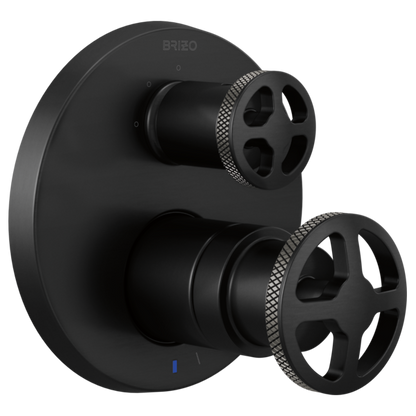

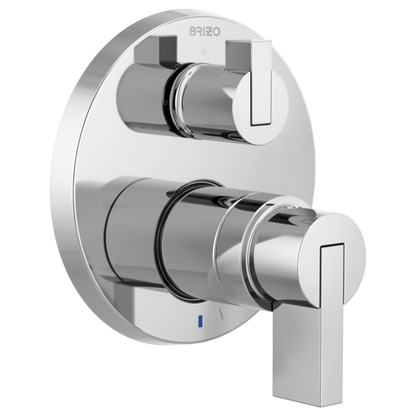

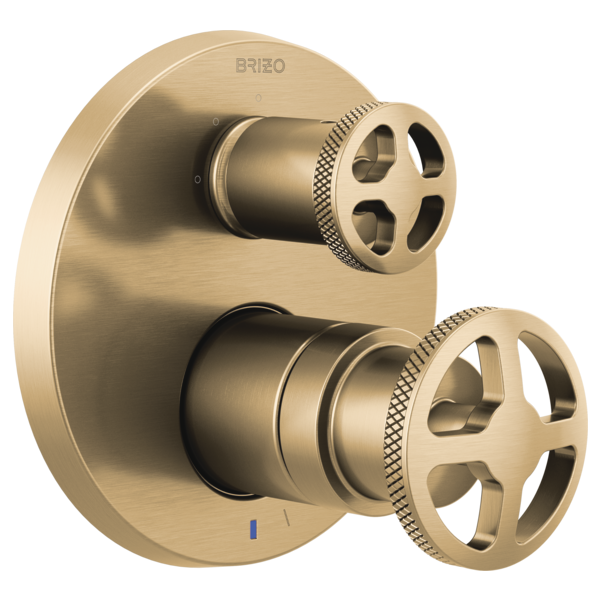

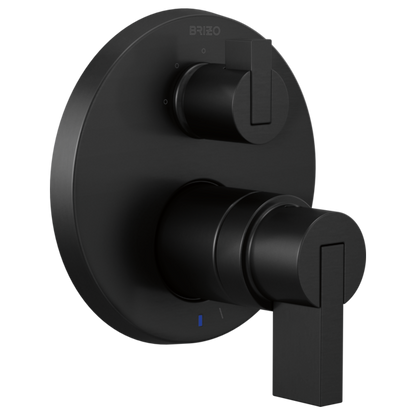

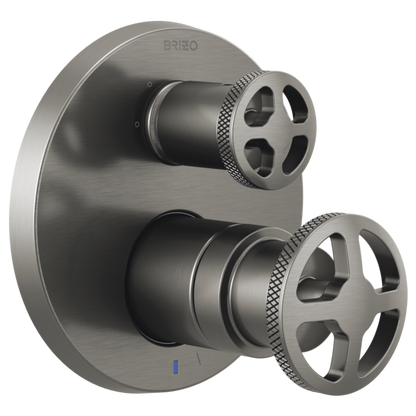

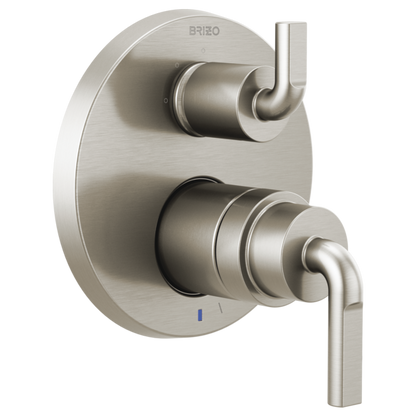

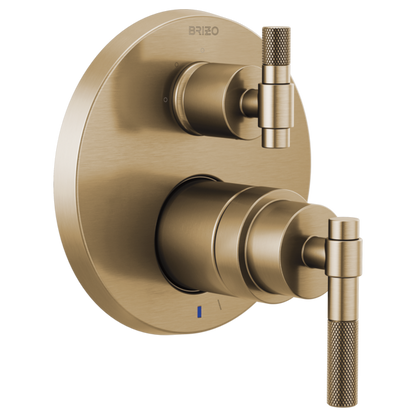

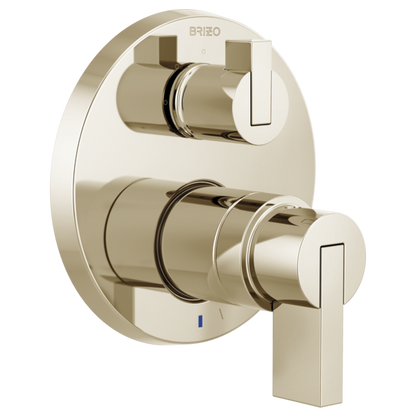

• Choose ONE compatible handle kit, sold separately: HL75P32 lever, HL75P33 T-lever, HL75P34 industrial lever, HL75P39 notch lever or HW75P32 wheel. Select the appropriate finish combination.

Optional Accessories

• RP72123 diverter cartridge provides two individual positions with no shared positions, sold separately.
• RP100160 thick-wall extension kit increases maximum finished-wall thickness from 1 1/8" to 2 1/8", sold separately. Order the matching finish.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1; ASSE 1016 / ASME A112.1016 / CSA B125.16; ICC/ANSI A117.1
• Brizo limited warranty applies; coverage and exclusions depend on the purchaser and installation.
