Brizo Baliza Two-Handle Tub Filler Trim Kit with Lever Handles - T70305

Brizo Baliza Two-Handle Tub Filler Trim Kit with Lever Handles - T70305

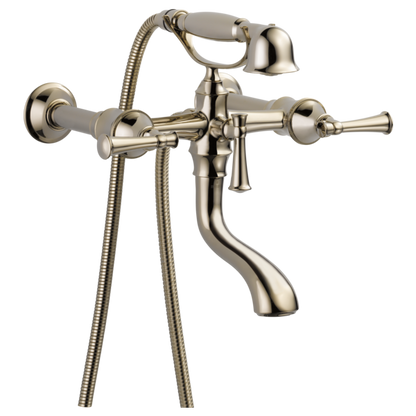

The Brizo Baliza T70305 trim kit includes the spout, lever handles, hand shower and hose for a modular tub filler. Complete wall, deck or floor installation with the matching body assembly and mounting components, sold separately.

Features

• Solid brass construction.
• High-flow ceramic control valves in the separately sold body assembly.
• Tub spout flow: up to 12 gpm (45.4 L/min) at 60 psi with the compatible installation components.
• Bi-directional diverter.
• Hand shower: maximum 1.75 gpm (6.6 L/min) at 80 psi.
• 60"–82" stretchable finished metal hand-shower hose.
• WaterSense-labelled hand shower.
• Dual-column design on 8" centres.
• Hand-shower cradle turns 90° in either direction.
• Tub drain not included.

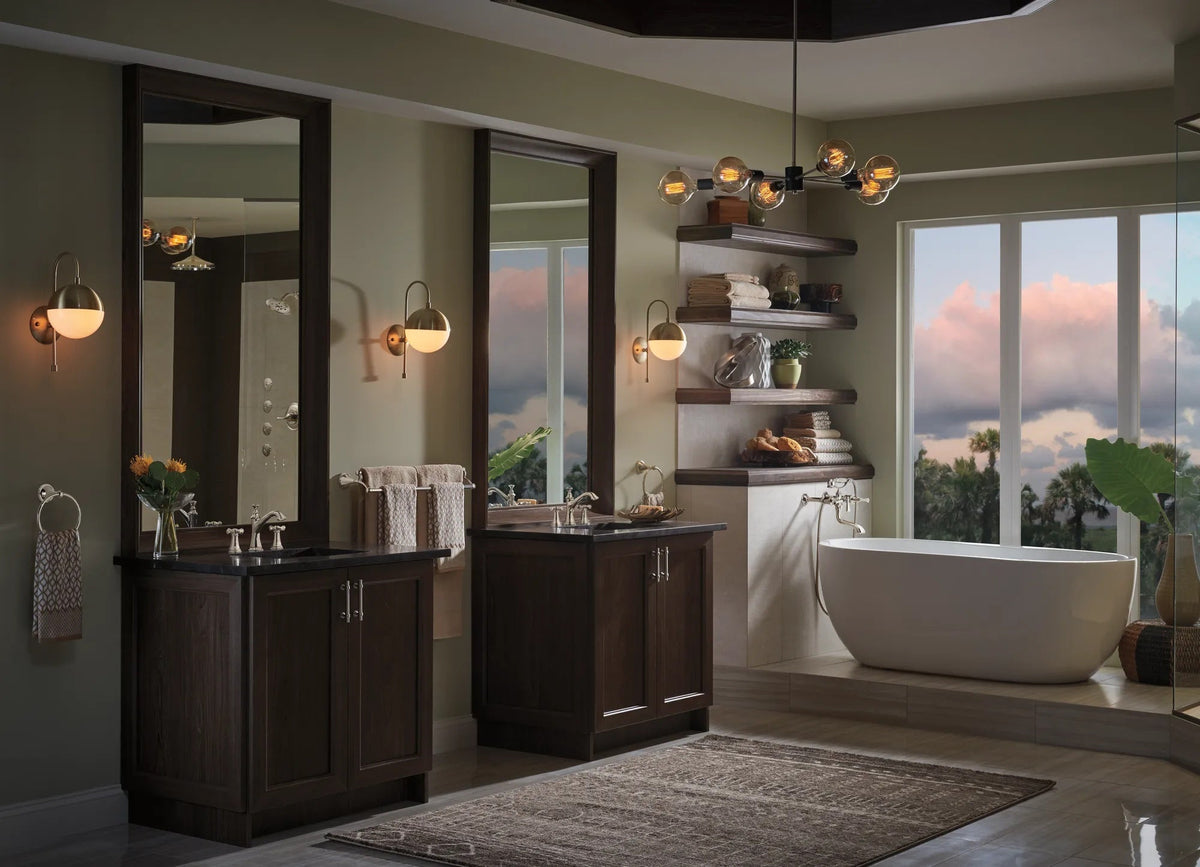

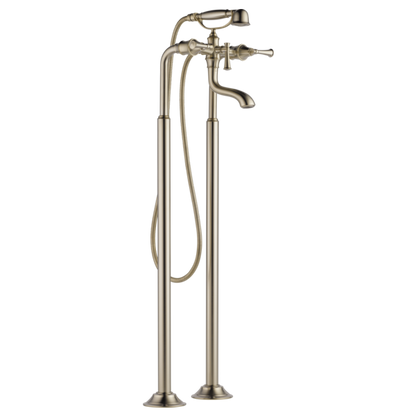

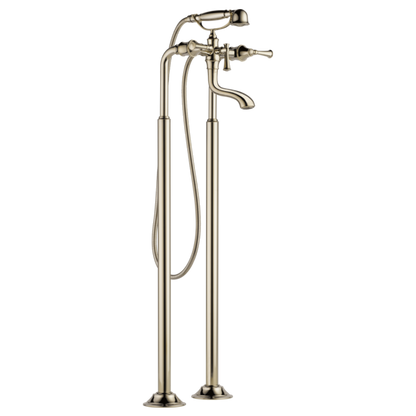

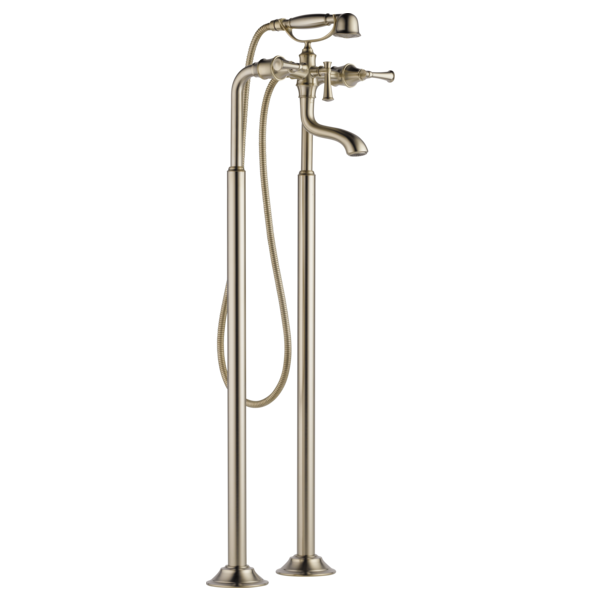

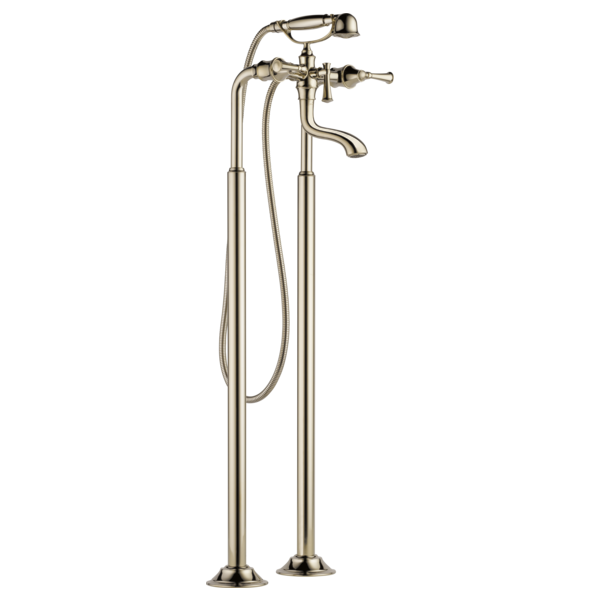

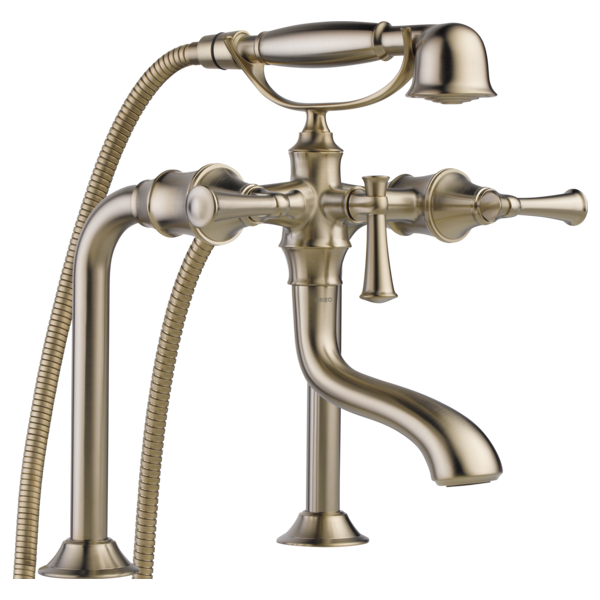

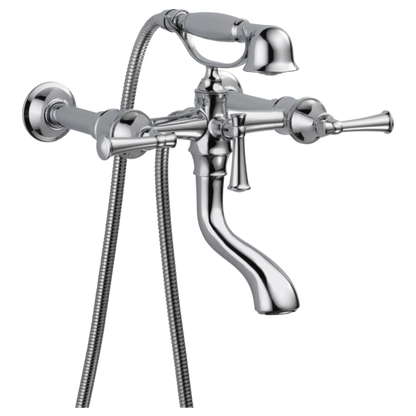

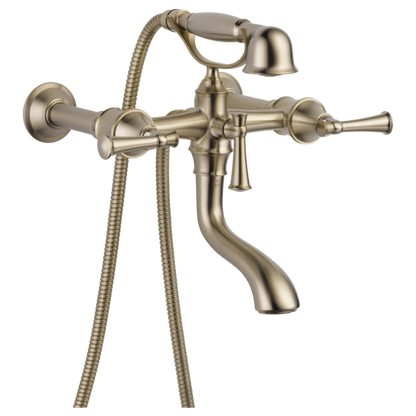

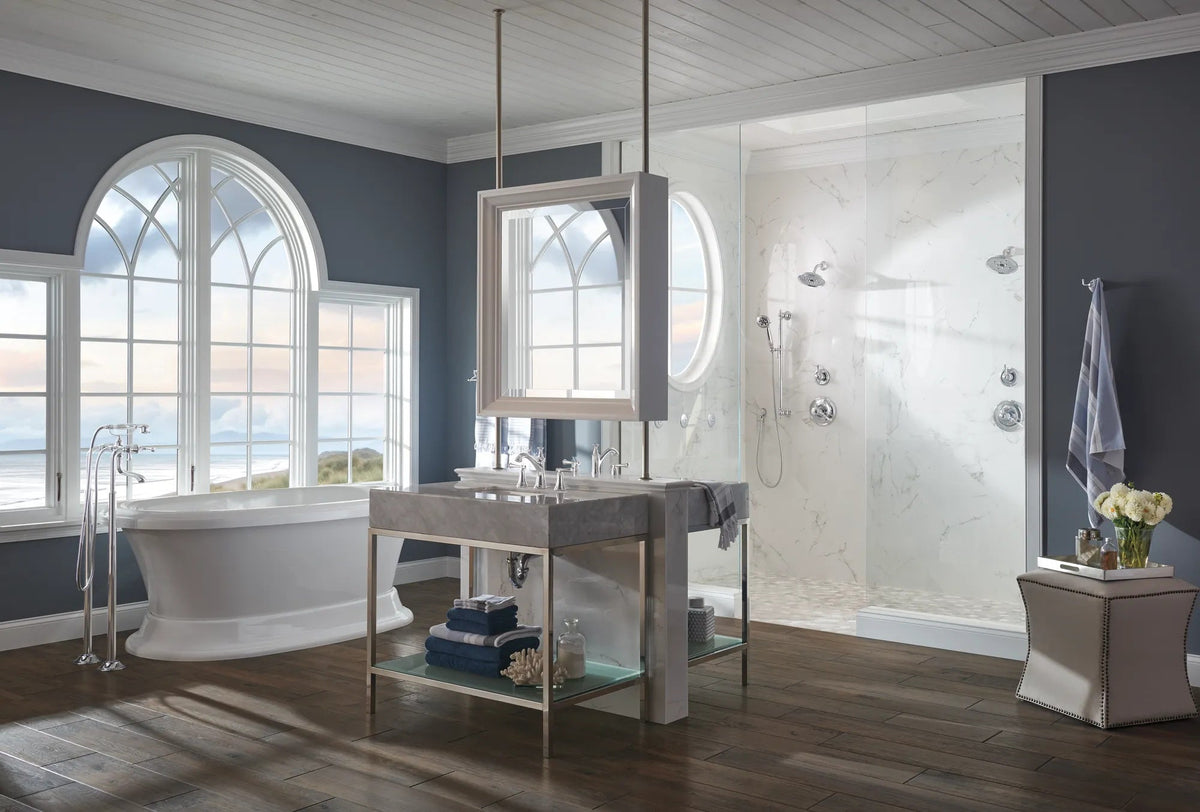

• Manufacturer photos may show separately sold body assemblies, mounting components and accessories.

Specifications

• Room: Bathroom
• Collection: Baliza
• Model: T70305

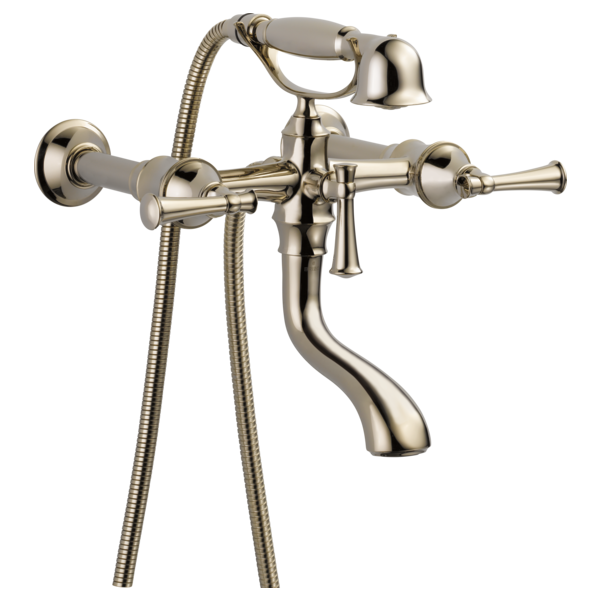

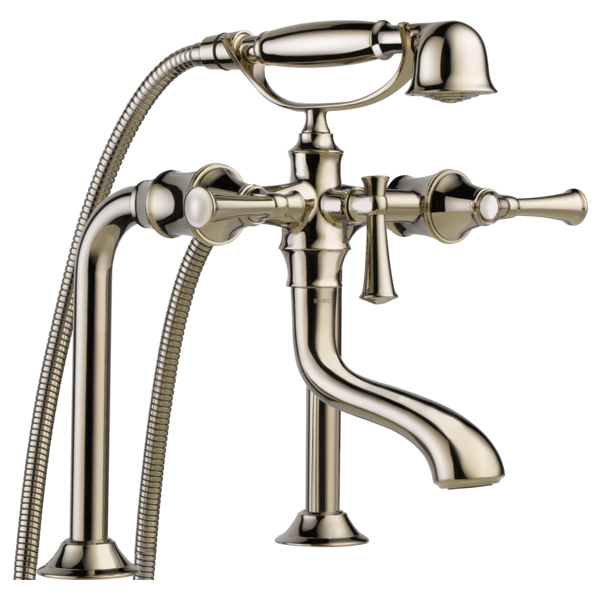

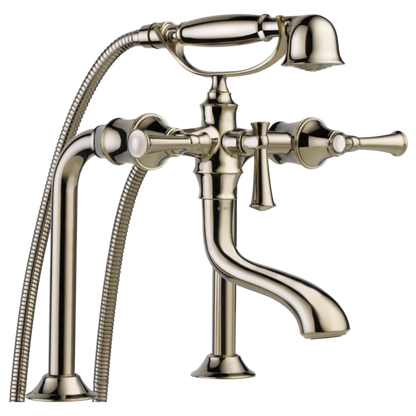

• Mounting: Wall, Deck or Floor
• Installation: 2-Hole, 8" Centres
• Handle Configuration: Two-Handle
• Material: Solid Brass
• Spout Reach (Deck/Floor): 8 1/4"
• Floor Rough-In: Sold Separately; Required for Floor Mounting Only

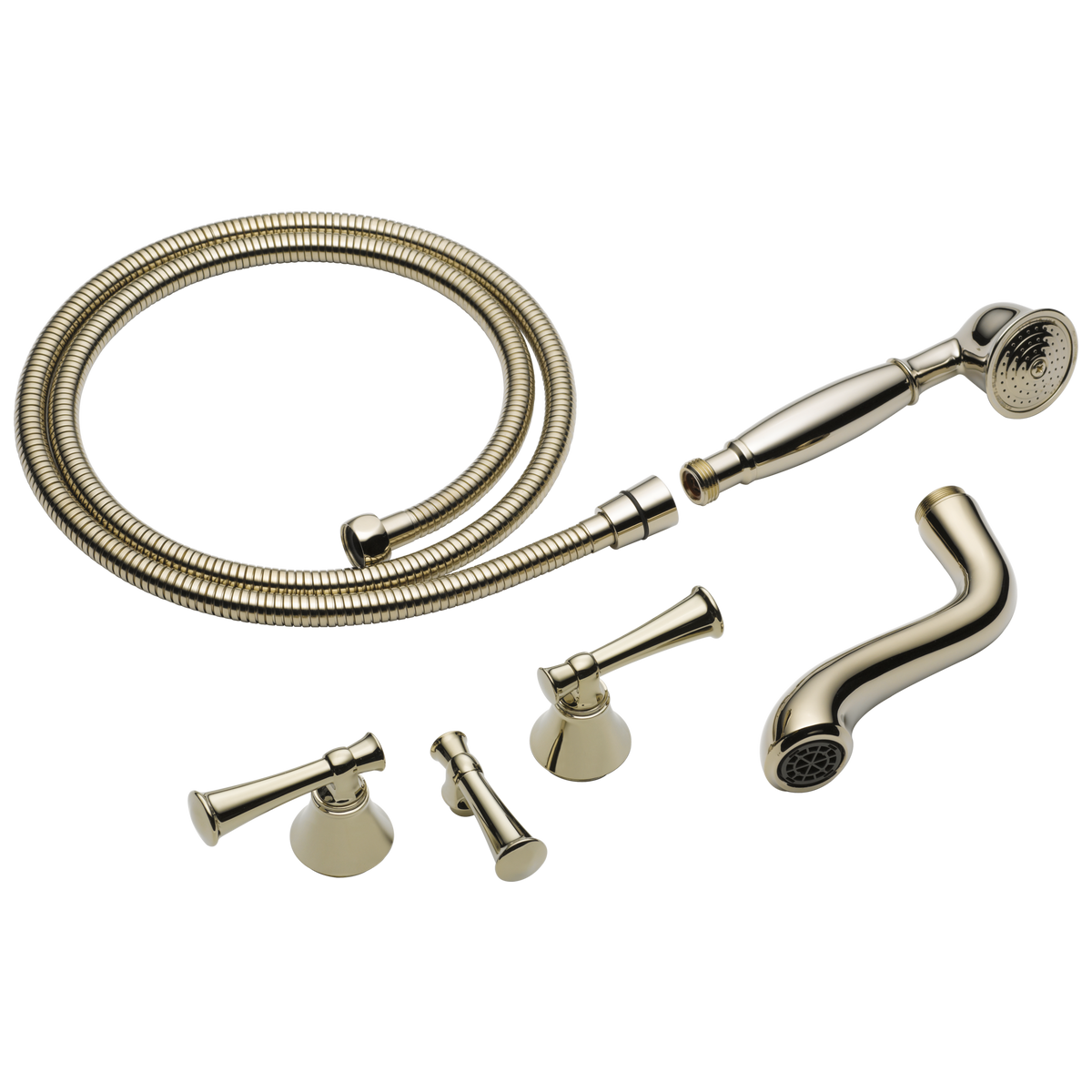

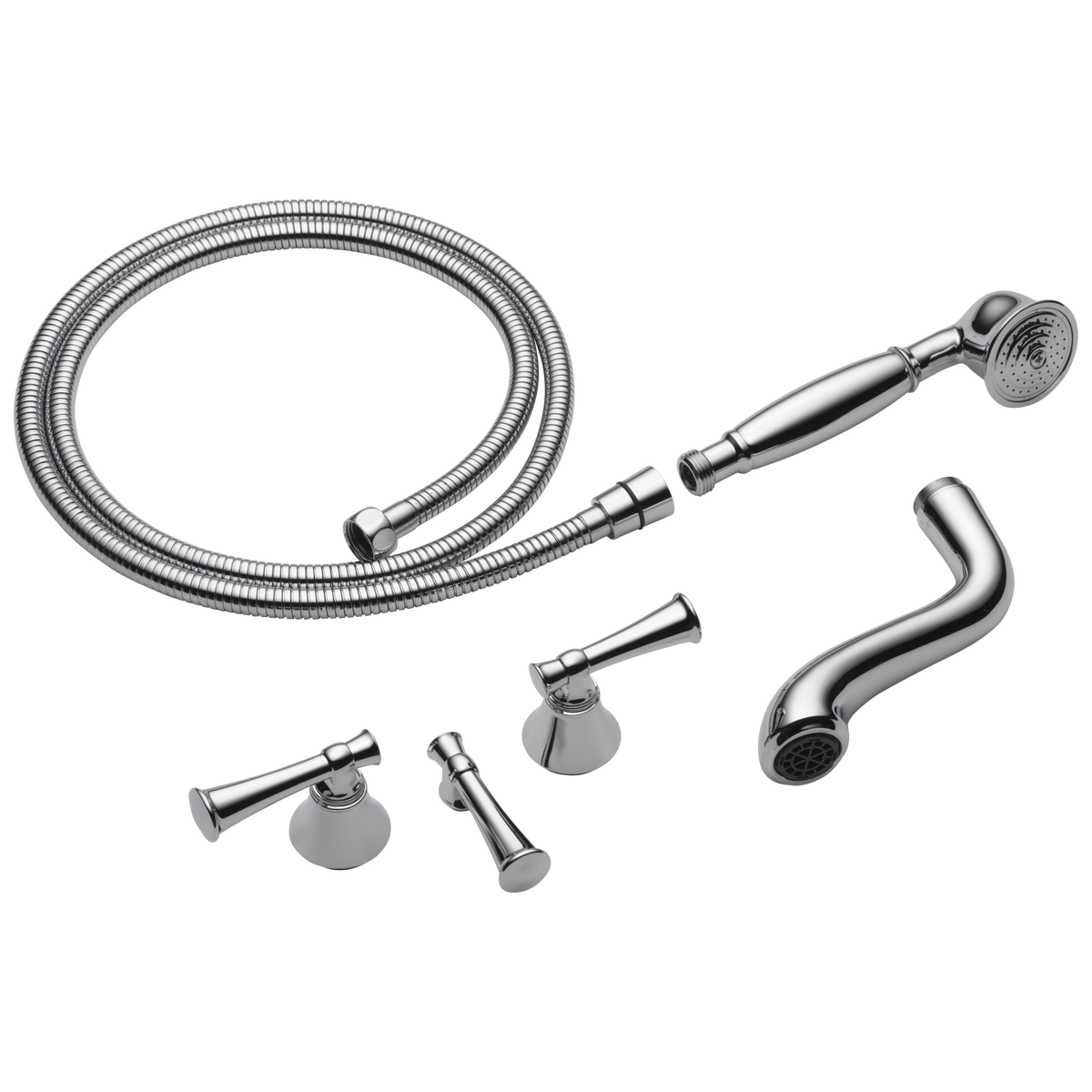

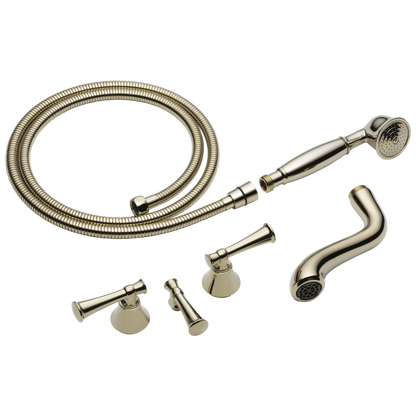

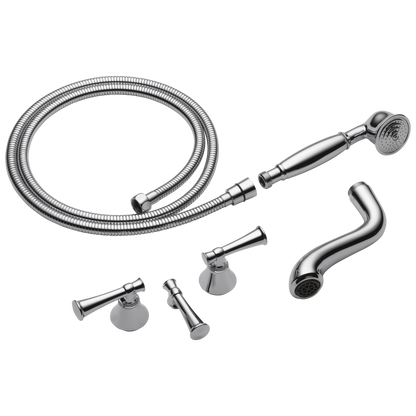

Included Components

• Tub filler spout and lever handle pair.
• Hand shower and stretchable finished metal hose.

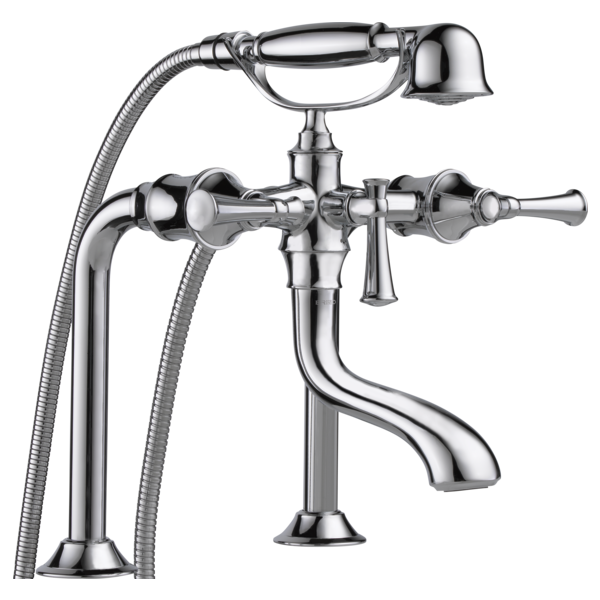

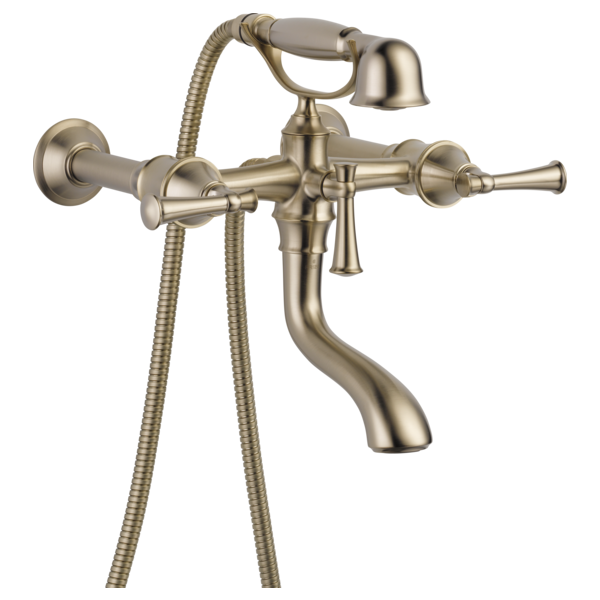

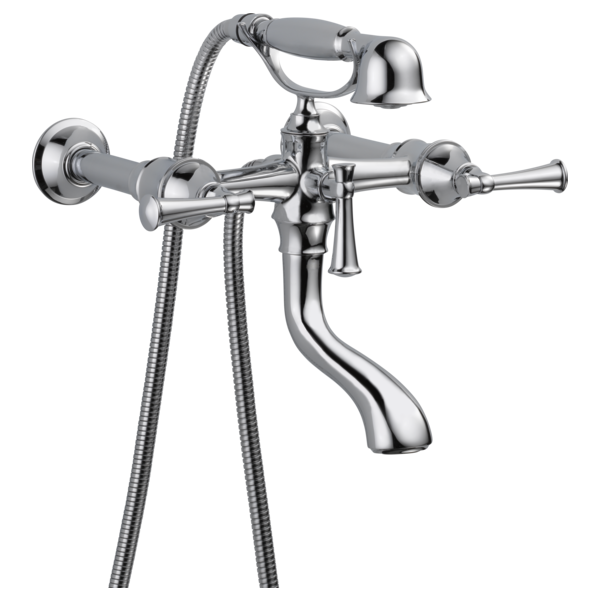

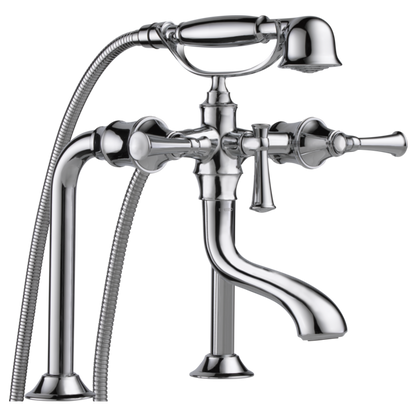

Required for Installation

• T70210 body assembly in a matching finish, sold separately.
• Choose ONE mounting set, sold separately: RP73764 wall unions, RP73765 deck risers or RP73766 floor risers.

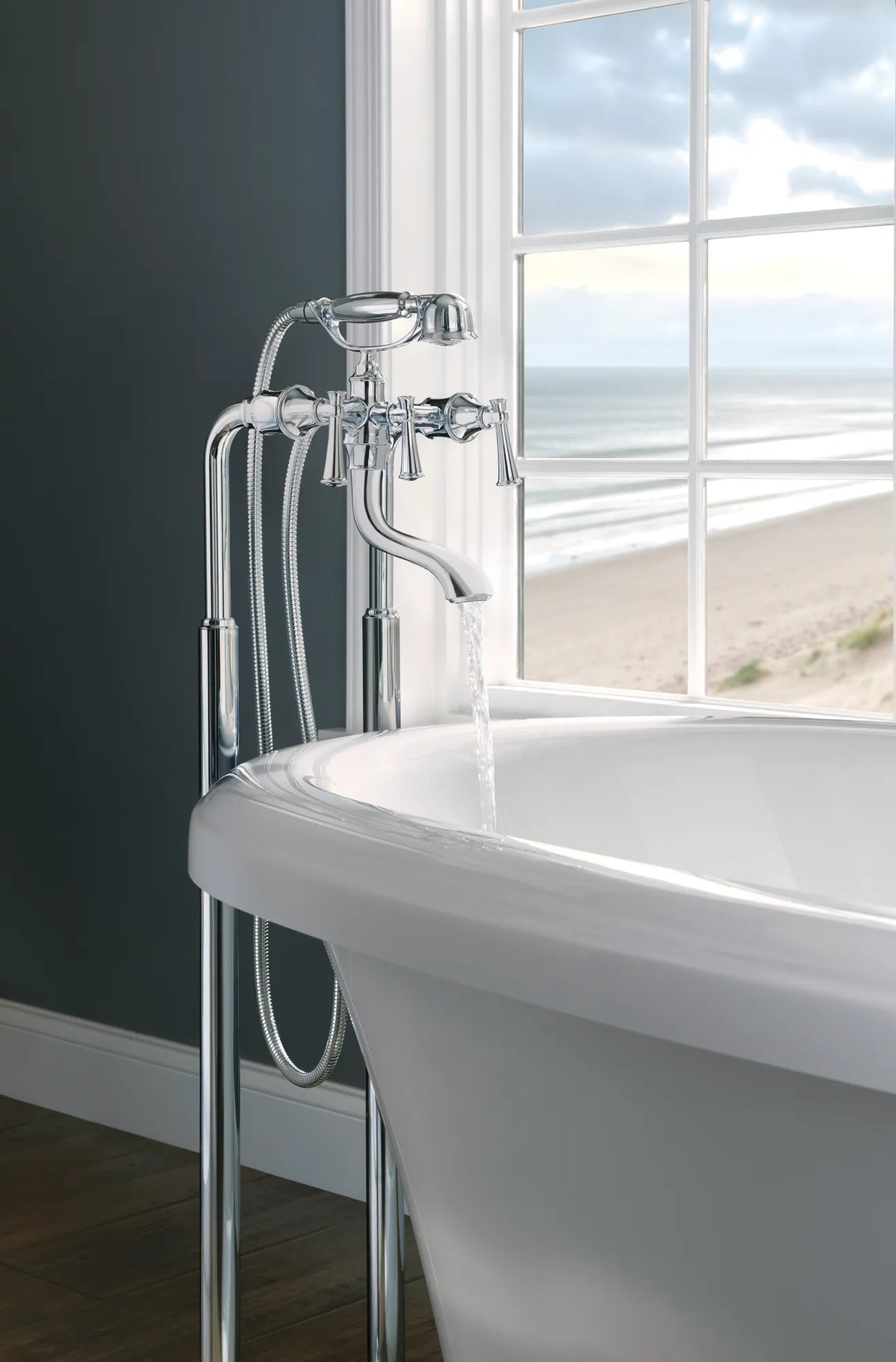

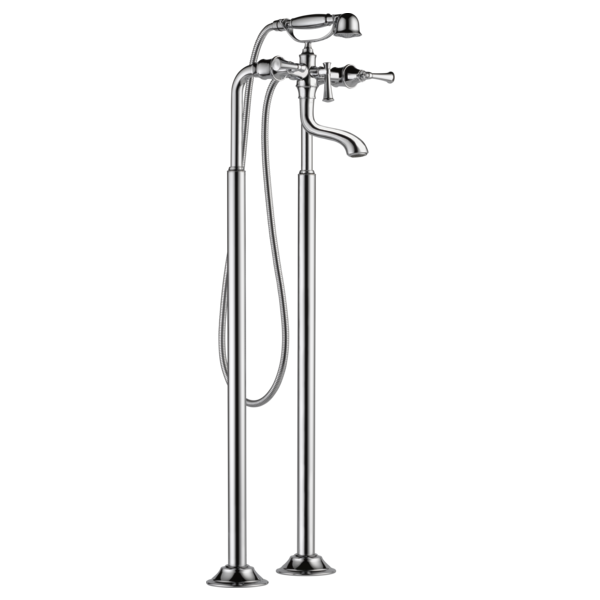

• For FLOOR mounting only, choose ONE rough-in: R70200 without stops or R70200-WS with integrated stops, sold separately. Wall and deck configurations do not require this floor rough-in.

Optional Accessories

• RP80157 spout-reach extension set, sold separately.
• RP73767 riser extensions for deck or floor mounting, sold separately.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1.
• ICC/ANSI A117.1 (valve control only).
• EPA WaterSense applies to the hand shower.
• Brizo limited warranty applies; coverage depends on purchaser and installation.
