Brizo Two-Handle Tub Filler Body Assembly (Less Handles) - T70310

Brizo Two-Handle Tub Filler Body Assembly (Less Handles) - T70310

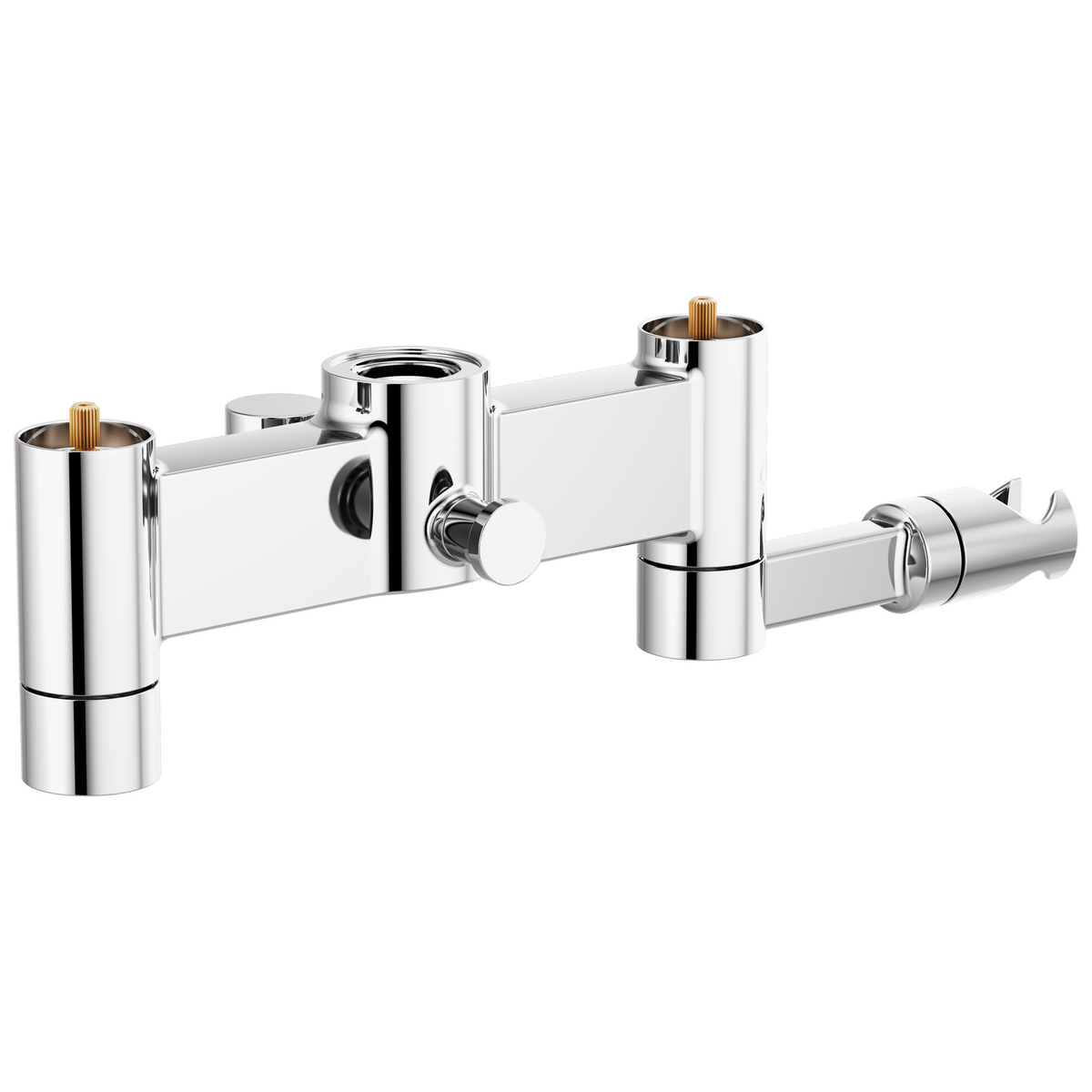

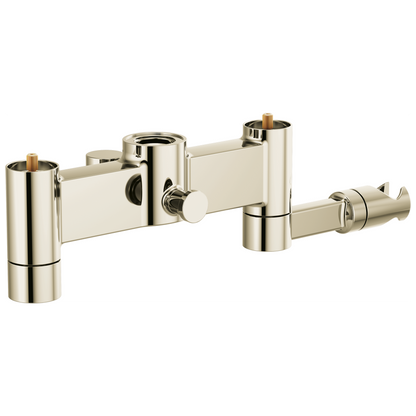

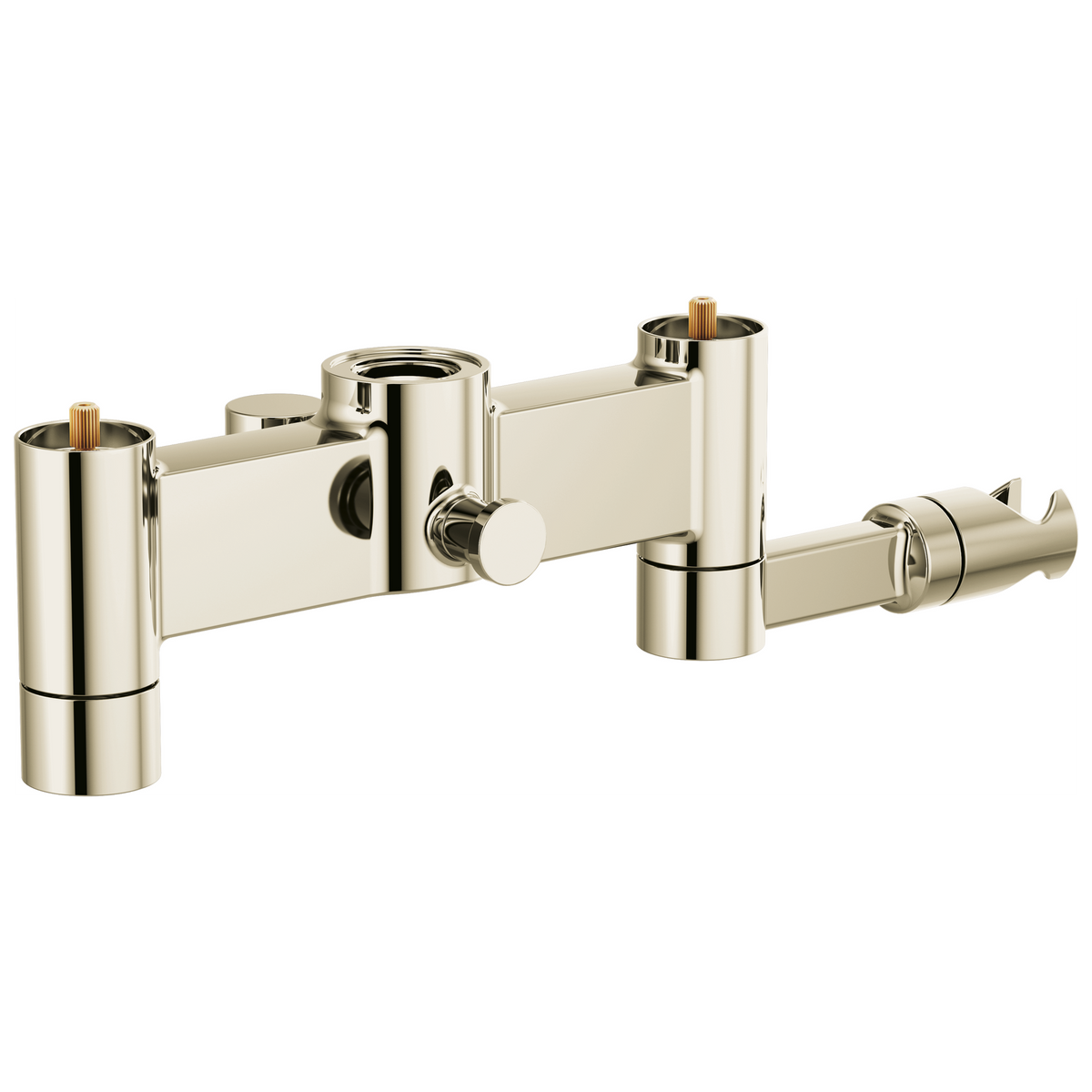

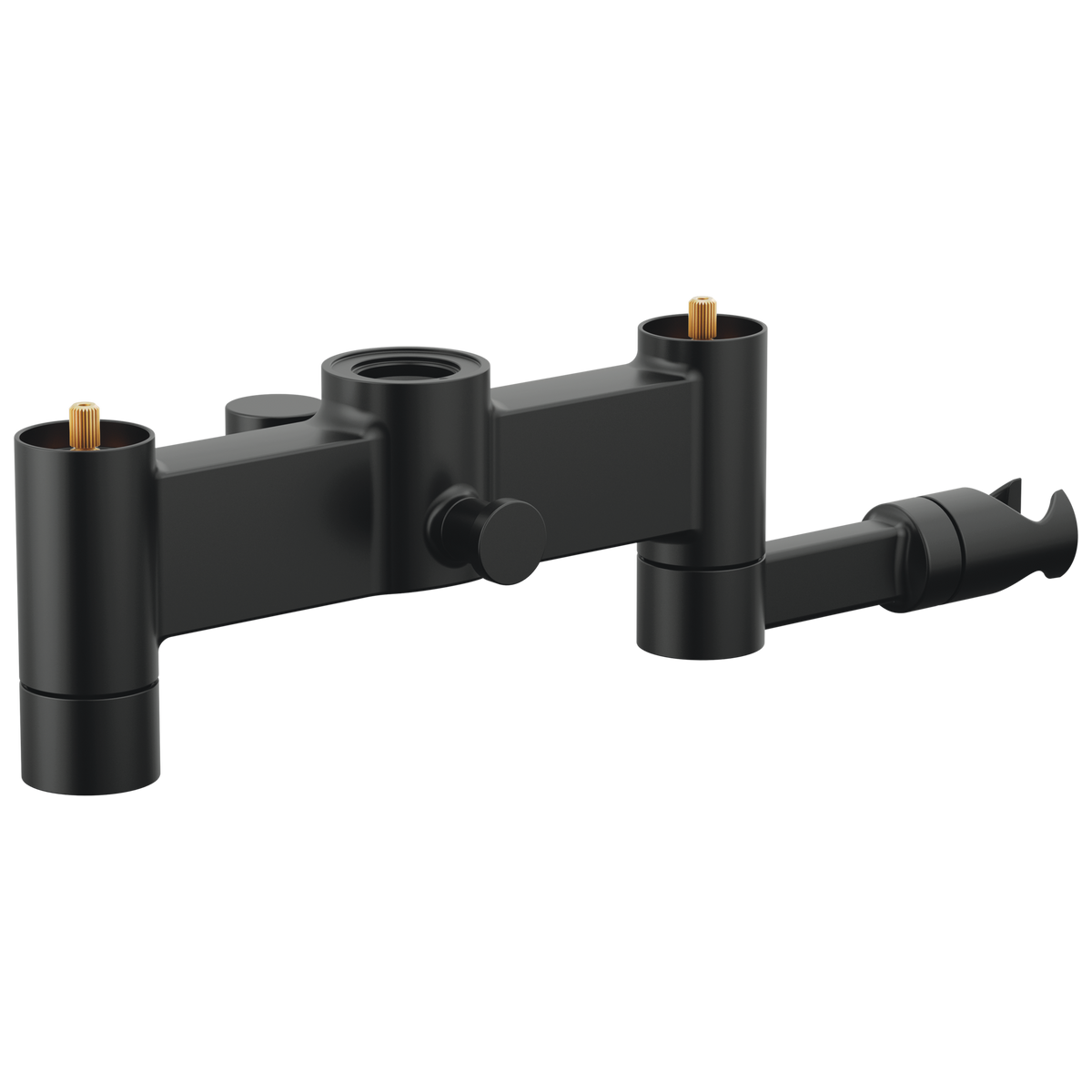

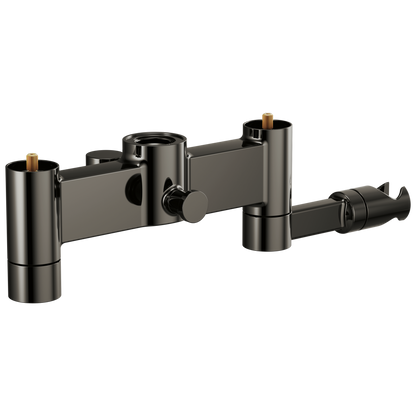

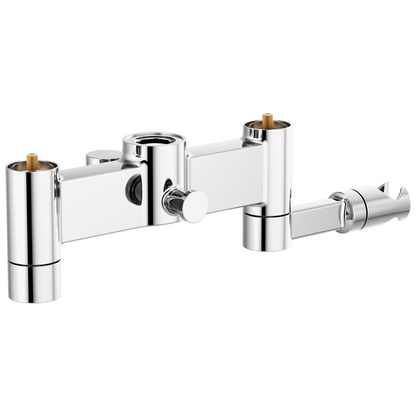

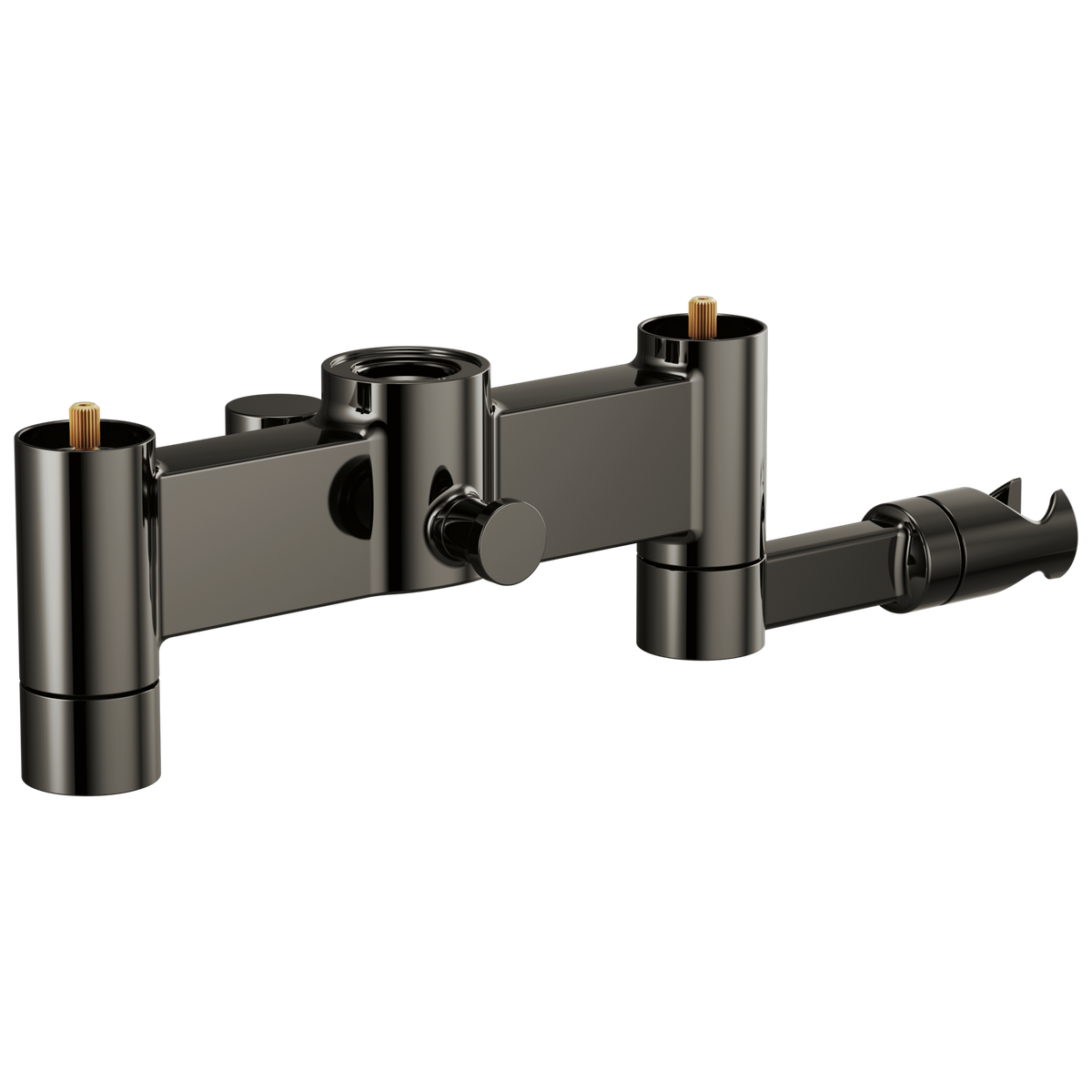

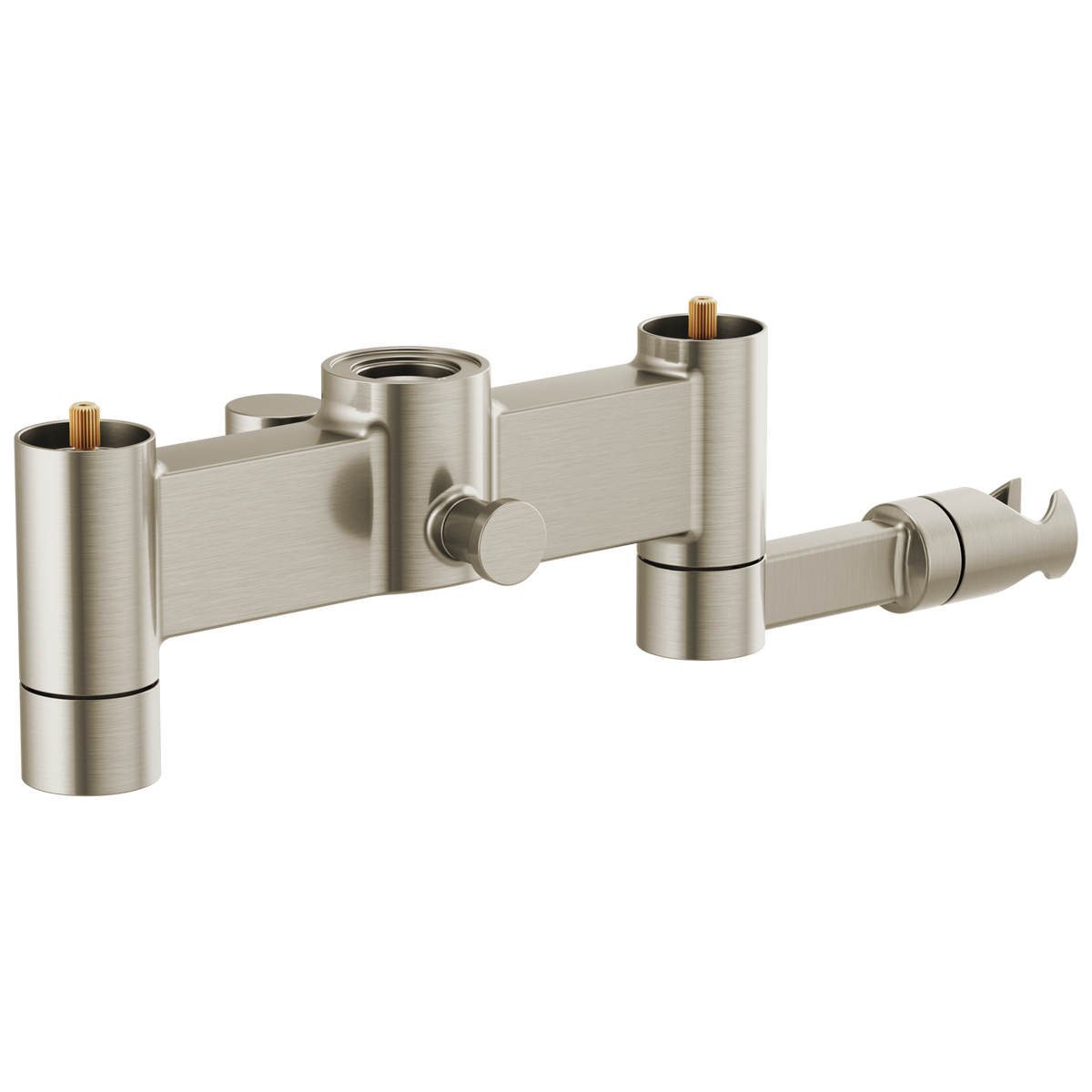

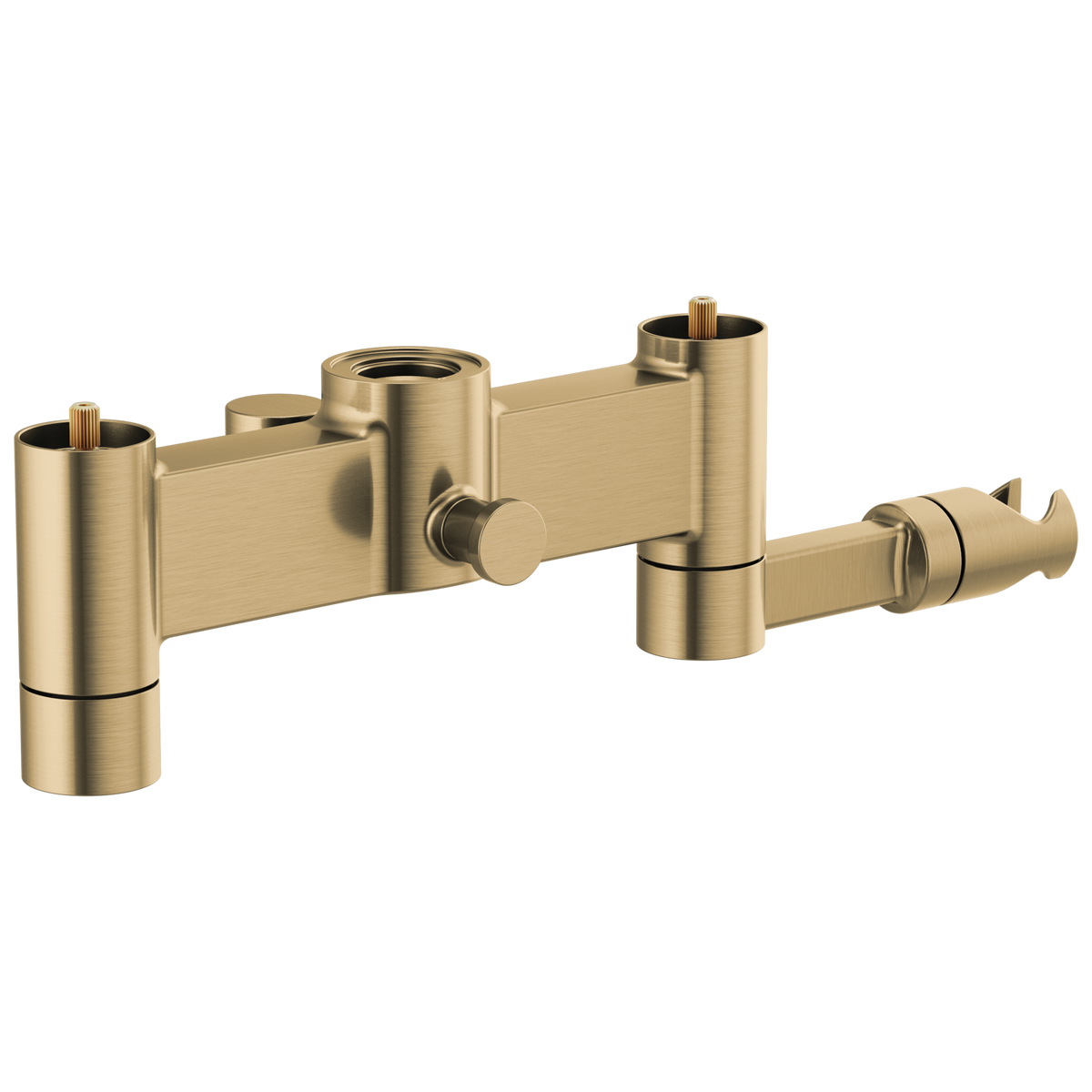

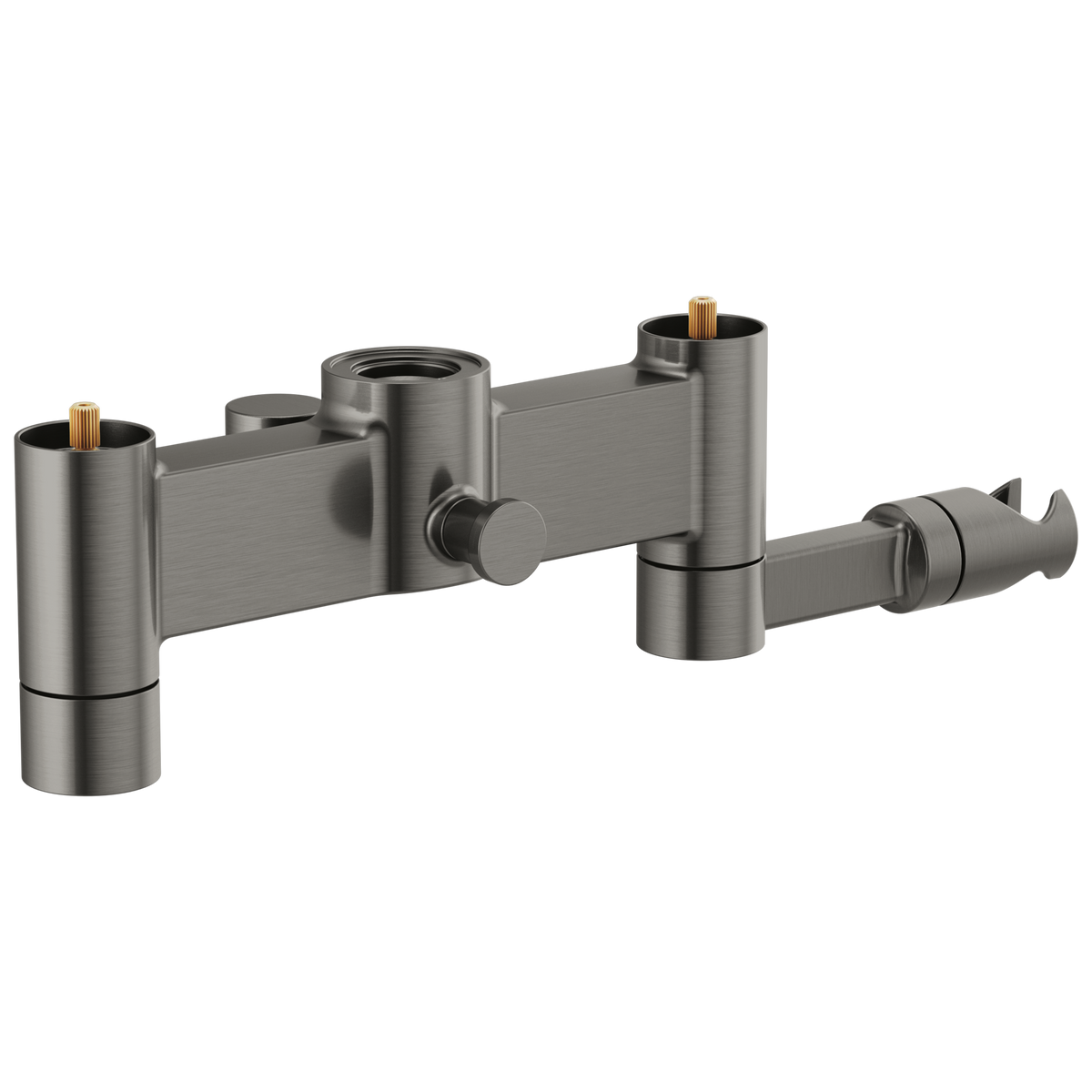

The Brizo T70310 is the two-handle body assembly for a modular tub filler. Add one compatible trim kit and the mounting components for your chosen wall, deck or floor configuration; handles, spout and hand shower are supplied with the separate trim kit.

Features

• Solid brass construction.
• High-flow ceramic control valves in the body assembly.
• Body-assembly maximum: 12 gpm (45.4 L/min) at 60 psi; finished-faucet flow depends on the selected trim and installation.
• Automatic-reset diverter.
• Two-hole installation on 8" centres.
• Compatible with wall, deck or floor mounting components.
• Tub drain not included.

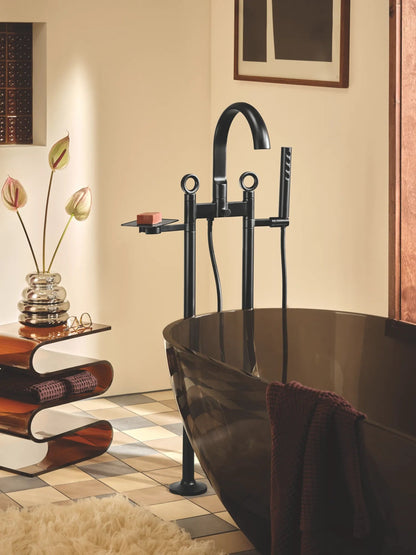

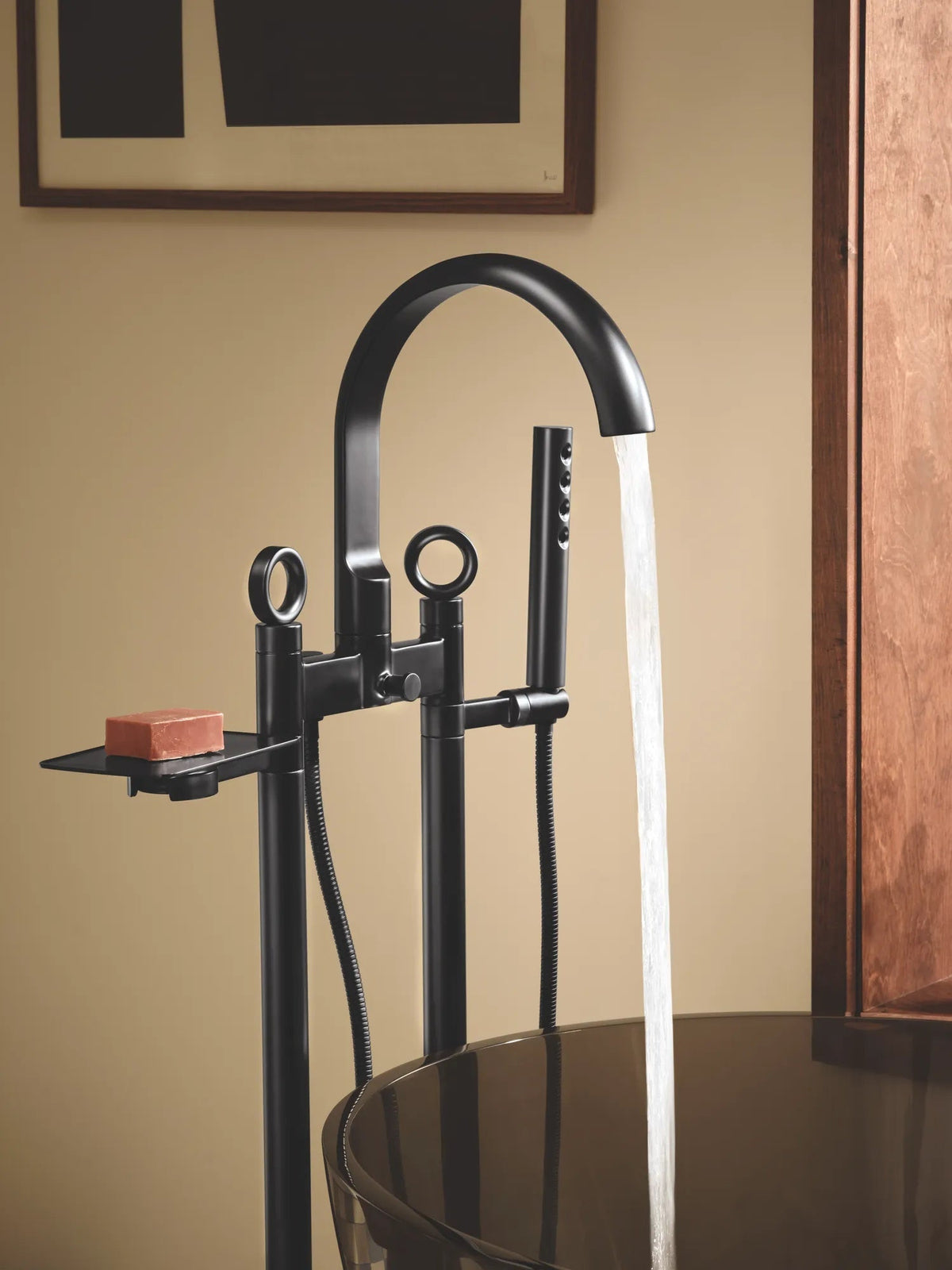

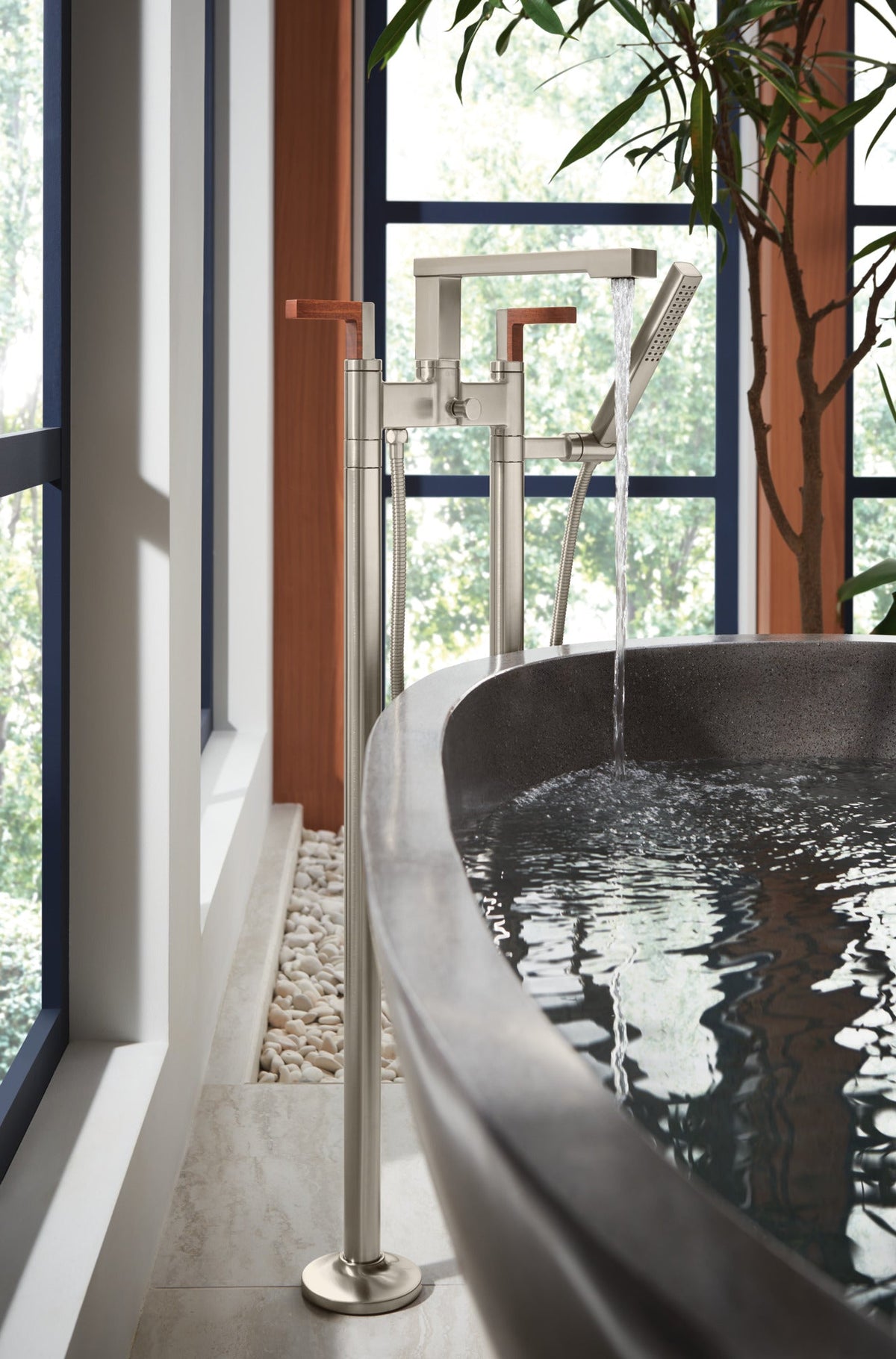

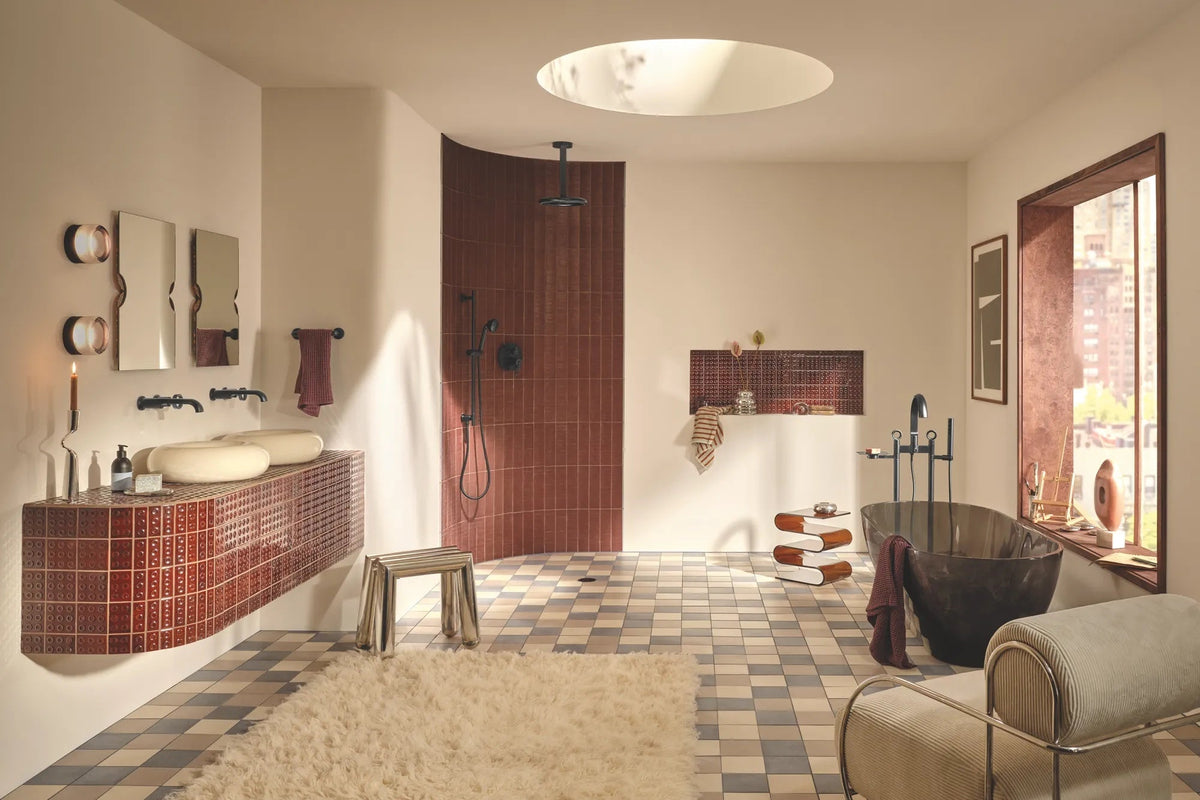

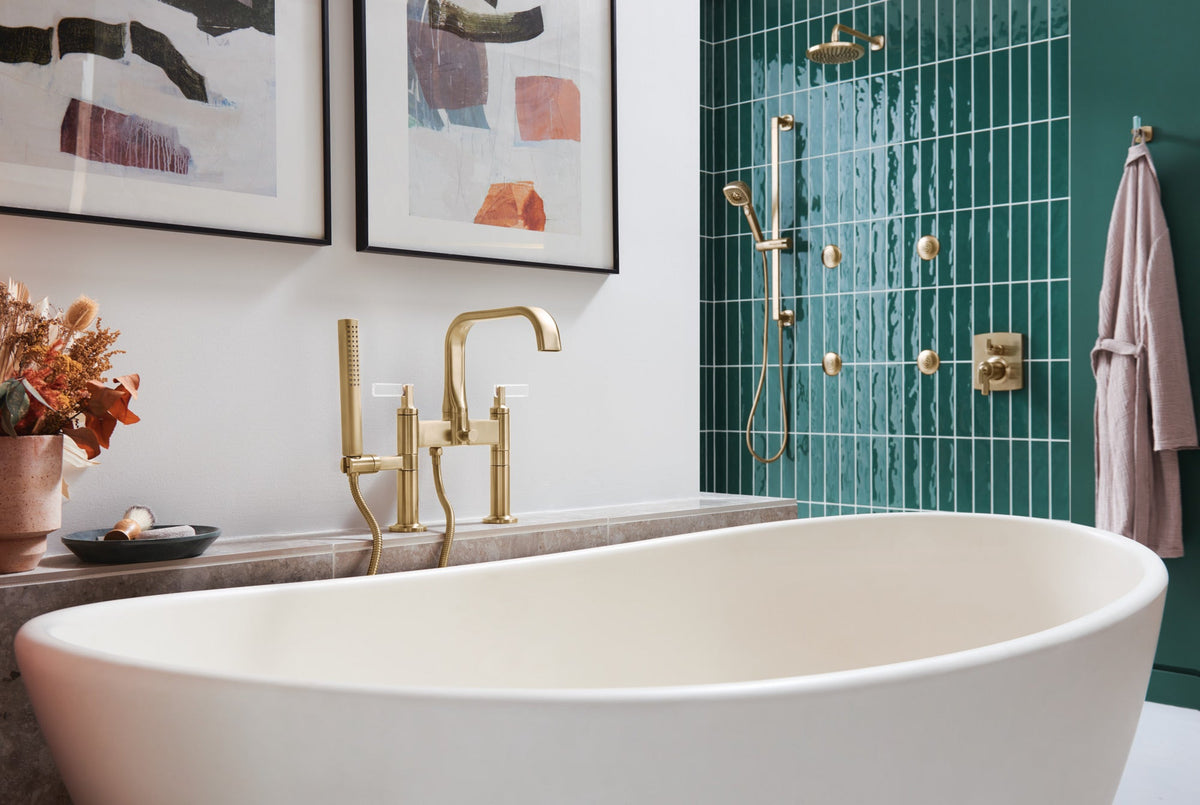

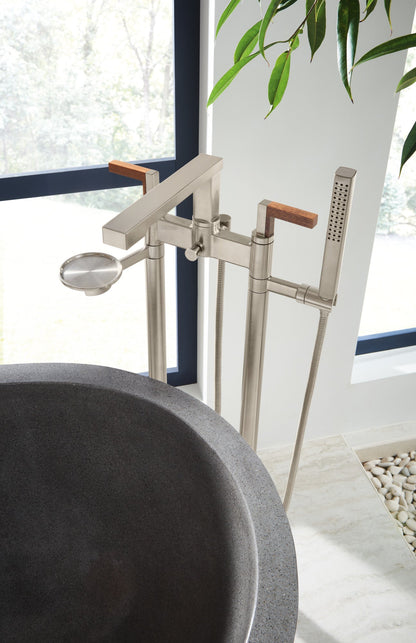

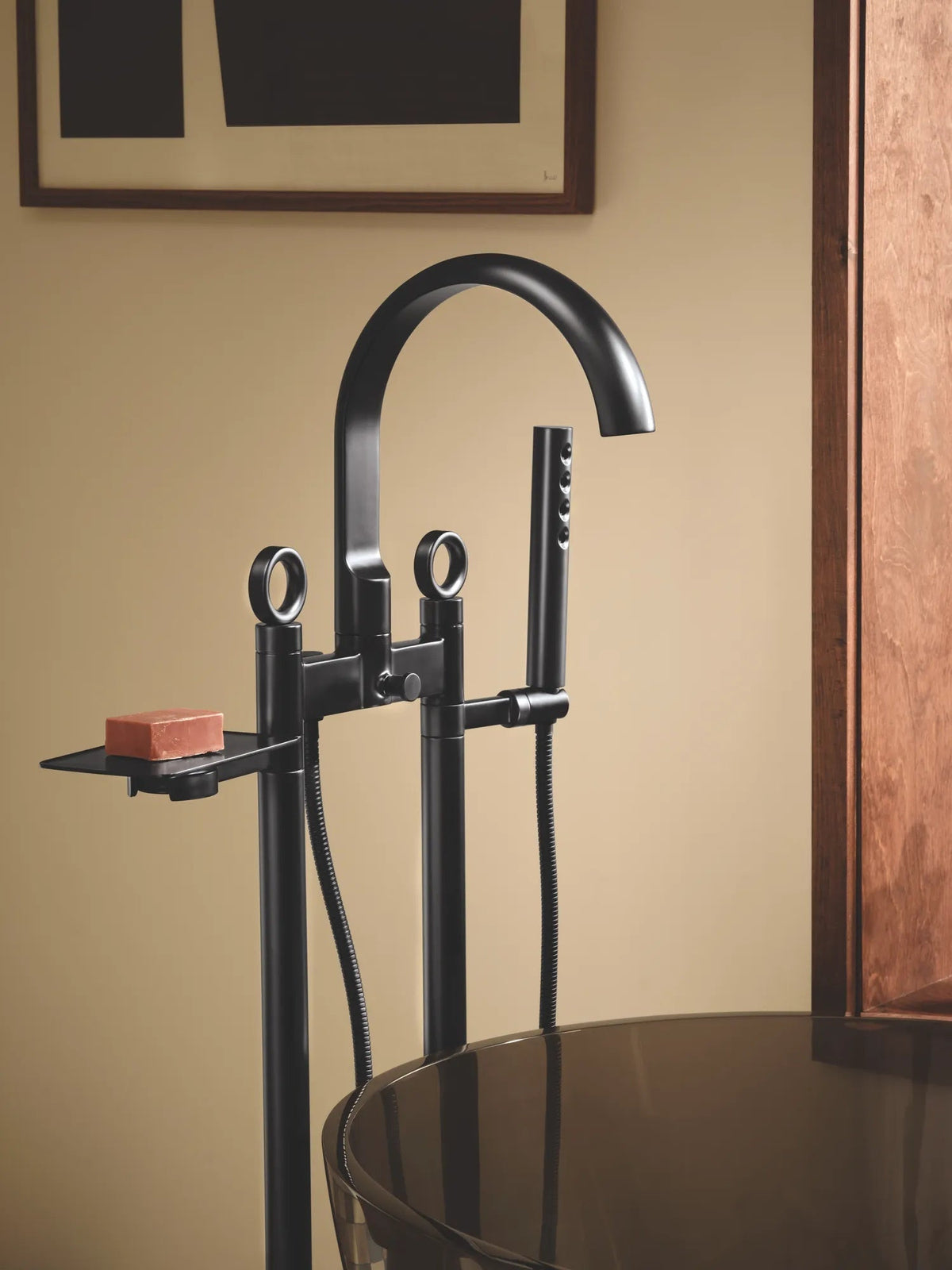

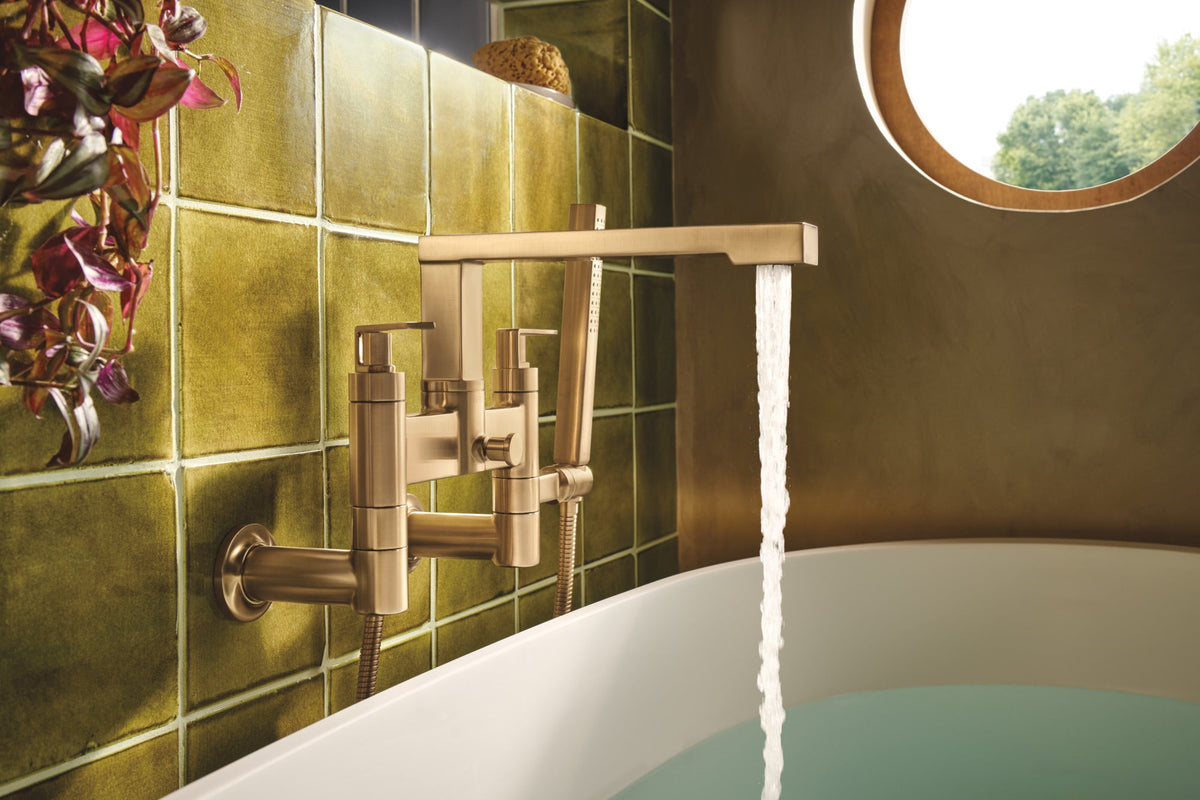

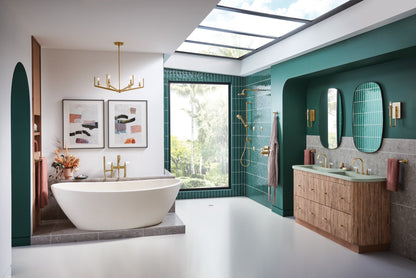

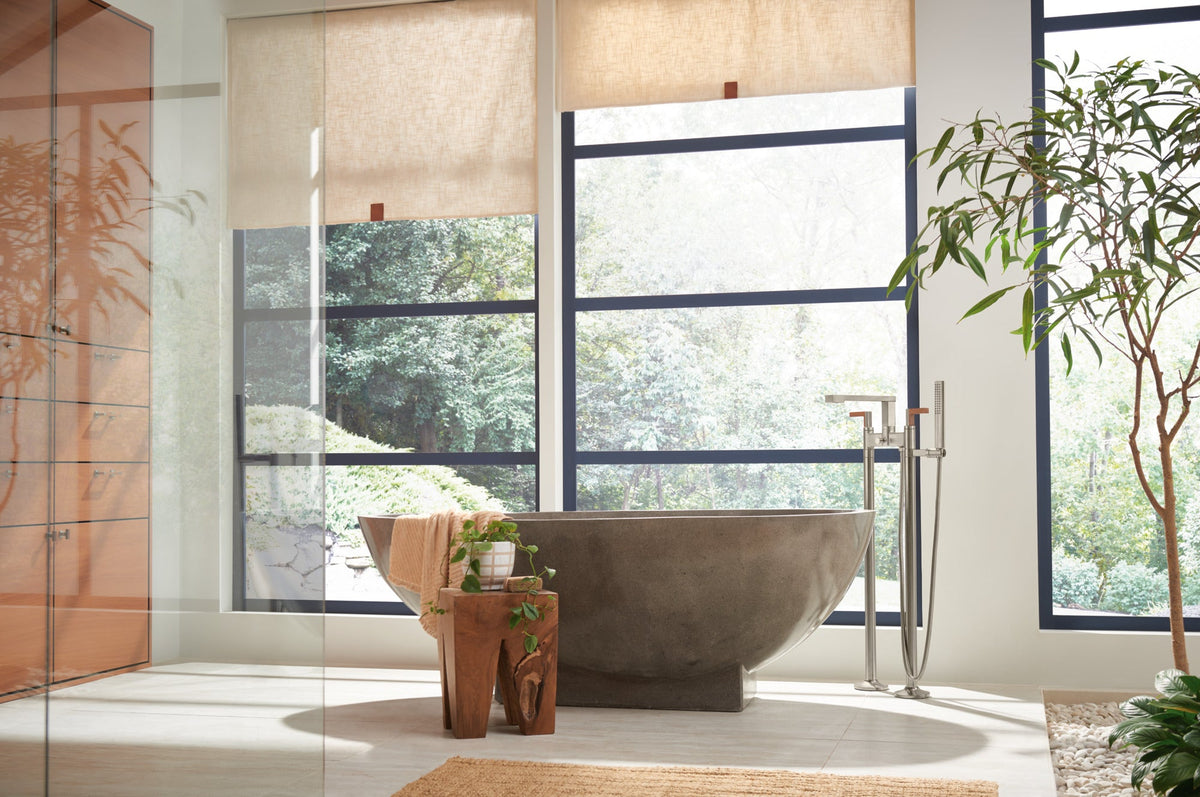

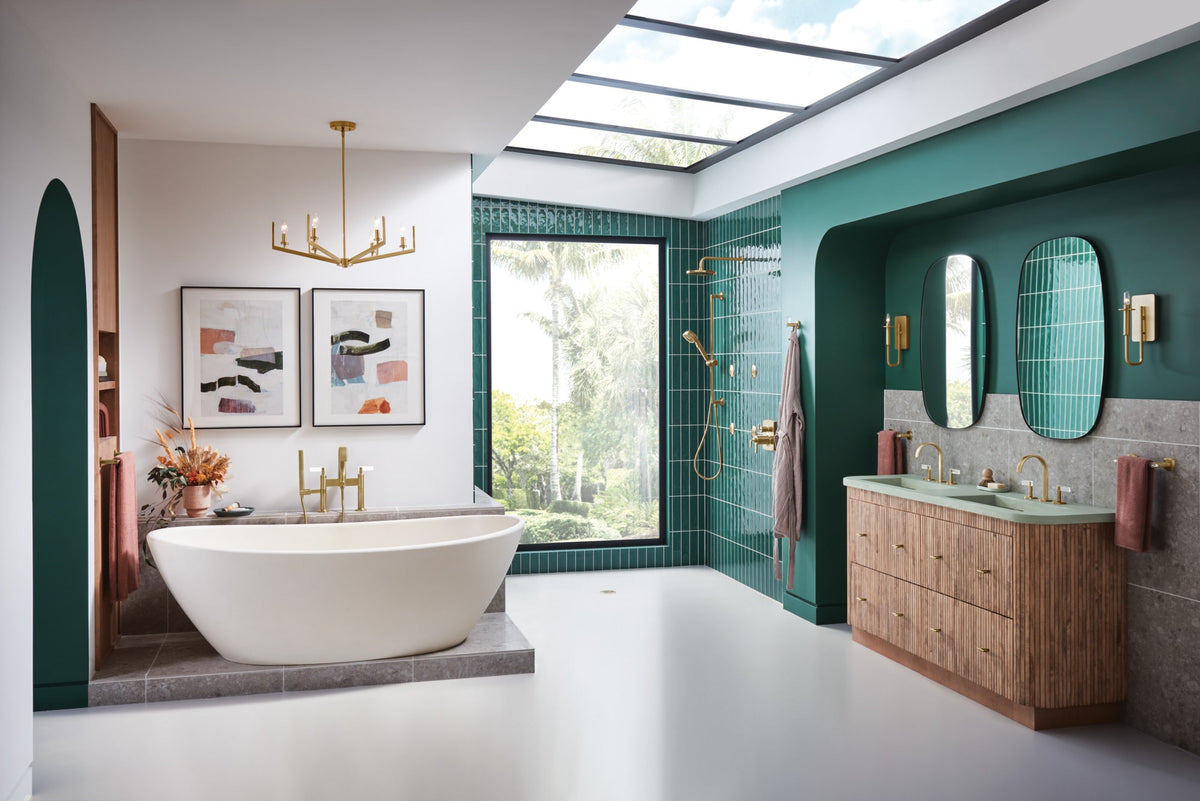

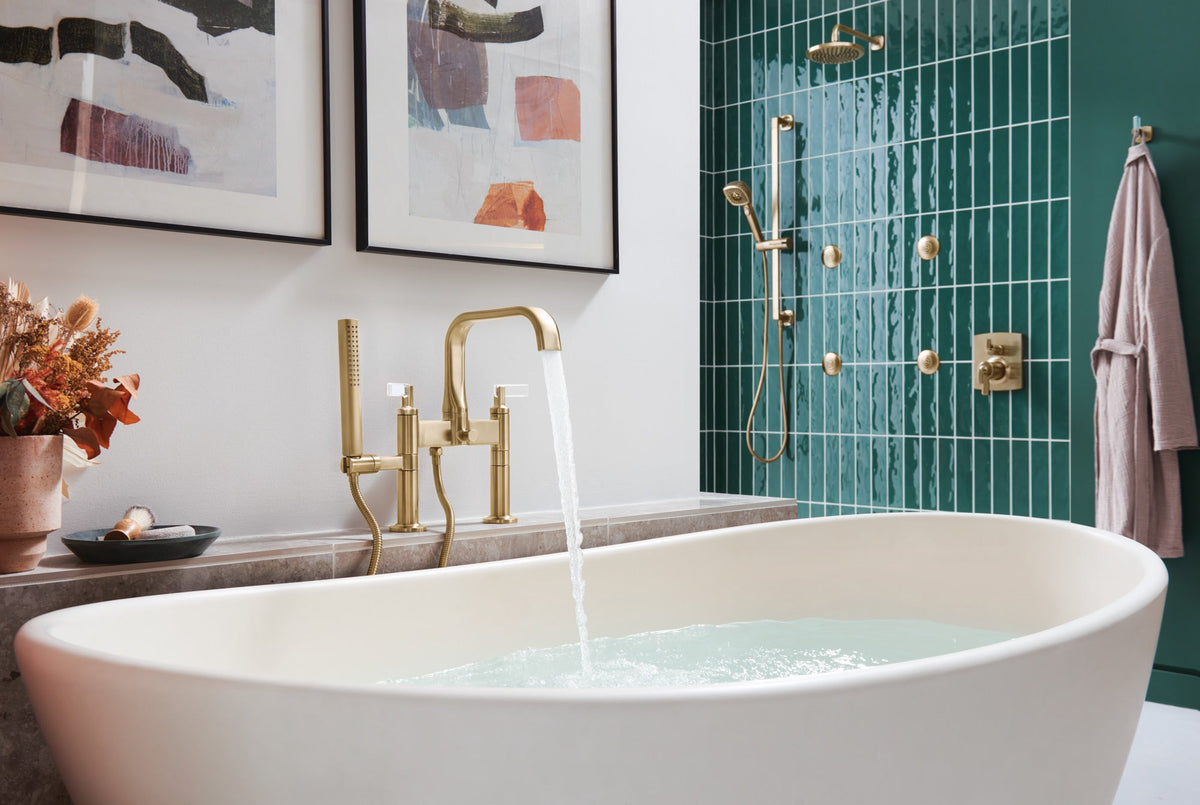

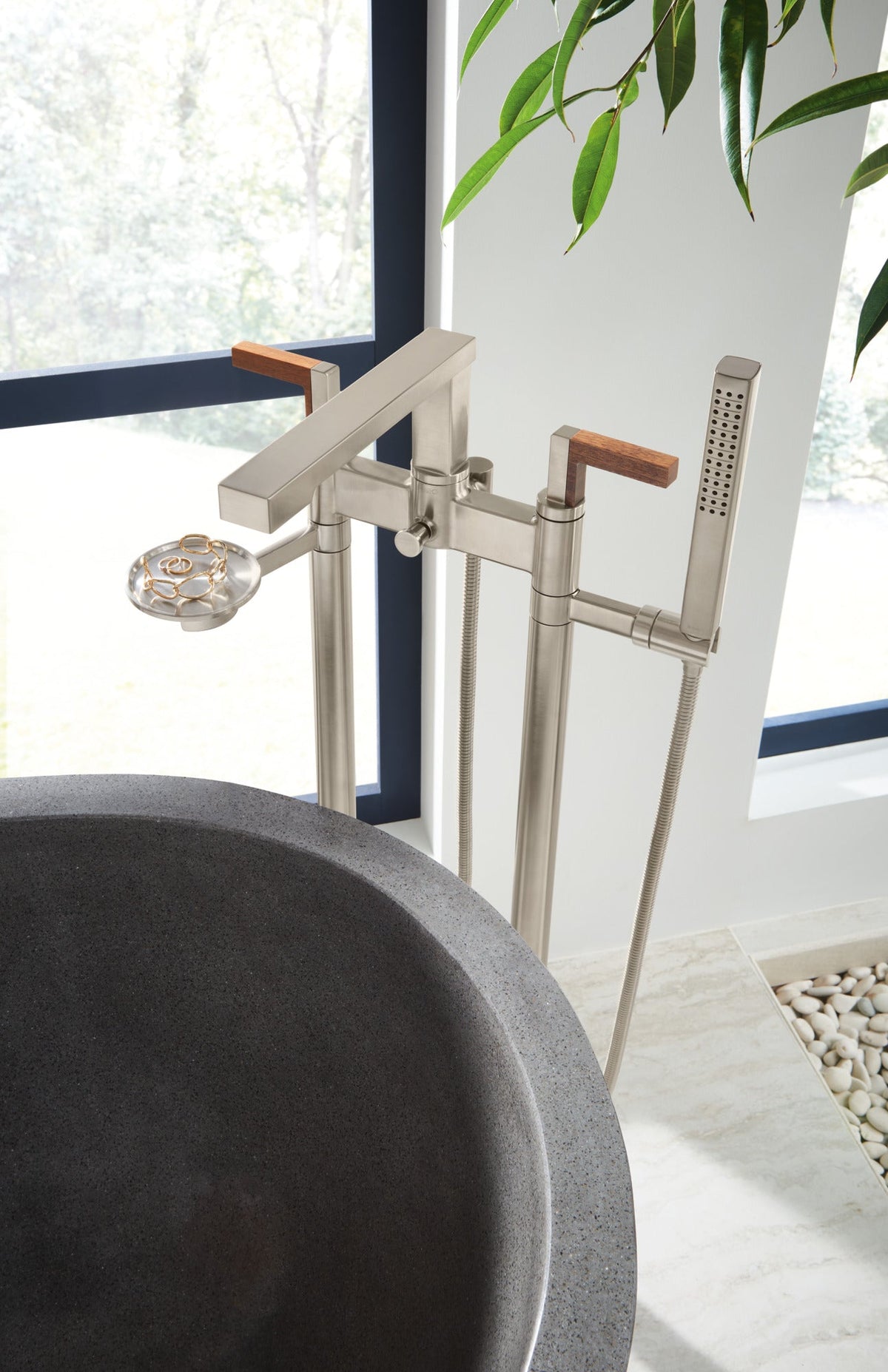

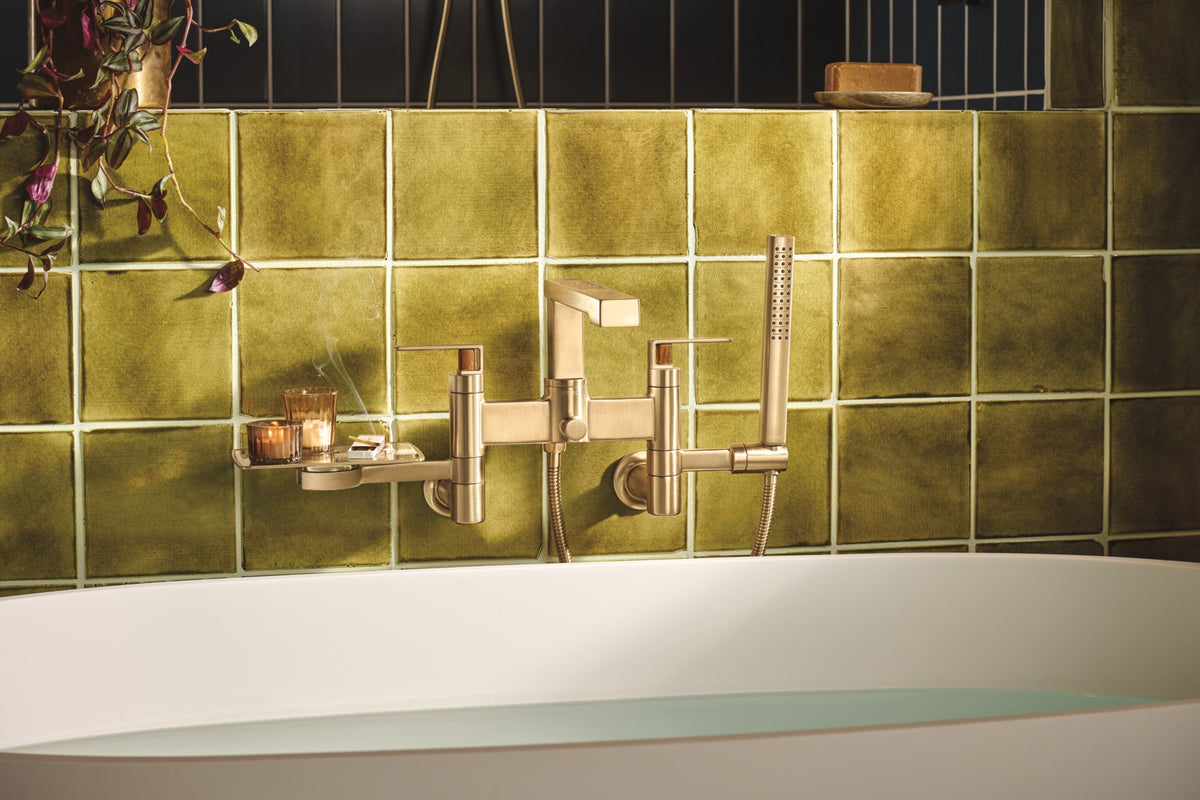

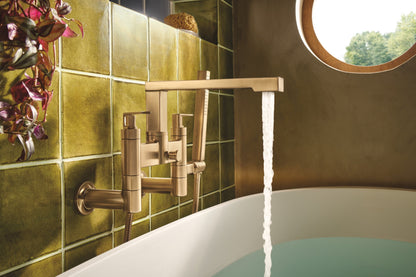

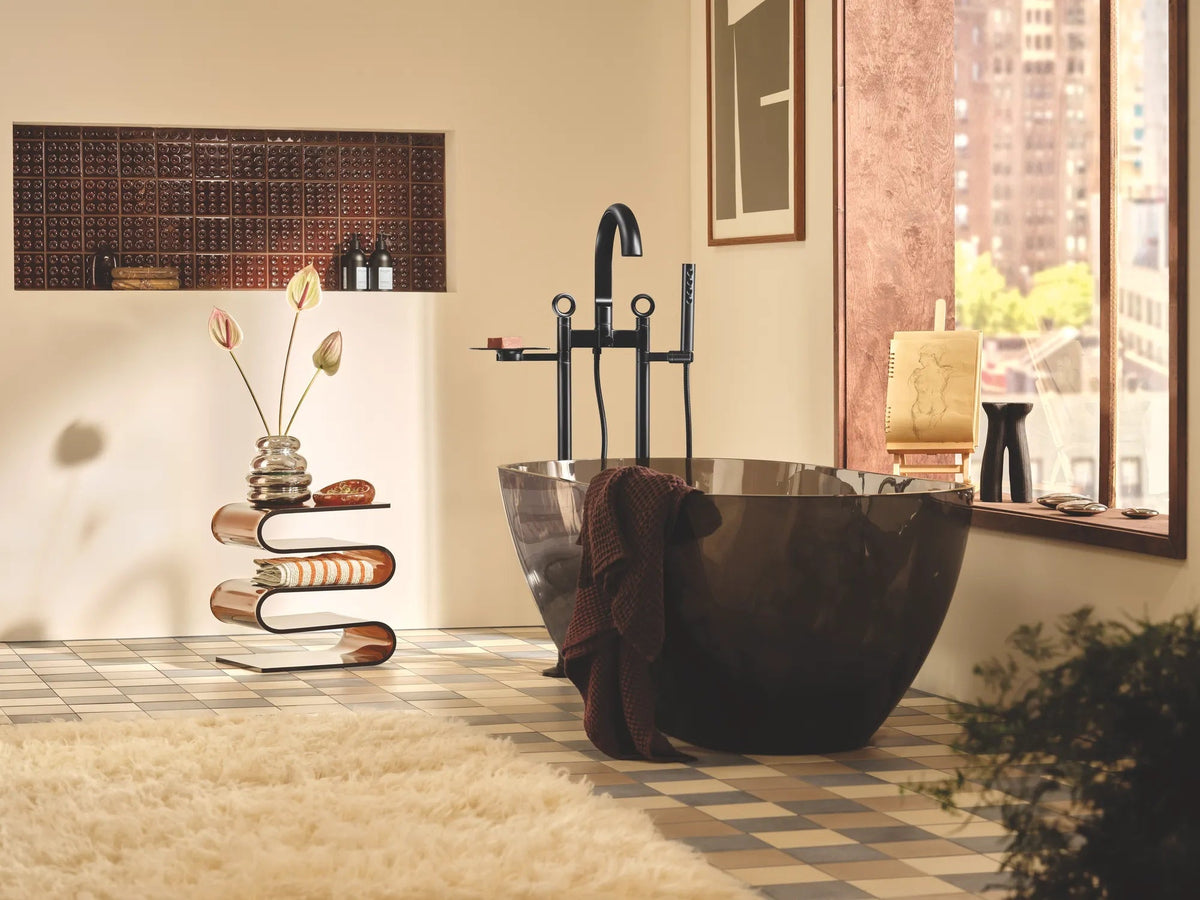

• Manufacturer photos may show separately sold trim kits, mounting components and accessories.

Specifications

• Room: Bathroom
• Model: T70310
• Mounting: Wall, Deck or Floor
• Installation: 2-Hole, 8" Centres
• Handle Configuration: Two-Handle
• Material: Solid Brass
• Floor Rough-In: Sold Separately; Required for Floor Mounting Only

Included Components

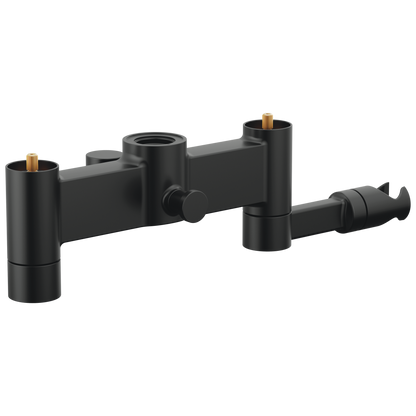

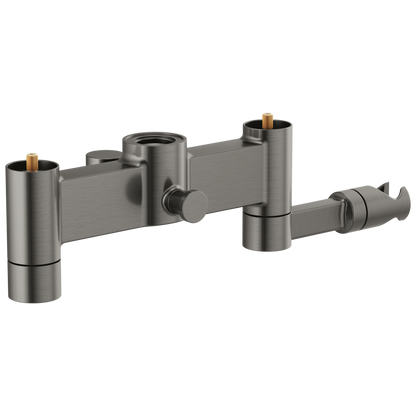

• Body assembly with ceramic control valves and diverter.

Required for Installation

• Choose ONE compatible trim kit in a matching finish, sold separately: T70306 lever, T70307 cross or T70308 knob (Kintsu); T70322 lever (Frank Lloyd Wright); or T70367 twist lever / T70368 lever (Allaria).
• Choose ONE mounting set, sold separately: T71764 wall unions, T71765 deck risers or T71766 floor risers.
• For FLOOR mounting only, choose ONE rough-in: R70200 without stops or R70200-WS with integrated stops, sold separately. Wall and deck configurations do not require this floor rough-in.
• Alternative Allaria twist-lever trim: T70367, sold separately; choose this instead of another trim kit.

Optional Accessories

• 695506 tub-filler accessory kit, sold separately; not required for installation.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1.
• ICC/ANSI A117.1 (valve control only).
• Brizo limited warranty applies; coverage depends on purchaser and installation.
