Tenzo Bellacio T-Box 3-Function Thermostatic Shower Kit, 12” AirBoost Rain Head & Tub Spout, Smaller Knurled - BET33-501125-F

Tenzo Bellacio T-Box 3-Function Thermostatic Shower Kit, 12” AirBoost Rain Head & Tub Spout, Smaller Knurled - BET33-501125-F

Complete Bellacio shower kit built on the universal T-Box thermostatic rough-in, running a 12” AirBoost rain head, a hand shower on a sliding bar and a wall-mount tub spout off one three-function diverter.

What's included

• T-Box universal rough-in valve, PEX connection (R-31-P)
• Bellacio-F T-Box valve trim, 3 functions, thermostatic (F-BET33-F-XX)
• AirBoost rain shower head, round, 30 cm [12”], 2 mm stainless steel (SSTS-12-R-XX)
• Wall mount shower arm, solid brass (SA-612-F-XX)
• Ceiling shower arm, round, 15 cm [6”], solid brass (SA-709-06-XX)
• Sliding bar kit — solid brass sliding bar, 3-function hand shower and stretchable hose (KRD-362712-F-XX)
• Wall mount tub spout, solid brass, slip-fit (BS-312-F-XX)

Features

• Thermostatic cartridge holds the set temperature against both pressure and supply temperature changes, and shuts off if the cold supply fails.
• Vernet thermostatic cartridge, made in France.
• Two controls on the trim plate — the upper selects the outlet, the lower sets temperature.
• Three-function diverter, shared zones: rain head, hand shower and tub spout, and more than one can run at a time.
• Both a wall arm and a 6” ceiling arm are supplied, so the rain head can be mounted either way.
• AirBoost head injects air for 30% more pressure. 2 mm stainless steel body, 91 anti-limestone silicone nozzles.
• Tub spout is slip-fit onto the wall stub, 8⁷⁄₁₆” [215 mm] projection.
• Sliding bar is solid brass with a height-adjustable wall bracket.
• Stretchable hose, 150 cm [59”] extending to 225 cm [89”], stainless steel sheath with a swivel anti-twist end.
• Service check/stop valves built into the rough-in.
• Finer diamond cross-knurl on the trim handles, spout collar and bar fittings. The BET33-501125-C carries the same pattern at a much coarser pitch.
• Eight finishes. Five are two-tone; the accent colour applies to the knurled detailing.

Specifications

• Room: Bathroom
• Product Type: Complete Shower and Bath Kit
• Collection: Bellacio (Tenzo Signature)
• Style: Contemporary
• Valve Type: Thermostatic
• Functions: 3
• Rough-In: Universal T-Box (R-31-P)
• Shower Head: 30 cm [12”] round, AirBoost, stainless steel
• Shower Arms: Wall mount and 15 cm [6”] ceiling, both supplied
• Hand Shower: 3-function, PVC, on a solid brass sliding bar
• Tub Spout: Wall mount, solid brass, slip-fit, 8⁷⁄₁₆” [215 mm] projection, 1/2” female NPT inlet
• Hose: Stretchable, 150 cm [59”] to 225 cm [89”]
• Shower Head Flow Rate: 9.5 L/min [2.5 gpm] @ 60 psi
• Hand Shower Flow Rate: 7.6 L/min [2.0 gpm] @ 60 psi
• Tub Spout Flow Rate: 25 L/min [6.6 gpm] @ 60 psi
• Valve Flow: 30 L/min [7.9 gpm] @ 60 psi
• Supply Connection: 1/2” male PEX (R-31-P) — 1/2” male NPT/weld version (R-31-N) available on request
• Thermostatic Cartridge: CAR-VNT-T12-01 (Vernet)
• Diverter Cartridge: CAR-HA-DV4-35097-01
• Knurling: Fine

Good to know

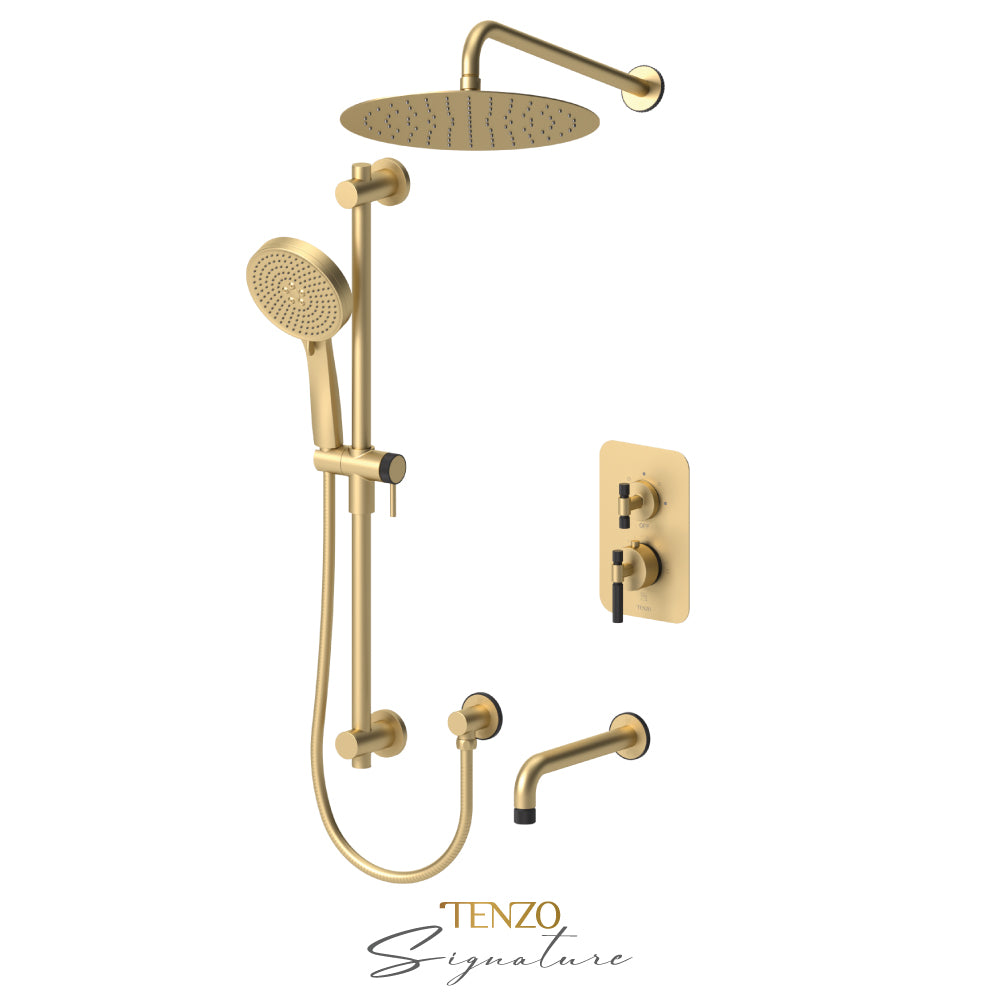

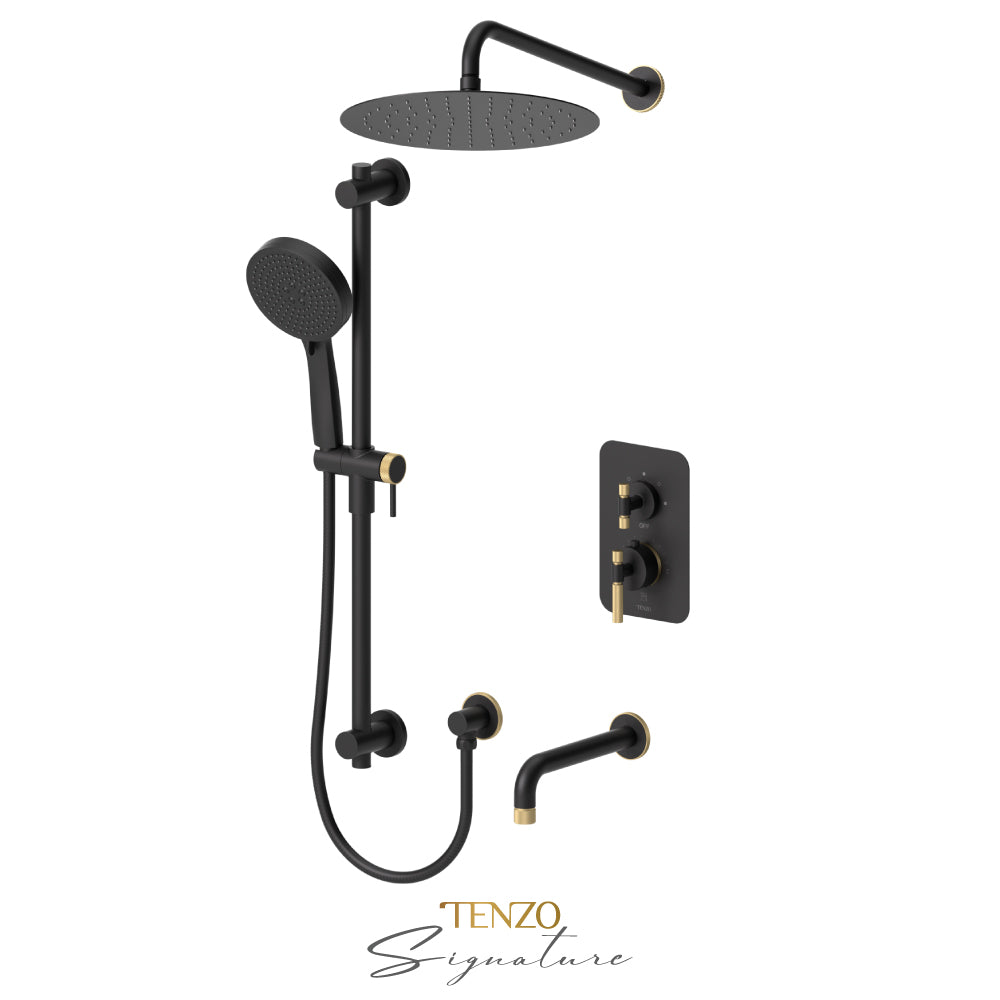

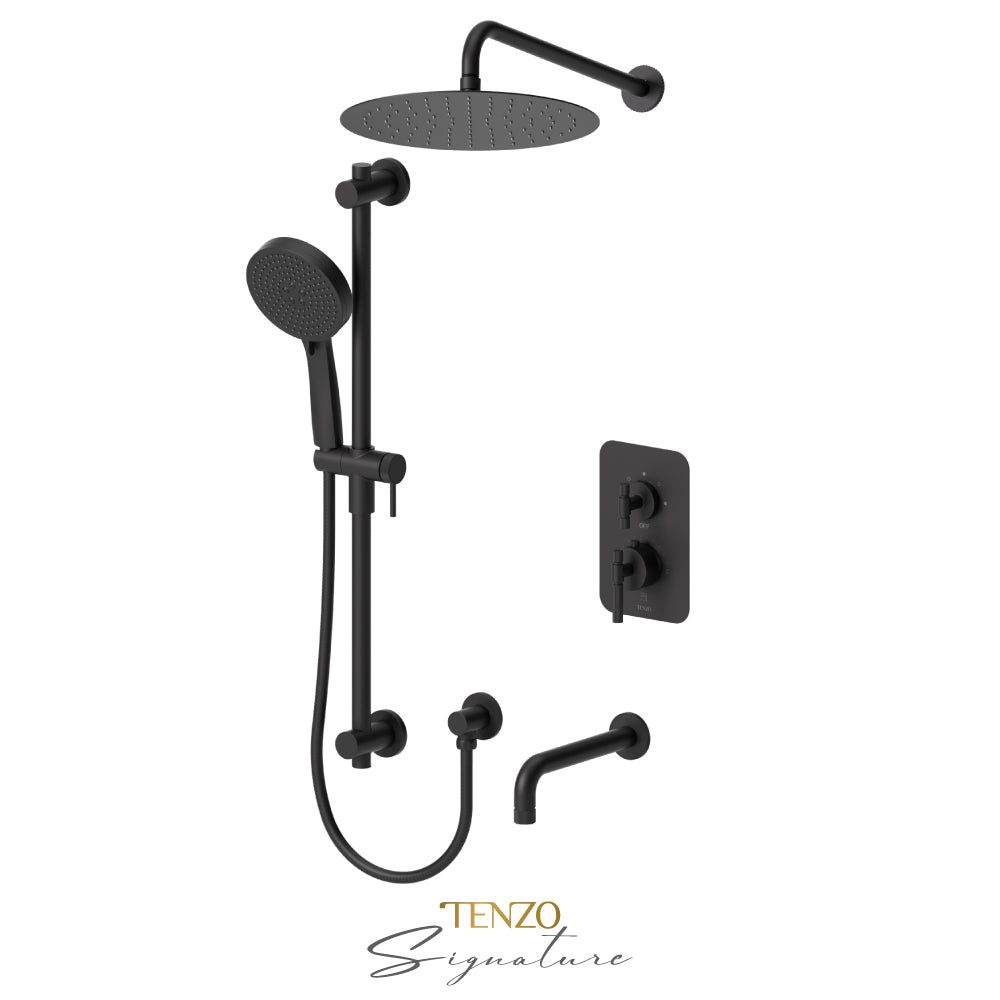

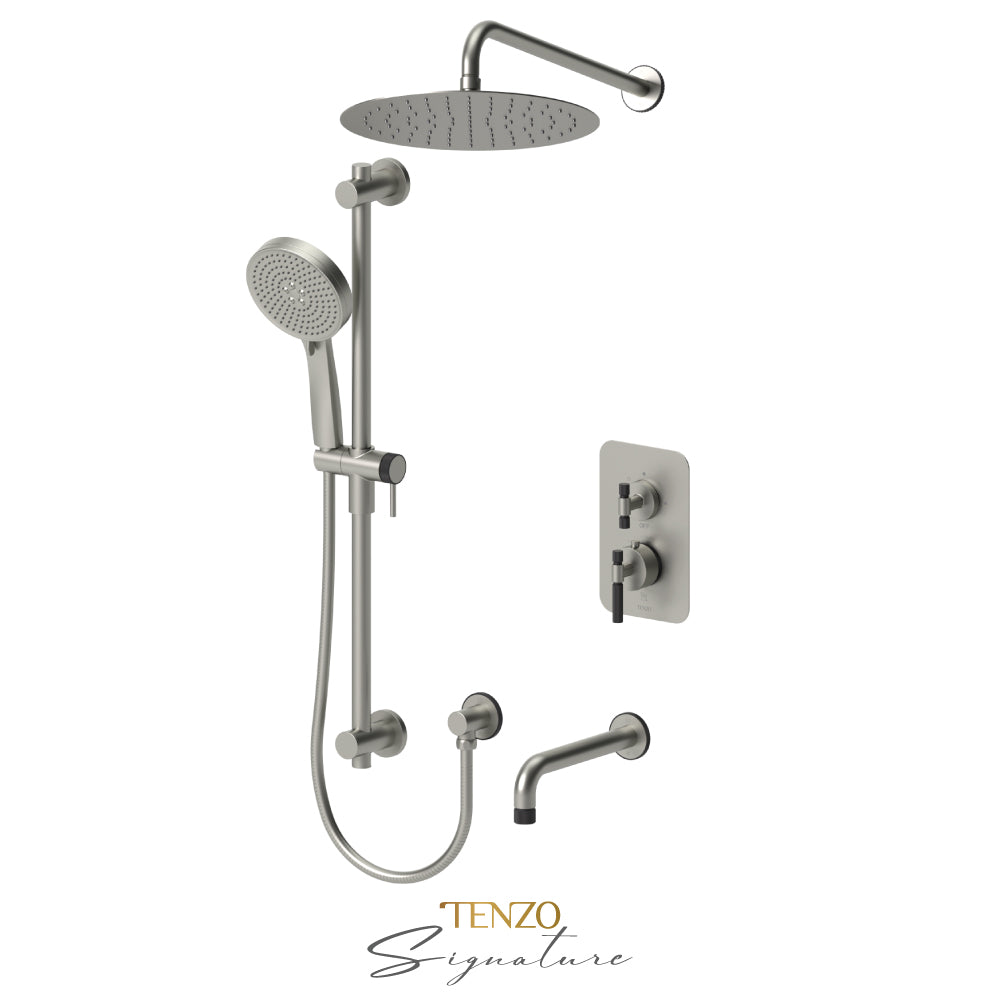

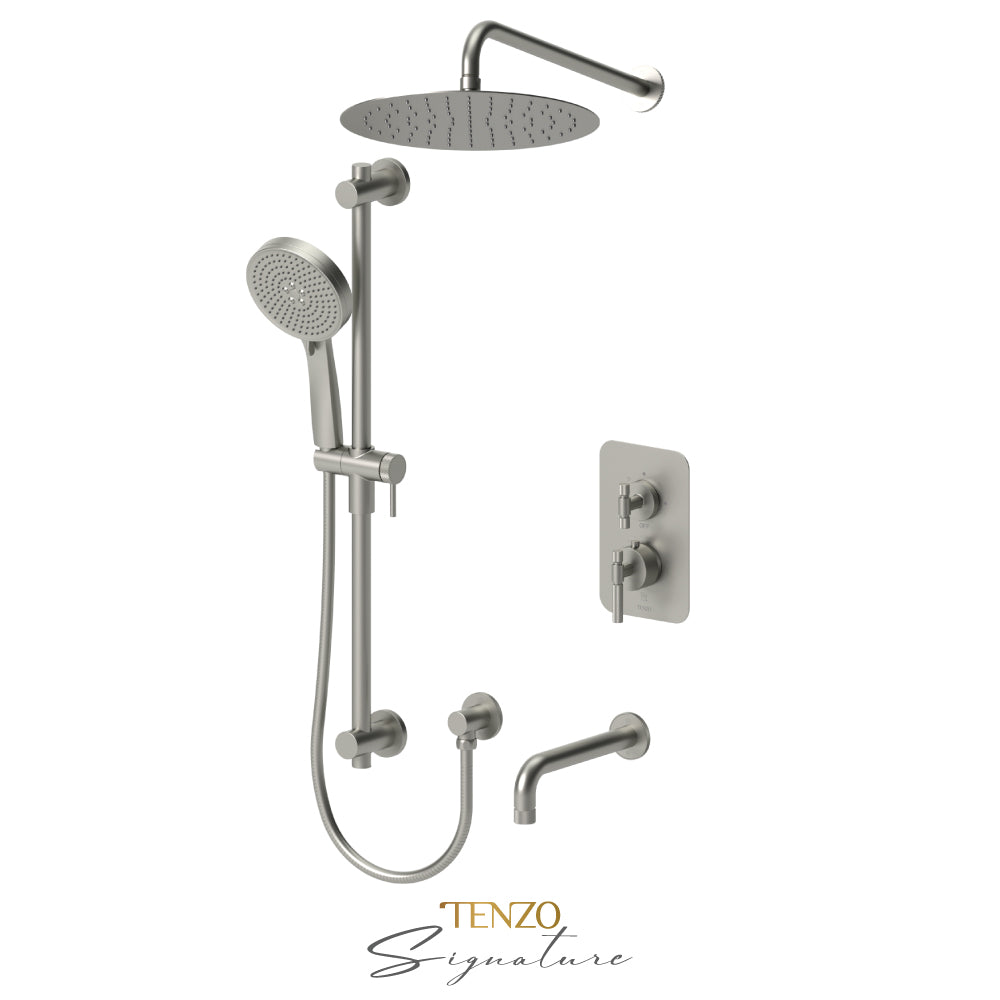

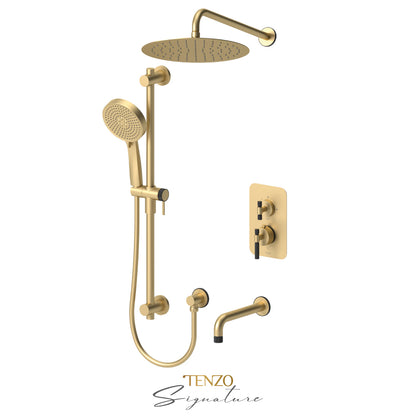

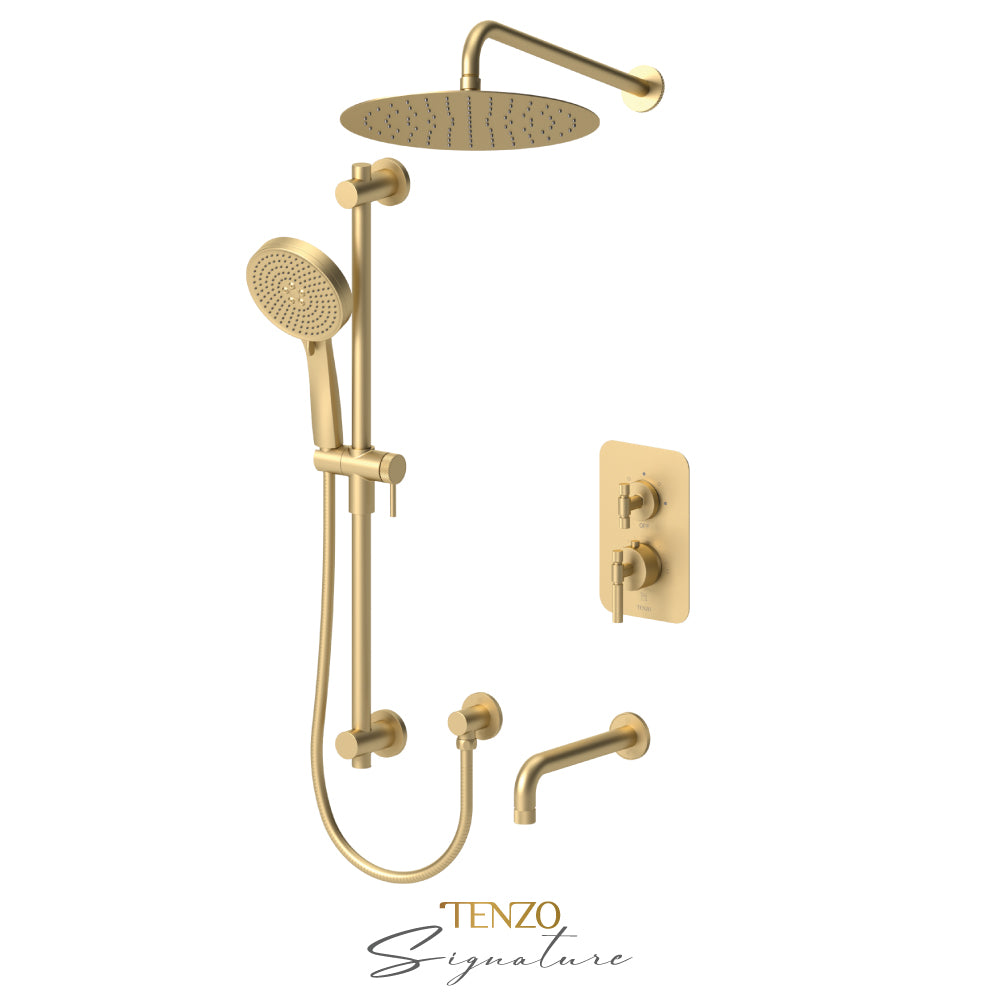

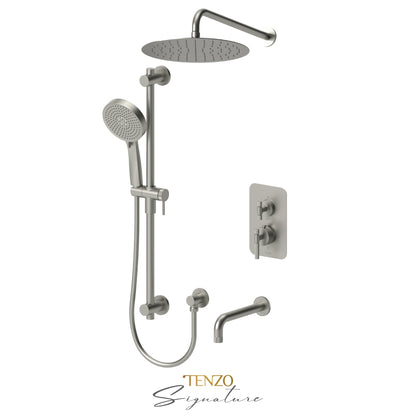

• The product photo shows the wall-arm configuration. The ceiling arm ships in the same box.
• The diverter is set up for shared zones, so outlets can run together. Tenzo builds a non-shared version to order (-CAL suffix).
• Thermostatic, not pressure balanced — it holds temperature against supply drift as well as pressure changes, and carries a higher valve flow than the pressure-balance version.
• The tub spout makes this a bath-and-shower kit. For a shower-only installation the two-function BET32-20112-F is the same kit without the spout.
• On two-tone finishes the first colour is the body, the second the knurled detailing.
• BET33-501125-C is the same kit with a coarser knurl.
• BET33-501115-F is the same kit with a 10” rain head.
• BEPB33-501125-F is the pressure-balance version of the same kit, at a lower price.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
