Baril Zip B66 Trim Only for Thermostatic Shower Kit - TRO-3302-66

Baril Zip B66 Trim Only for Thermostatic Shower Kit - TRO-3302-66

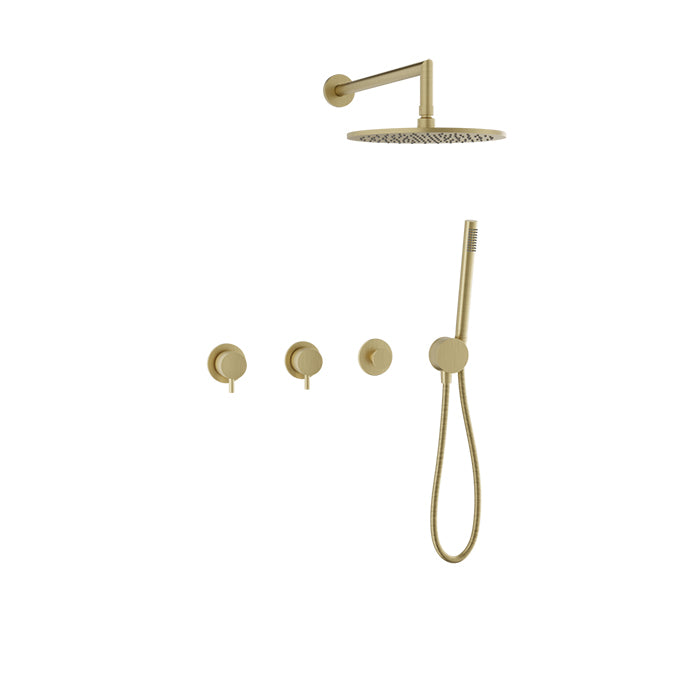

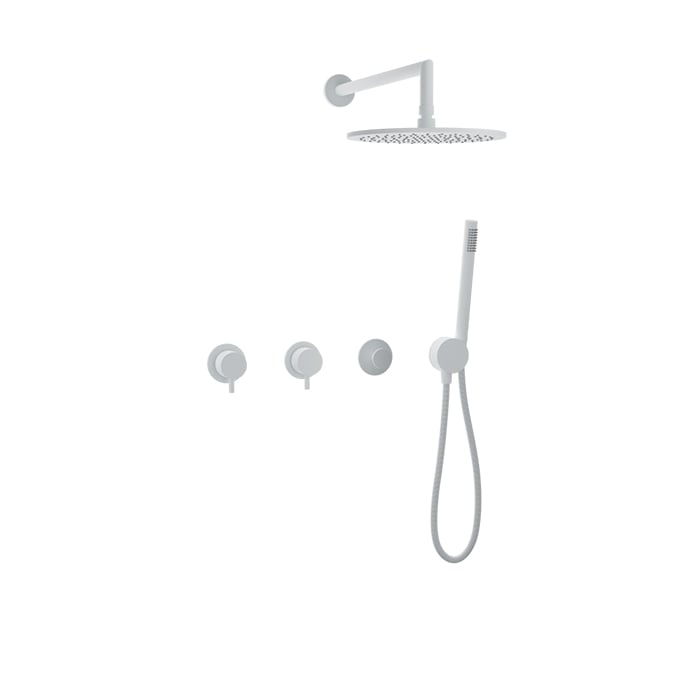

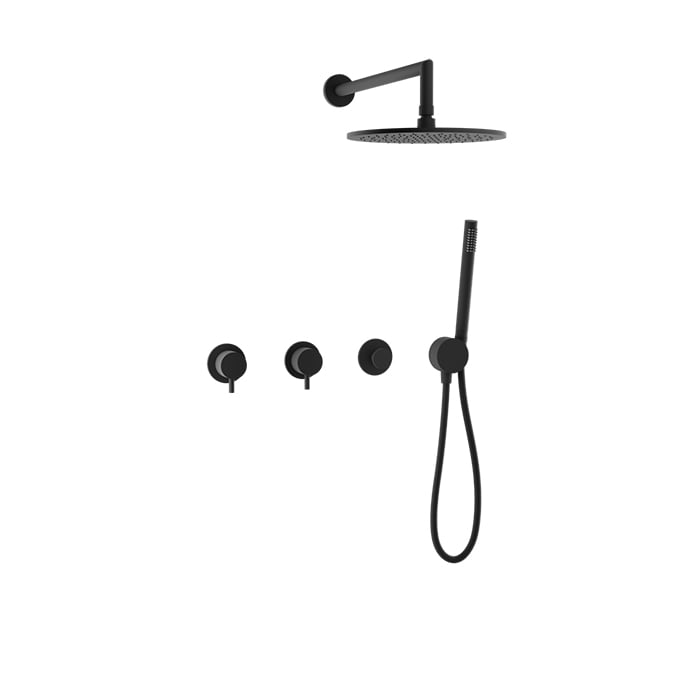

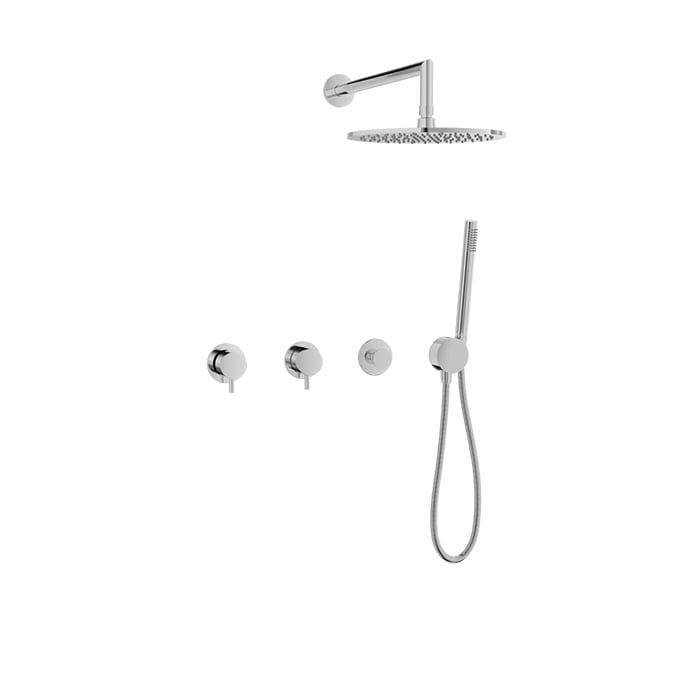

The Baril Zip B66 TRO-3302-66 trim kit combines a 10" round shower head on a 16" wall-mounted arm with a single-spray hand shower. Both rough-in valves are required separately.

Features

• 2-accessory trim kit with 2-way diversion.
• Two accessories can operate together.
• Maximum 1.75 gpm (6.6 L/min) at 80 psi per shower accessory.
• Single-spray hand shower with brass construction.
• Easy-to-clean hand-shower nozzles.
• 59" (150 cm) double-interlock flexible hose with rotating nut and two non-return valves.
• PVC hose in Matte Black; brass hose in other finishes.
• Hook integrated into the thermostatic valve trim.
• Separate thermostatic valve and two-port diverter trims.

Specifications

• Room: Bathroom
• Collection: Zip B66
• Model: TRO-3302-66
• Valve Type: Thermostatic
• Shower Functions: Two Way
• Shower Head Size: 10"
• Shower Arm: 16" wall-mounted
• Hand Shower: One spray pattern
• Rough-In Included: No

Included Components

• T66-9453-00-xx — trim for 3/4" thermostatic valve.
• T66-9649-00-xx — trim for two-port diverter with stop.
• TET-1010-01-xx — 10" round shower head.
• BRA-1612-66-xx — 16" wall-mounted shower arm.
• DSP-2604-21-xx — single-spray hand shower on wall-mounted supply elbow.

Required Separately

Order BOTH rough-ins: RVA-3453-00-B thermostatic rough-in and RVA-9562-00-B two-port diverter rough-in. Neither is included. Baril identifies the diverter rough-in family as RVA-9562-_0-B.

Ordering Options

• Non-shared trim: TRO-3302-66-xx-NS, allowing one accessory to operate at a time.
• Non-shared rough-ins: RVA-3453-00-B and RVA-9562-00-NS-B (Baril family code RVA-9562-_0-NS-B).

Certifications

• ASME A112.18.1 / CSA B125.1

Photos of some finishes may not be available.
