Baril Zip B66 Trim Only for Thermostatic Pressure-Balanced Shower Kit - TRR-4303-66

Baril Zip B66 Trim Only for Thermostatic Pressure-Balanced Shower Kit - TRR-4303-66

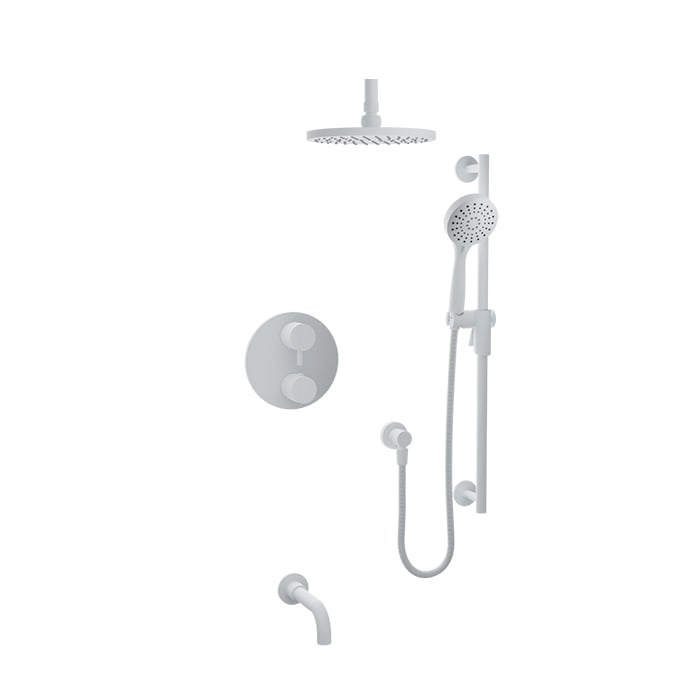

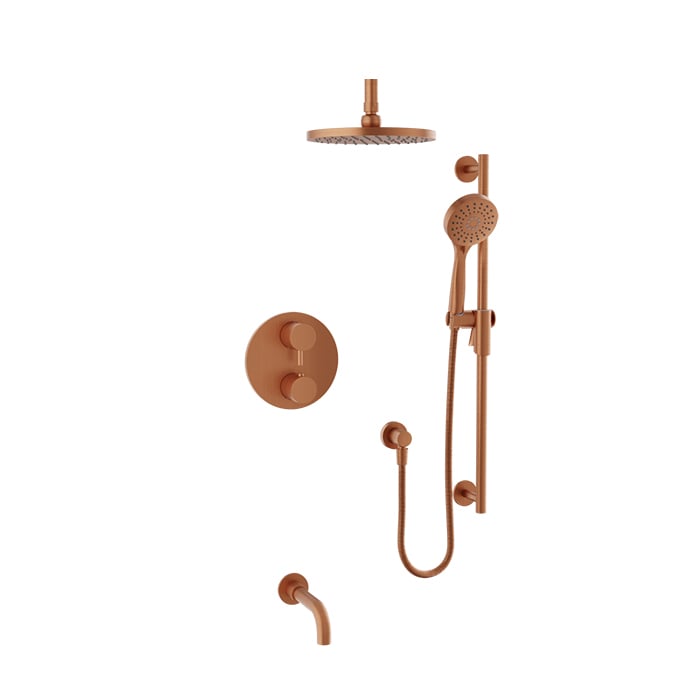

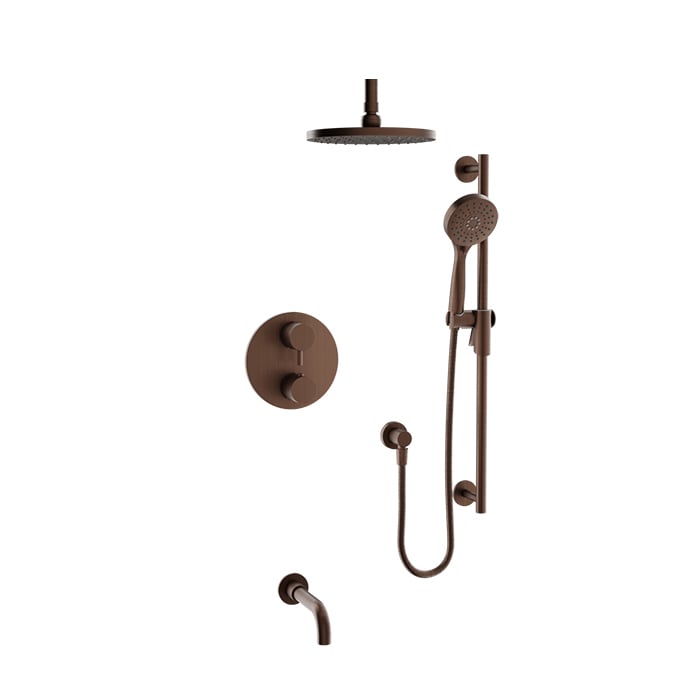

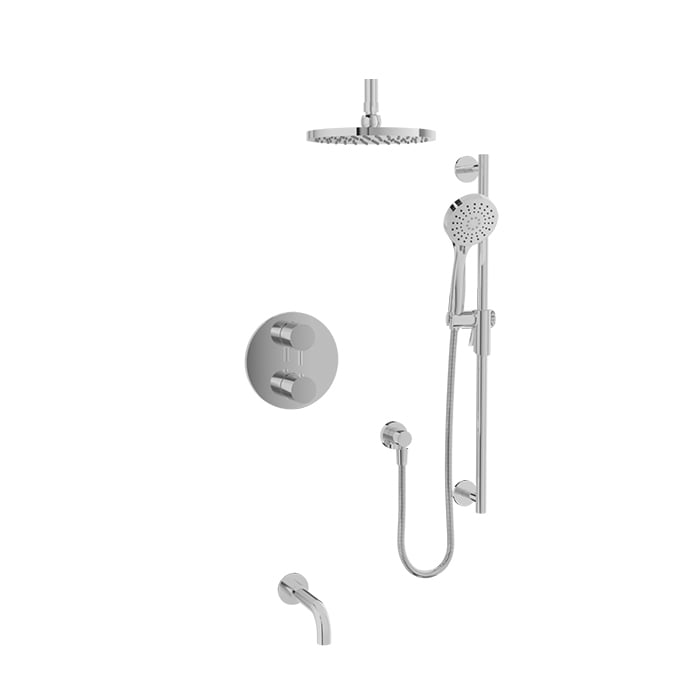

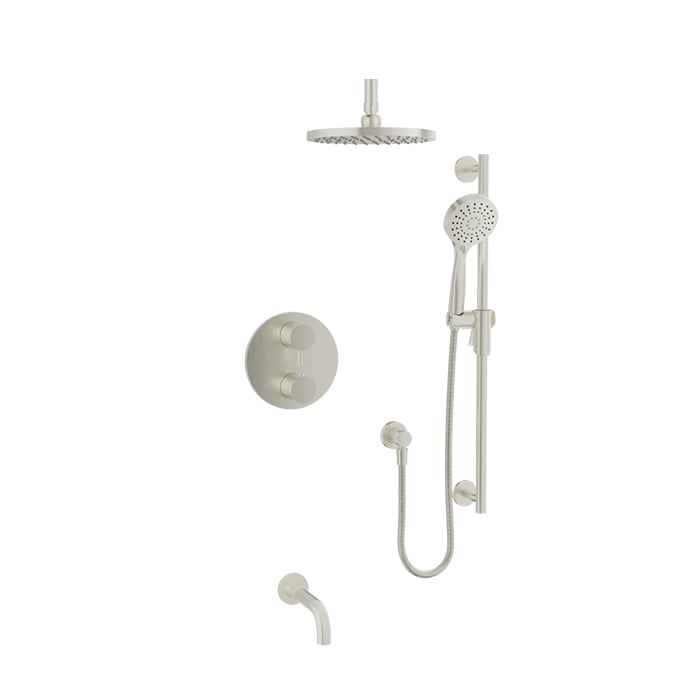

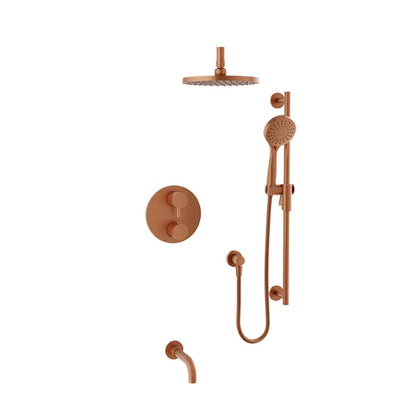

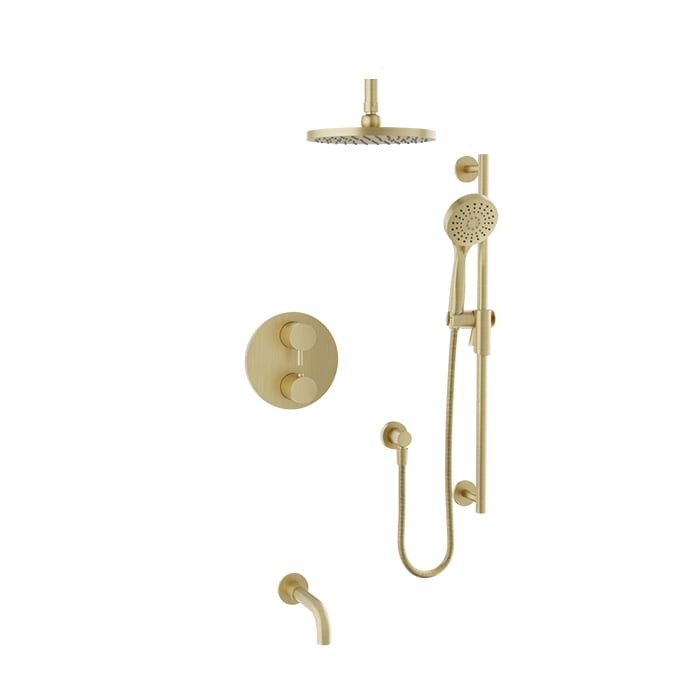

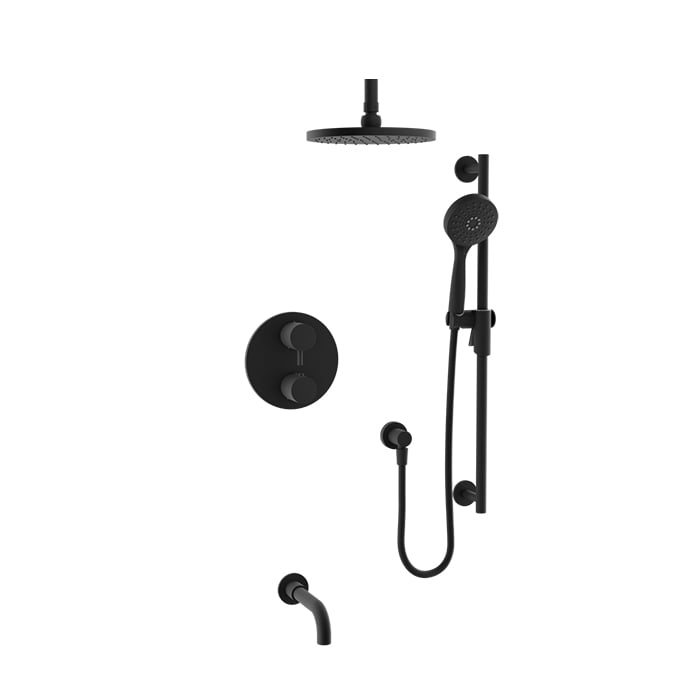

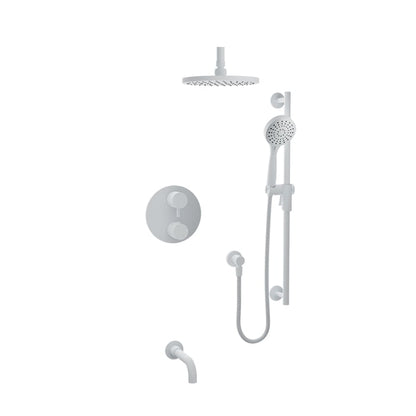

The Baril Zip B66 TRR-4303-66 trim kit combines a 8" round shower head on a 6" ceiling-mounted arm with a three-spray hand shower and tub spout. The rough-in valve is required separately.

Features

• 3-accessory trim kit with 3-way diversion.
• Two accessories can operate together.
• Maximum 1.75 gpm (6.6 L/min) at 80 psi per shower accessory.
• Three-spray hand shower with sliding bar.
• 8" round shower head with 6" ceiling-mounted arm.
• Tub spout: 7.1 gpm (27 L/min) at 60 psi.
• Tub spout without diverter.

Specifications

• Room: Bathroom
• Collection: Zip B66
• Model: TRR-4303-66
• Valve Type: Thermostatic Pressure-Balanced
• Shower Functions: Three Way
• Shower Head Size: 8"
• Shower Arm: 6", ceiling-mounted
• Hand Shower: Three spray patterns
• Rough-In Included: No

Included Components

• T66-9531-01-xx — valve trim with 3-way diverter.
• TET-0810-01-xx — 8" round shower head.
• RAC-0618-02-xx — 6" ceiling-mounted shower arm.
• DGL-2070-53-xx — three-spray hand shower, sliding bar and hose.
• RAC-9001-16-xx — wall-mount supply elbow.
• BEC-0520-37-xx — round modern tub spout without diverter.

Required Separately

Choose ONE compatible rough-in: RVA-9501-00-B (NPT / welded copper) or RVA-9501-P0-B (PEX). Only one rough-in is needed; it is not included.

Ordering Options

• Non-shared trim: TRR-4303-66-xx-NS, allowing one accessory to operate at a time.

Certifications

• ASME A112.18.1 / CSA B125.1

Photos of some finishes may not be available.
