Baril Zip B66 Trim Only for Thermostatic Pressure-Balanced Shower Kit - TRO-4217-66

Baril Zip B66 Trim Only for Thermostatic Pressure-Balanced Shower Kit - TRO-4217-66

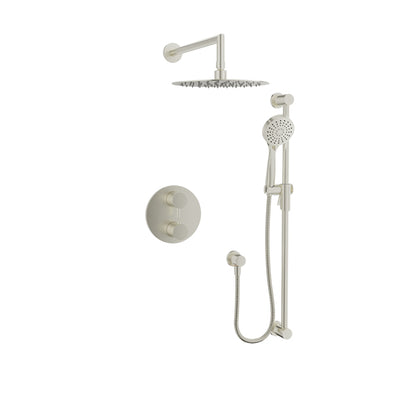

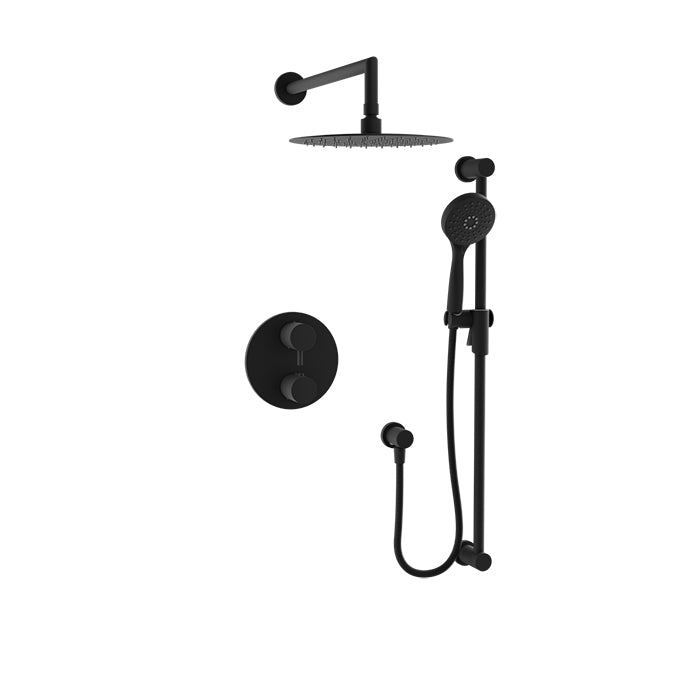

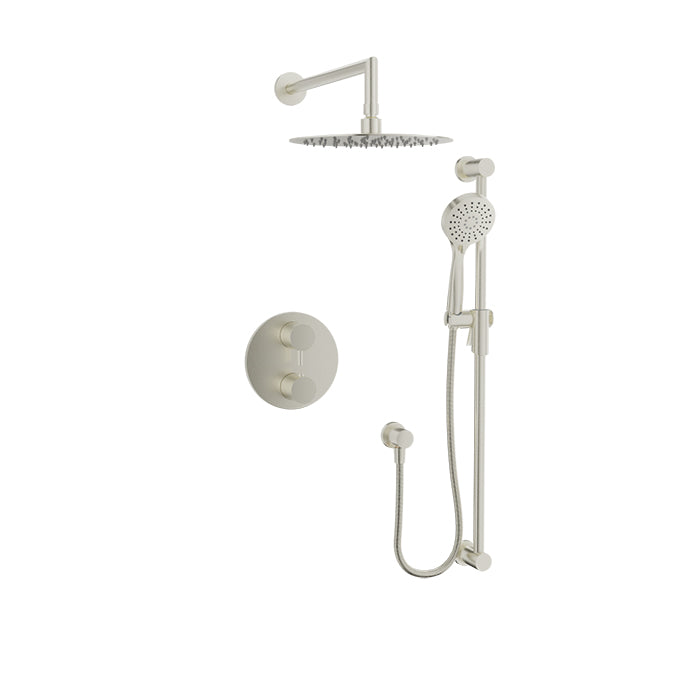

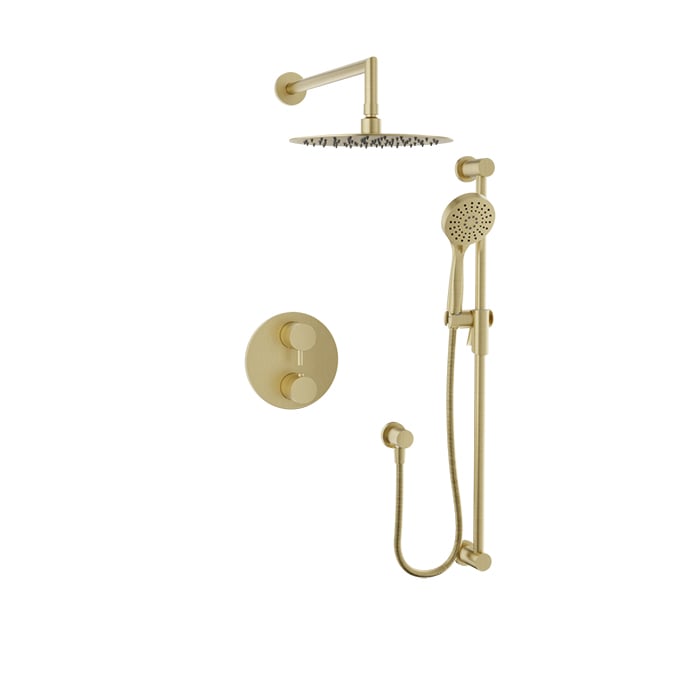

The Baril Zip B66 TRO-4217-66 trim kit combines a 10" round shower head on a 16" wall-mounted arm with a three-spray hand shower. The rough-in valve is required separately.

Features

• 2-accessory trim kit with 2-way diversion.
• Two accessories can operate together.
• Maximum 1.75 gpm (6.6 L/min) at 80 psi per shower accessory.
• Three-spray hand shower: rain, massage and combined spray.
• Easy-to-clean hand-shower nozzles.
• 4" hand-shower spray mechanism.
• Easy-to-move metal slider with patented design and built-in hook.
• 59" (150 cm) double-interlock flexible hose with rotating nut and two non-return valves.
• PVC hose in Matte Black; brass hose in other finishes.

Specifications

• Room: Bathroom
• Collection: Zip B66
• Model: TRO-4217-66
• Valve Type: Thermostatic Pressure-Balanced
• Shower Functions: Two Way
• Shower Head Size: 10"
• Shower Arm: 16" wall-mounted
• Hand Shower: Three spray patterns
• Rough-In Included: No

Included Components

• T66-9521-01-xx — valve trim with 2-way diverter.
• TET-1013-01-xx — 10" round shower head.
• BRA-1612-66-xx — 16" wall-mounted shower arm.
• DGL-2175-53-xx — three-spray hand shower, sliding bar and hose.
• RAC-9001-26-xx — wall-mount supply elbow.

Required Separately

Choose ONE compatible rough-in: RVA-9501-00-B (NPT / welded copper) or RVA-9501-P0-B (PEX). Only one rough-in is needed; it is not included.

Ordering Options

• Non-shared trim: TRO-4217-66-xx-NS, allowing one accessory to operate at a time.

Certifications

• ASME A112.18.1 / CSA B125.1

Photos of some finishes may not be available.
