Baril Zip B66 Trim Only for Pressure-Balanced Shower Kit - TRR-2915-66

Baril Zip B66 Trim Only for Pressure-Balanced Shower Kit - TRR-2915-66

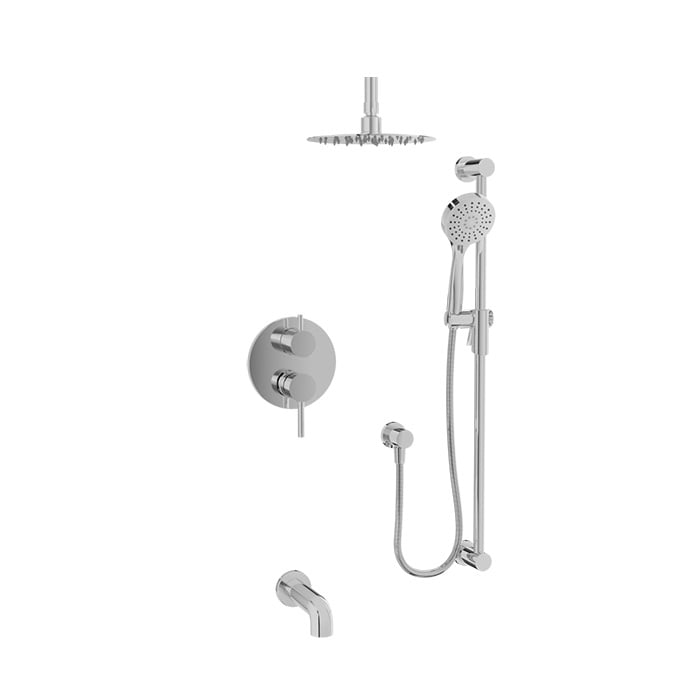

The Baril Zip B66 TRR-2915-66 trim kit combines a 8" round shower head on a 6" ceiling-mounted arm with a three-spray hand shower and tub spout. The rough-in valve is required separately.

Features

• 3-accessory trim kit with 3-way diversion.
• Two accessories can operate together.
• Maximum 1.75 gpm (6.6 L/min) at 80 psi per shower accessory.
• Three-spray hand shower with sliding bar.
• 8" round shower head with 6" ceiling-mounted arm.
• Tub spout: 5 gpm (19 L/min) at 60 psi.
• Tub spout without diverter.

Specifications

• Room: Bathroom
• Collection: Zip B66
• Model: TRR-2915-66
• Valve Type: Pressure-Balanced
• Shower Functions: Three Way
• Shower Head Size: 8"
• Shower Arm: 6", ceiling-mounted
• Hand Shower: Three spray patterns
• Rough-In Included: No

Included Components

• T66-9190-00-xx — valve trim with 3-way diverter.
• TET-0813-01-xx — 8" round shower head.
• RAC-0618-02-xx — 6" ceiling-mounted shower arm.
• DGL-2175-53-xx — three-spray hand shower, sliding bar and hose.
• RAC-9001-26-xx — wall-mount supply elbow.
• BEC-0520-73-xx — 7" round tub spout without diverter.

Required Separately

Choose ONE compatible rough-in: RVA-9191-00-B (NPT / welded copper) or RVA-9191-P0-B (PEX). Only one rough-in is needed; it is not included.

Ordering Options

• Non-shared trim: TRR-2915-66-xx-NS, allowing one accessory to operate at a time.
• Non-shared rough-in options: RVA-9191-00-NS-B or RVA-9191-P0-NS-B.

Certifications

• ASME A112.18.1 / CSA B125.1
