Baril Zip B66 Complete Thermostatic Pressure-Balanced Shower Kit - PRR-4308-66

Baril Zip B66 Complete Thermostatic Pressure-Balanced Shower Kit - PRR-4308-66

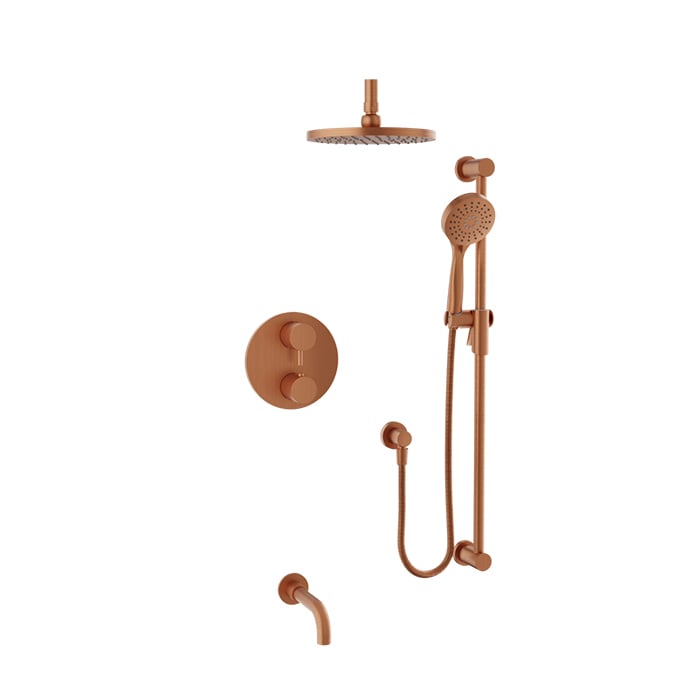

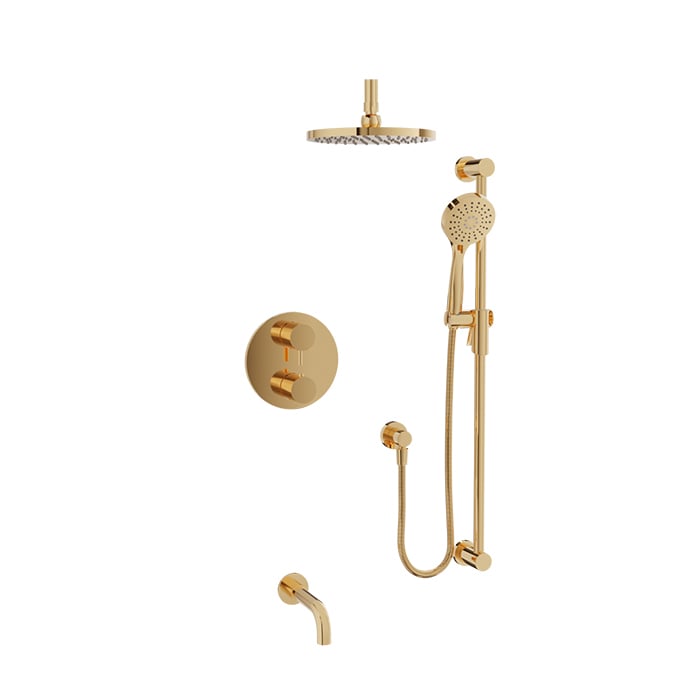

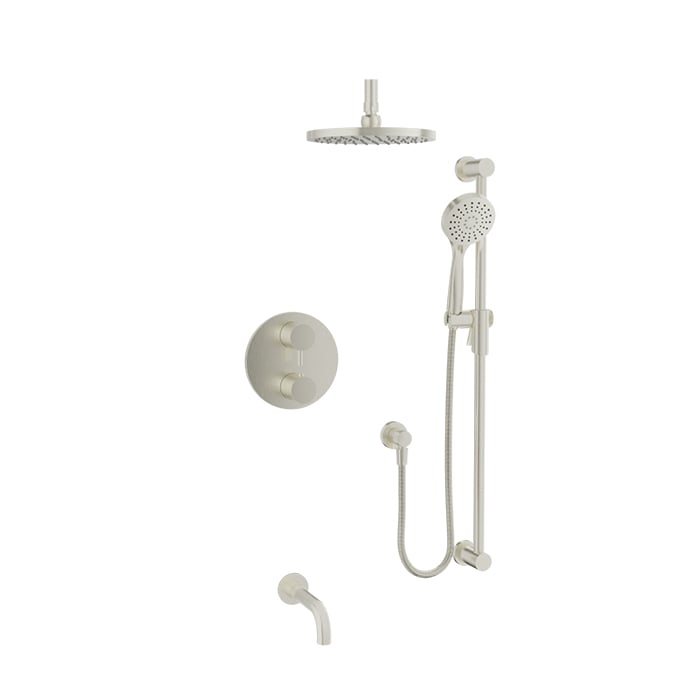

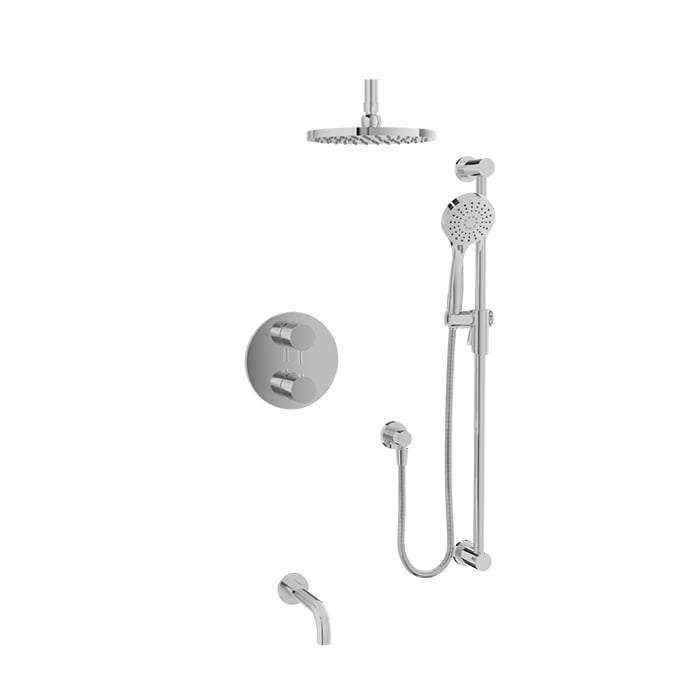

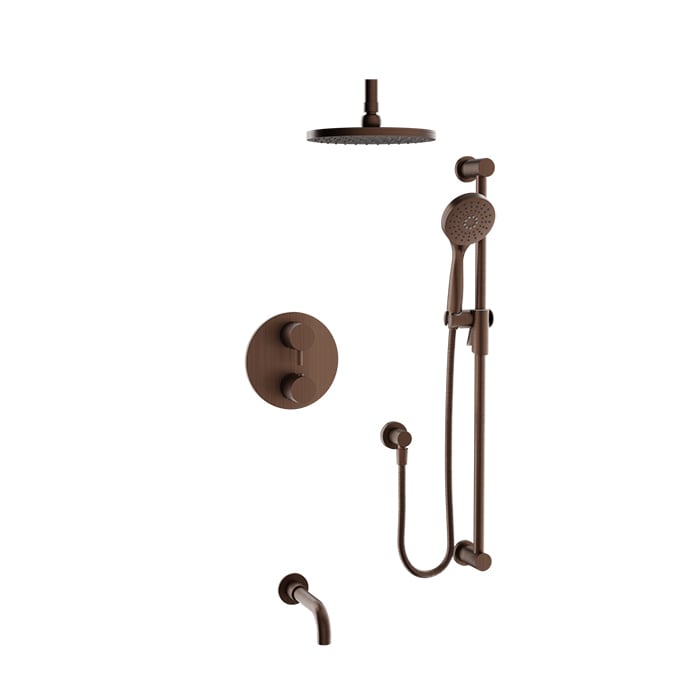

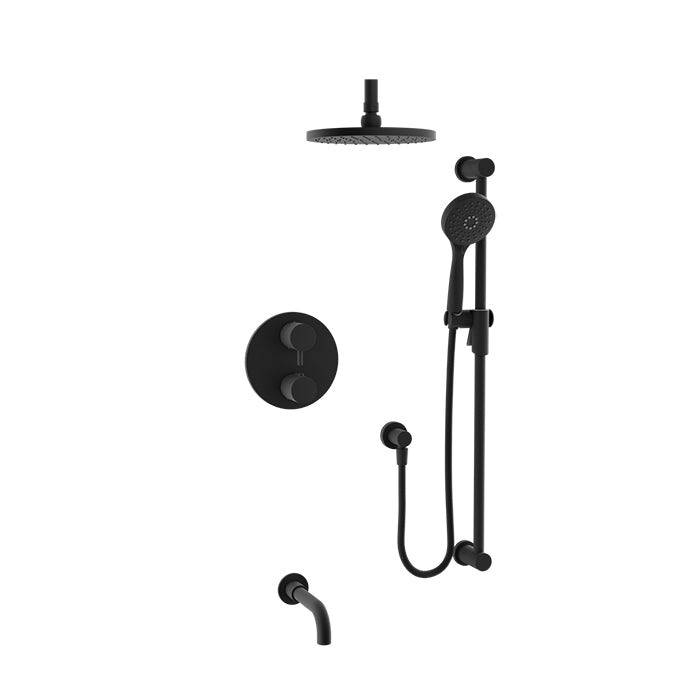

A complete thermostatic pressure-balanced shower kit with a 8" round shower head, 6" ceiling arm and three-spray hand shower, plus a tub spout. The NPT rough-in valve is included.

Features

• 3-accessory kit.
• Maximum 1.75 gpm (6.6 L/min) at 80 psi per shower accessory.
• Two accessories can operate together.
• Three-spray hand shower: rain, massage and combined spray.
• Easy-to-clean shower nozzles.
• 59" (150 cm) double-interlock hose with rotating nut and two non-return valves.
• PVC hose in Matte Black; brass hose in other finishes.
• Sliding bar with an easy-to-move metal slider and integrated hook.
• Tub spout: 7.1 gpm (27 L/min) at 60 psi.

Specifications

• Room: Bathroom
• Collection: Zip B66
• Model: PRR-4308-66
• Valve Type: Thermostatic Pressure-Balanced
• Rough-In Included: Yes — RVA-9501-00-B
• Rough-In Connections: NPT / welded copper
• Shower Functions: Three Way
• Shower Head Size: 8"
• Shower Arm: 6", ceiling-mounted
• Hand Shower: 3 spray patterns

Included Components

• RVA-9501-00-B — thermostatic pressure-balanced rough-in valve (NPT / welded copper).
• T66-9531-01-xx — thermostatic pressure-balanced trim with 3-way diverter.
• TET-0810-01-xx — 8" round shower head.
• RAC-0618-02-xx — 6" ceiling-mounted shower arm.
• DGL-2175-53-xx — three-spray hand shower, sliding bar and hose.
• RAC-9001-16-xx — wall-mount supply elbow.
• BEC-0520-37-xx — 7" round tub spout without diverter.

Ordering Options

• Separate-order option: TRR-4308-66-xx trim only, paired with ONE compatible rough-in: RVA-9501-00-B (NPT / welded copper) or RVA-9501-P0-B (PEX). These are alternatives for ordering the components separately; an additional rough-in is not required for this complete kit.
• Non-shared kit: PRR-4308-66-xx-NS; non-shared trim only: TRR-4308-66-xx-NS. One accessory operates at a time.

Certifications

• ASME A112.18.1 / CSA B125.1

Photos of some finishes may not be available.
