Baril Victoire B74 Complete Thermostatic Shower Kit - PRR-3421-74

Baril Victoire B74 Complete Thermostatic Shower Kit - PRR-3421-74

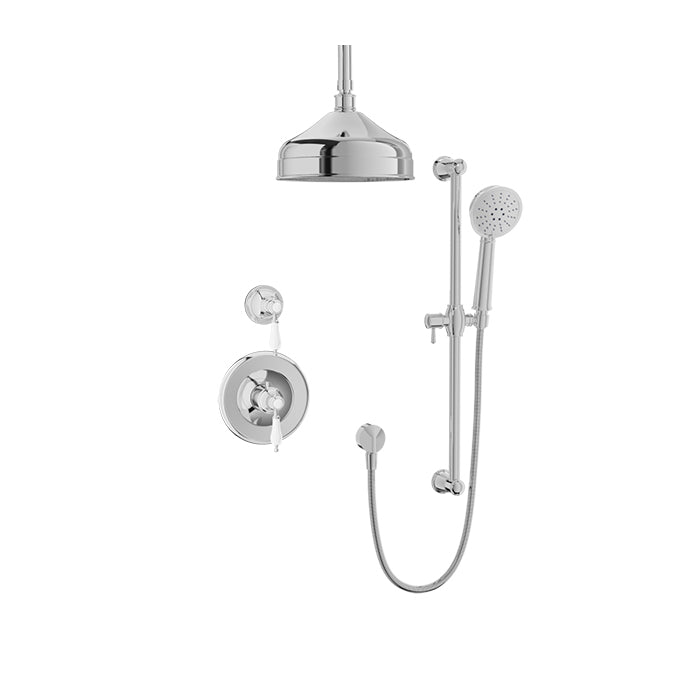

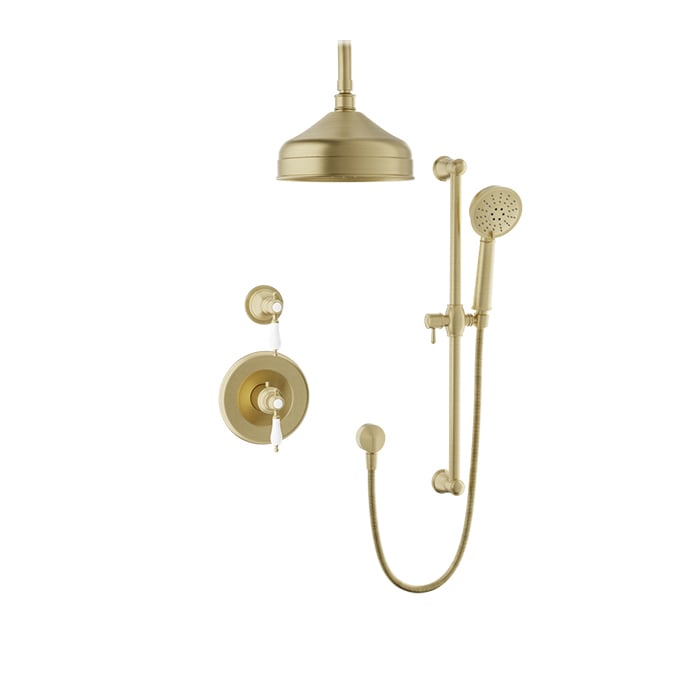

The Baril Victoire B74 PRR-3421-74 is a complete thermostatic shower kit featuring an 8” sunflower shower head, a 6” ceiling-mounted shower arm, and a 3-spray hand shower on a sliding bar. Thermostatic and diverter rough-ins are included, and the standard configuration allows both shower accessories to operate simultaneously.

Features

• Part of the Baril Victoire B74 Collection
• Complete thermostatic shower kit with rough-ins and trims included
• 2-accessory configuration
• 8” sunflower shower head
• 6” ceiling-mounted shower arm
• 3-spray hand shower with sliding shower bar
• Wall-mount supply elbow
• Both shower accessories can operate simultaneously in the standard configuration
• Maximum flow rate of 2 GPM (7.6 L/min) at 80 PSI per accessory
• NS non-shared configuration available for one-accessory-at-a-time operation

Specifications

• Room: Bathroom
• Product Type: Complete Thermostatic Shower Kit
• Collection: Victoire B74
• Installation Type: Ceiling-Mount Shower Head
• Valve Type: Thermostatic
• Number of Accessories: 2
• Shower Head Size: 8”
• Shower Head Style: Sunflower
• Shower Arm Length: 6”
• Shower Arm Installation: Ceiling Mount
• Hand Shower Spray Functions: 3
• Maximum Flow Rate: 2 GPM / 7.6 L/min at 80 PSI per accessory
• Shared Functions: Yes, Standard Configuration
• Rough-Ins Included: Yes
• Model: PRR-3421-74

Included Components

• RVA-3404-00-B – 3/4” Thermostatic Rough-In, Female NPT
• T74-9404-00-xx – Trim for 3/4” Thermostatic Valve
• RVA-9562-00-B – 2-Port Diverter Rough-In, NPT / Welded Copper
• T74-9641-00-xx – Trim for 2-Port Diverter with Stop
• TET-0812-03-xx – 8” sunflower shower head
• RAC-0618-02-xx – 6” Ceiling-Mounted Shower Arm
• DGL-2160-03-xx – 3-Spray Sliding Shower Bar
• RAC-9001-13-xx – Wall-Mount Supply Elbow

Separate Ordering Options

The trim and rough-in valves can also be ordered separately as an alternative to purchasing this complete kit.

• Trim only: TRR-3421-74-xx
• Rough-in valves: RVA-3404-00-B and RVA-9562-_0-B
• Non-shared (NS) trim only: TRR-3421-74-xx-NS
• Non-shared (NS) rough-in valves: RVA-3404-00-B and RVA-9562-_0-NS-B

Eco-Friendly Options

• PRR-3421-74-xx-NS – Non-shared configuration allowing one shower accessory to operate at a time; maximum flow rate of 1.75 GPM / 6.6 L/min at 80 PSI.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1

Shop the Baril Victoire B74 Complete Thermostatic Shower Kit - PRR-3421-74 at e-unoia.com
