Baril Sens B45 Single Lever Wall-Mounted Lavatory Faucet, Drain Not Included - B45-8100-04L

Baril Sens B45 Single Lever Wall-Mounted Lavatory Faucet, Drain Not Included - B45-8100-04L

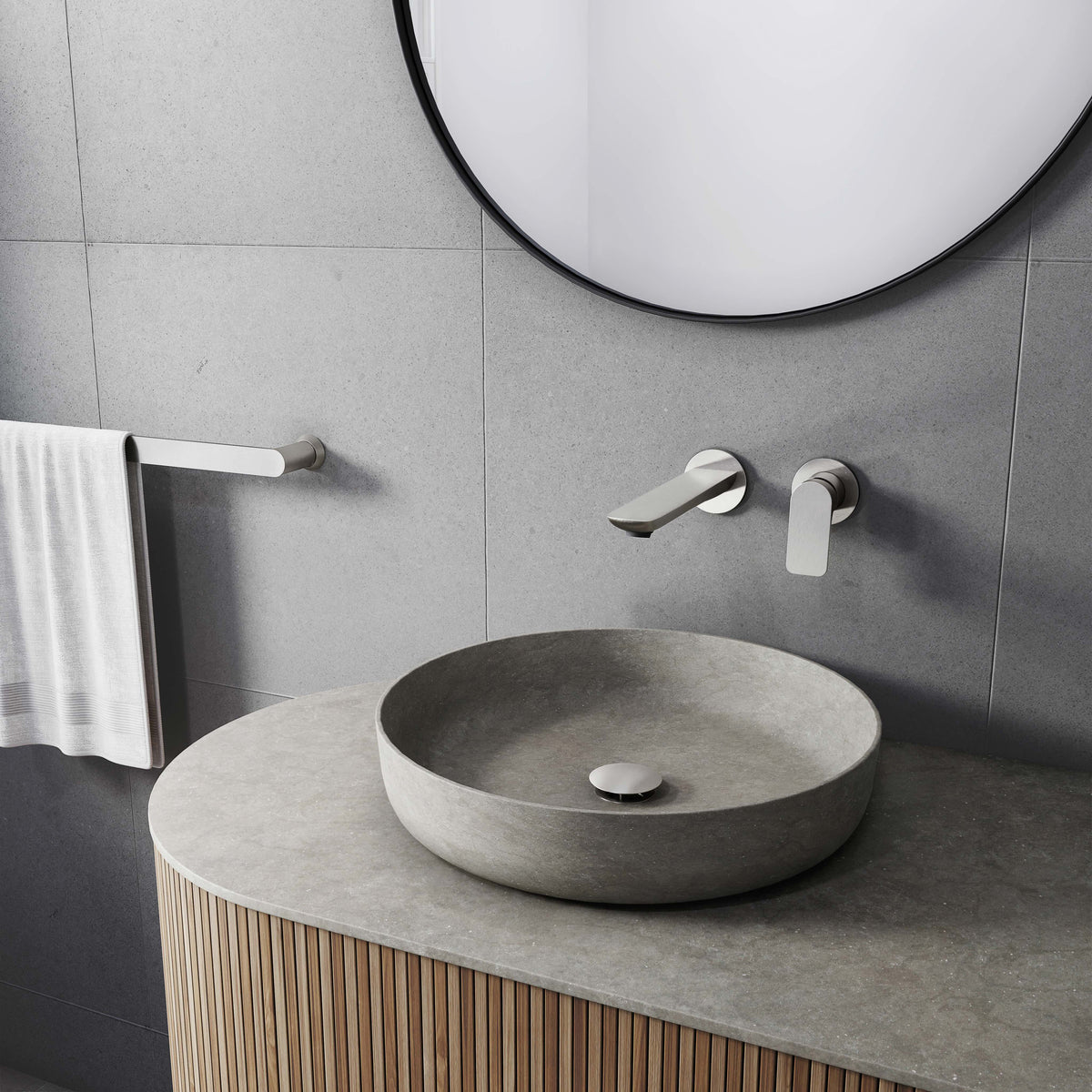

The Baril Sens B45 B45-8100-04L pairs single-lever control with a wall-mounted slip-on spout and an adjustable silicone aerator. The one-piece rough-in is included; the lavatory drain is ordered separately.

Features

• Maximum 1.2 gpm (4.5 L/min) at 60 psi.
• Easy-to-clean adjustable silicone aerator.
• Slip-on spout simplifies final adjustment.
• One-piece rough-in for easier installation.
• Large depth adjustment range.
• Compatible with optional Touchless Sensor ELE-2001-01-xx.

Specifications

• Room: Bathroom
• Collection: Sens B45
• Model: B45-8100-04L
• Installation: Wall-mounted, two-hole
• Handle: Single lever
• Spout Reach: 7-5/8" (193 mm)
• Overall Projection: 8-5/8" (219 mm)
• Hole Centres: 4" (102 mm)
• Depth Adjustment: 1-5/8"–2-5/8" (42–67 mm)
• Rough-In Included: Yes
• Drain Included: No

Included Components

• Single-lever faucet trim and slip-on spout.
• ROU-8100-04-B — one-piece rough-in.

Required Separately

Order a compatible lavatory drain separately.

Ordering Options

The trim and rough-in can also be ordered separately: T45-8100-04L-xx trim and ROU-8100-04-B rough-in. The rough-in is already included with this complete faucet. Water-saving versions: B45-8100-04L-xx-050 at 0.5 gpm (1.9 L/min), or B45-8100-04L-xx-100 at 1.0 gpm (3.7 L/min).

Certifications

• ASME A112.18.1 / CSA B125.1
• NSF / ANSI 61
