Baril Sens B45 Complete Thermostatic Pressure-Balanced Shower Kit - PRR-4309-45

Baril Sens B45 Complete Thermostatic Pressure-Balanced Shower Kit - PRR-4309-45

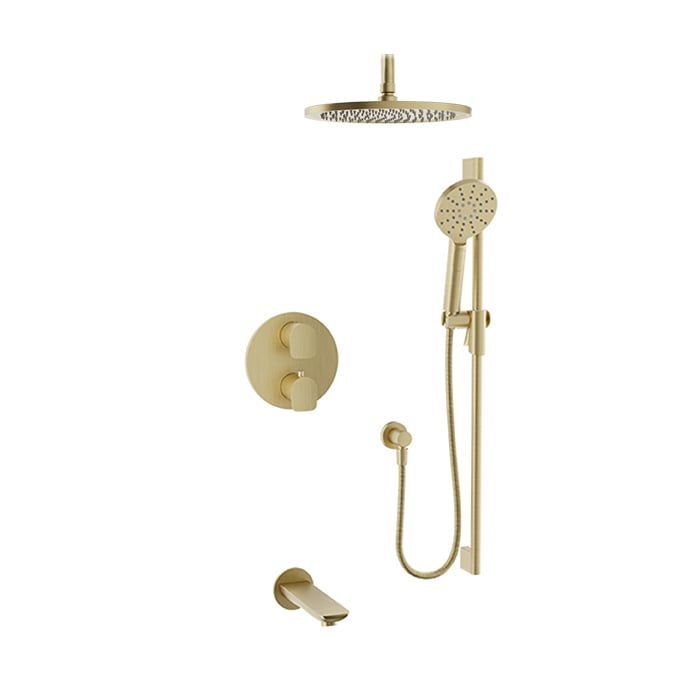

The Baril Sens B45 PRR-4309-45 complete kit combines a 10" round shower head on a 6" ceiling arm with a three-spray hand shower and tub spout. The rough-in valve is included.

Features

• Three-accessory complete kit with a three-way diverter.
• Two accessories can operate together.
• Tub spout: 7.1 gpm (27 L/min) at 60 psi.
• Maximum 1.75 gpm (6.6 L/min) per shower accessory at 80 psi.
• Three-spray push-button hand shower: rain, mist and combined spray.
• Easy-to-clean shower nozzles.
• Sliding bar with adjustable metal slider and built-in hook.
• 59" (150 cm) double-interlock flexible hose with rotating nut and two non-return valves.
• PVC hose in Matte Black; brass hose in other finishes.
• Thin brass valve trim plate; cartridges supplied with the trim.
• Tub spout with slip-on installation and laminar stream.

Specifications

• Room: Bathroom
• Collection: Sens B45
• Model: PRR-4309-45
• Product Type: Complete shower kit
• Valve Type: Thermostatic Pressure-Balanced
• Shower Head Size: 10"
• Shower Arm: 6", ceiling-mounted
• Diverter: Three-way, shared operation
• Hand Shower: Three spray patterns
• Rough-In Included: Yes

Included Components

• RVA-9501-00-B — thermostatic pressure-balanced rough-in valve.
• T45-9531-01-xx — thermostatic pressure-balanced valve trim.
• BEC-0520-45-xx — Sens tub spout without diverter.
• TET-1050-01-xx — 10" round shower head.
• RAC-0618-02-xx — 6" ceiling-mounted shower arm.
• DGL-2580-53-xx — three-spray hand shower, sliding bar and hose.
• RAC-9001-16-xx — wall-mounted supply elbow.

Ordering Options

The trim and rough-in can also be ordered separately: TRR-4309-45-xx trim and RVA-9501-00-B or RVA-9501-P0-B rough-in. The complete kit includes RVA-9501-00-B. Non-shared kit: PRR-4309-45-xx-NS; non-shared trim: TRR-4309-45-xx-NS. One accessory operates at a time.

Certifications

• ASME A112.18.1 / CSA B125.1

Photos of some finishes may not be available.
