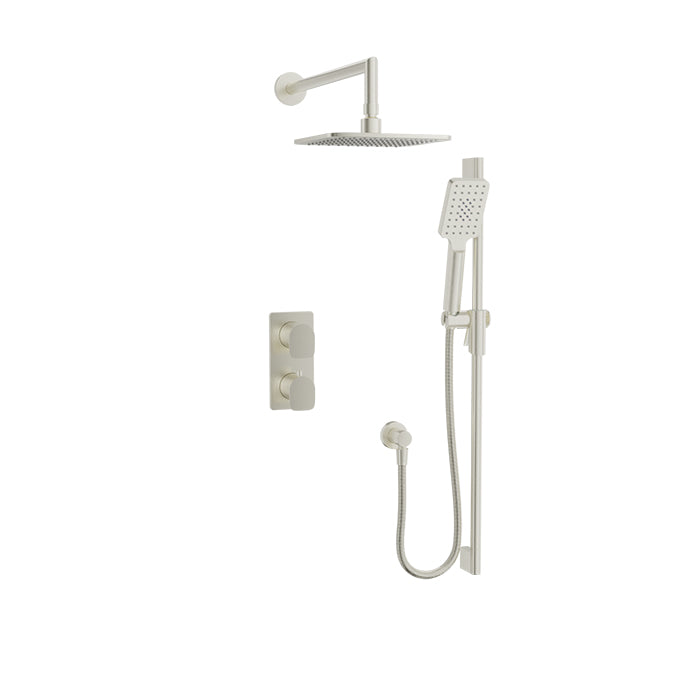

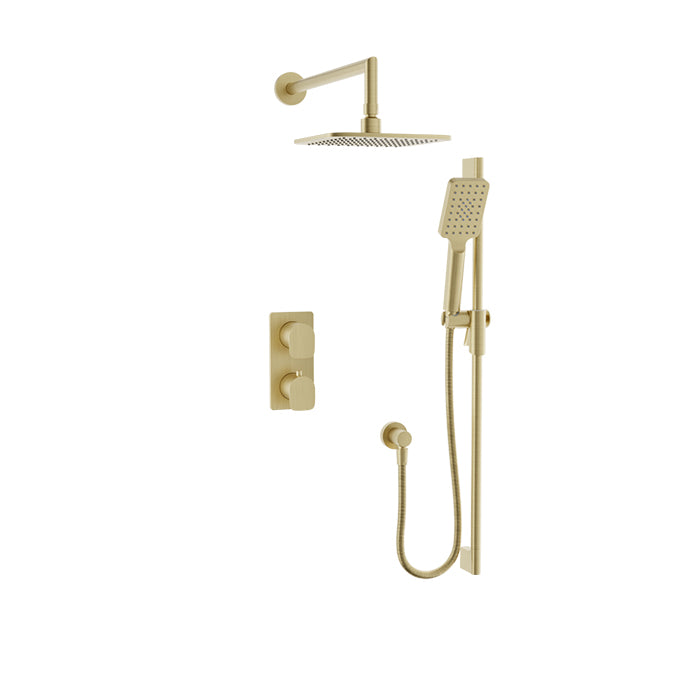

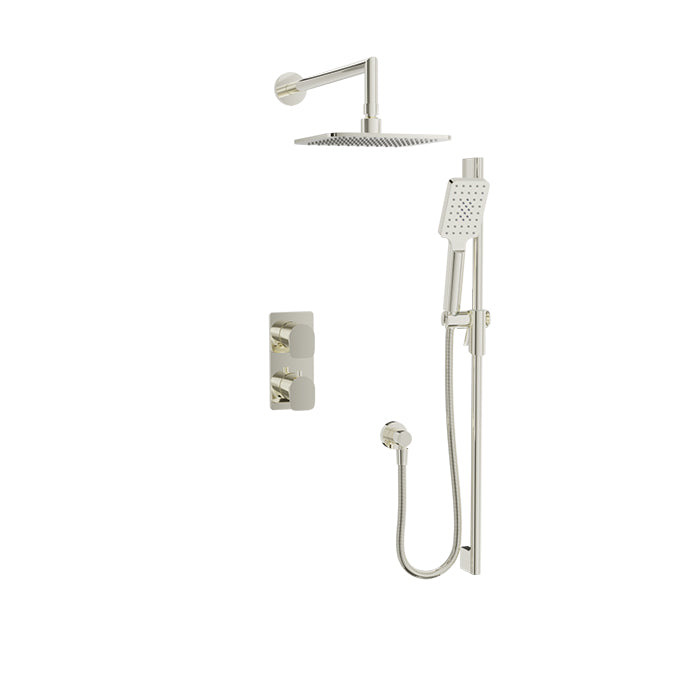

Baril Petite B04 Complete Thermostatic Pressure-Balanced Shower Kit - PRO-4206-04

Baril Petite B04 Complete Thermostatic Pressure-Balanced Shower Kit – PRO-4206-04

Complete thermostatic pressure-balanced shower kit with rain shower head, hand shower system, and modern Petite B04 styling.

Features

• Photos of some finishes may not be available
• Complete 2-accessory thermostatic pressure-balanced shower kit
• Includes 8” rounded square shower head and 3-spray hand shower
• Two accessories can operate simultaneously in the standard shared-port configuration
• Thermostatic pressure-balanced valve helps maintain stable water temperature
• Includes trim with integrated 2-way diverter
• Sliding shower bar allows adjustable hand shower positioning
• Includes wall-mount supply elbow and 16” shower arm
• Rough-in valve and trim can also be ordered separately
• Standard trim-only code: TRO-4206-04-XX
• Compatible rough-in valve: RVA-9501-00-B or RVA-9501-P0-B
• NS (non-shared) option allows one accessory to operate at a time
• NS kit code: PRO-4206-04-XX-NS
• NS trim-only code: TRO-4206-04-XX-NS
• Modern Petite B04 styling for contemporary bathroom spaces

Included Components

• RVA-9501-00-B — 1-2-3-way TP rough-in valve (NPT / welded copper)
• T04-9521-01-XX — Trim for type TP shower valve with 2-way diverter
• TET-0815-01-XX — 8” rounded square shower head
• BRA-1612-66-XX — 16” shower arm
• DGL-2584-53-XX — 3-spray sliding shower bar
• RAC-9001-16-XX — Wall-mount supply elbow

Flow Rates

• Standard shared configuration: Max 2.0 GPM (7.6 L/min) @ 80 PSI per accessory
• NS configuration: Max 1.75 GPM (6.6 L/min) @ 80 PSI

Specifications

• Room: Bath
• Product Type: Thermostatic & Pressure-Balanced Shower Kit
• Style: Modern / Contemporary
• Collection: Petite B04
• Mounting Location: Wall
• Installation Type: Wall Mounted
• Shower Configuration: 2 Accessories
• Shower Head Shape: Rounded Square
• Shower Head Size: 8”
• Spray Functions: 3-Spray Hand Shower
• Diverter Type: 2-Way Diverter
• Rough-In Valve Included: Yes

Certifications & Warranty

• Limited lifetime warranty
